KY-PC-VE Industrial Metal Numeric Keypad With Trackball Mouse

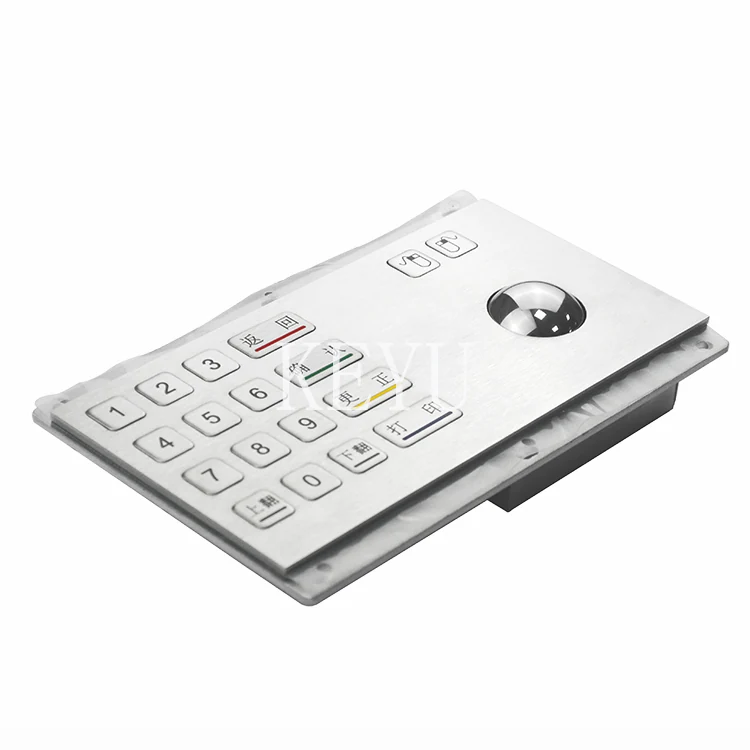

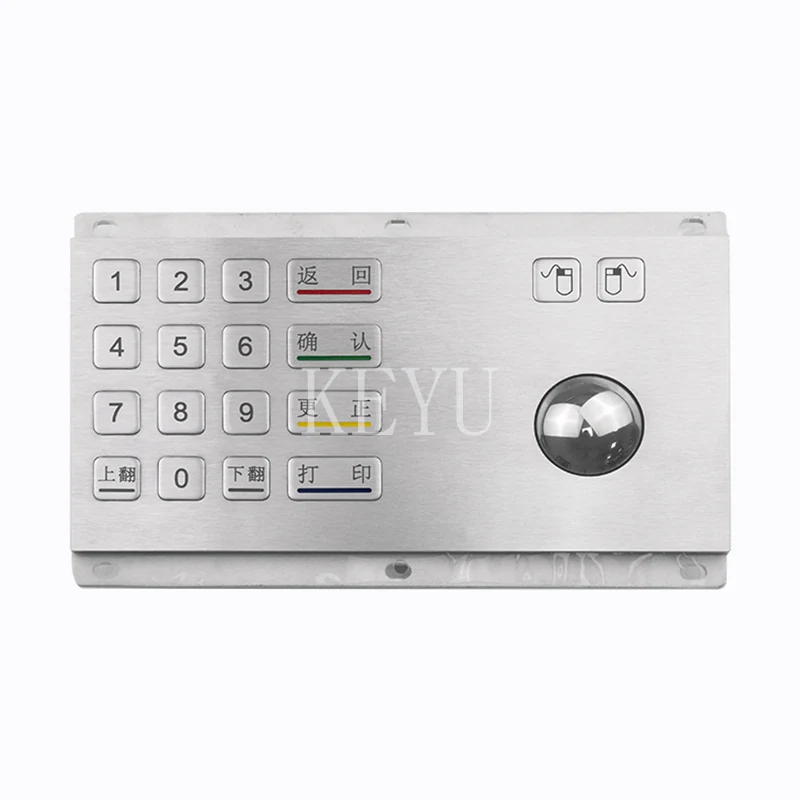

KY-PC-VE combines a numeric keypad and a 38mm stainless steel mechanical trackball on one vandal proof SUS304 brushed stainless panel.
Product Overview
KY-PC-VE combines a numeric keypad and a 38mm stainless steel mechanical trackball on one vandal proof SUS304 brushed stainless panel. A 3mm aluminum alloy base plate carries the assembly and keyboard layouts of various countries can be built to customer needs. It is used on check in kiosks medical kiosks industrial control platforms and gaming machines.
- Numeric entry and a 38mm trackball share one panel and one cable
- 3mm aluminum alloy base plate stiffens the assembly against prying
- Light 1.2N+/-0.1N contact force suits long shift data entry
- Keyboard layouts of various countries customized to customer needs
- Working current under 100mA leaves budget for other USB devices
- Rear mounting or front mounting for either fascia style
Application Scenarios
- Check in kiosks at airports and hotels
- Medical kiosks in clinics
- Industrial control platforms
- Gaming machines
- Boarding kiosks
- Info kiosks in public buildings
Who It Is For
- Check in and boarding kiosk manufacturers
- Medical kiosk builders
- Gaming machine OEMs
- Industrial control platform integrators
Problems It Solves
- Separate keypad and mouse need two cutouts and two ports
- Thin panels flex and allow prying at public terminals
- Heavy keys slow repeated numeric entry
- One layout cannot serve multiple export markets
Technical Features
- 38mm stainless steel mechanical trackball integrated with the keypad
- Key size 14*14*2.0/14*28*2.0mm with 0.45mm key trip
- Key strength 1.2N+/-0.1N contact force
- Power supply 5V plus or minus 5 percent with current under 100mA
- Durability above 2 million operations
- Net weight 0.8Kg and gross weight 0.9Kg
- Operation temperature -10 to 50 degrees C and storage -25 to 85 degrees C
Specifications
| Trackball | 38mm stainless steel mechanical |
|---|---|
| Power supply | 5V±5% |
| Working current | <100mA |
| Durability | >2 million |
| Product interface | USB / PS/2 |
| Key size | 14*14*2.0/14*28*2.0mm |
| Key Trip | 0.45mm |
| Key strength | 1.2N+/-0.1N（Contact force） |
| Base plate | 3mm aluminum alloy |
| Net weight | 0.8Kg |
| Gross weight | 0.9Kg |
| Storage Temperature | -25℃~85℃ |
Materials
- SUS304 brushed stainless panel
- SUS304 stainless steel buttons
- 3mm aluminum alloy base plate
- Stainless steel trackball
Manufacturing Process
- SUS304 panel forming and brushing
- CNC machining of the 38mm ball seat
- 3mm aluminum alloy base plate machining
- Key aperture punching for 14*14 and 14*28 keys
- Trackball and keypad assembly onto the base plate
- USB and PS/2 interface test
Quality Control
- Contact force verified at 1.2N+/-0.1N
- Trackball roll and cursor tracking test
- Base plate flatness and thickness check at 3mm
- Weight confirmed against 0.8Kg net
- Life sampling above 2 million operations
Customisation Options
- Keyboard layout of various countries to customer needs
- USB or PS/2 interface build
- Rear or front mounting configuration
- Key legend etching content
- Panel fixing pattern for the kiosk fascia
How It Compares
| Separate keypad and trackball | One panel carries numeric keys and the 38mm ball on a single 3mm aluminum base |
|---|---|
| Heavier key keypads | 1.2N+/-0.1N contact force reduces effort during repeated entry |
| Fixed layout numeric pads | Country specific keyboard layouts are built to customer requirements |
Use Guide
- Allow for a 0.8Kg net weight when designing the panel support
- Choose rear or front mounting
- Specify the country layout at order
- Operate between -10 and 50 degrees C
- Store between -25 and 85 degrees C
Related Products
Questions About This Model
What trackball is fitted to KY-PC-VE?
A 38mm stainless steel mechanical trackball.
How thick is the base plate?
3mm aluminum alloy.
What is the key contact force?
1.2N+/-0.1N.
Can the layout suit our market?
Keyboard layouts of various countries are customized according to customer needs.
What interfaces are supported?
USB and PS/2.
What is the shipping weight?
Gross weight 0.9Kg with a net weight of 0.8Kg.
