Metal Keyboard

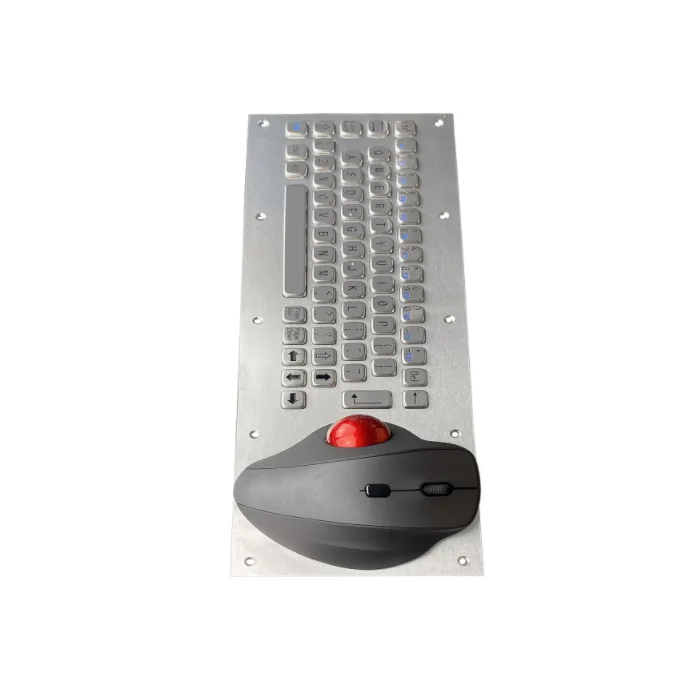

Industrial USB PC Keyboard With Trackball KY-PC-N380
KY-PC-N380 is a 65 key stainless steel keyboard with an integrated red trackball that can be removed for cleaning. The thumb-operated trackball keeps the hand relaxed during long monitoring shifts and switches between four DPI…
Product Overview
KY-PC-N380 is a 65 key stainless steel keyboard with an integrated red trackball that can be removed for cleaning. The thumb-operated trackball keeps the hand relaxed during long monitoring shifts and switches between four DPI levels. The 380*180 mm panel is pre-drilled for recessed installation in consoles and kiosks.
- Removable 34mm red ball can be taken out and cleaned instead of replacing the keyboard
- DPI switchable across 600/800/1200/1600 to suit different screen resolutions
- Thumb-operated design keeps hand muscles relaxed through long monitoring shifts
- SUS304 stainless steel panel is impact-resistant and corrosion-resistant
- Panel with pre-drilled holes for recessed installation speeds console fitting
- Keyboard surface and key colors optional in natural stainless steel or black
Application Scenarios
- Kiosk solutions in public areas
- Medical equipment operator stations
- Food service terminals
- Oil fields and industrial facilities
- Prison and secure facility control points
- ATM installations
Who It Is For
- Kiosk and ATM manufacturers
- Oil field and industrial facility integrators
- Correctional and secure facility suppliers
- Medical and food service equipment builders
Problems It Solves
- Trackballs clog with dust and grease, so the red ball is removable for cleaning
- Fixed sensitivity suits only one screen, solved by 4 switchable DPI levels
- Wrist fatigue on long shifts is reduced by the thumb-operated trackball position
- Console fitting is slow when holes must be drilled on site, avoided by the pre-drilled panel
Technical Features
- 65 buttons with SUS304 stainless steel stamped and stretched keys
- Integrated trackball mouse with a 34mm red ball
- DPI 600/800/1200/1600, 4 levels switchable
- Panel with pre-drilled holes for recessed installation
- Customizable function keys or combination keys
- Keyboard layouts for various countries supported
Specifications
| Model | KY-PC-N380 |
|---|---|
| Keys | 65 |
| Front panel | 380*180 mm |
| Overall | 380*180 mm |
| Trackball | 34mm red ball, removable |
| DPI | 600/800/1200/1600, 4 levels switchable |
| Interface | USB |
| Panel material | SUS304 stainless steel |
| Surface colors | Natural stainless steel, black |
Materials
- SUS304 stainless steel panel
- SUS304 stainless steel stamped and stretched keys
- 34mm red trackball
Manufacturing Process
- Sheet metal forming of the 380*180 mm stainless panel
- Stamping and stretching of the stainless steel keys
- CNC drilling of the recessed installation holes
- Trackball housing assembly for removable ball access
- DPI switching verification and final function test
Quality Control
- Trackball removal and refitting check on every unit
- Cursor tracking test at each of the 4 DPI levels
- USB output verification
- Panel finish inspection for the selected colour
Customisation Options
- Keyboard layouts for various countries
- Function keys or combination keys defined by the customer
- Keyboard surface and key colors in natural stainless steel or black
- Mounting hole pattern for the host console
How It Compares
| Keyboards with sealed trackballs | The red ball is removable for cleaning, which extends service life in dusty and greasy areas |
|---|---|
| Fixed DPI pointing devices | 600/800/1200/1600 DPI switching matches the pointer speed to the display |
| Finger operated trackballs | The thumb-operated design keeps hand muscles relaxed during long shifts |
Use Guide
- Cut the console for the 380*180 mm panel and use the pre-drilled holes for recessed installation
- Connect over USB to the terminal PC
- Switch DPI between 600, 800, 1200 and 1600 to suit the screen
- Remove the 34mm ball periodically and clean the seat before refitting
Related Products
Questions About This Model
How many keys does it have?
65 buttons on a 380*180 mm panel.
Can the trackball be cleaned?
Yes, the red trackball can be removed for cleaning.
What DPI levels are available?
600, 800, 1200 and 1600, switchable across 4 levels.
What colours are available?
Natural stainless steel or black for the keyboard surface and keys.
How is it installed?
Recessed installation using the panel's pre-drilled holes.
Where is it used?
Kiosks, medical equipment, food service, oil fields, industrial facilities, prisons and ATMs.
Request A Quote On KY-PC-N380
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
