KY-PC-NT340-BR Braille Kiosk Keyboard With Touchpad and Flanged Panel

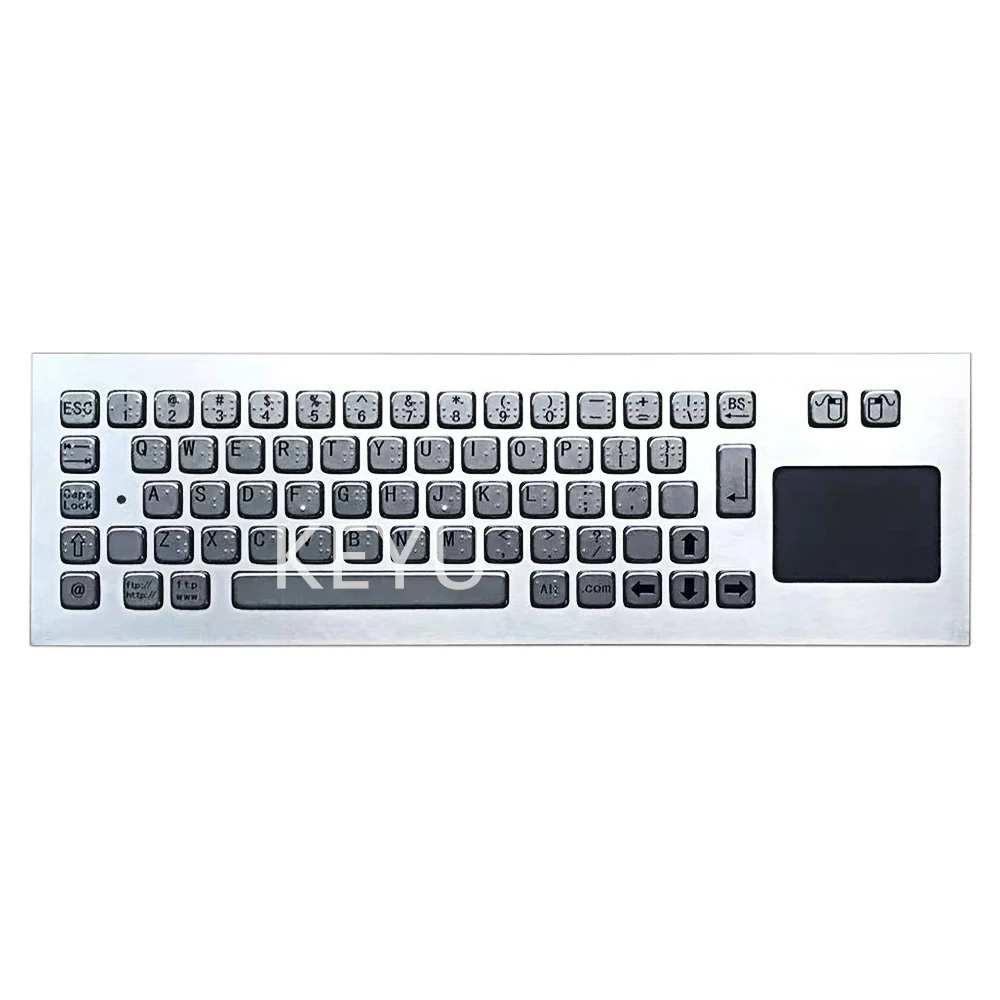

KY-PC-NT340-BR is a Braille kiosk keyboard whose 340*110 mm front panel overhangs a 330*100 mm baseboard, giving a flange that covers the cutout edge on a retrofit.
Product Overview
KY-PC-NT340-BR is a Braille kiosk keyboard whose 340*110 mm front panel overhangs a 330*100 mm baseboard, giving a flange that covers the cutout edge on a retrofit. It carries 67 stainless steel keys and a 65x49mm touchpad on a waterproof and vandalproof panel. The overhang makes it a practical replacement where an existing aperture is already cut and slightly ragged.
- 340*110 mm front panel over a 330*100 mm baseboard covers an existing cutout edge
- Braille marking on stainless keys serves visually impaired users without an overlay
- 67 keys and a 65x49mm touchpad give full entry and navigation on one panel
- Working current under 60mA is easy to accommodate on an older terminal supply
- Waterproof and vandalproof stainless construction for public machines
- Free customized layout for regional and operator-specific key sets
Application Scenarios
- Kiosk retrofits where the fascia aperture is already cut
- Medical equipment terminals in public settings
- Industrial facility access and control points
- Food service and oil field terminals
- Financial and communication equipment cabinets
- Prison and secure site terminals
Who It Is For
- Kiosk operators refurbishing an installed fleet
- Terminal manufacturers requiring accessible input
- Financial equipment integrators
- Facilities contractors handling public machines
Problems It Solves
- Retrofit apertures that no longer match a flush panel keyboard
- Accessibility gaps on existing kiosk fleets
- Overlay Braille labels that lift in service
- Limited spare current on legacy terminal power supplies
Technical Features
- Braille metal keyboard with 67 stainless steel keys
- Front panel 340*110 mm over a 330*100 mm baseboard for a covering flange
- Touchpad working area 65x49mm
- Key size 14*14*2/14*28*2/100*14*2mm with key trip 1.5mm
- Key strength 1.2N+/-0.1N contact force
- Power supply 5V±5% with working current <60mA and durability >2 million
Specifications
| Front Panel | 340*110 mm |
|---|---|
| Baseboard | 330*100 mm |
| Keys | 67 |
| Touchpad Size | 65x49mm |
| Power Supply | 5V±5% |
| Working Current | <60mA |
| Durability | >2 million |
| Interface | USB / PS/2 |
| Key Trip | 1.5mm |
| Key Strength | 1.2N+/-0.1N |
| Net Weight | 1Kg |
| Gross Weight | 1.15Kg |
Materials
- Stainless steel front panel
- Stainless steel buttons
Manufacturing Process
- Sheet metal forming of the 340*110 mm flanged face
- Baseboard blanking to 330*100 mm
- Braille dot forming on the key caps
- Laser or etching procedure for key labeling
- Touchpad fitting and waterproof sealing
Quality Control
- Flange flatness check against the baseboard
- Braille dot inspection on every marked key
- Key strength sampling at 1.2N+/-0.1N
- Current draw confirmed under 60mA
Customisation Options
- Customized layout for free on the 67 key field
- Braille applied to the specified keys
- Laser or etching key labeling
- Rear or front mounting hardware
- Flange dimensions adjusted to cover a specific aperture
How It Compares
| KY-PC-NT4-BR | This model adds a 340*110 mm overhanging front panel above the 330*100 mm baseboard, which hides an existing cutout edge |
|---|---|
| Flush mount kiosk keyboard | The flange removes the need to refinish a fascia aperture during a retrofit |
Use Guide
- Measure the existing aperture against the 330*100 mm baseboard, not the 340*110 mm flange
- Specify Braille key positions before tooling
- Allow under 60mA on the 5V±5% supply
- Operate within -10℃~45℃ and store within -30℃~85℃
Related Products
Questions About This Model
Why are two dimensions quoted?
The front panel is 340*110 mm and the baseboard behind it is 330*100 mm, so the panel overhangs the cutout.
How many keys are there?
67 keys with Braille marking.
What size is the touchpad?
65x49mm.
What is the rated durability?
>2 million operations.
Which interfaces are supported?
USB / PS/2.
Can the layout be changed?
Yes, customized layout is offered for free.
