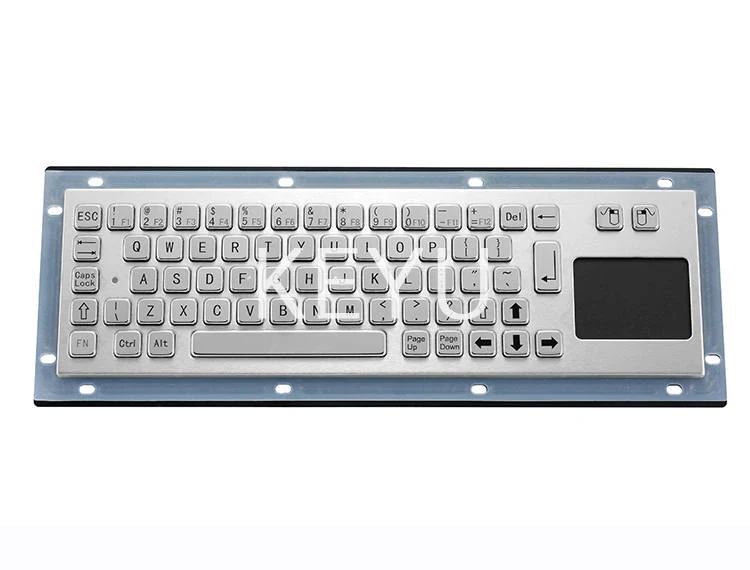

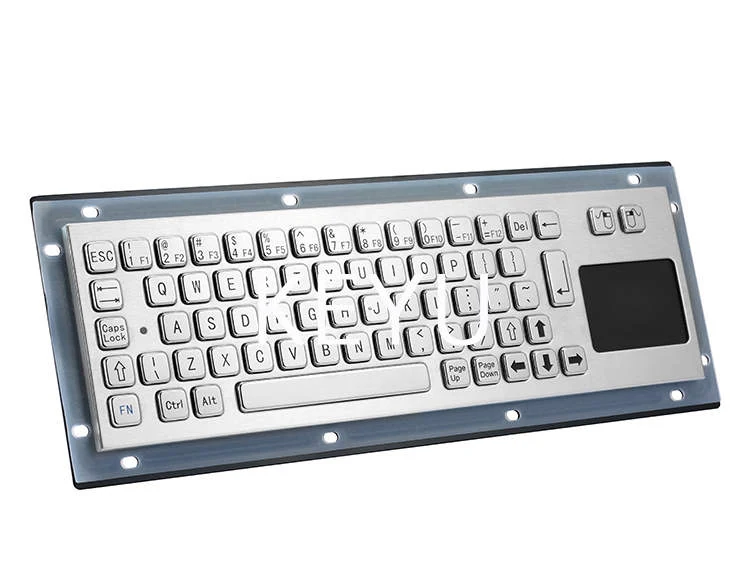

KY-PC-NT3 Kiosk Keyboard With 67 Keys and Integrated Touchpad
KY-PC-NT3 is a stainless steel kiosk keyboard carrying 67 keys and a 60x44mm touchpad on a 330*100 mm front panel. The waterproof and vandalproof build with IP65 approval lets it go into kiosks, prisons, oil fields and medical…
Product Overview
KY-PC-NT3 is a stainless steel kiosk keyboard carrying 67 keys and a 60x44mm touchpad on a 330*100 mm front panel. The waterproof and vandalproof build with IP65 approval lets it go into kiosks, prisons, oil fields and medical equipment. Key labelling is by laser or etching and the layout is customized for free.
- 67 keys plus a 60x44mm touchpad give complete input from one panel cut-out
- IP65 approved waterproof and vandalproof build for exposed public terminals
- 2mm key trip with 280g±20g operation force resists accidental presses
- Rear or front mounting suits both new builds and retrofits
- Layout customized for free so the keys match your software
- Stainless steel buttons resist forced contact in prisons and street kiosks
Application Scenarios
- Kiosk solutions in public and retail settings
- Medical equipment operator terminals
- Industrial facilities requiring sealed input
- Prisons and other secure institutions
- Food service and oil field terminals
- Financial and communication equipment stations
Who It Is For
- Kiosk builders needing keyboard and pointer on one panel
- Medical equipment manufacturers
- Secure facility equipment suppliers
- Oil field and industrial terminal integrators
Problems It Solves
- A separate touchpad needs a second aperture and a second seal
- Light action keys register false presses when the panel is knocked
- Unsealed keyboards fail wash down and weather exposure
- Standard layouts do not include the function keys a kiosk application needs
Technical Features
- 67 keys with integrated touchpad of 60x44mm diameter area
- Front panel 330*100 mm with overall 354*124 mm
- Power supply DC5V plus or minus 5 percent, working current under 150mA
- Key trip 2mm with operation force 280g plus or minus 20g
- Durability of 2 million operations or more
- Operation temperature -20 degrees C to 55 degrees C
- Laser or etching procedure for key labelling
Specifications
| Keys | 67 |
|---|---|
| Touchpad | 60x44mm |
| Front panel | 330*100 mm |
| Overall | 354*124 mm |
| Power supply | DC5V±5% |
| Working current | <150mA |
| Interface | USB, PS/2 |
| Key trip | 2mm |
| Operation force | 280g±20g |
| Durability | ≥2million |
| Operation temperature | -20℃~55℃ |
| Approval | RoHS, IP65, FCC, CE |
Materials
- Stainless steel front panel
- Stainless steel buttons
Manufacturing Process
- Blanking of the 330*100 mm stainless panel
- CNC machining of 67 key apertures and the touchpad window
- Panel forming and brushing
- Laser or etching key labelling to customer artwork
- Sealing and touchpad module assembly to IP65
Quality Control
- All 67 keys and the touchpad tested on a host
- Touchpad tracking checked across the full 60x44mm area
- Operation force sampled to 280g±20g
- Ingress sealing verified against the IP65 approval
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Layout customized for free
- Laser or etching key labelling chosen at order
- Rear mounting or front mounting configuration
- USB or PS/2 interface
- Panel outline and fixing pattern for your fascia
How It Compares
| KY-PC-I with trackball | KY-PC-NT3 uses a 60x44mm touchpad instead of a 38mm trackball, giving a flat face with no moving ball. |
|---|---|
| Keyboard plus separate pointer | One 330*100 mm panel carries both, so only one aperture must be sealed. |
| Light touch metal keyboards | The 2mm key trip and 280g±20g force reduce accidental entry on busy public machines. |
Use Guide
- Machine the fascia for a 330*100 mm front panel with 354*124 mm overall
- Choose rear or front mounting and seat the gasket evenly
- Connect USB or PS/2 and test keys and touchpad before closing
- Operate within -20℃~55℃
- Clean the stainless face with a damp cloth and avoid abrasives on the touchpad
Related Products
Questions About This Model
How many keys does KY-PC-NT3 have?
It has 67 keys.
What size is the touchpad?
The touchpad measures 60x44mm.
What approvals are listed?
RoHS, IP65, FCC and CE.
What is the panel size?
Front panel is 330*100 mm and overall is 354*124 mm.
Can the key layout be changed?
Yes, the layout is customized for free and labelling can be laser marked or etched.
What operating temperature is supported?
Operation temperature is -20℃~55℃ at relative humidity 20%-85%.
Request A Quote On KY-PC-NT3
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
