Metal Keyboard

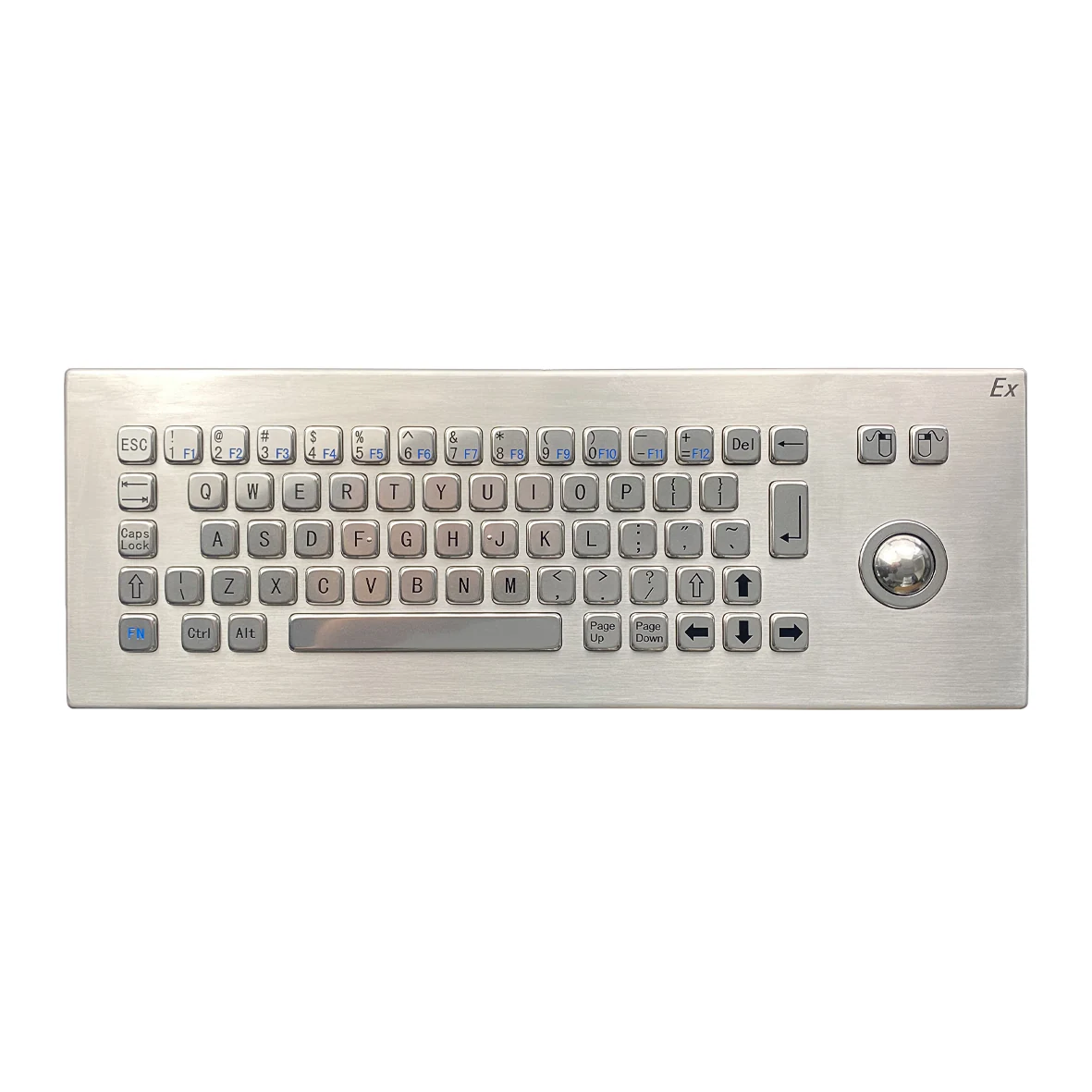

KY-PC-N-DESK Desktop Stainless Steel Keyboard With Trackball
KY-PC-N-DESK is a desktop metal keyboard with 66 buttons and a built-in trackball, measuring 416*145*45.8 mm overall.
Product Overview
KY-PC-N-DESK is a desktop metal keyboard with 66 buttons and a built-in trackball, measuring 416*145*45.8 mm overall. It gives an operator full keyboard and pointer control from one unit on financial, communication, military and self-service equipment. Country specific layouts and custom function or combination keys are available.
- Integrated trackball removes the need for a separate mouse on a crowded desk
- 66 button layout covers normal typing as well as command entry
- Anti-riot and anti-corrosion SUS304 stainless steel panel and keys
- Fixed 416*145*45.8 mm footprint makes desk and shelf planning simple
- USB or PS/2 output connects to both new and installed terminal PCs
- 1.8Kg net weight keeps the keyboard in place without fixings
Application Scenarios
- Financial equipment operator desks
- Communication equipment supervision positions
- Military equipment command desks
- Self-service terminal service and maintenance stations
- Industrial offices where a plastic keyboard will not last
Who It Is For
- Control desk and console integrators
- Banking and financial equipment OEMs
- Telecom equipment operators
- Defence and government installations
Problems It Solves
- A loose mouse slides off or is lost from a shared operator desk
- Plastic keyboards break in workshop and plant office conditions
- Country layouts differ between projects and need to be specified per order
- Light keyboards move under heavy handed use
Technical Features
- 66 buttons with trackball mouse function on a desktop body
- Front panel 416*145 mm and overall 416*145*45.8 mm
- Key size 14*14*4.5, 28*14*4.5 and 100*14*4.5mm with 1.5mm key trip
- Operation force 1.2N+/-0.1N contact force
- Power supply 5V plus or minus 5 percent, working current under 100mA
- Durability of more than 2 millions times
- Working temperature -20 degrees C to 60 degrees C
Specifications
| Buttons | 66 |
|---|---|
| Pointing device | Trackball mouse function |
| Front panel | 416*145 mm |
| Overall | 416*145*45.8 mm |
| Power supply | 5V±5% |
| Working current | <100mA |
| Interface | USB / PS/2 |
| Key trip | 1.5mm |
| Operation force | 1.2N+/-0.1N (Contact force) |
| Net weight | 1.8Kg |
| Gross weight | 1.95Kg |
| Working temperature | -20℃~60℃ (Relative humidity 20%~85%) |
Materials
- SUS304 stainless steel panel
- SUS304 stainless steel keys
Manufacturing Process
- Sheet metal forming of the desktop housing to 416*145*45.8 mm
- CNC machining of key and trackball apertures
- Panel brushing and deburring
- Trackball module fitting and alignment
- Layout specific key fitting and USB or PS/2 harness termination
Quality Control
- All 66 buttons and the trackball tested on a host system
- Trackball rotation and cursor tracking checked in all directions
- Key trip and force sampled against 1.5mm and 1.2N+/-0.1N
- Overall dimensions verified against the 416*145*45.8 mm drawing
Customisation Options
- Keyboard layouts for various countries built to order
- Customized function keys or combination keys
- Etched key legends to your artwork
- USB or PS/2 interface selected at order
- Housing colour and branding on the desktop face
How It Compares
| Touchpad equipped metal keyboards | A trackball gives precise cursor placement without lifting a finger across a pad. |
|---|---|
| Panel mounted keyboards | KY-PC-N-DESK is a desktop unit, so no fascia cut-out or mounting work is needed. |
| Plastic office keyboards | The SUS304 panel and keys are anti-riot and anti-corrosion for plant and terminal environments. |
Use Guide
- Allow 416*145 mm of desk width plus cable clearance
- Connect by USB or PS/2 and confirm keyboard and trackball response
- Keep supply within 5V ± 5%
- Operate between -20℃ and 60℃ ambient
- Wipe the stainless surface with a damp cloth and avoid abrasives around the trackball
Related Products
Questions About This Model
Does KY-PC-N-DESK include a pointing device?
Yes, it is equipped with a trackball mouse function alongside its 66 buttons.
What is the overall size?
Overall is 416*145*45.8 mm with a 416*145 mm front panel.
Which interfaces are available?
USB or PS/2, compatible with Window XP through Window 10, Linux, Ubuntu and Android.
Can we get a local keyboard layout?
Yes. Keyboard layouts for various countries are supported and function or combination keys can be customized.
How heavy is the keyboard?
Net weight is 1.8Kg and gross weight is 1.95Kg.
Is it desk mounted or panel mounted?
It is a desktop device and requires no panel cut-out.
Request A Quote On KY-PC-N-DESK
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
