KY-PC-M385 Metal Trackball Keyboard

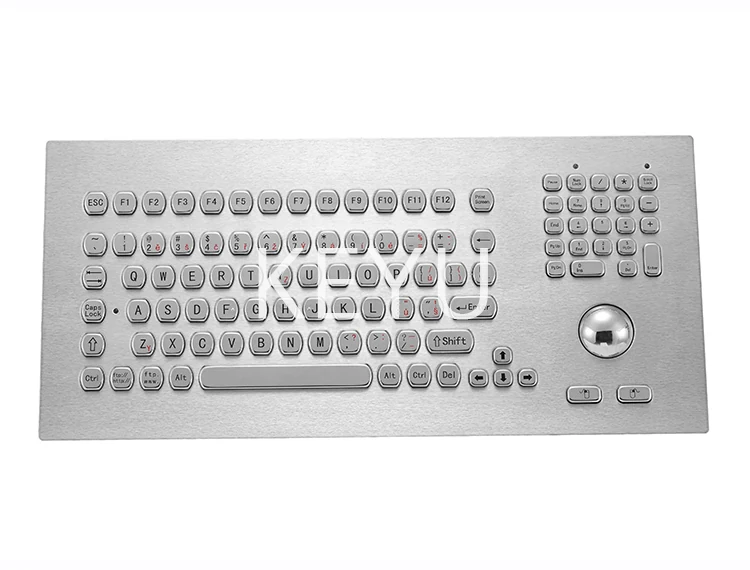

KY-PC-M385 is a stainless steel keyboard with a 38mm trackball on a 385*180 mm panel whose overall size matches the visible face.
Product Overview

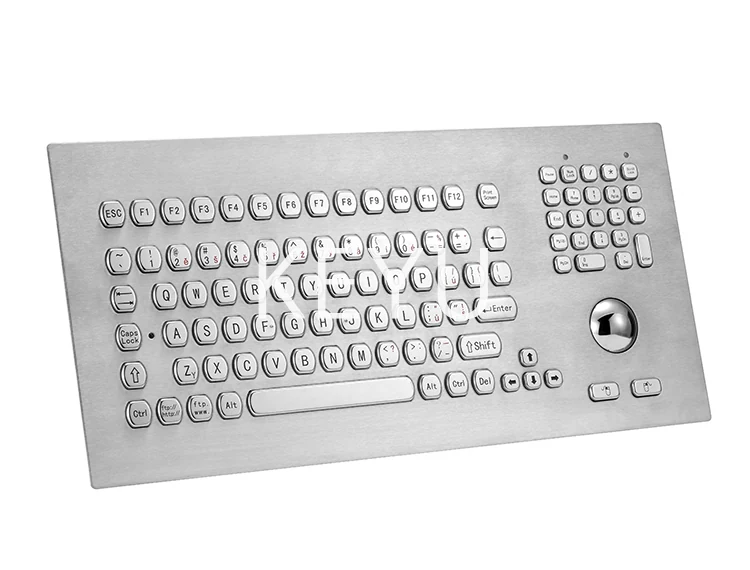

KY-PC-M385 is a stainless steel keyboard with a 38mm trackball on a 385*180 mm panel whose overall size matches the visible face. Operation force of 280g±20g and 2mm of key trip give a firm deliberate action that suits gloved hands and shared terminals. It is designed for harsh environments including kiosks, medical equipment and industrial facilities.
- 38mm trackball gives coarse fast cursor movement for large screens
- Firm 280g±20g operation force reduces accidental key presses
- Flush 385*180 mm outline fits its cutout with no hidden flange
- IP65 sealed stainless steel panel and buttons
- Language layout customised free of charge
- Rear or front mounting to suit the enclosure
Application Scenarios
- Kiosk solutions in busy public areas
- Medical equipment control panels
- Industrial facility operator stations
- Banking and gaming machine terminals
- Transportation and military industry equipment
- Industrial control consoles
Who It Is For
- Kiosk and terminal manufacturers
- Medical equipment OEMs
- Industrial control system integrators
- Banking and gaming machine suppliers
Problems It Solves
- Light action keyboards register accidental presses when brushed
- Small trackballs are slow to cross large HMI displays
- Separate keyboard and pointer need two cutouts in a sealed panel
Technical Features
- Stainless steel keyboard with water and vandal proof design
- Trackball diameter 38mm integrated in the panel
- Key trip 2mm with operation force 280g±20g
- Power supply DC5V±5% with working current below 150mA
- USB and PS/2 interfaces
- Durability of 2million
- Operation temperature -20℃~55℃
Specifications
| Front Panel | 385*180 mm |
|---|---|
| Overall Dimension | 385*180 mm |
| Trackball Diameter | 38mm |
| Key Trip | 2mm |
| Operation Force | 280g±20g |
| Power Supply | DC5V±5% |
| Working Current | <150mA |
| Interface | USB, PS/2 |
| Durability | ≥2million |
| Mounting Way | Rear mounting or Front mounting |
| Operation Temperature | -20℃~55℃ |
| Approval | RoHS, IP65, FCC, CE |
Materials
- Stainless steel panel
- Stainless steel buttons
- 38mm trackball
Manufacturing Process
- Blanking and forming of the 385*180 mm panel
- CNC machining of the 38mm ball seat
- Laser or etching of key legends
- Trackball module fitting and alignment
- Sealing and brushing of the stainless face
- Force calibration to 280g±20g
Quality Control
- Operation force measured against the 280g±20g window
- Trackball rotation and tracking test
- Water ingress test of the sealed panel
- Key trip verification at 2mm
- Endurance sampling to 2million
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Language layout customised free of charge
- Laser or etched key legends
- USB or PS/2 cable termination
- Front or rear mounting preparation
- Customer branding on the stainless face
How It Compares
| KY-PC-F2-H | Flush 385*180 mm outline and a firmer 280g±20g key force |
|---|---|
| Keyboard with 25mm trackball | The 38mm ball covers a large display in fewer strokes |
Use Guide
- Prepare the cutout to the 385*180 mm outline
- Allow clearance behind the panel for the 38mm ball housing
- Connect by USB or PS/2 at DC5V±5%
- Expect a firm 280g±20g press and brief operators accordingly
- Operate within -20℃~55℃
Related Products
Questions About This Model
How large is the trackball?
The trackball diameter is 38mm.
Is the key action light?
No. Operation force is 280g±20g with 2mm of key trip, which is a deliberate press.
Does the body extend past the panel?
No. Front panel and overall dimensions are both 385*180 mm.
Which interfaces are available?
USB and PS/2.
Which approvals are listed?
RoHS, IP65, FCC and CE.
Can the language layout be changed?
Yes, the language layout is customised free of charge.
Request A Quote On KY-PC-M385
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
