KY-PC-IT IP65 Metal Keyboard With Touchpad

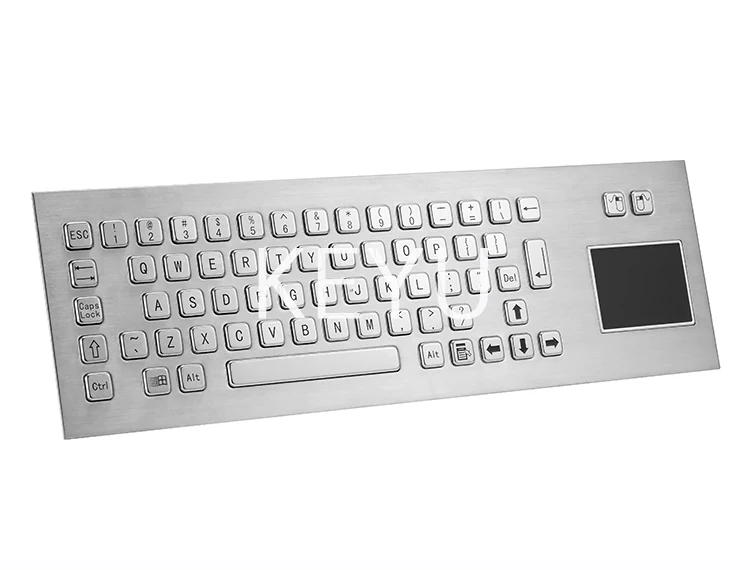

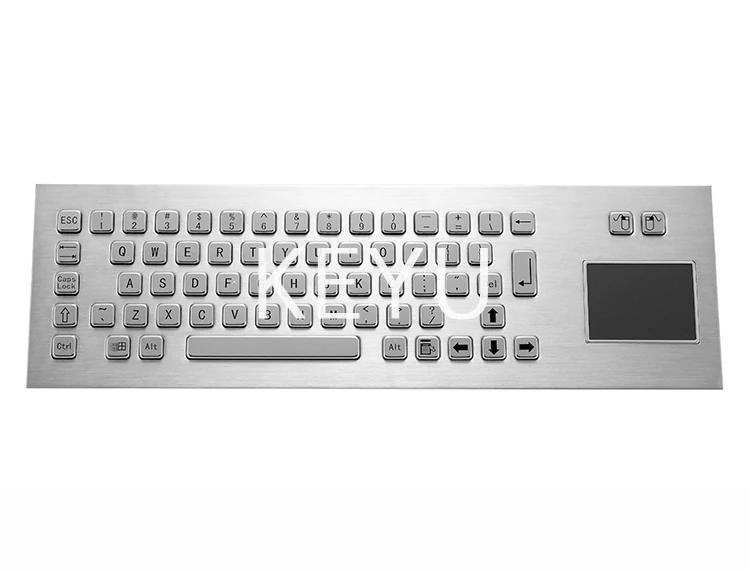

KY-PC-IT is a 66 key stainless steel panel keyboard with a 60x44mm touchpad in a flush 400*124 mm face where front panel and overall size match. The water and vandal proof design carries RoHS IP65 FCC and CE approvals.
Product Overview
KY-PC-IT is a 66 key stainless steel panel keyboard with a 60x44mm touchpad in a flush 400*124 mm face where front panel and overall size match. The water and vandal proof design carries RoHS IP65 FCC and CE approvals. It is used by integrators replacing keyboard and mouse pairs on kiosks medical equipment and oil field terminals.
- 66 keys and a 60x44mm touchpad in one sealed panel
- Front panel and overall size both 400*124 mm for a flush fit
- Water and vandal proof design with IP65 in the approvals
- Laser or etching key labeling for permanent legends
- Rear mounting or front mounting to suit the fascia
- Free layout customization for national key arrangements
Application Scenarios
- Kiosk solutions in public venues
- Oil field control shelters
- Numerical control equipment operator stations
- Industrial facilities on the production floor
- Prison and secure facility terminals
- Medical equipment and food service consoles
Who It Is For
- Kiosk and self service terminal OEMs
- Oil and gas equipment integrators
- CNC machine builders
- Medical and food service equipment makers
Problems It Solves
- Keyboard plus mouse pairs need two cutouts and two cables
- Water washdown destroys unsealed keyboards
- Key legends wear off in high use public terminals
- Fascia design is complicated by differing panel and body sizes
Technical Features
- 66 keys with 2mm key trip and 280g plus or minus 20g operation force
- Touchpad diameter 60x44mm integrated into the panel
- DC5V plus or minus 5 percent supply with working current under 150mA
- USB and PS/2 interface
- Durability of at least 2million operations
- Operation temperature -20 to 55 degrees C and storage -30 to 85 degrees C
Specifications
| Keys | 66 Keys |
|---|---|
| Front Panel | 400*124 mm |
| Overall | 400*124 mm |
| Touchpad diameter | 60x44mm |
| Power Supply | DC5V±5% |
| Working Current | <150mA |
| Interface | USB，PS/2 |
| Key Trip | 2mm |
| Operation Force | 280g±20g |
| Durability | ≥2million |
| Mounting Way | Rear mounting or Front mounting |
| Approval | RoHS、IP65、FCC、CE |
Materials
- Stainless steel panel
- Stainless steel buttons
Manufacturing Process
- Panel forming to the 400*124 mm face
- CNC punching of the 66 key apertures and touchpad window
- Laser or etching procedure for key labeling
- Touchpad module bonding and sealing
- Gasket assembly for the IP65 approval
- USB and PS/2 interface test
Quality Control
- Key travel verified at 2mm
- Operation force checked at 280g plus or minus 20g
- Touchpad tracking and edge response test
- Ingress test on the sealed front panel
- Life sampling to at least 2million operations
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Free layout customization of the key field
- Laser or etching key labeling
- USB or PS/2 output
- Rear or front mounting build
- Legend language for the destination market
How It Compares
| Keyboard plus external mouse | One 400*124 mm panel carries both 66 keys and the 60x44mm touchpad |
|---|---|
| KY-PC-DT | A flush 400*124 mm panel with a 60x44mm touchpad instead of the 416*134mm body with a 65x49mm pad |
| Plastic industrial keyboards | Stainless steel buttons and a vandal proof face suit prisons and public sites |
Use Guide
- Cut the fascia to the 400*124 mm outline
- Select rear or front mounting before fixing
- Connect over USB or PS/2 to the host
- Operate between -20 and 55 degrees C
- Clean the steel face without abrasive tools
Related Products
Questions About This Model
How many keys does KY-PC-IT have?
66 keys.
What size is the touchpad?
The touchpad diameter is 60x44mm.
What is the panel size?
Both the front panel and overall size are 400*124 mm.
Which approvals does it carry?
RoHS IP65 FCC and CE.
How is the key labeling done?
Laser or etching procedure for key labeling is optional.
What is the operation force?
280g plus or minus 20g with a 2mm key trip.
Request A Quote On KY-PC-IT
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
