Metal Keyboard

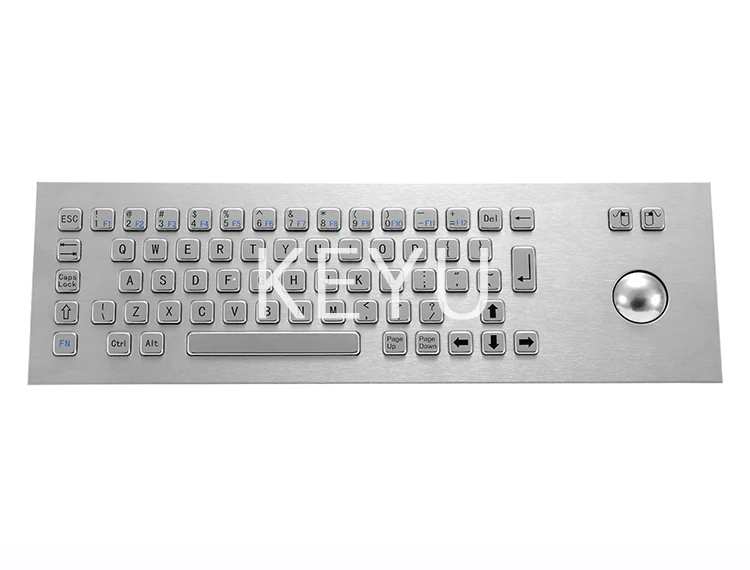

KY-PC-I Panel Mounted Metal Keyboard With 38mm Trackball

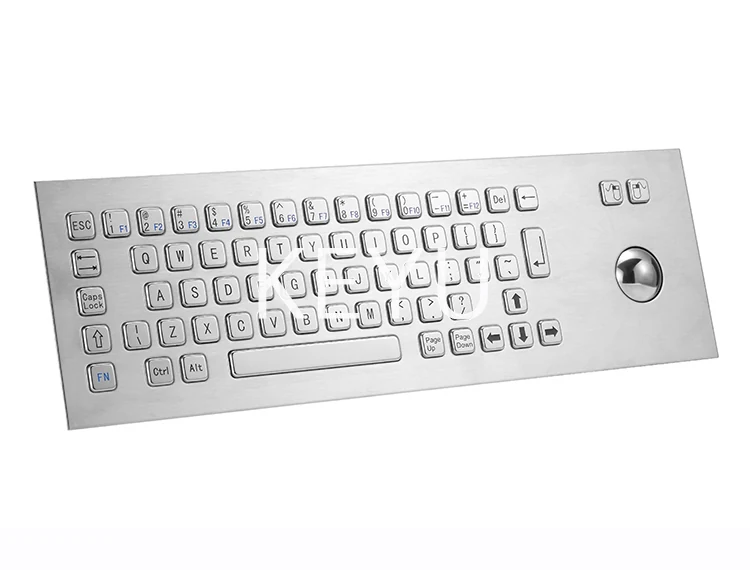

KY-PC-I is a front mounted stainless steel keyboard with a 38mm metal trackball, on a 400*124 mm panel that is the same front and overall.
Product Overview
KY-PC-I is a front mounted stainless steel keyboard with a 38mm metal trackball, on a 400*124 mm panel that is the same front and overall. The waterproof and vandal proof build carries RoHS, IP65, FCC and CE approvals for kiosks, prisons, oil fields and medical equipment. Layout is customized for free.
- 38mm metal trackball gives a large ball surface for gloved operation
- Same 400*124 mm front and overall size makes fascia planning direct
- IP65 approved waterproof and vandal proof design
- 2mm key trip with 280g±20g force prevents accidental entry
- Laser or etching key labelling to suit legend colours
- Front mounting simplifies installation where rear access is blocked
Application Scenarios
- Kiosk solutions requiring a pointer and a wide key field
- Medical equipment operator stations
- Industrial facilities with washdown routines
- Prisons and secure facility terminals
- Food service and oil field control points
Who It Is For
- Kiosk manufacturers needing a trackball equipped keyboard
- Medical equipment OEMs
- Secure facility and correctional suppliers
- Oil field and industrial contractors
Problems It Solves
- Enclosures without rear access cannot take a rear mounted keyboard
- Small trackballs are difficult to use with gloves
- Separate keyboards and pointers double the sealing work
- Painted panels corrode under repeated washdown
Technical Features
- Stainless steel keyboard with a 38mm diameter metal trackball
- Front panel and overall both 400*124 mm
- Power supply DC5V plus or minus 5 percent, working current under 150mA
- Key trip 2mm with operation force 280g plus or minus 20g
- Durability of 2 million operations or more
- Front mounting arrangement
- Operation temperature -20 degrees C to 55 degrees C
Specifications
| Front panel | 400*124 mm |
|---|---|
| Overall | 400*124 mm |
| Trackball diameter | 38mm |
| Power supply | DC5V±5% |
| Working current | <150mA |
| Interface | USB, PS/2 |
| Key trip | 2mm |
| Operation force | 280g±20g |
| Durability | ≥2million |
| Mounting way | Front mounting |
| Operation temperature | -20℃~55℃ (Relative humidity 20%~85%) |
| Approval | RoHS, IP65, FCC, CE |
Materials
- Stainless steel panel
- Stainless steel buttons
- Metal trackball
Manufacturing Process
- Blanking of the 400*124 mm stainless panel
- CNC machining of the key field and the 38mm trackball seat
- Panel forming and surface finishing
- Laser or etching key labelling
- Trackball assembly and IP65 sealing
Quality Control
- Trackball rotation checked in all directions on a host
- Every key tested for output before packing
- Operation force sampled to 280g±20g
- Sealed panel verified against the IP65 approval
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Compact layout customized for free
- Laser or etching procedure for key labelling
- USB or PS/2 interface at order
- Panel fixing pattern for your fascia
- Cable length and exit position
How It Compares
| KY-PC-NT3 with touchpad | KY-PC-I uses a 38mm metal trackball rather than a 60x44mm touchpad, which suits gloved operators. |
|---|---|
| Rear mounted keyboards | KY-PC-I is front mounted, so it can go into enclosures with no rear access. |
| Keyboards without a pointer | The trackball is part of the same sealed 400*124 mm panel. |
Use Guide
- Cut the fascia for the 400*124 mm panel and fit from the front
- Connect USB or PS/2 and test the trackball and all keys
- Keep the gasket seated to maintain the IP65 rating
- Operate within -20℃~55℃
- Clean around the 38mm ball with a damp cloth regularly
Related Products
Questions About This Model
What size is the trackball?
The metal trackball is 38mm in diameter.
How is KY-PC-I mounted?
It is front mounted into the fascia.
What is the panel size?
Front panel and overall size are both 400*124 mm.
Which approvals apply?
RoHS, IP65, FCC and CE.
Can the layout be changed?
Yes, the layout is customized for free and labelling can be laser marked or etched.
Where is it used?
Kiosk solutions, medical equipment, industrial facilities, prisons, food service and oil fields.
Request A Quote On KY-PC-I
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
