KY-PC-I-BR Braille Keyboard With Trackball and Aluminum Back Panel

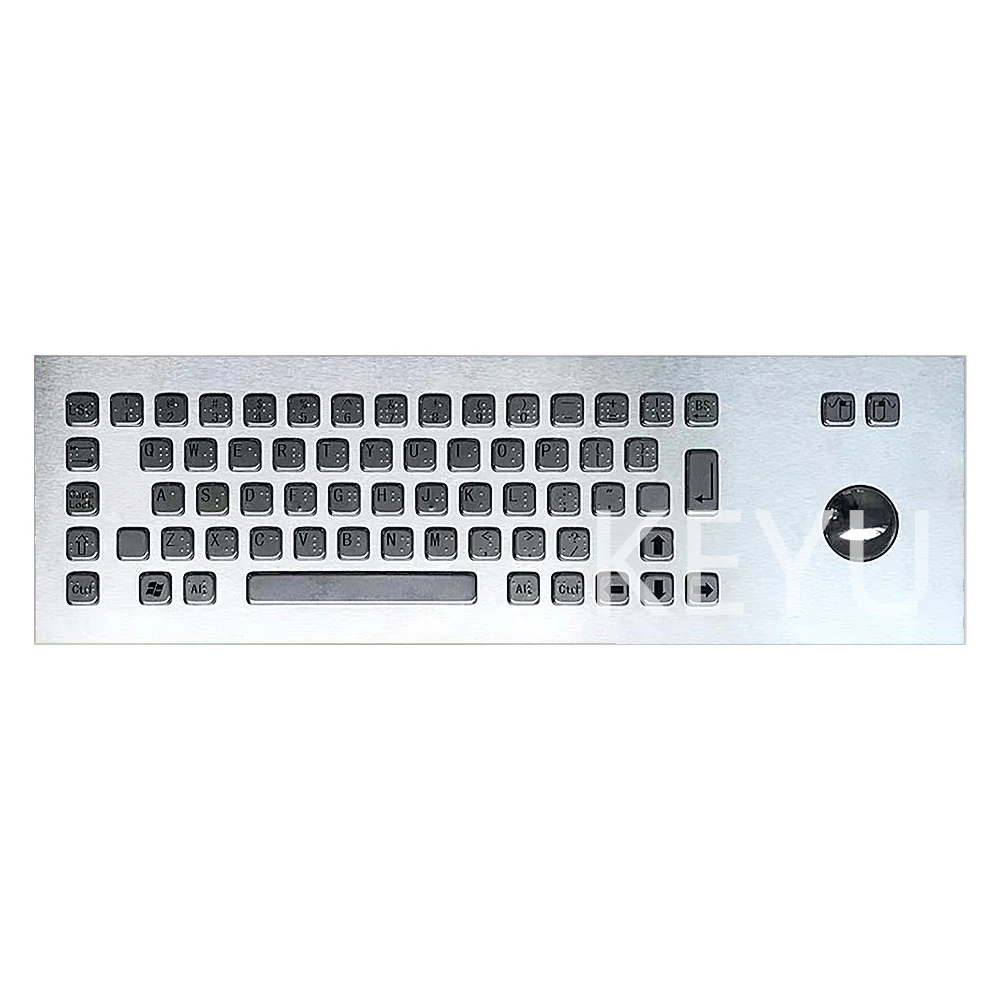

KY-PC-I-BR is a 66 key Braille keyboard with an integrated trackball on a 400*124mm panel. The 304 stainless steel keys sit over a 3mm aluminum alloy back panel, which is what carries the waterproof and vandalproof rating.
Product Overview
KY-PC-I-BR is a 66 key Braille keyboard with an integrated trackball on a 400*124mm panel. The 304 stainless steel keys sit over a 3mm aluminum alloy back panel, which is what carries the waterproof and vandalproof rating. Function keys and combination keys can be defined to the customer specification, so the accessible layout can follow an existing application.
- 66 Braille keys with an integrated trackball avoid a separate accessible pointing device
- 3mm aluminum alloy back panel gives the assembly its vandalproof structure
- 400*124mm panel is the same size front and overall, simplifying the cutout
- Customized function keys or combination keys map to an existing application
- RoHS, IP65, FCC and CE approvals support public sector tenders
- Key trip available at 1.5mm/2mm to suit operator preference
Application Scenarios
- Kiosk solutions requiring accessible entry and navigation
- Medical equipment consoles in public clinics
- Industrial facility operator terminals
- Prison and secure facility installations
- Food service order points
- Oil field control equipment
Who It Is For
- Kiosk OEMs meeting accessibility mandates
- Medical equipment manufacturers
- Secure facility and prison systems contractors
- Oil field equipment integrators
Problems It Solves
- Accessible keyboards that lack an integrated pointing device
- Thin backings that flex when a panel is struck
- Application shortcuts that need dedicated combination keys
- Cutout mismatch when front and overall dimensions differ
Technical Features
- Braille keyboard layout with 66 keys and an integrated trackball
- 304 stainless steel keys over a 3mm aluminum alloy back panel
- Key size 14*14*4.5mm, 14*28*4.5mm and 14*100*4.5mm
- Key trip 1.5mm/2mm with operation force 280g±20g
- Power supply DC5V±5% with working current <150mA
- Durability ≥2Million with USB and PS/2 interfaces
- Operation temperature -10℃~55℃ and storage temperature -30℃~85℃
Specifications
| Keys | 66 |
|---|---|
| Front Panel | 400*124mm |
| Overall | 400*124mm |

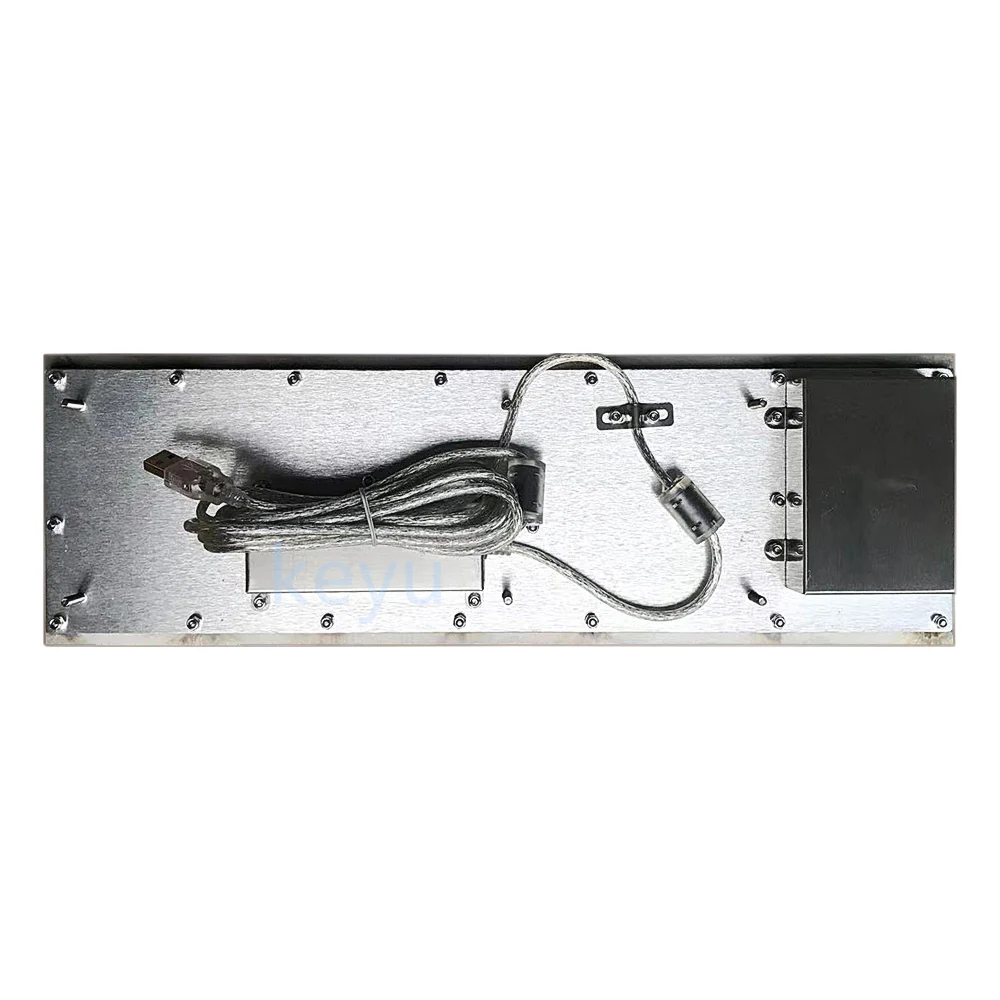

| Back Panel | 3mm Aluminum alloy |
| Power Supply | DC5V±5% |
| Working Current | <150mA |
| Interface | USB, PS/2 |
| Key Size | 14*14*4.5mm, 14*28*4.5mm, 14*100*4.5mm |
| Key Trip | 1.5mm/2mm |
| Operation Force | 280g±20g |
| Durability | ≥2Million |
| Approvals | RoHS, IP65, FCC, CE |
Materials
- 304 stainless steel keys
- 3mm aluminum alloy back panel
Manufacturing Process
- Sheet metal forming of the 400*124mm stainless face
- CNC machining of the trackball seat and key apertures
- Braille dot forming on the stainless key caps
- 3mm aluminum alloy back panel machining and fixing
- Sealing and IP65 verification
Quality Control
- Braille dot inspection across the 66 key field
- Key trip verification at both the 1.5mm and 2mm options
- Operation force sampling at 280g±20g
- IP65 ingress testing
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Customized layout available on the 66 key field
- Customized function keys or combination keys
- Key trip selected at 1.5mm or 2mm
- Rear mounting or front mounting hardware
- Key size chosen from 14*14, 14*28 and 14*100 formats
How It Compares
| Braille keyboard with touchpad | A trackball gives continuous directional control that many non-sighted users find easier to judge than a flat pad |
|---|---|
| Keyboard with sheet metal backing | A 3mm aluminum alloy back panel resists the deflection that cracks solder joints under impact |
Use Guide
- Cut a 400*124mm aperture; front panel and overall size match
- Specify key trip as 1.5mm or 2mm at order stage
- Supply the function and combination key map before production
- Choose rear or front mounting to suit the fascia
Related Products
Questions About This Model
How many keys does KY-PC-I-BR have?
66 keys in a Braille keyboard layout.
What is the back panel made of?
3mm aluminum alloy.
What key trip options exist?
1.5mm or 2mm.
What are the panel dimensions?
400*124mm for both front panel and overall.
Which approvals does it hold?
RoHS, IP65, FCC and CE.
Can function keys be redefined?
Yes, customized function keys or combination keys are available.
