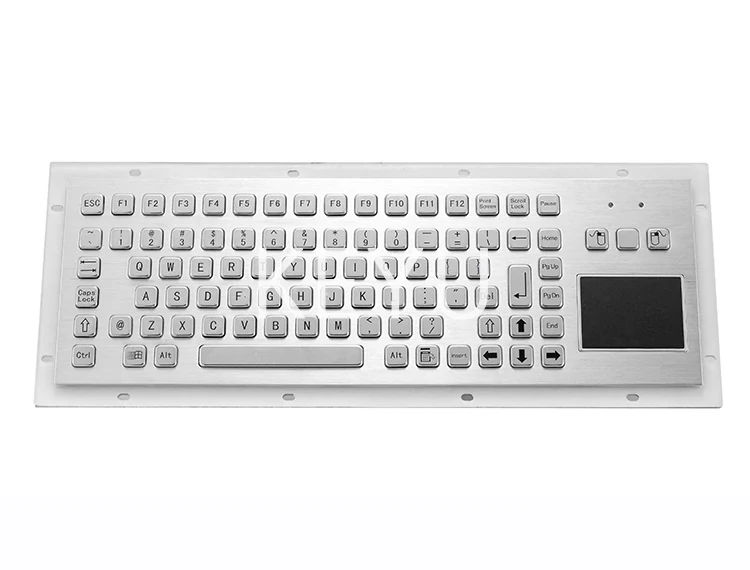

KY-PC-F2T Industrial Metal Keyboard With Numeric Keypad and Touchpad

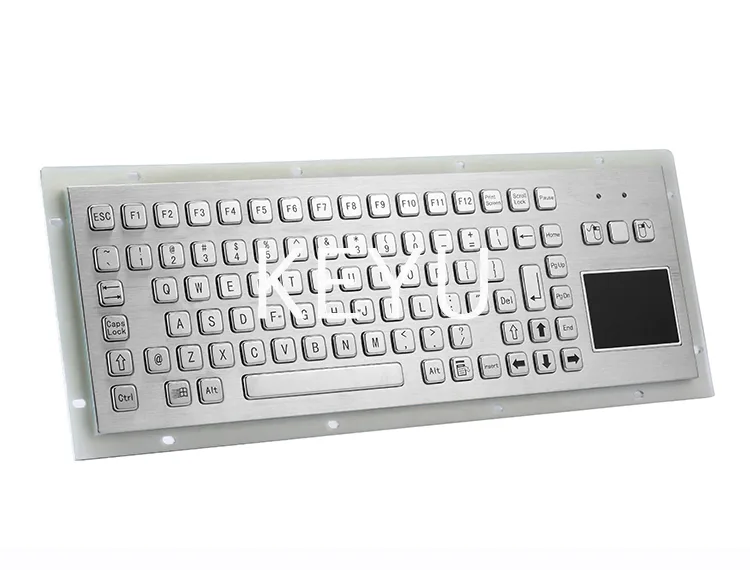

KY-PC-F2T is a full width industrial metal keyboard that carries both a numeric keypad and a 60x44mm touchpad on one 392*135 mm panel.
Product Overview
KY-PC-F2T is a full width industrial metal keyboard that carries both a numeric keypad and a 60x44mm touchpad on one 392*135 mm panel. It is specified where operators enter figures continuously, such as ATM, food service and oil field applications, and where a separate number pad and mouse would be a liability. The stainless steel construction is water and vandal proof and carries IP65.
- Numeric keypad and 60x44mm touchpad on one panel speeds up figure entry without extra hardware
- 392*135 mm front panel accommodates a full layout rather than a compressed one
- IP65 rated stainless steel construction with water and vandal proof design
- RoHS, IP65, FCC and CE approvals cover ATM and medical procurement
- Durability ≥2million supports continuous transactional use
- Compact layout customized for free including function key definitions
Application Scenarios
- ATM and financial self-service terminals
- Kiosk solutions with heavy numeric entry
- Medical equipment consoles
- Food service order terminals
- Oil field and industrial facility control stations
- Prison and secure facility terminals
Who It Is For
- ATM and banking terminal manufacturers
- Medical equipment integrators
- Food service equipment suppliers
- Oil field and industrial facility contractors
Problems It Solves
- Slow numeric entry on keyboards without a dedicated number pad
- Separate mice that go missing in public and secure environments
- Water and cleaning fluid reaching keyboard electronics
- Panel damage from impact on transactional terminals
Technical Features
- Stainless steel keyboard with water and vandal proof design, buttons made of stainless steel
- Integrated touchpad with a 60x44mm working area
- Key Trip 2mm with Operation Force 280g±20g
- Power Supply DC5V±5% and Working Current <150mA
- Operation Temperature -20℃~55℃, Storage Temperature -30℃~85℃
- Laser or etching procedure for key labeling
- IP65 rating on the assembled panel
Specifications
| Front Panel | 392*135 mm |
|---|---|
| Overall | 412*159 mm |
| Touchpad Size | 60x44mm |
| Power Supply | DC5V±5% |
| Working Current | <150mA |
| Interface | USB, PS/2 |
| Key Trip | 2mm |
| Operation Force | 280g±20g |
| Durability | ≥2million |
| Mounting Way | Rear mounting or Front mounting |
| Operation Temperature | -20℃~55℃ |
| Approval | RoHS, IP65, FCC, CE |
Materials
- Stainless steel panel
- Stainless steel buttons
Manufacturing Process
- Sheet metal forming of the 392*135 mm panel
- CNC machining of the key field and touchpad window
- Laser or etching of key legends
- Touchpad module bonding into the 60x44mm aperture
- IP65 sealing and final electrical test
Quality Control
- IP65 ingress verification on the finished panel
- Touchpad tracking test across the full 60x44mm area
- Key trip and operation force sampling at 2mm and 280g±20g
- Numeric block key by key functional test
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Free layout customization including the numeric block position
- Laser or etching key labeling
- Function key and combination key definitions
- Rear or front mounting hardware
- Panel outline adapted to a 412*159 mm cutout
How It Compares
| Keyboard without numeric block | A dedicated number pad removes the top-row reach that slows transactional entry |
|---|---|
| Keyboard with trackball | The 60x44mm touchpad has no moving ball to clean, which suits food service and medical wipe-down routines |
Use Guide
- Plan the cutout around the 412*159 mm overall size
- Select rear or front mounting before fabricating the fascia
- Operate within -20℃~55℃
- Clean the touchpad surface with a damp cloth; the panel is IP65
Related Products
Questions About This Model
Does KY-PC-F2T include a numeric keypad?
Yes, it is a metal keyboard with numeric keyboard plus a touchpad.
What size is the touchpad?
60x44mm.
What are the panel dimensions?
Front panel 392*135 mm and overall 412*159 mm.
Is it sealed?
Yes, it is IP65 with a water and vandal proof design.
What is the key trip?
2mm, with operation force 280g±20g.
Does KEYU offer a trackball version?
Yes, KEYU provides industrial metal trackballs and keyboards with trackball alongside touchpad models.
Request A Quote On KY-PC-F2T
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
