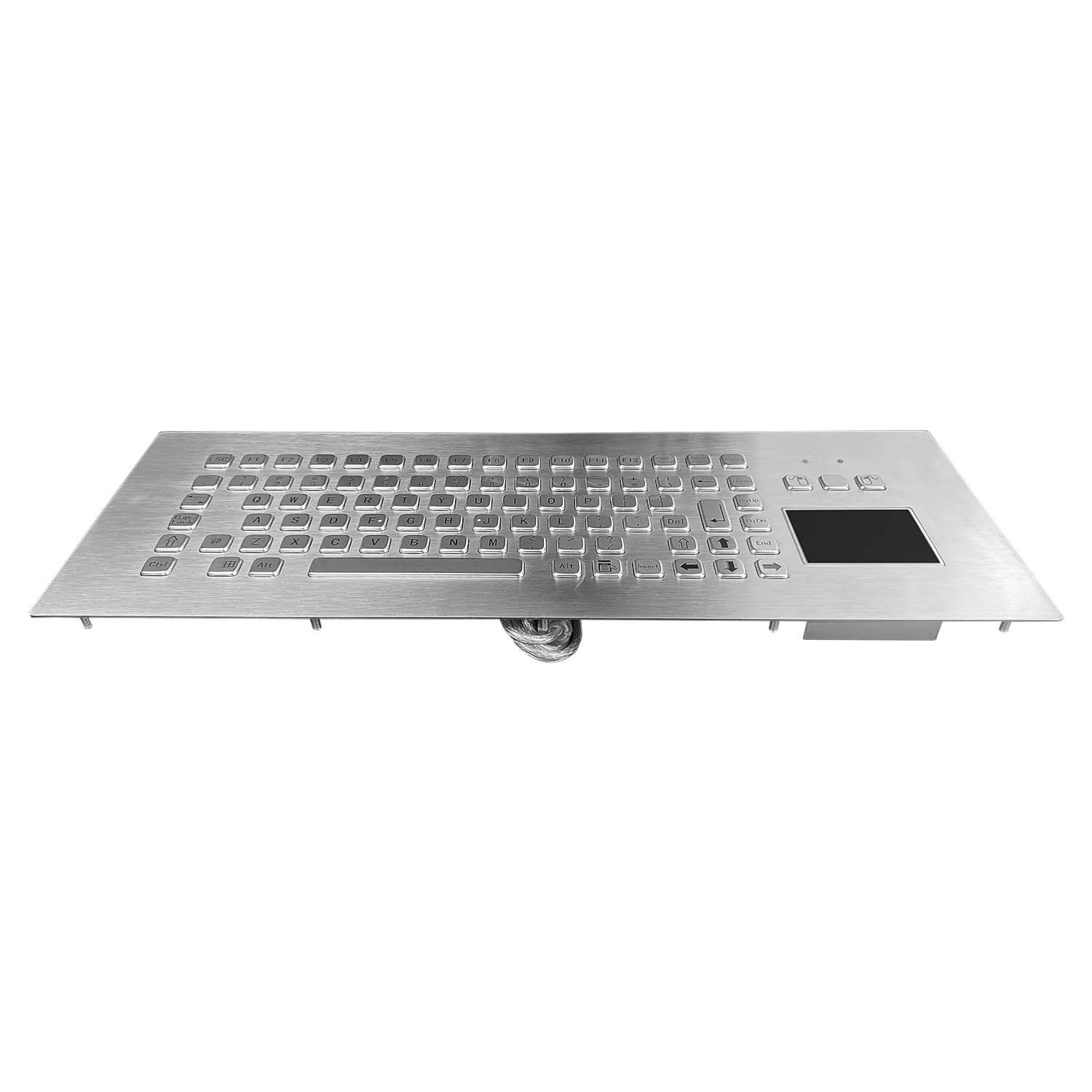

Industrial Keyboard With Touch Mouse KY-PC-F2T-449
KY-PC-F2T-449 is a panel style embedded metal keyboard with 89 buttons and a touchpad mouse function built into the same face. The integrated layout saves space on consoles where a separate pointing device cannot be fitted.
Product Overview
KY-PC-F2T-449 is a panel style embedded metal keyboard with 89 buttons and a touchpad mouse function built into the same face. The integrated layout saves space on consoles where a separate pointing device cannot be fitted. Stainless steel construction with IP65 sealing suits mine, offshore and transport control installations.
- Integrated keyboard and touch mouse remove the need for a separate pointer cutout
- 392*135 mm front panel fits standard 19 inch style console openings
- Stainless steel keyboard with a water and vandal proof design
- Durability ≥2million presses for continuous shift operation
- Rear mounting or front mounting to match existing console hardware
- Approvals listed as RoHS, IP65, FCC and CE
Application Scenarios
- Self-service terminals
- Security equipment consoles
- Mine safety detection stations
- Industrial PC numerical control platforms and instrument detection equipment
- Fixed offshore platforms and industrial explosion-proof equipment
- Coal mining, metallurgy, power and transportation control points
Who It Is For
- Control console manufacturers
- Mining and offshore equipment integrators
- Instrument detection equipment builders
- Transport and power sector suppliers
Problems It Solves
- Consoles rarely have room for keyboard plus mouse, so both are on one panel
- Dust and moisture disable open keyboards, resisted by the IP65 stainless build
- Console mounting styles vary, met by rear or front mounting
- Faded legends confuse operators, avoided with laser or etching key labeling
Technical Features
- 89 buttons with touchpad mouse function
- Touchpad diameter 60x44mm
- Power supply DC5V±5% with working current <150mA
- Key trip 2mm and operation force 280g±20g
- Interface USB, PS/2
- Operation temperature -20℃~55℃ and storage -30℃~85℃
- Metal keyboard with numeric keyboard section
Specifications
| Model | KY-PC-F2T-449 |
|---|---|
| Keys | 89 |
| Front panel | 392*135 mm |
| Overall | 412*159 mm |
| Touchpad | 60x44mm |
| Power supply | DC5V±5% |
| Working current | <150mA |
| Interface | USB, PS/2 |
| Key trip | 2mm |
| Operation force | 280g±20g |
| Durability | ≥2million |
| Storage temperature | -30℃~85℃ |
Materials
- Stainless steel panel and buttons
- Sealed touch mouse surface
Manufacturing Process
- Sheet metal forming of the 392*135 mm panel
- CNC machining of the touch mouse aperture
- Key stamping and laser or etching of legends
- Touch module fitting and IP65 sealing
- Assembly for rear or front mounting and full function test
Quality Control
- Touch mouse response test across the panel area
- IP65 ingress verification
- Durability sampling against the ≥2million figure
- Approval conformity checks for RoHS, FCC and CE
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Compact layout customized for free
- Laser or etching procedure for key labeling
- Rear or front mounting arrangement
- USB or PS/2 interface
How It Compares
| Standalone industrial keyboards | The touch mouse function is integrated, so the console needs only one opening |
|---|---|
| Mechanical trackball keyboards | The touch surface has no moving ball to seize in dusty coal and metallurgy environments |
| Front mount only keyboards | Both rear mounting and front mounting are supported for existing consoles |
Use Guide
- Prepare the console for the 412*159 mm overall body
- Select rear or front mounting to suit the existing fascia
- Supply DC5V±5% and connect over USB or PS/2
- Operate within -20℃~55℃ and store within -30℃~85℃
Related Products
Questions About This Model
How many buttons does it have?
89 buttons plus the touchpad mouse function.
What is the touchpad size?
60x44mm.
Which approvals are listed?
RoHS, IP65, FCC and CE.
Is a numeric section included?
Yes, it is a metal keyboard with a numeric keyboard section.
What operation force do the keys need?
280g±20g with a 2mm key trip.
How is it installed?
Rear mounting or front mounting.
Request A Quote On KY-PC-F2T -449
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
