KY-PC-F2 Full Metal Keyboard With Trackball
KY-PC-F2 is a full stainless steel keyboard with a 38mm trackball built into the same sealed plate, giving unattended terminals a pointing device that cannot be unplugged or walked away with.
Product Overview

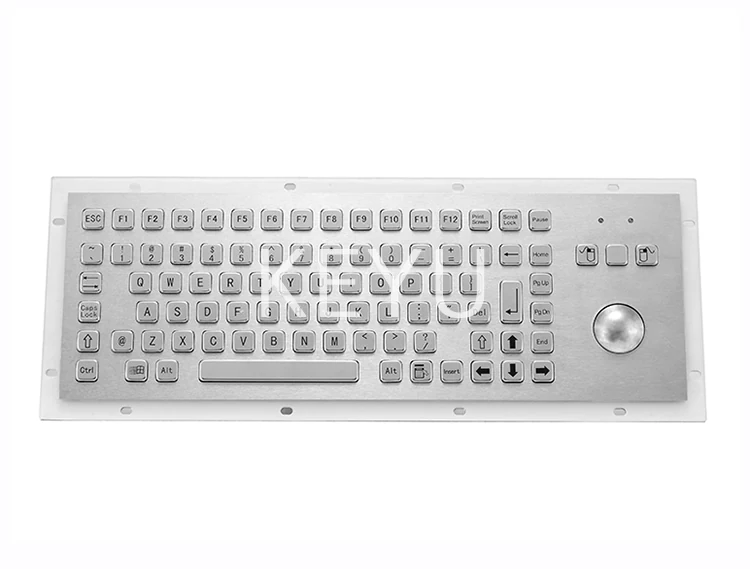

KY-PC-F2 is a full stainless steel keyboard with a 38mm trackball built into the same sealed plate, giving unattended terminals a pointing device that cannot be unplugged or walked away with. The front panel is 392*135 mm and the overall body 416*159 mm. It suits kiosk, medical and industrial cabinets where an office keyboard would not survive a season.
- 38mm trackball integrated in the metal plate, so no external mouse is exposed to theft or damage
- Water and vandal proof construction with RoHS, IP65, FCC and CE approvals
- 392*135 mm front panel fits narrower cabinets than a keyboard plus separate pointer tray
- Key trip of 2mm and operation force of 280g±20g give clear tactile confirmation for gloved users
- Language layout customized for free, so one part number serves several export markets
- Rear mounting or front mounting supported from the same body
Application Scenarios
- Kiosk solution terminals needing cursor control without a mouse
- Medical equipment consoles cleaned with liquids
- Industrial facilities control desks in dusty plant areas
- Prison visitor and staff terminals
- Food service ordering and back-of-house stations
- Oil field instrumentation cabinets in the -20℃~55℃ range
Who It Is For
- Kiosk and self-service cabinet manufacturers
- Medical console integrators replacing consumer keyboards
- Plant engineers specifying pointer input on sealed panels
- Security and correctional terminal suppliers
Problems It Solves
- External mice that get stolen, tangled or torn from unattended terminals
- Optical mice that stop tracking on dusty or wet counter surfaces
- Keyboards that fail the first time a drink is spilled into them
- Re-tooling a cabinet for each destination language
- Cursor control in cabinets with no room for a mouse shelf
Technical Features

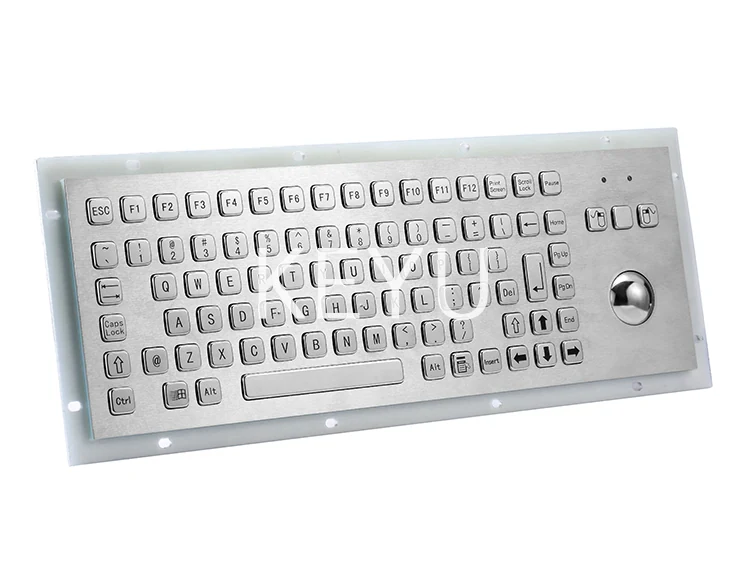

- Stainless steel keyboard with stainless steel buttons throughout
- Trackball diameter of 38mm seated in the sealed panel
- Key trip 2mm with 280g±20g operation force
- Durability of ≥2million operations
- USB and PS/2 interface, DC5V±5% supply, working current under 150mA
- Operation temperature -20℃~55℃, storage temperature -30℃~85℃
Specifications
| Front Panel | 392*135 mm |
|---|---|
| Overall | 416*159 mm |
| Trackball Diameter | 38mm |
| Power Supply | DC5V±5% |
| Working Current | <150mA |
| Interface | USB, PS/2 |
| Key Trip | 2mm |
| Operation Force | 280g±20g |
| Durability | ≥2million |
| Operation Temperature | -20℃~55℃ |
| Storage Temperature | -30℃~85℃ |
| Mounting Way | Rear mounting or front mounting |
Materials
- Stainless steel panel and housing
- Stainless steel key buttons
- 38mm trackball assembly with sealed seat
Manufacturing Process
- Sheet-metal forming of the 392*135 mm front plate
- CNC machining of the trackball aperture and key holes
- Laser marking or etching of key legends to the chosen layout
- Trackball seat sealing and keyboard matrix assembly
- Final interface wiring for USB or PS/2
Quality Control
- Trackball roll and click test across all axes
- Full key matrix verification on both interfaces
- Sealing inspection supporting the IP65 approval
- Durability sampling against the ≥2million figure
- Dimensional check of the 392*135 mm and 416*159 mm envelopes
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Free language layout change for the destination market
- Laser or etching legend method
- Trackball position within the panel
- Front or rear mounting fixings
- Cable length and exit direction for USB or PS/2
How It Compares
| KY-PC-F3T with touchpad | KY-PC-F2 uses a 38mm trackball, which stays usable with wet or gloved fingers where a touchpad surface can be harder to drive. |
|---|---|
| Sealed external industrial mouse | The trackball is part of the 392*135 mm panel, so there is no second cable, no second seal and nothing loose on the counter. |
| KY-PC-B kiosk keyboard with trackball | KY-PC-F2 has a taller 135 mm panel and a 2mm key trip, while KY-PC-B uses a 110 mm panel with a 0.45mm key trip. |
Use Guide
- Size the cut-out to the 392*135 mm front panel and allow for the 416*159 mm overall body
- Leave finger clearance around the 38mm trackball in the bezel design
- Power from a DC5V±5% source able to supply under 150mA
- Select USB or PS/2 before order as the harness differs
- Wipe the stainless face clean; the water and vandal proof design tolerates it
Related Products
Questions About This Model
How big is the trackball?
The trackball diameter is 38mm, set into the sealed stainless steel panel.
What are the panel dimensions?
Front panel 392*135 mm and overall 416*159 mm.
Can it be mounted from behind the enclosure?
Yes, rear mounting or front mounting are both supported.
Which approvals does it carry?
RoHS, IP65, FCC and CE are listed for this model.
What is the electrical draw?
DC5V±5% with a working current below 150mA on USB or PS/2.
Is the keyboard layout fixed?
No. Language layout is customized for free and key labeling can be laser or etched.
Request A Quote On KY-PC-F2
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
