KY-PC-F1 Waterproof Metal Keyboard With 86 Keys
KY-PC-F1 is an 86 key stainless steel keyboard for terminals that need a full typing layout without any pointing device.
Product Overview

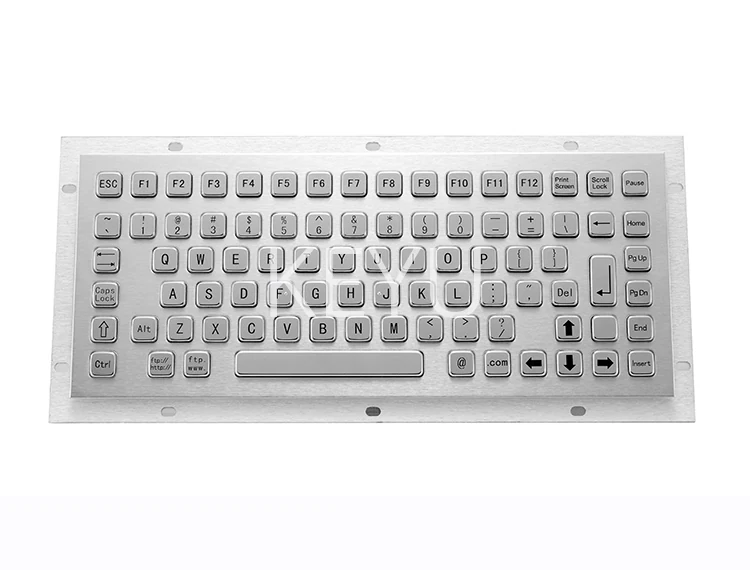

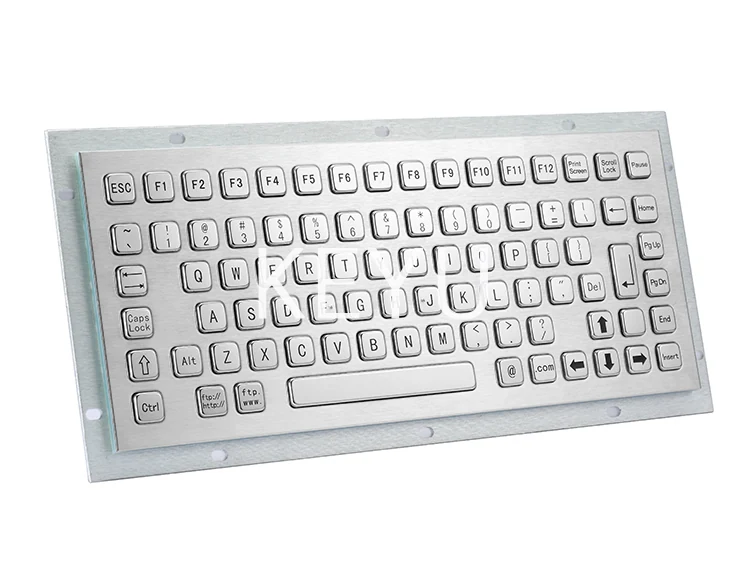

KY-PC-F1 is an 86 key stainless steel keyboard for terminals that need a full typing layout without any pointing device. The front panel is 319*135 mm and the overall body 343*159 mm, making it the most compact of the full-layout panels. Its water and vandal proof construction suits kiosks, clinics, plants and unattended outdoor cabinets.
- 86 key layout gives full text entry in a 319*135 mm front panel footprint
- Water and vandal proof build approved to RoHS, IP65, FCC and CE
- Stainless steel keys with ≥2million durability for continuous public typing
- Layout customized for free, so the same panel ships to different language regions
- Rear mounting or front mounting to fit both new and existing enclosures
- USB or PS/2 at DC5V±5% and under 150mA, powered from the host
Application Scenarios
- Kiosk solution terminals requiring name and address entry
- Medical equipment stations needing wipeable full keyboards
- Industrial facilities operator desks
- Prison terminals where robustness matters more than a pointing device
- Food service order entry stations
- Oil field data entry cabinets
Who It Is For
- OEMs building text-entry kiosks with no cursor requirement
- Hospital and laboratory equipment integrators
- Industrial control panel builders
- Distributors supplying rugged replacement keyboards
Problems It Solves
- Full typing layouts that normally force a bulky office keyboard into a sealed cabinet
- Liquid ingress killing keyboards in clinical and food service areas
- Printed legends wearing away under constant public use
- Layout changes that would otherwise mean a new tooling charge
- Panels that can only be fitted from one side of the enclosure
Technical Features
- 86 key stainless steel layout with stainless steel buttons
- Water and vandal proof panel design
- Key trip 2mm, operation force 280g±20g
- Durability ≥2million operations
- USB and PS/2 interface options
- Operation temperature -20℃~55℃, storage -30℃~85℃, relative humidity 20%~85%
Specifications
| Front Panel | 319*135 mm |
|---|---|
| Overall | 343*159 mm |
| Key Count | 86 key |
| Power Supply | DC5V±5% |
| Working Current | <150mA |
| Interface | USB, PS/2 |
| Key Trip | 2mm |
| Operation Force | 280g±20g |
| Durability | ≥2million |
| Operation Temperature | -20℃~55℃ |
| Storage Temperature | -30℃~85℃ |
| Mounting Way | Rear mounting or front mounting |
Materials
- Stainless steel keyboard panel
- Stainless steel key buttons
Manufacturing Process
- Sheet-metal forming of the 319*135 mm panel
- CNC punching of the 86 key apertures
- Laser or etching of key legends to the ordered layout
- Sealed key module assembly and gasket fitting
- Interface harness assembly and continuity check
Quality Control
- All 86 keys verified against the character map before shipment
- Operation force sampled to the 280g±20g figure
- Water ingress inspection supporting the IP65 approval
- Key trip measurement to the 2mm specification
- Envelope check against 319*135 mm and 343*159 mm
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Free layout change including national character sets
- Laser or etching key labeling
- Panel cut-out and fixing holes to your drawing
- Front or rear mounting variant
- USB or PS/2 harness
How It Compares
| KY-PC-F2 with trackball | KY-PC-F1 drops the trackball for a shorter 319*135 mm panel when the application already has a touch screen. |
|---|---|
| Sealed rubber membrane keyboard | Stainless steel buttons and a vandal proof panel resist cutting and prying, which a rubber mat does not. |
| Consumer waterproof keyboard | KY-PC-F1 is panel mounted from the front or rear with a published ≥2million key durability rather than sitting loose on a desk. |
Use Guide
- Cut to the 319*135 mm front panel dimension and allow for the 343*159 mm body
- Confirm the 86 key layout drawing before production as legends are permanent
- Supply DC5V±5% from the host port and allow under 150mA
- Keep service conditions within -20℃~55℃ and 20%~85% relative humidity
- Store spare units between -30℃ and 85℃
Related Products
Questions About This Model
How many keys does it have?
It is an 86 key layout in a 319*135 mm front panel.
Does it include a mouse or trackball?
No. KY-PC-F1 is keyboard only; the trackball versions are separate models.
Is the layout fixed?
Layout is customized for free, and legends can be produced by laser or by etching.
What protection rating is listed?
The approvals listed are RoHS, IP65, FCC and CE with a water and vandal proof design.
What is the key feel?
Key trip is 2mm with an operation force of 280g±20g.
How is it fixed into a cabinet?
Rear mounting or front mounting, selected to suit your enclosure.
Request A Quote On KY-PC-F1
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
