KY-PC-DT Waterproof Stainless Steel Keyboard With Touchpad

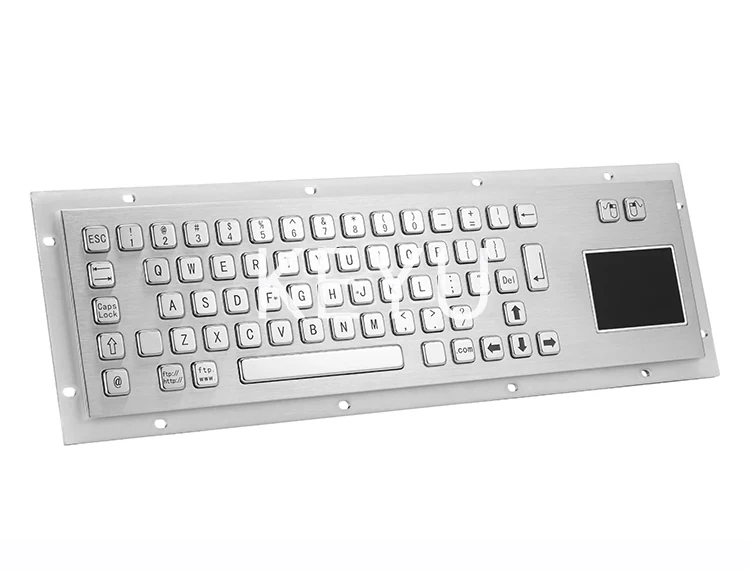

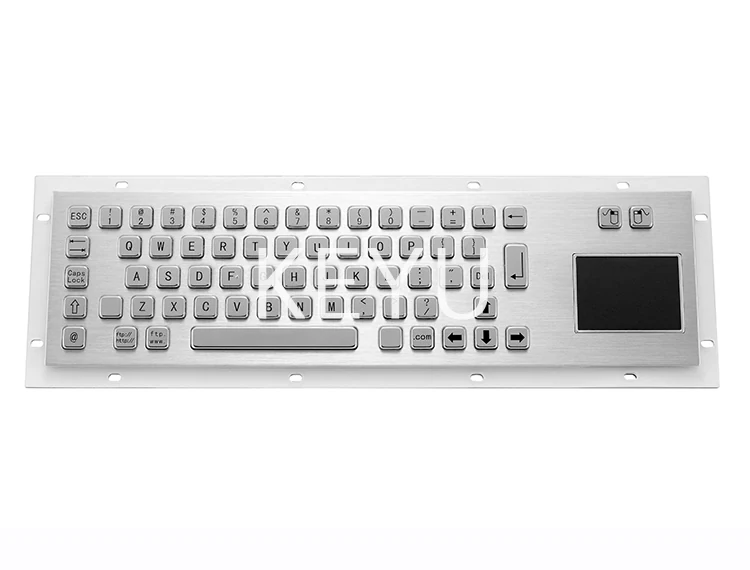

KY-PC-DT is a compact 66 key stainless steel keyboard with a 65x49mm touch panel built into a 392 * 110mm front face and a 416 * 134 mm body.
Product Overview
KY-PC-DT is a compact 66 key stainless steel keyboard with a 65x49mm touch panel built into a 392 * 110mm front face and a 416 * 134 mm body. Keys can carry rated colourful images and the layout is free to customize for any market. It is a direct replacement for keyboard and mouse pairs on kiosks medical equipment and oil field terminals.
- 66 keys plus a 65x49mm touch panel in one waterproof face
- Rated colourful images of keys make application functions obvious
- Language interfaces for different countries with free layout customization
- Approvals cover RoHS IP65 FCC and CE
- Rear mounting or front mounting for either enclosure design
- Key trip options of 1.5mm and 2mm across the key set
Application Scenarios
- Kiosk solutions in public venues
- Medical equipment consoles
- Industrial facilities on the plant floor
- Prison and secure facility terminals
- Food service preparation areas
- Oil field control cabins
Who It Is For
- Kiosk and self service OEMs
- Medical equipment manufacturers
- Secure facility equipment suppliers
- Oil and gas terminal integrators
Problems It Solves
- Two devices mean two cutouts two cables and two failure points
- Plain engraved keys give operators no visual cue for functions
- Water and vandal damage end the life of standard keyboards
- Export builds need different language interfaces from one part
Technical Features
- 66 keys with key sizes 14*14*4.5mm 14*28*4.5mm and 14*100*4.5mm
- Touch panel diameter 65x49mm
- Key trip 1.5mm/2mm with operation force 280g plus or minus 20g
- DC5V plus or minus 5 percent supply with working current under 150mA
- Durability of at least 2 Million operations
- Operation temperature -10 to 55 degrees C and storage -30 to 85 degrees C
Specifications
| Keys | 66 |
|---|---|
| Front panel | 392*110mm |
| Overall | 416*134mm |
| Touch panel diameter | 65x49mm |
| Power supply | DC5V±5% |
| Working current | <150mA |
| Interface | USB、PS/2 |
| Key size | 14*14*4.5mm、14*28*4.5mm、14*100*4.5mm |
| Key trip | 1.5mm/2mm |
| Operation force | 280g±20g |
| Durability | ≥2 Million |
| Approvals | RoHS、IP65、FCC、CE |
Materials
- Stainless steel panel
- Stainless steel buttons
Manufacturing Process
- Sheet metal forming of the 392 * 110mm front panel
- CNC punching of the 66 key apertures and touch panel window
- Laser or etching programs for key marking
- Colour image application to key faces
- Sealing assembly for the IP65 approval
- USB and PS/2 interface test
Quality Control
- Operation force verified at 280g plus or minus 20g
- Key travel checked at 1.5mm and 2mm as specified
- Touch panel response test across the 65x49mm area
- Ingress test on the assembled keyboard
- Life sampling to at least 2 Million operations
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Free layout customization of the 66 key field
- Language interfaces for different countries
- Rated colourful images of keys
- Laser or etching programs for key marking
- Rear or front mounting build
How It Compares
| KY-PC-IT | A 65x49mm touch panel in a 392 * 110mm face instead of the 60x44mm pad on a 400*124 mm panel |
|---|---|
| Keyboard and mouse pairs | One sealed unit removes the second cutout cable and failure point |
| Engraved only keyboards | Colour images on keys speed operator recognition of application functions |
Use Guide
- Cut the fascia for the 392 * 110mm front panel
- Allow 416 * 134 mm overall clearance
- Choose rear or front mounting before fixing
- Operate between -10 and 55 degrees C
- Supply DC5V plus or minus 5 percent
Related Products
Questions About This Model
How many keys does KY-PC-DT have?
66 keys.
What is the touch panel size?
65x49mm.
What are the panel dimensions?
Front panel 392 * 110mm and overall size 416 * 134 mm.
Which approvals are listed?
RoHS IP65 FCC and CE.
Can the key colours be customized?
Yes keys can carry rated colourful images and the layout is free to customize.
What is the key travel?
1.5mm or 2mm depending on the key.
Request A Quote On KY-PC-DT
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
