KY-PC-D Vandal Proof Kiosk Keyboard With Trackball

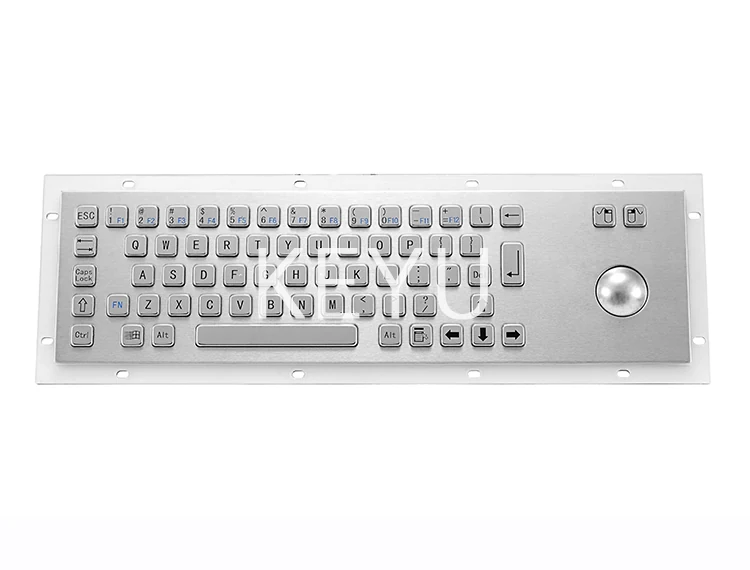

KY-PC-D is a vandal proof kiosk keyboard with an integrated 38mm trackball, aimed at terminals left unattended in public space.
Product Overview

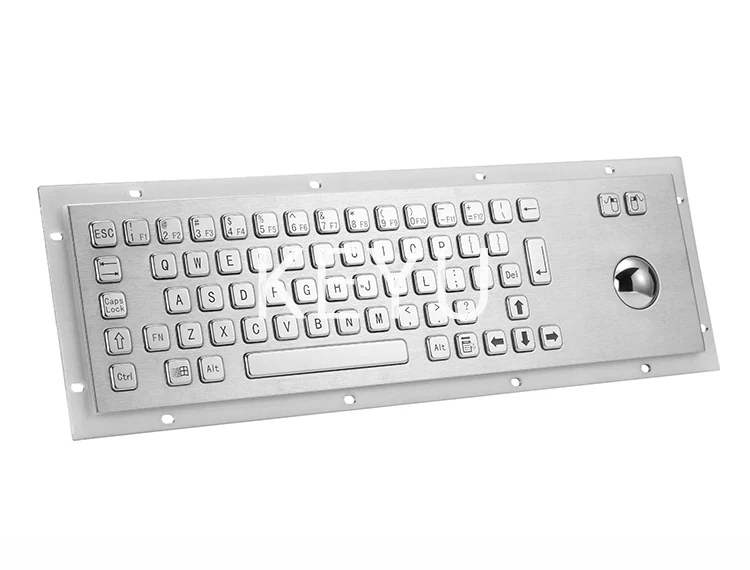

KY-PC-D is a vandal proof kiosk keyboard with an integrated 38mm trackball, aimed at terminals left unattended in public space. The metal panel measures 392*110 mm at the front and 416*134 mm overall, with a water and vandal proof design and stainless steel buttons. Layout is customized for free so the same body serves several deployments.
- Vandal proof metal panel for terminals with no staff supervision
- 38mm trackball integrated into the sealed plate
- 2mm key trip with 280g±20g operation force for confident presses
- ≥2million operation durability under continuous public use
- RoHS, IP65, FCC and CE approvals listed for the model
- Rear mounting or front mounting from the same part
Application Scenarios
- Unattended kiosk solution terminals in public areas
- Medical equipment access points in corridors
- Industrial facilities shop-floor terminals
- Prison and secure-site interfaces
- Food service self-order kiosks
- Oil field terminals in unsheltered locations
Who It Is For
- Operators of unattended public terminals
- Kiosk OEMs specifying anti-vandal input
- Facility managers replacing damaged keyboards repeatedly
- System integrators for parking and transport terminals
Problems It Solves
- Repeat replacement of keyboards damaged by deliberate abuse
- Loose mice removed or destroyed at unattended sites
- Water entering the terminal through the input panel
- Different layouts needed per site without new tooling
- Mounting a panel into enclosures that only open from one side
Technical Features
- Metal keyboard body with water and vandal proof design
- Stainless steel buttons across the layout
- Trackball diameter 38mm
- Key trip 2mm, operation force 280g±20g, durability ≥2million
- USB and PS/2 interface, DC5V±5%, working current under 150mA
- Operation temperature -20℃~55℃, storage temperature -30℃~85℃
Specifications
| Front Panel | 392*110 mm |
|---|---|
| Overall | 416*134 mm |
| Trackball Diameter | 38mm |
| Power Supply | DC5V±5% |
| Working Current | <150mA |
| Interface | USB, PS/2 |
| Key Trip | 2mm |
| Operation Force | 280g±20g |
| Durability | ≥2million |
| Mounting Way | Rear mounting or front mounting |
| Approval | RoHS, IP65, FCC, CE |
Materials
- Metal keyboard panel
- Stainless steel buttons
- 38mm trackball assembly
Manufacturing Process
- Sheet-metal panel forming to 392*110 mm
- CNC cutting of key and trackball apertures
- Laser or etching of key legends to the ordered layout
- Vandal proof sealing and key module assembly
- Functional test on USB and PS/2
Quality Control
- Impact and prying inspection of the assembled panel
- Key matrix and trackball functional verification
- Seal test supporting the IP65 approval
- Durability sampling to ≥2million operations
- Dimensional check against 392*110 mm and 416*134 mm
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Layout customized for free
- Laser or etching key labeling
- Trackball location in the panel
- Front or rear mounting
- Cable exit and interface choice
How It Compares
| KY-PC-A waterproof kiosk keyboard | Both use the 392*110 mm panel with a 2mm trip; KY-PC-D is presented as the vandal proof variant for unsupervised sites. |
|---|---|
| KY-PC-F2 full metal keyboard | KY-PC-D uses the 110 mm high kiosk panel rather than the 135 mm plate, for shallower fascias. |
| Touch screen only terminals | A physical 2mm travel key gives tactile confirmation when a screen is wet, scratched or sunlit. |
Use Guide
- Design the opening to the 392*110 mm front panel with clearance for the 416*134 mm body
- Select rear or front mounting to match how the cabinet is serviced
- Supply DC5V±5% able to deliver under 150mA
- Operate between -20℃ and 55℃ and store between -30℃ and 85℃
- Inspect the trackball seat during routine service in dusty sites
Related Products
Questions About This Model
Is this suitable for unattended locations?
Yes, it uses a water and vandal proof metal design with stainless steel buttons for terminals left unsupervised.
What is the trackball size?
38mm diameter.
What is the panel size?
Front panel 392*110 mm, overall 416*134 mm.
Can the layout be changed?
Layout is customized for free, with laser or etching key labeling.
What interfaces are supported?
USB and PS/2, at DC5V±5% and under 150mA working current.
Which approvals are listed?
RoHS, IP65, FCC and CE.
