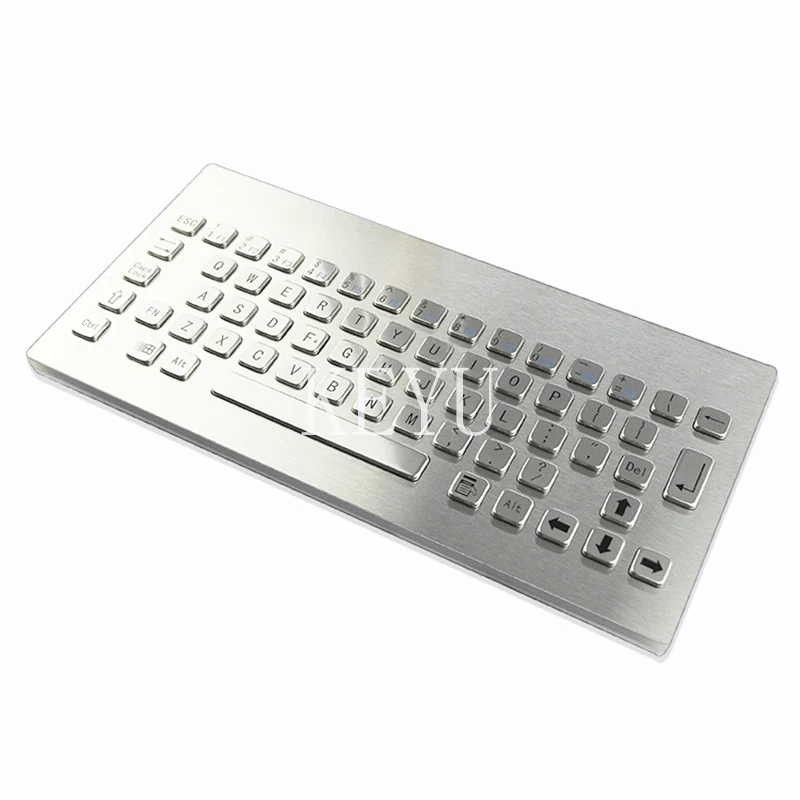

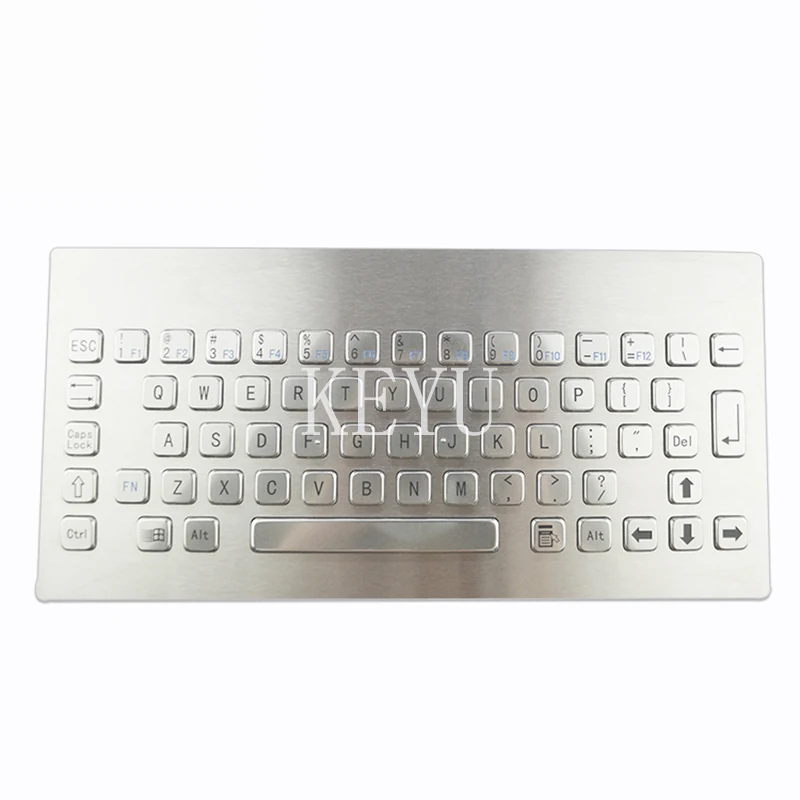

KY-PC-C300 IP65 Kiosk Metal Keyboard
KY-PC-C300 is an IP65 metal keyboard on an explosion proof and anti corrosion SUS304 stainless steel panel with a 3mm aluminum alloy base plate.
Product Overview
KY-PC-C300 is an IP65 metal keyboard on an explosion proof and anti corrosion SUS304 stainless steel panel with a 3mm aluminum alloy base plate. Multiple language keyboard layouts are built to customer requirements and the keyboard draws under 60mA. It is designed for harsh environments in industrial medical and commercial applications including banking transport and gaming.
- IP65 sealing for kiosk fascias exposed to weather and cleaning
- 3mm aluminum alloy base plate gives the panel its rigidity
- Keyboard layouts supporting multiple languages to customer requirements
- Under 60mA current draw leaves headroom on kiosk USB buses
- Light 1.2N+/-0.1N contact force for repeated public use
- Rear installation or front installation for either fascia
Application Scenarios
- Information kiosk input devices
- Industrial control stations
- Banking terminals
- Medical equipment consoles
- Game console and gaming machine panels
- Transportation and military industry terminals
Who It Is For
- Kiosk manufacturers
- Banking terminal suppliers
- Medical and industrial equipment OEMs
- Transport and gaming machine builders
Problems It Solves
- Harsh environments defeat commercial keyboards
- Thin panels flex under public handling
- Export builds need different language layouts
- Kiosk USB power budgets are already tight
Technical Features
- SUS304 stainless steel panel that is explosion proof and anti corrosion
- SUS304 brushed stainless steel keys
- Key size 14 * 14 * 4.5/14 * 28 * 4.5/100 * 14 * 4.5mm
- Key travel 1.5mm with key force 1.2N+/-0.1N contact force
- Durability above 2 million operations
- Net weight 0.95Kg and total weight 1.05Kg
- Operating temperature -10 to 45 degrees C and storage -30 to 85 degrees C
Specifications
| Power supply | 5V ± 5% |
|---|---|
| Working current | <60mA |
| Durability | >2 million |
| Product interface | USB/PS/2 |
| Key size | 14 * 14 * 4.5/14 * 28 * 4.5/100 * 14 * 4.5mm |
| Key travel | 1.5mm |
| Key force | 1.2N+/-0.1N (contact force) |
| Installation mode | rear installation or front installation |
| Base plate | 3mm aluminum alloy |
| Net weight | 0.95Kg |
| Total weight | 1.05Kg |
| Protection | IP65 |
Materials
- SUS304 stainless steel panel
- SUS304 brushed stainless steel keys
- 3mm aluminum alloy base plate
Manufacturing Process
- SUS304 panel forming and brushing
- CNC punching of the key apertures
- 3mm aluminum alloy base plate machining
- Key legend marking for the ordered language
- Sealing assembly to the IP65 level
- USB and PS/2 functional test
Quality Control
- Key force verified at 1.2N+/-0.1N
- Travel measured at 1.5mm
- Ingress testing to the IP65 level
- Weight confirmed against 0.95Kg net
- Life sampling above 2 million operations
Approvals And Test Documentation
- IP65
Customisation Options
- Keyboard layout supporting multiple languages to customer requirements
- USB or PS/2 output
- Rear or front installation build
- Key legend marking content
- Panel fixing pattern for the kiosk fascia
How It Compares
| Commercial keyboards | An IP65 SUS304 build with a 3mm aluminum base plate is made for harsh environments |
|---|---|
| KY-PC-HHCT | Larger 14 * 14 * 4.5mm keys and a lighter 1.2N contact force for public kiosk typing |
| Single language keyboards | Layouts supporting multiple languages are built to customer requirements |
Use Guide
- Choose rear installation or front installation for the fascia
- Connect over USB or PS/2
- Confirm the language layout at order
- Operate between -10 and 45 degrees C
- Store between -30 and 85 degrees C
Related Products
Questions About This Model
What is the sealing rating of KY-PC-C300?
It is described as an IP65 metal keyboard.
How much current does it use?
Under 60mA at 5V plus or minus 5 percent.
What base plate is fitted?
A 3mm aluminum alloy base plate.
Can we get our own language layout?
Keyboard layouts supporting multiple languages are customized according to customer requirements.
What is the key force?
1.2N+/-0.1N contact force with 1.5mm travel.
What does it weigh?
Net weight 0.95Kg and total weight 1.05Kg.
