KY-PC-C IP65 Metal Kiosk Keyboard

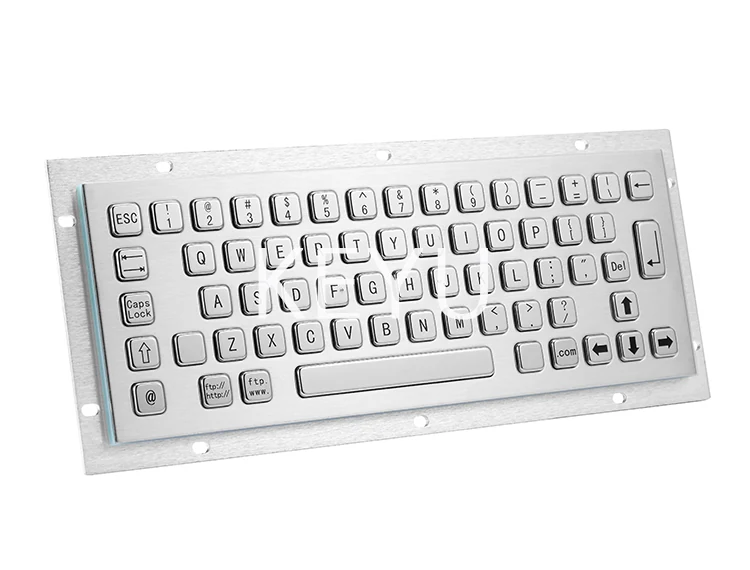

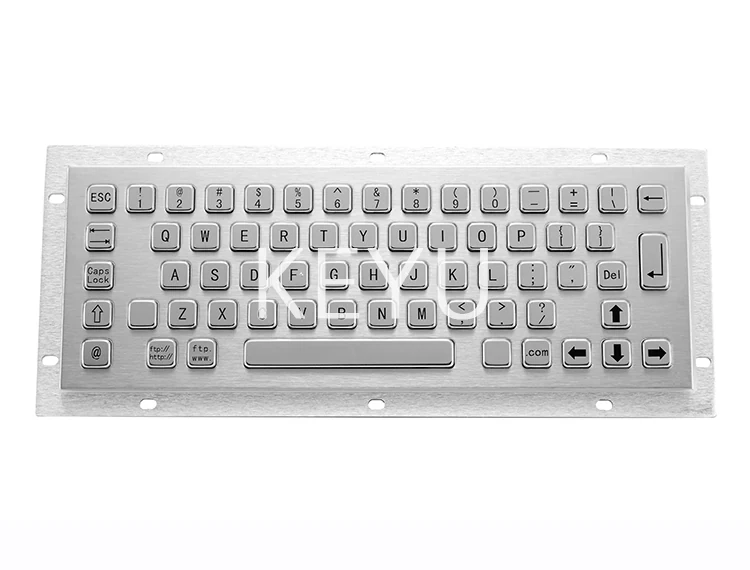

KY-PC-C is a metal kiosk keyboard with a 300*110 mm front panel and stainless steel buttons, built for machines that stay outdoors or in public halls.
Product Overview
KY-PC-C is a metal kiosk keyboard with a 300*110 mm front panel and stainless steel buttons, built for machines that stay outdoors or in public halls. It is a keyboard only unit, so integrators who already have a separate pointing device or a touch screen do not pay for one twice. Approvals listed are RoHS, IP65, FCC and CE.
- Keyboard only format keeps the panel narrow at 300*110 mm
- IP65 approval with water and vandal proof design for exposed sites
- 2mm key trip and 280g±20g force suit heavy public use
- Layout customized for free so keys match the terminal software
- Laser or etching key labelling chosen to suit the legend colours
- Rear or front mounting for retrofit into existing cabinets
Application Scenarios
- Kiosk solutions in transport and retail settings
- Medical equipment terminals
- Industrial facilities with wash down cleaning
- Prisons and secure facilities
- Food service order stations and oil field terminals
Who It Is For
- Kiosk manufacturers pairing a keyboard with a touch screen
- Secure facility and correctional equipment suppliers
- Medical and food service equipment OEMs
- Oil field and industrial installation contractors
Problems It Solves
- Terminals with a touch screen do not need a built in pointer, only durable keys
- Plastic kiosk keyboards fail within a season of public use
- Rain and cleaning water enter unsealed key apertures
- Fixed layouts leave unused keys and missing function keys
Technical Features
- Metal kiosk keyboard with stainless steel buttons
- Front panel 300*110 mm with overall 324*134 mm
- Power supply DC5V plus or minus 5 percent, working current under 150mA
- Key trip 2mm with operation force 280g plus or minus 20g
- Durability of 2 million operations or more
- Interface USB or PS/2
- Operation temperature -20 degrees C to 55 degrees C
Specifications
| Front panel | 300*110 mm |
|---|---|
| Overall | 324*134 mm |
| Power supply | DC5V±5% |
| Working current | <150mA |
| Interface | USB, PS/2 |
| Key trip | 2mm |
| Operation force | 280g±20g |
| Durability | ≥2million |
| Mounting way | Rear mounting or Front mounting |
| Operation temperature | -20℃~55℃ |
| Storage temperature | -30℃~85℃ |
| Approval | RoHS, IP65, FCC, CE |
Materials
- Metal kiosk keyboard panel
- Stainless steel buttons
Manufacturing Process
- Blanking of the 300*110 mm front panel
- CNC machining of the key aperture field
- Panel forming and finishing
- Laser or etching procedure for key labelling
- Gasket fitting and IP65 sealed assembly
Quality Control
- Sealed assembly checked against the IP65 approval
- All keys typed through on a live host
- Operation force sampled at 280g±20g
- Panel and overall dimensions verified to drawing
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Layout customized for free
- Laser or etching key labelling
- USB or PS/2 interface selected at order
- Rear or front mounting arrangement
- Fixing hole pattern matched to an existing cabinet
How It Compares
| KY-PC-NT3 with touchpad | KY-PC-C is a keyboard only unit on a 300*110 mm panel, for terminals that already have a touch screen or separate pointer. |
|---|---|
| Plastic kiosk keyboards | Stainless steel buttons with an IP65 rated sealed panel replace parts that crack in public use. |
| Office keyboards in a housing | The 2mm key trip and 280g±20g force are set for gloved and heavy handed operation. |
Use Guide
- Prepare a fascia opening for the 300*110 mm front panel and 324*134 mm overall
- Fit by rear or front mounting depending on wall access
- Connect USB or PS/2 and confirm every key before sealing
- Keep the gasket seated so the IP65 rating is maintained
- Operate between -20℃ and 55℃
Related Products
Questions About This Model
Does KY-PC-C include a pointing device?
No. It is a metal kiosk keyboard, and KEYU supplies separate trackball, touchpad and keyboard with trackball models if a pointer is needed.
What is the panel size?
Front panel is 300*110 mm and overall is 324*134 mm.
Which approvals apply?
RoHS, IP65, FCC and CE.
How are keys labelled?
Laser or etching procedure for key labelling is optional at order.
Is layout customization chargeable?
Layout is customized for free.
What is the rated durability?
Durability is 2 million operations or more.
