KY-PC-B Kiosk Keyboard With Trackball and Gold Plated Shrapnel

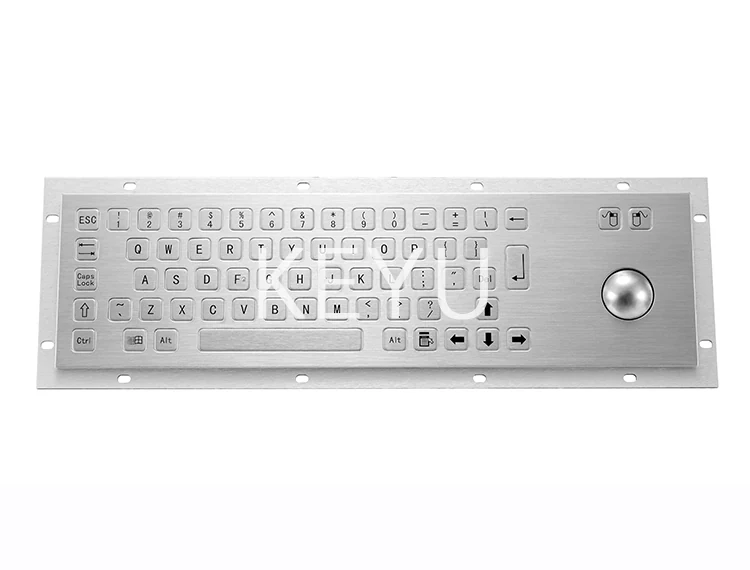

KY-PC-B is a slim kiosk keyboard with an integrated 38mm trackball on a 392*110 mm front panel, 25 mm shorter than the standard metal keyboard plate.
Product Overview
KY-PC-B is a slim kiosk keyboard with an integrated 38mm trackball on a 392*110 mm front panel, 25 mm shorter than the standard metal keyboard plate. It uses gold-plated shrapnel contacts with a short 0.45mm key trip and a 1.2N+/-0.1N operation force, giving a crisp low-travel action in shallow kiosk fascias. Overall size is 416*134 mm.
- 392*110 mm front panel fits shallow kiosk fascias that cannot take a 135 mm plate
- Gold-Plated Shrapne contacts for consistent switching over ≥2million operations

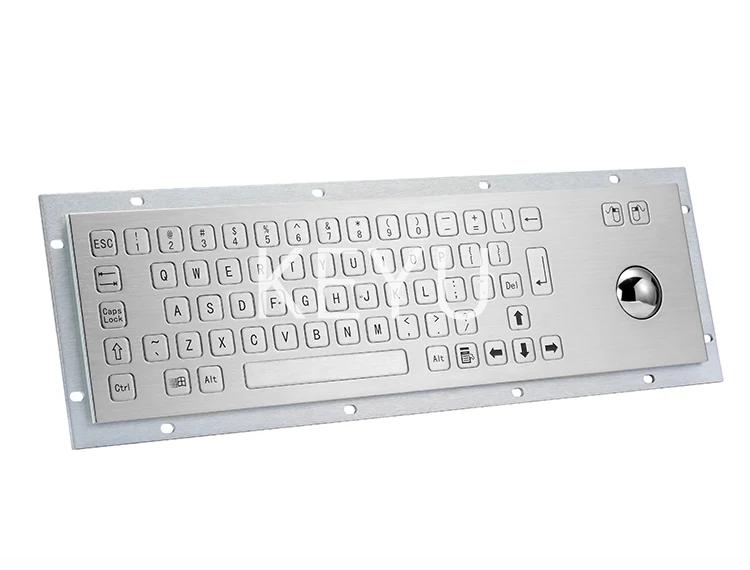

- 0.45mm key trip keeps the panel thin while still giving a defined click
- 38mm trackball built into the same sealed metal plate
- Water and vandal proof design with RoHS, IP65, FCC and CE approvals
- Language layout customized for free with laser or etching legends
Application Scenarios
- Kiosk solution fascias with limited vertical space
- Medical equipment panels needing low-profile input
- Industrial facilities terminals in thin cabinet doors
- Prison and secure terminals requiring a tamper-resistant plate
- Food service self-order points
- Oil field outdoor terminals within -20℃~55℃
Who It Is For
- Kiosk manufacturers with shallow front plate designs
- Self-service terminal integrators specifying low-travel keys
- Cabinet designers replacing an existing 110 mm high input panel
- Distributors quoting slim metal keyboards with pointer
Problems It Solves
- Standard metal keyboards too tall for a 110 mm fascia opening
- Contact wear in high-cycle public keyboards, addressed with gold plated shrapnel
- Loose mice on kiosk counters that get taken or damaged
- Language-specific tooling costs for multi-market rollouts
- Liquid and impact damage on unattended terminals
Technical Features
- Stainless steel keyboard with stainless steel buttons
- Gold-Plated Shrapne contact system
- Key trip 0.45mm with operation force 1.2N+/-0.1N
- Trackball diameter 38mm
- USB and PS/2 interface, DC5V±5%, working current under 150mA
- Durability ≥2million, operation temperature -20℃~55℃
Specifications
| Front Panel | 392*110 mm |
|---|---|
| Overall | 416*134 mm |
| Trackball Diameter | 38mm |
| Power Supply | DC5V±5% |
| Working Current | <150mA |
| Interface | USB, PS/2 |
| Key Trip | 0.45mm |
| Operation Force | 1.2N+/-0.1N |
| Durability | ≥2million |
| Operation Temperature | -20℃~55℃ |
| Storage Temperature | -30℃~85℃ |
| Mounting Way | Rear mounting or front mounting |
Materials
- Stainless steel front plate and buttons
- Gold plated shrapnel contact elements
- 38mm trackball assembly
Manufacturing Process
- Sheet-metal forming of the 392*110 mm slim front plate
- CNC machining of key and trackball apertures
- Gold plating of the shrapnel contact set
- Laser or etching of key legends
- Sealed assembly and USB or PS/2 harness fitting
Quality Control
- Contact resistance check on the gold plated shrapnel set
- Operation force sampling to 1.2N+/-0.1N
- Key trip measurement to 0.45mm
- Trackball motion and button test
- Seal inspection supporting the IP65 approval
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Free language layout definition
- Laser or etching legend method
- Trackball placement left or right of the key field
- Front or rear mounting fixings
- Panel hole pattern to your enclosure drawing
How It Compares
| KY-PC-A waterproof kiosk keyboard | Both use a 392*110 mm panel, but KY-PC-B has a 0.45mm key trip at 1.2N+/-0.1N while KY-PC-A uses a 2mm trip at 280g±20g. |
|---|---|
| KY-PC-F2 full metal keyboard | KY-PC-B is 25 mm shorter at 110 mm panel height, for fascias that cannot take the 135 mm plate. |
| Standard dome contact keyboards | Gold plated shrapnel contacts are used here to keep switching consistent across the ≥2million cycle rating. |
Use Guide
- Match the cut-out to the 392*110 mm front panel and allow for the 416*134 mm body
- Expect a short 0.45mm travel; brief operators used to deeper keyboards
- Power the panel at DC5V±5% with under 150mA available
- Choose rear or front mounting at order stage
- Keep operation inside -20℃~55℃ and storage inside -30℃~85℃
Related Products
Questions About This Model
How thin is the key travel?
Key trip is 0.45mm with an operation force of 1.2N+/-0.1N.
What is gold plated shrapnel for?
The Gold-Plated Shrapne contact set keeps switching consistent across the ≥2million operation durability rating.
Does it include a pointer?
Yes, a 38mm trackball is integrated in the same sealed panel.
What are the dimensions?
Front panel 392*110 mm, overall 416*134 mm.
Which approvals apply?
RoHS, IP65, FCC and CE are listed for this kiosk keyboard.
Can we set our own layout?
Yes, language layout is customized for free with laser or etching key labeling.
Request A Quote On KY-PC-B
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
