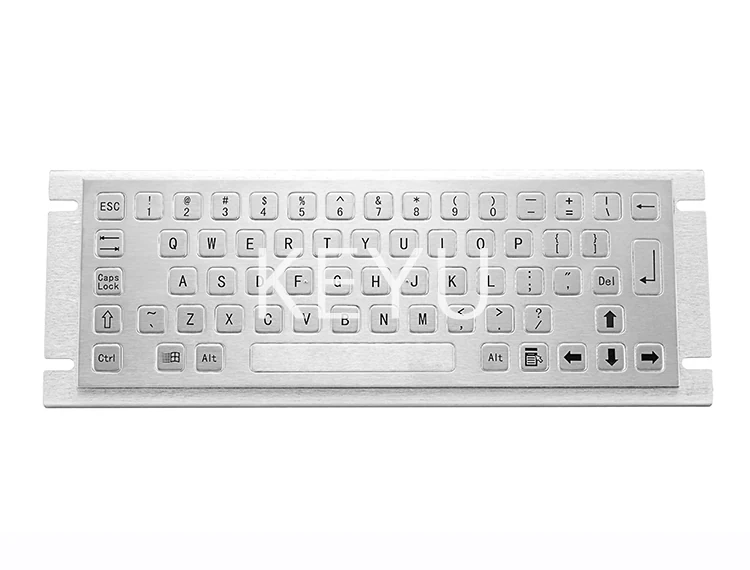

KY-PC-A Waterproof Kiosk Keyboard With Trackball
KY-PC-A is a waterproof kiosk keyboard on a 392*110 mm front panel that keeps a deeper 2mm key trip and a 280g±20g operation force, so operators get familiar full-travel feedback in a slim fascia.
Product Overview

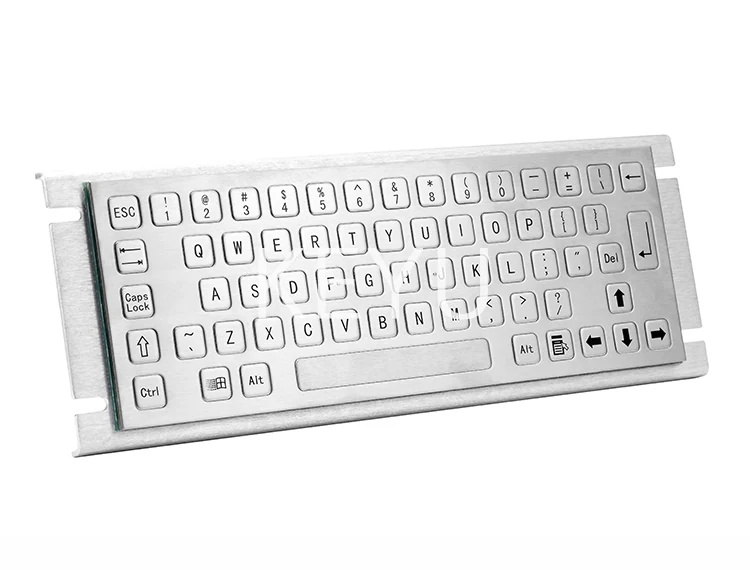

KY-PC-A is a waterproof kiosk keyboard on a 392*110 mm front panel that keeps a deeper 2mm key trip and a 280g±20g operation force, so operators get familiar full-travel feedback in a slim fascia. A 38mm trackball and gold plated shrapnel contacts are part of the same vandal proof stainless steel plate. Overall size is 416*134 mm.
- Full 2mm key travel at 280g±20g in the slim 392*110 mm kiosk format
- Water and vandal proof stainless steel plate approved to RoHS, IP65, FCC and CE
- 38mm trackball integrated so no external pointing device is exposed
- Gold-Plated Shrapne contacts backing the ≥2million durability figure
- Layout customized for free with laser or etching legends
- Fits from the front or the rear of the cabinet
Application Scenarios
- Kiosk solution terminals where users expect deeper key feel
- Medical equipment panels that are sanitised regularly
- Industrial facilities terminals with gloved operators
- Prison and controlled-access terminals
- Food service kiosks exposed to spills
- Oil field terminals operating down to -20℃
Who It Is For
- Kiosk OEMs upgrading from plastic input panels
- Integrators whose users prefer tactile full-travel keys
- Outdoor and semi-outdoor terminal builders
- Service companies replacing failed keyboards in the field
Problems It Solves
- Short-travel kiosk keyboards that cause mis-keys with gloves
- Water ingress in self-service terminals cleaned with liquids
- Pointer devices that need a separate sealed opening
- Wearing legends on high-traffic public keyboards
- Fascias limited to a 110 mm panel height
Technical Features
- Stainless steel keyboard and stainless steel buttons
- Key trip 2mm with operation force 280g±20g
- Gold-Plated Shrapne contact set
- Trackball diameter 38mm
- Durability ≥2million, DC5V±5%, working current under 150mA
- USB and PS/2 interface with rear or front mounting
Specifications
| Front Panel | 392*110 mm |
|---|---|
| Overall | 416*134 mm |
| Trackball Diameter | 38mm |
| Power Supply | DC5V±5% |
| Working Current | <150mA |
| Interface | USB, PS/2 |
| Key Trip | 2mm |
| Operation Force | 280g±20g |
| Durability | ≥2million |
| Operation Temperature | -20℃~55℃ |
| Storage Temperature | -30℃~85℃ |
Materials
- Stainless steel panel and key buttons
- Gold plated shrapnel contacts
- 38mm trackball module
Manufacturing Process
- Panel forming of the 392*110 mm stainless plate
- CNC machining of key and trackball openings
- Gold plating of shrapnel contacts
- Laser or etching of the agreed layout
- Waterproof gasket assembly and function test
Quality Control
- Key travel confirmed at 2mm across the matrix
- Operation force sampling to 280g±20g
- Waterproof test supporting the IP65 approval
- Trackball tracking and durability sampling to ≥2million
- Interface enumeration check on USB and PS/2
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Free layout design for your market
- Laser or etching key labeling
- Front or rear mounting fixings
- Trackball position within the panel
- Cable type and length for USB or PS/2
How It Compares
| KY-PC-B kiosk keyboard | Same 392*110 mm panel, but KY-PC-A keeps a 2mm key trip at 280g±20g instead of the 0.45mm short travel. |
|---|---|
| KY-PC-D vandal proof kiosk keyboard | Both share the 392*110 mm panel and 2mm trip; KY-PC-A is specified with gold plated shrapnel contacts. |
| Plastic kiosk keyboard | A stainless steel vandal proof plate with an IP65 approval replaces a housing that can be pried or flooded. |
Use Guide
- Cut the fascia to 392*110 mm and allow for the 416*134 mm overall body
- Confirm mounting direction before order
- Provide DC5V±5% and at least the under 150mA working current
- Keep within -20℃~55℃ operating and 20%-85% relative humidity
- Clean with a damp cloth rather than solvent jets
Related Products
Questions About This Model
How does it differ from KY-PC-B?
The panel size is the same at 392*110 mm, but KY-PC-A uses a 2mm key trip with a 280g±20g operation force.
Is the trackball sealed into the panel?
Yes, the 38mm trackball is part of the water and vandal proof plate.
What durability is published?
Durability is ≥2million operations.
Which systems can it connect to?
It offers USB and PS/2 interfaces powered at DC5V±5%.
Can we specify the key legends?
Yes, layout is customized for free and legends may be laser marked or etched.
What approvals are listed?
RoHS, IP65, FCC and CE.
Request A Quote On KY-PC-A
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
