Metal Keyboard

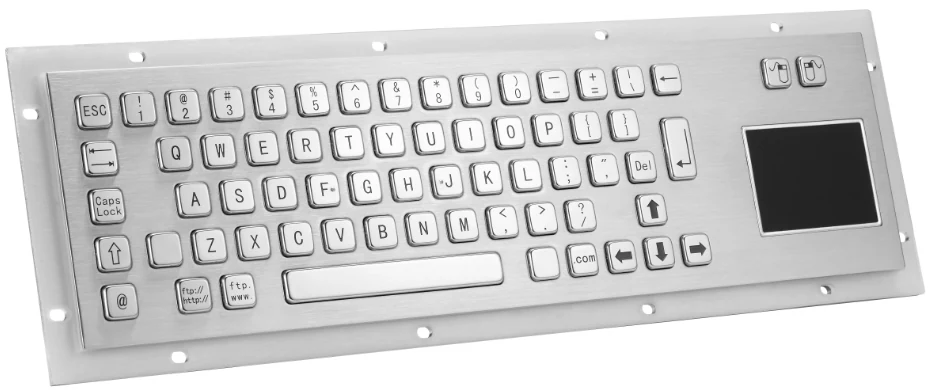

KY-FB-DT-A Explosion Proof Keyboard With Touchpad and 3mm Aluminium Base
KY-FB-DT-A is an embedded explosion-proof keyboard with 66 buttons, touchpad mouse function and an explosion-proof isolation grid.
Product Overview
KY-FB-DT-A is an embedded explosion-proof keyboard with 66 buttons, touchpad mouse function and an explosion-proof isolation grid. A 3mm aluminium alloy base plate stiffens the assembly behind the SUS304 face so it can be built into a console rather than sitting on a desk. It is supplied with certificates and carries the mark Ex ib IIC T6 Gb.
- Embedded format lets the keyboard become part of a sealed hazardous area console
- 3mm aluminium alloy base plate resists flexing and levering behind the panel
- Explosion-proof isolation grid and certificates supplied with the assembly
- Touchpad mouse function avoids a second certified device in the area
- Light 1.25Kg net weight compared with desktop explosion-proof units
- USB or PS/2 output suits both new and installed control PCs
Application Scenarios
- Downhole and coal mine equipment control consoles
- Petroleum and natural gas plant panels
- Chemical industry and metallurgy operator stations
- Electric power switchgear control desks
- Explosion-proof telephone and electrical equipment enclosures
Who It Is For
- Hazardous area console builders
- Mining equipment OEMs
- Oil and gas instrumentation contractors
- Power and metallurgy automation integrators
Problems It Solves
- Desktop keyboards cannot be built into a sealed hazardous area console
- Thin base plates let a panel keyboard flex and lose contact alignment
- Certification documentation is missing from generic industrial keyboards
- A separate mouse doubles the certification and cabling work
Technical Features
- 66 buttons with integrated touchpad mouse function
- Explosion-proof fence mark [Ex ib Gb]IIC and device mark Ex ib IIC T6 Gb
- Conforms to GB3836.1-2010 and GB3836.4-2010
- 3mm aluminium alloy base plate behind the SUS304 stainless steel panel
- Key sizes 14mm*14mm*4.5, 14*28*4.5 and 10*14*4.5mm with 1.5mm key trip
- Operation force 1.5N plus or minus 10 percent
- Mounted from the bottom up with the bottom plate fixed
Specifications
| Buttons | 66 |
|---|---|
| Pointing device | Touchpad mouse function |
| Fence marking | [Ex ib Gb]IIC |
| Keyboard and mouse marking | Ex ib IIC T6 Gb |
| Standards | GB3836.1-2010, GB3836.4-2010 |
| Power supply | 5V±5% |
| Working current | <100mA |
| Interface | USB / PS/2 |
| Key trip | 1.5mm |
| Operation force | 1.5N ± 10% |
| Net weight | 1.25Kg |
| Gross weight | 1.45Kg |
Materials
- SUS304 stainless steel panel
- SUS304 stainless steel buttons
- 3mm aluminium alloy base plate
Manufacturing Process
- Stainless panel blanking and forming
- CNC machining of the 66 key and touchpad apertures
- Machining and fitting of the 3mm aluminium alloy base plate
- Assembly of the explosion-proof isolation grid and wiring
- Certification testing and document issue
Quality Control
- Explosion-proof assembly verified against the certificate before dispatch
- All buttons and the touchpad tested on a live host
- Base plate flatness and fixing torque checked at assembly
- Operation force sampled against the 1.5N ± 10% figure
Approvals And Test Documentation
- Explosion-proof fence mark [Ex ib Gb]IIC
- Keyboard and mouse explosion-proof mark Ex ib IIC T6 Gb
- GB3836.1-2010
- GB3836.4-2010
Customisation Options
- Keyboard layout for various countries to customer need
- Etched key legends on the stainless buttons
- Panel outline and bottom plate fixing pattern for your console
- USB or PS/2 output chosen at order
- Cable routing and length for the barrier connection
How It Compares
| KY-FB-DT-B desktop explosion proof keyboard | KY-FB-DT-A is embedded with a 3mm aluminium alloy base plate and 1.25Kg net weight, rather than a desktop unit at 2.15Kg. |
|---|---|
| Non certified industrial keyboards | This assembly carries Ex ib IIC T6 Gb marking, a safety grid and certificates for explosive atmospheres. |
| Keyboard with separate trackball | The touchpad is inside the certified assembly, so only one device needs approval and cabling. |
Use Guide
- Fit the keyboard from the bottom up with the bottom plate fixed into the console
- Install the explosion-proof isolation grid on the safe side of the wiring
- Connect by USB or PS/2 and verify all buttons and touchpad response
- Keep the working ambient inside -10℃~45℃
- Retain the test and certification documents with the plant records
Related Products
Questions About This Model
Is KY-FB-DT-A a desktop or an embedded keyboard?
It is an embedded device, fixed from the bottom up with the bottom plate secured into the console.
What base plate is used?
A 3mm aluminium alloy base plate sits behind the SUS304 stainless steel panel.
What explosion-proof markings apply?
The keyboard and mouse are marked Ex ib IIC T6 Gb and the explosion-proof fence is marked [Ex ib Gb]IIC.
How many buttons does it have?
A total of 66 buttons, plus mouse function with touchpad.
What does the unit weigh?
Net weight is 1.25Kg and gross weight is 1.45Kg.
Which standards are met?
It conforms to GB3836.1-2010 and GB3836.4-2010, and is supplied with certificates and a safety grid.
Request A Quote On KY-FB-DT-A
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
