Inspection and Testing at Jianheng Metal

Inspection is planned at the stages where a problem is still cheap to fix, not only at final inspection. Composition is verified before pouring, dimensions on the first article and across the batch, and mechanical properties on test bars from the heat.

Where the drawing calls for non destructive testing we agree the method and the acceptance criteria in writing before production, so that there is no argument about the result at inspection.

Equipment

Dimension Inspection

Gantry CMM and Mid Size CMM at Jianheng Metal partner factories — Gantry CMM and Mid Size CMMMeasurement range up to 10 000 mm on the longest coordinate axis, travel range 3 m by 10 m by 2 m

3D Scanner at Jianheng Metal partner factories — 3D ScannerCollected data is used for 3D reconstruction to create digital models of the actual object

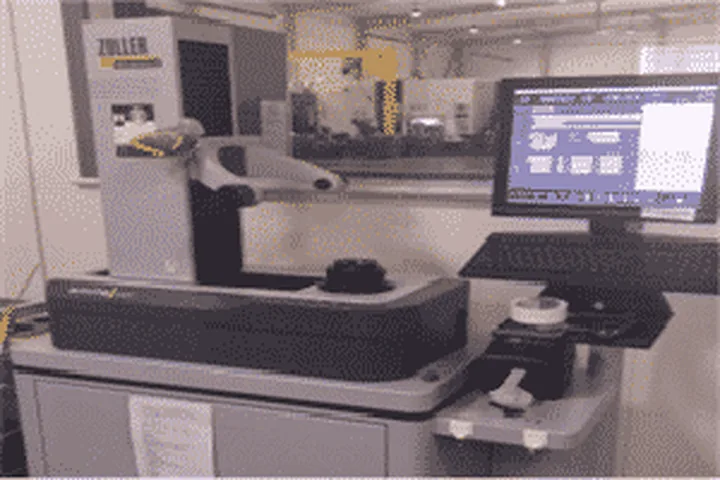

Cutter Calibrator at Jianheng Metal partner factories — Cutter CalibratorTool offset value measurement and compensation in five directions

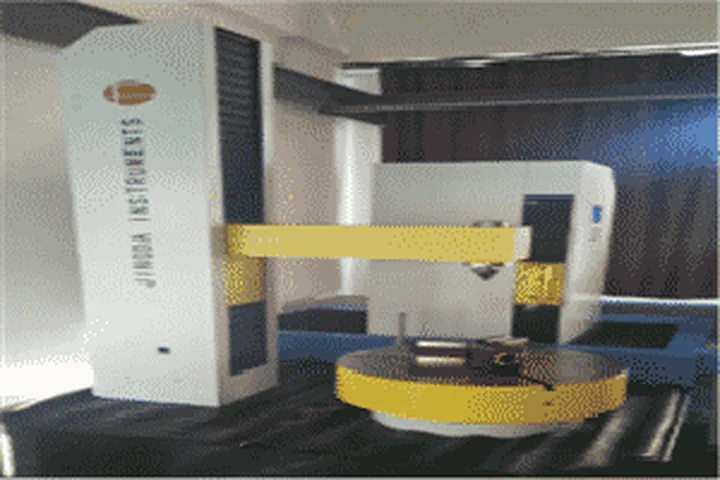

Gear Inspection at Jianheng Metal partner factories — Gear InspectionChecks the comprehensive error in gear transmission

Equipment

Surface Inspection

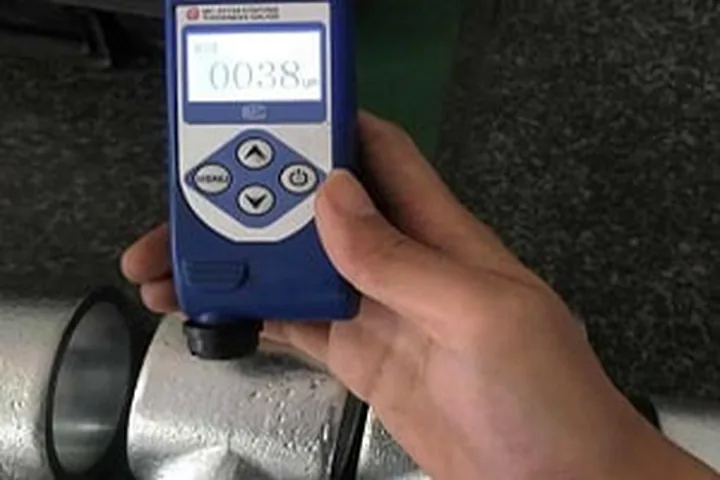

Coating Thickness Gauge at Jianheng Metal partner factories — Coating Thickness GaugeX-ray is directed at the sample and coating thickness is measured from the reflected intensity

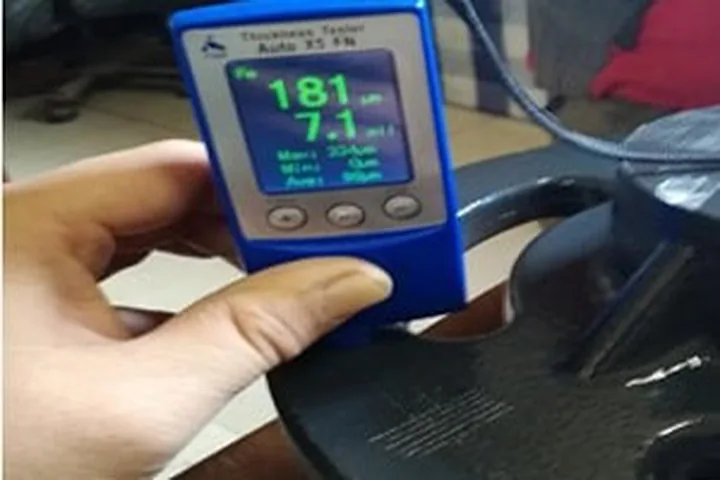

Paint Thickness Tester at Jianheng Metal partner factories — Paint Thickness TesterMeasures paint and metal film thickness by reflected X-ray intensity

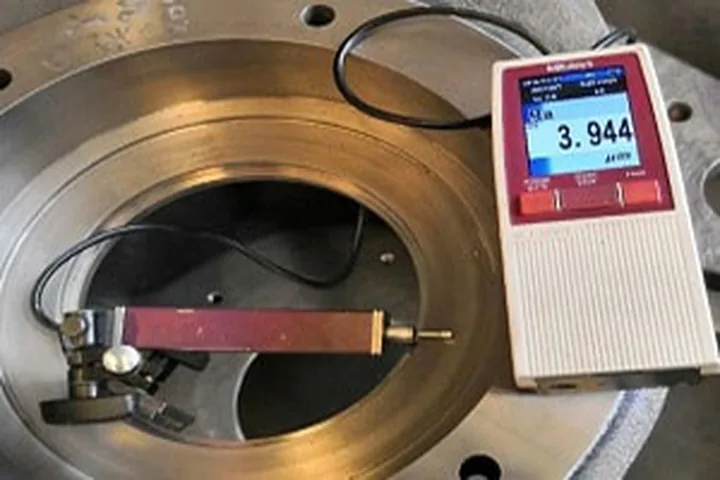

Roughness Tester at Jianheng Metal partner factories — Roughness TesterUsed on metal and non metal machined surfaces, measuring range Ra from 0.012

Equipment

Nondestructive Testing

Ultrasonic Testing at Jianheng Metal partner factories — Ultrasonic TestingUsed to check internal defects

Magnetic Particle Inspection at Jianheng Metal partner factories — Magnetic Particle InspectionObserves defects using magnetic powder as the display medium

X-Ray Testing at Jianheng Metal partner factories — X-Ray TestingObserves and inspects microstructure and internal structural defects using X-ray technology

Penetrant Testing at Jianheng Metal partner factories — Penetrant TestingA liquid dye is applied to the surface and held for a set time, either a coloured dye or a fluorescent one

Equipment

Chemical Composition

Carbon and Sulphur Analyser at Jianheng Metal partner factories — Carbon and Sulphur AnalyserCarbon 0.005 to 10.0000 percent and sulphur 0.0005 to 0.3500 percent, both expandable to 99.999 percent

Handheld Spectrometer at Jianheng Metal partner factories — Handheld SpectrometerXRF based spectral analysis, element range magnesium to uranium

Optical Emission Spectrometer at Jianheng Metal partner factories — Optical Emission SpectrometerUsed for analysis of a variety of matrices

Equipment

Mechanical Properties

Hardness Testing at Jianheng Metal partner factories — Hardness TestingReflects differences in chemical composition, structure and processing route

Impact Testing Machine at Jianheng Metal partner factories — Impact Testing MachineCalculates impact energy from how far the pendulum breaks the sample

FAQ

Questions About Inspection and Testing

What inspection reports can you supply?

Chemical composition from spectrometer analysis, mechanical properties from tensile, impact and hardness testing, dimensional reports including CMM and 3D scan data, and non destructive test reports where the drawing requires them.

How large a part can you measure?

The gantry CMM has a measurement range up to 10 000 mm on the longest coordinate axis, with a travel range of 3 m by 10 m by 2 m.

Which non destructive methods do you use?

Ultrasonic testing for internal defects, magnetic particle inspection for surface and near surface defects, X-ray for internal structure, and penetrant testing with either coloured or fluorescent dye.

Can you inspect to our own standard?

Yes. Send the inspection standard and the acceptance criteria with the drawing. We agree them in writing before production so the result is not disputed later.

Do you inspect during production or only at the end?

Both. Important production stages are inspected, likely problems are forecast and solutions agreed in advance, and a final inspection is run to the agreed standard and requirements.
