JL072A
Aruba 3810 Switch Series provides performance and resiliency for enterprises, SMBs, and branch office networks. This JL072A has 48 x 10/100/1000 ports together with 1 x open module slots and a stacking module slot. It comes with a replaceable fan tray. It supp...
- Form Factor
- Aruba 3810M 48G 1-slot Switch
- New factory sealed in the original vendor carton
- Serial list issued before shipment
- 12 months replacement warranty as standard
- Worldwide courier or freight from Hong Kong
Product Overview
JL072A Overview
Aruba 3810 Switch Series provides performance and resiliency for enterprises, SMBs, and branch office networks. This JL072A has 48 x 10/100/1000 ports together with 1 x open module slots and a stacking module slot. It comes with a replaceable fan tray. It supports one or two power supplies; power supplies are ordered separately. Available modules are: 4 x SFP+; 1 x 40GbE QSFP+; 2 x 40GbE QSFP+; 4 port stacking module. It is supplied new factory sealed, with the serial list issued before shipment and 12 months replacement warranty as standard.
Key Benefits
What Owning JL072A Changes
A Complete Bill of Materials
Modules optics rails and power options are reviewed against JL072A before the quotation is issued, so the install crew is not blocked by a line nobody costed.
Support Registered Under the End User Name
A vendor support contract for JL072A is written under the end customer name, so the entitlement sits with the organisation that owns the outage.
Serials Issued Before It Ships
The serial list for your JL072A consignment is released before despatch, so it can be checked on the manufacturer portal while the goods are still with us.
Problems It Solves
Pain Points JL072A Removes
- End of sale announcements that leave a proven design with no supply route for JL072A
- A closet-by-closet rollout that needs the same SKU available years after the first order
- PoE budget that stopped covering the access points cameras and phones added since
- Uplink modules and stacking cables quoted separately and discovered missing on site
- AOS-Switch and ArubaOS-CX estates that have drifted into two toolchains
Who It Is For
Who Benefits Most From JL072A
Campus Network Teams
Running one access standard across buildings of very different ages
Education IT
Delivering inside vacation windows against a budget year that rarely aligns with the install date
Enterprise IT Teams
Replacing equipment that has reached end of support before an audit rather than after one
Data Centre Operators
Adding capacity in defined increments as cabinets and rows fill up
Specifications
JL072A Manufacturer Specification
As published by Aruba for this part number. Full electrical, port and performance specifications are issued with the quotation against the current datasheet revision.
| Type | Aruba 3810M 48G 1-slot Switch |
|---|---|
| Included accessories | 1 Aruba 3810 Switch Fan Tray (JL088A) |
| I/O ports and slots | · 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) · Duplex: 10BASE-T/100BASE-TX: half or full 1000BASE-T: full only · Ports 1 - 48 support MACSec · 1 open module slot Supports a maximum of 4 SFP+ ports or 2 40GbE ports, with optional module |
| Additional ports and slots | · 1 stacking module slot · 1 RJ-45 serial console port · 1 RJ-45 out-of-band management port · 1 dual-personality (RJ-45 or USB micro-B) |
| Power supplies | · 2 power supply slots · 1 minimum power supply required (ordered separately) |
| Fan tray | · Includes: 1 x JL088A · 1 fan tray slot Switch ships with 1 JL088A fan tray installed. Spares ordered separately. |
| Physical characteristics | · Dimensions (H x W x D): 4.39 x 44.25 x 43.13 cm (1.73 x 17.42 x 16.98 in) (1U height) |
| Memory and processor | P2020 Dual Core @ 1.2 GHz, 4 GB DDR3 SDRAM, 1 GB SD Card Dual ARM Coretex A9 @ 1 GHz, 2 GB DDR3 SDRAM; Packet buffer size: 13.5 MB Internal |
| Mounting and enclosure | Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); Horizontal surface mounting only |
| Performance | · IPv6 Ready Certified · 1000 Mb Latency: < 2.8 μs (FIFO 64-byte packets) · 10 Gb/s Latency: < 1.8 μs (FIFO 64-byte packets) · 40 Gb/s Latency: 1.5 μs (FIFO 64-byte packets) · Throughput: Up to 190.5 Mp/s (64-byte packets) · Routing/Switching capacity: 320 Gb/s · Switch fabric speed: 338 Gb/s · Routing table size... |
| Environment | · Operating temperature: 0 degC to 45 degC (32 degF to 113 degF) · Operating relative humidity: 15% to 95% @ 40 degC (104 degF), noncondensing · Nonoperating/Storage temperature: -40 degC to 70 degC (-40 degF to 158 degF) · Nonoperating/Storage relative humidity: 15% to 90% @ 65 degC (149 degF), noncondensing · Alti... |
| Safety | · EN 60950/IEC 60950 · UL 60950 · UL 60950-1 · CAN/CSA 22.2 No. 60950 · EN 60825 · CSA 22.2 60950-1 · EN62479:2010 · EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013 · EN62368-1, Ed. 2 · IEC 60825:2007 · IEC 60950-1:2005 Ed.2; Am 1:2009+A2:2013 · EN60850-1:2007 / IEC 60825-1: 2007 Class1 Class 1 Laser Products /... |
| Emissions | · FCC Class A · VCCI Class A · EN 55022/CISPR 22 Class A · EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013 |
| Immunity | · Generic: EN55022: 2010 · EN: EN55024: 2010 · ESD: IEC 61000-4-2 · Radiated: IEC 61000-4-3; 3 V/m · EFT/Burst: IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line) · Surge: IEC 61000-4-5; 1 kV/2 kV AC · Conducted: IEC 61000-4-6; 3 V · Power frequency magnetic field: IEC 61000-4-8; 1 A/m, 50 or 60 Hz · Voltage d... |
| Management | · Aruba AirWave Network Management · IMC - Intelligent Management Center · Command-line interface · Web browser · Configuration menu; · Out-of-band management (RJ-45 Ethernet) · In-line and out-ofband · Out-of-band management (serial RS-232c or micro usb) |
Supply Terms
How JL072A Is Supplied
| Part Number | JL072A |
|---|---|
| Brand | Aruba |
| Category | Aruba Switches |
| Product Condition | New factory sealed |
| Serial Traceability | Full serial list supplied before shipment |
| Warranty | 12 months replacement plus optional vendor support contract |
| Packaging | Original vendor carton with export grade outer |
| Lead Time | Confirmed in writing per line at quotation |
| Delivery | Worldwide courier or freight from Hong Kong |
Comparison
JL072A Against Other Models in Aruba Switches
Values are taken from each manufacturer specification. A blank means the manufacturer does not publish that attribute for that model.
| Attribute | JL072A | JL356A | JL357A | JL430A |
|---|---|---|---|---|
| Form Factor | Aruba 3810M 48G 1-slot Switch | (H) 4.39 cm x (W) 44.42 cm x (D) 30.42 cm (1.73" x 17.42" x... | - | - |
| Ports | - | 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type... | (48) RJ-45 autosensing 10/100/1000 PoE+ ports (4) SFP+ 1/10GbE... | 24 x 10/100/1000 |
| Throughput | - | 128 Gbps | 176 Gbps | - |
| Dimensions | - | - | 17.42 x 11.98 x 1.73 in | - |
| Weight | - | - | 17.49 KG | - |
| Capacity | - | - | - | Routing tables: 10000 |
| Product page | View JL072A | View JL356A | View JL357A | View JL430A |
Use Guide
Deployment Guide for JL072A
Confirm the Full Part Number
Check JL072A character for character including any suffix. On this class of hardware a single trailing character commonly changes the software tier, the power option, or whether a bundle is included.
Check Site Prerequisites
Confirm rack space, power feed, cabling and any uplink or accessory dependency before the order rather than on the day of installation.
Record It on Arrival
Photograph the sealed carton, reconcile the serial against the list supplied before shipment, then open and confirm the unit matches the label.
Bench Power Before Racking
Power the unit, capture the software version and the port or drive inventory, and record it while the unit is still accessible.
Register Support Entitlement
Register the support contract under the end user name so the entitlement sits with the organisation that owns the outage.
Related Products
Other Models in Aruba Switches

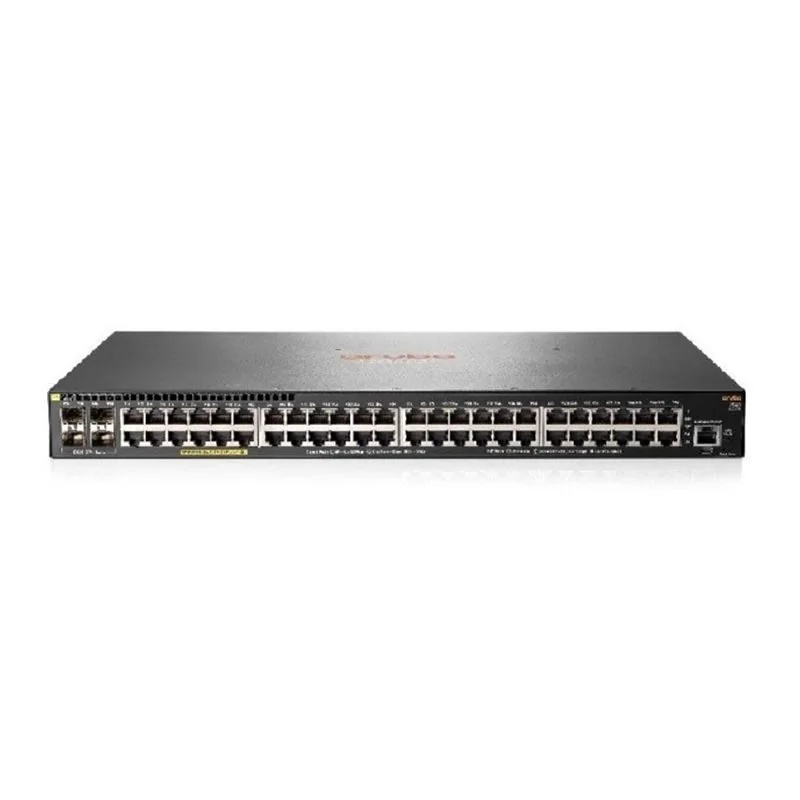

JL357A
JL357A is an Aruba 2540 48G PoE+ 4SFP+ Switch. Designed for the digital workplace, the Aruba 2540 Switch Series is optimized for mobile users. With ad
JL430A
The Aruba JL430A Switch provides performance and resiliency for enterprises, SMBs, and branch office networks. The published specification for JL430A
JL557A
This JL557A has 48x 10/100/1000 PoE+ ports and 4x 1000/100 SFP transceiver slots for uplink connectivity. PoE+ is supported with a power budget of 740
JL558A
This JL558A has 48x 10/100/1000 PoE+ ports and 4x 1000/100 SFP transceiver slots for uplink connectivity. PoE+ is supported with a power budget of 740
JL658A
The Aruba JL658A is an enterprise-grade switch designed to deliver high performance and robust network management for growing businesses. It is suppli
JL659A
The JL659A is a part of the Aruba 6300M switch series from HPE. It features 48 Smart Rate 1/2.5/5GbE Class 6 PoE ports and 4 SFP56 ports, making it a
JL660A
The Aruba CX 6300 Switch Series is a modern, flexible and intelligent family of stackable switches ideal for enterprise network access, aggregation an
Where It Goes
Industries That Deploy It
Healthcare
Hardware supplied with the traceability and change discipline a clinical environment requires.
Manufacturing and Logistics
Connectivity for plant floors, warehouses and distribution sites built for continuous operation rather than office hours.
Data Center
Top of rack switching, compute and storage delivered in the phased increments a cabinet build actually consumes.
Solutions
Programmes It Is Supplied Under
Procurement for System Integrators
An integrator carries the risk between quoting a client and receiving the hardware. Firm pricing and a written lead time per line is what makes that risk manageable.
Network Refresh Programme
Most refresh projects fail on supply rather than on design. A phased programme only works if every phase arrives complete on the date the change window was booked.
Campus Wireless Deployment
Wireless projects are rarely stopped by the access point. They are stopped by a mount, a PoE class or a licence count that nobody confirmed before the order went out.
Reference
Project Cases and Guides
Regional Bank Branch Refresh Across 140 Sites
The branch edge had reached end of software support and the estate had drifted into four different router models bought across eight years
University Campus Wi-Fi Density Upgrade
Lecture theatres and the library could not carry the client counts actually present, while the work could only happen during vacations
Support Contracts Explained for Buyers
A support contract is bought once and used on the worst day of the year. The level and the name it is registered under both matter.
Access Switch Selection for Campus
Five decisions set the part number. Getting them in the right order prevents most of the changes that happen late in a project.
Access Point Mounting and Installation
Wireless installs are rarely delayed by the access point. They are delayed by the mount, the power class or the cable that feeds it.
FAQ
JL072A Frequently Asked Questions
Is JL072A New or Refurbished
Standard supply is new factory sealed in the original vendor carton. If a quotation offers another condition that is stated explicitly in writing before you commit.
Can I Get the Serial Numbers for JL072A Before Payment Clears
Yes. Serials are issued before shipment so you can check them on the manufacturer portal while the goods are still with us.
What Is the Lead Time for JL072A
Availability is confirmed in writing per line at quotation rather than as a project average, because one late line is what moves an installation date.
What Warranty Does JL072A Carry
12 months replacement as standard. A vendor support contract is available separately and is registered under the end user name.
Can You Ship JL072A to My Country
Yes. Consignments go worldwide by courier or freight from Hong Kong, with the routing chosen against the destination clearance regime and your deadline.
Can You Drop Ship JL072A to My Customer
Yes. Consignments can be released directly to an end customer address under your own documentation.
Request Pricing for JL072A
Send the quantity and destination country. Availability and lead time come back in writing, with the serial list before shipment.
