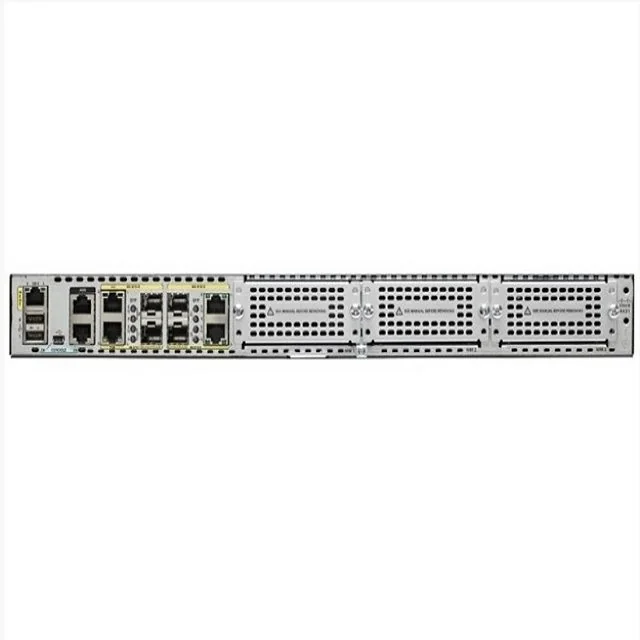

ISR4431-SEC/K9
Cisco ISR4431-SEC/K9 is the Cisco ISR4431/k9 router with Security Bundle. Its other specifications are the same as ISR4431/k9. The published specification for ISR4431-SEC/K9 lists 4 Total onboard WAN or LAN 10/100/1000 ports and 250 W with optional redundancy ...
- Ports
- 4
- PoE Power
- 250 W with optional redundancy
- Throughput
- 500Mbps to 1Gbps
- Form Factor
- Cisco ISR4431/K9 with Security Bundle
- New factory sealed in the original vendor carton
- Serial list issued before shipment
- 12 months replacement warranty as standard
- Worldwide courier or freight from Hong Kong
Product Overview
ISR4431-SEC/K9 Overview
Cisco ISR4431-SEC/K9 is the Cisco ISR4431/k9 router with Security Bundle. Its other specifications are the same as ISR4431/k9. The published specification for ISR4431-SEC/K9 lists 4 Total onboard WAN or LAN 10/100/1000 ports and 250 W with optional redundancy available to powered devices. It is supplied new factory sealed, with the serial list issued before shipment and 12 months replacement warranty as standard.
Key Benefits
What Owning ISR4431-SEC/K9 Changes
Rated Performance Written Into the Quotation
500Mbps to 1Gbps published for ISR4431-SEC/K9 as its aggregate throughput, confirmed against the current datasheet revision when the line is quoted.
Uplink Capability Settled at Order Not at Install
4 SFP-based ports on ISR4431-SEC/K9, so the uplink question is answered on the quotation rather than discovered when the unit is already racked.
Powered Access Without a Separate Injector Build
4 Total onboard WAN or LAN 10/100/1000 ports with 250 W with optional redundancy available to powered devices, so access points cameras and phones are fed from the same switch instead of from a parallel power estate.
Support Registered Under the End User Name
A vendor support contract for ISR4431-SEC/K9 is written under the end customer name, so the entitlement sits with the organisation that owns the outage.
Serials Issued Before It Ships
The serial list for your ISR4431-SEC/K9 consignment is released before despatch, so it can be checked on the manufacturer portal while the goods are still with us.
Problems It Solves
Pain Points ISR4431-SEC/K9 Removes
- Performance taken from a family datasheet rather than from this part number, where the published aggregate throughput is 500Mbps to 1Gbps
- Uplink capability fixed at purchase and found insufficient once the access layer behind it was refreshed
- End of sale announcements that leave a proven design with no supply route for ISR4431-SEC/K9
- End of sale announcements that leave a proven branch design with no supply route
- Throughput ceilings reached once encryption and inspection are switched on
Who It Is For
Who Benefits Most From ISR4431-SEC/K9
Data Centre Operators
Adding capacity in defined increments as cabinets and rows fill up
Branch Network Teams
Rolling out one site design across many locations on a fixed bill of materials
Service Providers
Deploying managed hardware at customer premises with consistent revision and firmware
Education IT
Delivering inside vacation windows against a budget year that rarely aligns with the install date
Specifications
ISR4431-SEC/K9 Manufacturer Specification
As published by Cisco for this part number. Full electrical, port and performance specifications are issued with the quotation against the current datasheet revision.
| Type | Cisco ISR4431/K9 with Security Bundle |
|---|---|
| Aggregate Throughput | 500Mbps to 1Gbps |
| Total onboard WAN or LAN 10/100/1000 ports | 4 |
| RJ-45-based ports | 4 |
| SFP-based ports | 4 |
| Enhanced service-module slots | 0 |
| Doublewide service-module slots | 0 |
| NIM slots | 3 |
| OIR (all I/O modules) | Yes |
| Onboard ISC slot | 1 |
| Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) | NA |
| Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | NA |
| Default memory DDR3 ECC DRAM (data plane) | 2 GB |
| Maximum memory DDR3 ECC DRAM (data plane) | 2 GB |
| Default memory DDR3 ECC DRAM (control/services plane) | 4 GB |
| Maximum memory DDR3 ECC DRAM (control/services plane) | 16 GB |
| Default flash memory | 8 GB |
| Maximum flash memory | 32 GB |
| External USB 2.0 slots (type A) | 2 |
| USB console port -type B mini (up to 115.2 kbps) | 1 |
| Serial console port - RJ45 (up to 115.2 kbps) | 1 |
| Serial auxiliary port - RJ45 (up to 115.2 kbps) | 1 |
| Power-supply options | Internal: AC, DC, and PoE |
| Redundant power supply | Internal: AC, DC, and PoE |
| AC input voltage | 100 to 240 VAC autoranging |
| AC input frequency | 47 to 63 Hz |
| AC input current range, AC power supply (maximum) | 3 to 1.3A |
| AC input surge current | 60 A peak and less than 5 Arms per half cycle |
| Typical power (no modules) (watts) | 65 |
| Maximum power with AC power supply (watts) | 250 (no PoE) |
| Maximum power with PoE power supply (platform only) (watts) | 500 with PoE redundant |
| Maximum endpoint PoE power available from PoE power supply (watts) | 250 W with optional redundancy |
Supply Terms
How ISR4431-SEC/K9 Is Supplied
| Part Number | ISR4431-SEC/K9 |
|---|---|
| Brand | Cisco |
| Category | Cisco ISR 4000 Routers |
| Product Condition | New factory sealed |
| Serial Traceability | Full serial list supplied before shipment |
| Warranty | 12 months replacement plus optional vendor support contract |
| Packaging | Original vendor carton with export grade outer |
| Lead Time | Confirmed in writing per line at quotation |
| Delivery | Worldwide courier or freight from Hong Kong |
Support Contracts
Vendor Support Options Available With ISR4431-SEC/K9
Contracts are registered under the end user name rather than under a reseller name, so the entitlement sits with the organisation that owns the outage. See the support contract guide for how the response levels differ.
| Contract Part Number | Coverage |
|---|---|
| CON-OSE-ISR4431S | SNTC-8X5X4OS Cisco ISR 4431 Sec b |
| CON-OSP-ISR4431S | SNTC-24X7X4OS Cisco ISR 4431 Sec b |
| CON-OS-ISR4431S | SNTC-8X5XNBDOS Cisco ISR 4431 Sec b |
| CON-S2P-ISR4431S | SNTC-24X7X2 Cisco ISR 4431 Sec b |
| CON-SNTE-ISR4431S | SNTC-8X5X4 Cisco ISR 4431 Sec b |
| CON-SNTP-ISR4431S | SNTC-24X7X4 Cisco ISR 4431 Sec b |
| CON-SNT-ISR4431S | SNTC-8X5XNBD Cisco ISR 4431 Sec b |
| CON-SW-ISR4431S | SNTC-NO RMA Cisco ISR 4431 Sec b |
| CON-3OSP-ISR4431S | 3YR SNTC 24X7X4OS Cisco ISR 4431 Sec b |
Comparison
ISR4431-SEC/K9 Against Other Models in Cisco ISR 4000 Routers
Values are taken from each manufacturer specification. A blank means the manufacturer does not publish that attribute for that model.
| Attribute | ISR4431-SEC/K9 | ISR4321/K9 | ISR4331-AX/K9 | ISR4331-AXV/K9 |
|---|---|---|---|---|
| Ports | 4 | 2 | 3 | 3 |
| PoE Power | 250 W with optional redundancy | 120 W | 250 W | 250 W |
| Throughput | 500Mbps to 1Gbps | 50 Mbps to 100 Mbps | 100 Mbps to 300 Mbps | 100 Mbps to 300 Mbps |
| Form Factor | Cisco ISR4431/K9 with Security Bundle | - | - | - |
| Uplinks | - | 1 | 2 | 2 |
| Product page | View ISR4431-SEC/K9 | View ISR4321/K9 | View ISR4331-AX/K9 | View ISR4331-AXV/K9 |
Use Guide
Deployment Guide for ISR4431-SEC/K9
Confirm the Full Part Number
Check ISR4431-SEC/K9 character for character including any suffix. On this class of hardware a single trailing character commonly changes the software tier, the power option, or whether a bundle is included.
Check Site Prerequisites
Confirm rack space, power feed, cabling and any uplink or accessory dependency before the order rather than on the day of installation.
Calculate the Power Budget
Compare the devices this unit will feed against the 250 W with optional redundancy available, using realistic device draw with headroom rather than class maximums.
Settle the Uplink and Optics
Match the uplink module and transceiver to the platform, the measured span and the fibre already installed, and order them on the same line.
Record It on Arrival
Photograph the sealed carton, reconcile the serial against the list supplied before shipment, then open and confirm the unit matches the label.
Bench Power Before Racking
Power the unit, capture the software version and the port or drive inventory, and record it while the unit is still accessible.
