ISR4331/K9
Cisco 4331 Integrated Services Router delivers 100 Mbps to 300 Mbps aggregate throughput and offers one Enhanced service-module (SM-X) slot, which supports for both single- and double-wide service modules provides flexibility in deployment options. The publish...
- Ports
- 3
- PoE Power
- 250 W
- Throughput
- 100 Mbps to 300 Mbps
- Uplinks
- 2
- New factory sealed in the original vendor carton
- Serial list issued before shipment
- 12 months replacement warranty as standard
- Worldwide courier or freight from Hong Kong
Product Overview

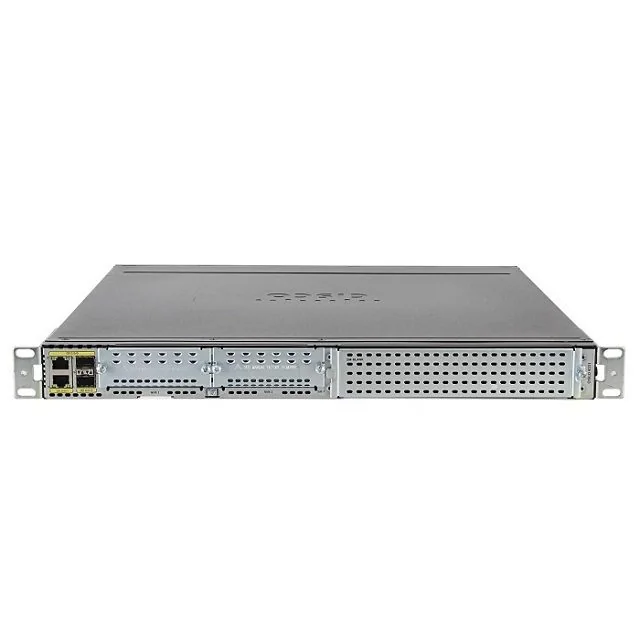

ISR4331/K9 Overview
Cisco 4331 Integrated Services Router delivers 100 Mbps to 300 Mbps aggregate throughput and offers one Enhanced service-module (SM-X) slot, which supports for both single- and double-wide service modules provides flexibility in deployment options. The published specification for ISR4331/K9 lists 3 Total onboard WAN or LAN 10/100/1000 ports and 250 W available to powered devices. It is supplied new factory sealed, with the serial list issued before shipment and 12 months replacement warranty as standard.
Key Benefits
What Owning ISR4331/K9 Changes
Rated Performance Written Into the Quotation
100 Mbps to 300 Mbps published for ISR4331/K9 as its aggregate throughput, confirmed against the current datasheet revision when the line is quoted.
Uplink Capability Settled at Order Not at Install
2 SFP-based ports on ISR4331/K9, so the uplink question is answered on the quotation rather than discovered when the unit is already racked.
Powered Access Without a Separate Injector Build
3 Total onboard WAN or LAN 10/100/1000 ports with 250 W available to powered devices, so access points cameras and phones are fed from the same switch instead of from a parallel power estate.
Serials Issued Before It Ships
The serial list for your ISR4331/K9 consignment is released before despatch, so it can be checked on the manufacturer portal while the goods are still with us.
A Complete Bill of Materials
Modules optics rails and power options are reviewed against ISR4331/K9 before the quotation is issued, so the install crew is not blocked by a line nobody costed.
Problems It Solves
Pain Points ISR4331/K9 Removes
- Performance taken from a family datasheet rather than from this part number, where the published aggregate throughput is 100 Mbps to 300 Mbps
- Uplink capability fixed at purchase and found insufficient once the access layer behind it was refreshed
- End of sale announcements that leave a proven design with no supply route for ISR4331/K9
- End of sale announcements that leave a proven branch design with no supply route
- Throughput ceilings reached once encryption and inspection are switched on
Who It Is For
Who Benefits Most From ISR4331/K9
Campus Network Teams
Running one access standard across buildings of very different ages
Hosting Providers
Building repeatable nodes where every batch has to match the last one
Maintenance and Support Companies
Holding spares against generations the mainstream channel has already dropped
System Integrators
Bidding work that needs firm pricing and a written lead time before the end client is quoted
Specifications
ISR4331/K9 Manufacturer Specification
As published by Cisco for this part number. Full electrical, port and performance specifications are issued with the quotation against the current datasheet revision.
| Aggregate Throughput | 100 Mbps to 300 Mbps |
|---|---|
| Total onboard WAN or LAN 10/100/1000 ports | 3 |
| RJ-45-based ports | 2 |
| SFP-based ports | 2 |
| Enhanced service-module slots | 1 |
| Doublewide service-module slots | 0 |
| NIM slots | 2 |
| OIR (all I/O modules) | Yes |
| Onboard ISC slot | 1 |
| Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) | 4 GB |
| Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | 16 GB |
| Default memory DDR3 ECC DRAM (data plane) | NA |
| Maximum memory DDR3 ECC DRAM (data plane) | NA |
| Default memory DDR3 ECC DRAM (control/services plane) | NA |
| Maximum memory DDR3 ECC DRAM (control/services plane) | NA |
| Default flash memory | 4 GB |
| Maximum flash memory | 16 GB |
| External USB 2.0 slots (type A) | 1 |
| USB console port -type B mini (up to 115.2 kbps) | 1 |
| Serial console port - RJ45 (up to 115.2 kbps) | 1 |
| Serial auxiliary port - RJ45 (up to 115.2 kbps) | 1 |
| Power-supply options | Internal: AC and PoE |
| Redundant power supply | N/A |
| AC input voltage | 100 to 240 VAC autoranging |
| AC input frequency | 47 to 63 Hz |
| AC input current range, AC power supply (maximum) | 3 to 1.3A |
| AC input surge current | 60 A peak and less than 5 Arms per half cycle |
| Typical power (no modules) (watts) | 42 |
| Maximum power with AC power supply (watts) | 250 |
| Maximum power with PoE power supply (platform only) (watts) | 530 |
| Maximum endpoint PoE power available from PoE power supply (watts) | 250 |
Supply Terms
How ISR4331/K9 Is Supplied
| Part Number | ISR4331/K9 |
|---|---|
| Brand | Cisco |
| Category | Cisco ISR 4000 Routers |
| Product Condition | New factory sealed |
| Serial Traceability | Full serial list supplied before shipment |
| Warranty | 12 months replacement plus optional vendor support contract |
| Packaging | Original vendor carton with export grade outer |
| Lead Time | Confirmed in writing per line at quotation |
| Delivery | Worldwide courier or freight from Hong Kong |
Support Contracts
Vendor Support Options Available With ISR4331/K9
Contracts are registered under the end user name rather than under a reseller name, so the entitlement sits with the organisation that owns the outage. See the support contract guide for how the response levels differ.
| Contract Part Number | Coverage |
|---|---|
| CON-OSE-ISR4331K | SNTC-8X5X4OS Cisco ISR 4331 (2GE.2NIM.1SM.4G FLASH.4G |
| CON-OSP-ISR4331K | SNTC-24X7X4OS Cisco ISR 4331 (2GE.2NIM.1SM.4G FLASH.4G |
| CON-OS-ISR4331K | SNTC-8X5XNBDOS Cisco ISR 4331 (2GE.2NIM.1SM.4G FLASH.4G |
| CON-PREM-ISR4331K | SNTC-24X7X2OS Cisco ISR 4331 (2GE.2NIM.1SM.4G FLASH.4G |
| CON-S2P-ISR4331K | SNTC-24X7X2 Cisco ISR 4331 (2GE.2NIM.1SM.4G FLASH.4G |
| CON-SNTE-ISR4331K | SNTC-8X5X4 Cisco ISR 4331 (2GE.2NIM.1SM.4G FLASH.4G |
| CON-SNTP-ISR4331K | SNTC-24X7X4 Cisco ISR 4331 (2GE.2NIM.1SM.4G FLASH.4G |
| CON-SNT-ISR4331K | SNTC-8X5XNBD Cisco ISR 4331 (2GE.2NIM.1SM.4G FLASH.4G |
| CON-SW-ISR4331K | SNTC-NO RMA Cisco ISR 4331 (2GE.2NIM.1SM.4G FLASH.4G |
| CON-3OSP-ISR4331K | 3YR SNTC 24X7X4OS Cisco ISR 4331 (3GE.2NIM.1SM.4G FLASH.4G |
| CON-3SNTP-ISR4331K | 3YR SNTC 24X7X4 Cisco ISR 4331 (3GE.2NIM.1SM.4G FLASH.4G |
| CON-3SNT-ISR4331K | 3YR SNTC 8X5XNBD Cisco ISR 4331 (2GE.2NIM.1SM.4G FLASH.4 |
Comparison
ISR4331/K9 Against Other Models in Cisco ISR 4000 Routers
Values are taken from each manufacturer specification. A blank means the manufacturer does not publish that attribute for that model.
| Attribute | ISR4331/K9 | ISR4451-X-AXV/K9 | ISR4451-X/K9 | ISR4461/K9 |
|---|---|---|---|---|
| Ports | 3 | 4 | 4 | 4 |
| PoE Power | 250 W | 500 W with optional redundancy | 500 W with optional redundancy | 500 W with optional redundancy |
| Throughput | 100 Mbps to 300 Mbps | 1 Gbps to 2Gbps | 1 Gbps to 2Gbps | 1.5Gbps |
| Uplinks | 2 | - | - | - |
| Description | - | Cisco ISR 4451 AXV Bundle. PVDM4-64 w/APP. SEC. UC lic. CUBE-25 | - | - |
| Form Factor | - | - | - | 3.5 x 17.25 x 18.5 in 88.9 x 438.15 x 469.9 mm) |
| Product page | View ISR4331/K9 | View ISR4451-X-AXV/K9 | View ISR4451-X/K9 | View ISR4461/K9 |
Use Guide
Deployment Guide for ISR4331/K9
Confirm the Full Part Number
Check ISR4331/K9 character for character including any suffix. On this class of hardware a single trailing character commonly changes the software tier, the power option, or whether a bundle is included.
Check Site Prerequisites
Confirm rack space, power feed, cabling and any uplink or accessory dependency before the order rather than on the day of installation.
Calculate the Power Budget
Compare the devices this unit will feed against the 250 W available, using realistic device draw with headroom rather than class maximums.
Settle the Uplink and Optics
Match the uplink module and transceiver to the platform, the measured span and the fibre already installed, and order them on the same line.
Record It on Arrival
Photograph the sealed carton, reconcile the serial against the list supplied before shipment, then open and confirm the unit matches the label.
Bench Power Before Racking
Power the unit, capture the software version and the port or drive inventory, and record it while the unit is still accessible.
Related Products
Other Models in Cisco ISR 4000 Routers
ISR4451-X/K9
Cisco 4451 Integrated Services Router, named as ISR4451-X, which supports 2 Enhanced service-module (SM-X) slots, delivers 1 Gbps to 2Gbps aggregate t
ISR4461/K9
ISR4461/K9 is the Cisco ISR 4461 with 4 onboard GE, 3 NIM slots, 1 ISC slot, 3 SM slots, 8 GB Flash Memory default, 2 GB DRAM default (data plane), 4
ISR4221/K9
Cisco 4221 Integrated Services router is design to deliver advanced services to the small enterprise branch environment. It delivers 35Mbps thoughtput
ISR4321-AX/K9
ISR4321-AX/K9 intelligent WAN bundle combines security features, application experience and Wide Area Application Services (WAAS) features together in
ISR4321-AXV/K9
Cisco 4321 Integrated Services router is design to deliver advanced services to the small enterprise branch environment. It delivers 50Mbps thoughtput
ISR4321-SEC/K9
Cisco ISR4321-SEC/K9 is the Cisco ISR4321/k9 router with Security Bundle. Its other specifications are the same as ISR4321/k9. The published specifica
ISR4321-V/K9
Cisco Intergrated Services router ISR4321-V/K9 Voice Bundle is design to deliver advanced VOIP services to the small enterprise branch environment. Ci
Where It Goes
Industries That Deploy It
Service Provider
Repeatable CPE and aggregation hardware supplied at the volume and consistency a managed service contract depends on.
Manufacturing and Logistics
Connectivity for plant floors, warehouses and distribution sites built for continuous operation rather than office hours.
Solutions
Programmes It Is Supplied Under
Global Logistics and Drop Shipping
Hong Kong is a practical despatch point for most of the world. Consignments go to the site, not to a central store and then out again.
Procurement for System Integrators
An integrator carries the risk between quoting a client and receiving the hardware. Firm pricing and a written lead time per line is what makes that risk manageable.
Network Refresh Programme
Most refresh projects fail on supply rather than on design. A phased programme only works if every phase arrives complete on the date the change window was booked.
Reference
Project Cases and Guides
Regional Bank Branch Refresh Across 140 Sites
The branch edge had reached end of software support and the estate had drifted into four different router models bought across eight years
Manufacturer Multi Site Network Standard
Each site had bought its own network hardware locally, so no two plants ran the same equipment and no spares could be shared
Support Contracts Explained for Buyers
A support contract is bought once and used on the worst day of the year. The level and the name it is registered under both matter.
Network Refresh Planning Checklist
Refresh programmes fail on supply far more often than on design. This is the sequence that keeps a phased rollout on its dates.
Verifying Hardware Authenticity
Checks that cost minutes on arrival and save a great deal later. Most of them can be done before the carton is opened.
FAQ
ISR4331/K9 Frequently Asked Questions
Is ISR4331/K9 New or Refurbished
Standard supply is new factory sealed in the original vendor carton. If a quotation offers another condition that is stated explicitly in writing before you commit.
Can I Get the Serial Numbers for ISR4331/K9 Before Payment Clears
Yes. Serials are issued before shipment so you can check them on the manufacturer portal while the goods are still with us.
What Is the Lead Time for ISR4331/K9
Availability is confirmed in writing per line at quotation rather than as a project average, because one late line is what moves an installation date.
What Warranty Does ISR4331/K9 Carry
12 months replacement as standard. A vendor support contract is available separately and is registered under the end user name.
How Much PoE Power Does ISR4331/K9 Provide
The manufacturer lists maximum endpoint poe power available from poe power supply of 250 W for this model. A PoE budget should be calculated from realistic device draw with headroom rather than from class maximums.
What Performance Is ISR4331/K9 Rated For
The published aggregate throughput is 100 Mbps to 300 Mbps. Full port and performance specifications are issued with the quotation against the current datasheet revision.
Are Uplink Modules and Optics Included With ISR4331/K9
They are quoted as separate lines and reviewed against the chassis before the quotation is issued, so they reach site in the same consignment as the unit they belong to.
Can You Ship ISR4331/K9 to My Country
Yes. Consignments go worldwide by courier or freight from Hong Kong, with the routing chosen against the destination clearance regime and your deadline.
Can You Drop Ship ISR4331/K9 to My Customer
Yes. Consignments can be released directly to an end customer address under your own documentation.
Request Pricing for ISR4331/K9
Send the quantity and destination country. Availability and lead time come back in writing, with the serial list before shipment.
