ISR4351-AX/K9
Cisco 4351 Integrated Services Router, which supports 3 Network Interface Modules (NIM) slots, delivers 200 Mbps to 400 Mbps aggregate throughput. ISR4351-AX/K9 is the Cisco ISR 4351 router with AX Bundle w/ APP.SEC license. The published specification for ISR...
- Ports
- 3
- PoE Power
- 500 W
- Throughput
- 200 Mbps to 400 Mbps
- Description
- Cisco ISR 4351 AX Bundle w/ APP.SEC lic
- New factory sealed in the original vendor carton
- Serial list issued before shipment
- 12 months replacement warranty as standard
- Worldwide courier or freight from Hong Kong
Product Overview

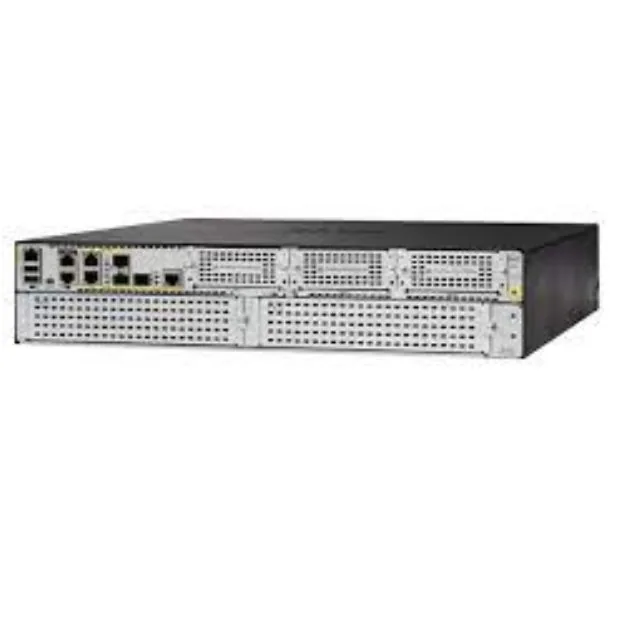

ISR4351-AX/K9 Overview
Cisco 4351 Integrated Services Router, which supports 3 Network Interface Modules (NIM) slots, delivers 200 Mbps to 400 Mbps aggregate throughput. ISR4351-AX/K9 is the Cisco ISR 4351 router with AX Bundle w/ APP.SEC license. The published specification for ISR4351-AX/K9 lists 3 Total onboard WAN or LAN 10/100/1000 ports and 500 W available to powered devices. It is supplied new factory sealed, with the serial list issued before shipment and 12 months replacement warranty as standard.
Key Benefits
What Owning ISR4351-AX/K9 Changes
Powered Access Without a Separate Injector Build
3 Total onboard WAN or LAN 10/100/1000 ports with 500 W available to powered devices, so access points cameras and phones are fed from the same switch instead of from a parallel power estate.
Rated Performance Written Into the Quotation
200 Mbps to 400 Mbps published for ISR4351-AX/K9 as its aggregate throughput, confirmed against the current datasheet revision when the line is quoted.
Uplink Capability Settled at Order Not at Install
3 SFP-based ports on ISR4351-AX/K9, so the uplink question is answered on the quotation rather than discovered when the unit is already racked.
A Complete Bill of Materials
Modules optics rails and power options are reviewed against ISR4351-AX/K9 before the quotation is issued, so the install crew is not blocked by a line nobody costed.
Support Registered Under the End User Name
A vendor support contract for ISR4351-AX/K9 is written under the end customer name, so the entitlement sits with the organisation that owns the outage.
Problems It Solves
Pain Points ISR4351-AX/K9 Removes
- Modules and interface cards quoted separately which breaks the budget late
- Hardware arriving without the licence tier the design assumed
- PoE budgets sized for desk phones and now asked to carry Wi-Fi 6 access points, where 500 W is the figure that decides it
- Performance taken from a family datasheet rather than from this part number, where the published aggregate throughput is 200 Mbps to 400 Mbps
- Uplink capability fixed at purchase and found insufficient once the access layer behind it was refreshed
Who It Is For
Who Benefits Most From ISR4351-AX/K9
Maintenance and Support Companies
Holding spares against generations the mainstream channel has already dropped
System Integrators
Bidding work that needs firm pricing and a written lead time before the end client is quoted
Managed Service Providers
Standardising hardware across many customer sites and needing the same SKU available again
Enterprise IT Teams
Replacing equipment that has reached end of support before an audit rather than after one
Specifications
ISR4351-AX/K9 Manufacturer Specification
As published by Cisco for this part number. Full electrical, port and performance specifications are issued with the quotation against the current datasheet revision.
| Description | Cisco ISR 4351 AX Bundle w/ APP.SEC lic |
|---|---|
| Aggregate Throughput | 200 Mbps to 400 Mbps |
| Total onboard WAN or LAN 10/100/1000 ports | 3 |
| RJ-45-based ports | 3 |
| SFP-based ports | 3 |
| Enhanced service-module slots | 2 |
| Doublewide service-module slots | 1 (assumes no singlewide SM-X modules installed) |
| NIM slots | 3 |
| OIR (all I/O modules) | Yes |
| Onboard ISC slot | 1 |
| Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) | 4 GB |
| Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | 16 GB |
| Default memory DDR3 ECC DRAM (data plane) | NA |
| Maximum memory DDR3 ECC DRAM (data plane) | NA |
| Default memory DDR3 ECC DRAM (control/services plane) | NA |
| Maximum memory DDR3 ECC DRAM (control/services plane) | NA |
| Default flash memory | 4 GB |
| Maximum flash memory | 16 GB |
| External USB 2.0 slots (type A) | 2 |
| USB console port -type B mini (up to 115.2 kbps) | 1 |
| Serial console port - RJ45 (up to 115.2 kbps) | 1 |
| Serial auxiliary port - RJ45 (up to 115.2 kbps) | 1 |
| Power-supply options | Internal: AC, DC, and PoE |
| Redundant power supply | N/A |
| AC input voltage | 100 to 240 VAC autoranging |
| AC input frequency | 47 to 63 Hz |
| AC input current range, AC power supply (maximum) | 7.1 to 3.0A |
| AC input surge current | 60 A peak and less than 12 Arms per half cycle |
| Typical power (no modules) (watts) | 48 |
| Maximum power with AC power supply (watts) | 430 |
| Maximum power with PoE power supply (platform only) (watts) | 990 |
| Maximum endpoint PoE power available from PoE power supply (watts) | 500 |
Supply Terms
How ISR4351-AX/K9 Is Supplied
| Part Number | ISR4351-AX/K9 |
|---|---|
| Brand | Cisco |
| Category | Cisco ISR 4000 Routers |
| Product Condition | New factory sealed |
| Serial Traceability | Full serial list supplied before shipment |
| Warranty | 12 months replacement plus optional vendor support contract |
| Packaging | Original vendor carton with export grade outer |
| Lead Time | Confirmed in writing per line at quotation |
| Delivery | Worldwide courier or freight from Hong Kong |
Support Contracts
Vendor Support Options Available With ISR4351-AX/K9
Contracts are registered under the end user name rather than under a reseller name, so the entitlement sits with the organisation that owns the outage. See the support contract guide for how the response levels differ.
| Contract Part Number | Coverage |
|---|---|
| CON-OSE-ISR4351AX | SNTC-8X5X4OS Cisco ISR 4351 AX Bundle w/ APP.SEC lic |
| CON-OSP-ISR4351AX | SNTC-24X7X4OS Cisco ISR 4351 AX Bundle w/ APP.SEC lic |
| CON-OS-ISR4351AX | SNTC-8X5XNBDOS Cisco ISR 4351 AX Bundle w/ APP.SEC lic |
| CON-PREM-ISR4351AX | SNTC-24X7X2OS Cisco ISR 4351 AX Bundle w/ APP.SEC lic |
| CON-S2P-ISR4351AX | SNTC-24X7X2 Cisco ISR 4351 AX Bundle w/ APP.SEC lic |
| CON-SNTE-ISR4351AX | SNTC-8X5X4 Cisco ISR 4351 AX Bundle w/ APP.SEC lic |
| CON-SNTP-ISR4351AX | SNTC-24X7X4 Cisco ISR 4351 AX Bundle w/ APP.SEC lic |
| CON-SNT-ISR4351AX | SNTC-8X5XNBD Cisco ISR 4351 AX Bundle w/ APP.SEC lic |
| CON-SW-ISR4351AX | SNTC-NO RMA Cisco ISR 4351 AX Bundle w/ APP.SEC lic |
| CON-3SNTP-ISR4351A | 3YR SNTC 24X7X4 Cisco ISR 4351 AX Bundle w/ APP.SEC lic |
| CON-3SNT-ISR4351AX | 3YR SNTC 8X5XNBD Cisco ISR 4351 AX Bundle w/ APP.SEC lic |
Comparison
ISR4351-AX/K9 Against Other Models in Cisco ISR 4000 Routers
Values are taken from each manufacturer specification. A blank means the manufacturer does not publish that attribute for that model.
| Attribute | ISR4351-AX/K9 | ISR4431-AX/K9 | ISR4431-SEC/K9 | ISR4431-V/K9 |
|---|---|---|---|---|
| Ports | 3 | 4 | 4 | 4 |
| PoE Power | 500 W | 250 W with optional redundancy | 250 W with optional redundancy | 250 W with optional redundancy |
| Throughput | 200 Mbps to 400 Mbps | 500Mbps to 1Gbps | 500Mbps to 1Gbps | 500Mbps to 1Gbps |
| Description | Cisco ISR 4351 AX Bundle w/ APP.SEC lic | Cisco ISR 4431 Advanced services router (2GE,2NIM,1SM,4G... | - | Cisco ISR 4431 (4GE, 3NIM, 8G FLASH, 4G DRAM, VOIP) |
| Form Factor | - | - | Cisco ISR4431/K9 with Security Bundle | - |
| Product page | View ISR4351-AX/K9 | View ISR4431-AX/K9 | View ISR4431-SEC/K9 | View ISR4431-V/K9 |
Use Guide
Deployment Guide for ISR4351-AX/K9
Confirm the Full Part Number
Check ISR4351-AX/K9 character for character including any suffix. On this class of hardware a single trailing character commonly changes the software tier, the power option, or whether a bundle is included.
Check Site Prerequisites
Confirm rack space, power feed, cabling and any uplink or accessory dependency before the order rather than on the day of installation.
Calculate the Power Budget
Compare the devices this unit will feed against the 500 W available, using realistic device draw with headroom rather than class maximums.
Settle the Uplink and Optics
Match the uplink module and transceiver to the platform, the measured span and the fibre already installed, and order them on the same line.
Record It on Arrival
Photograph the sealed carton, reconcile the serial against the list supplied before shipment, then open and confirm the unit matches the label.
Bench Power Before Racking
Power the unit, capture the software version and the port or drive inventory, and record it while the unit is still accessible.
