C9407R=
Cisco Catalyst 9400 Series 7 slot chassis. The Cisco Catalyst 9400 Series switches are Cisco's leading modular enterprise switching access platform built for security, IoT and cloud. The platform provides unparalleled investment protection with a chassis archi...
- Form Factor
- 17.41 x 17.30 x 16.30 in. (44.22 x 43.94 x 41.40cm)
- Chassis weight (with fan tray)
- 63.0 lb (28.58 kg)
- New factory sealed in the original vendor carton
- Serial list issued before shipment
- 12 months replacement warranty as standard
- Worldwide courier or freight from Hong Kong
Product Overview
C9407R= Overview

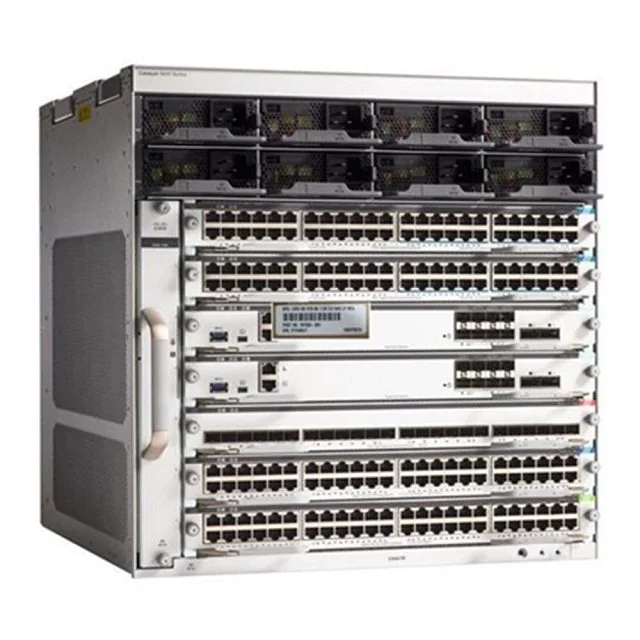

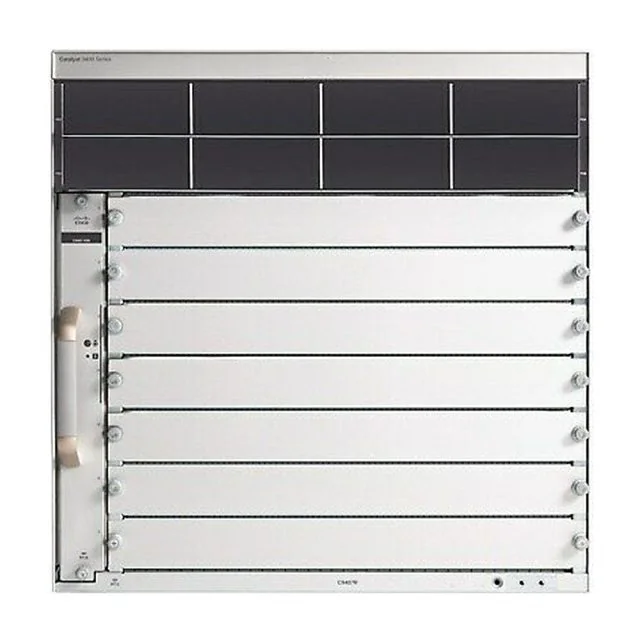

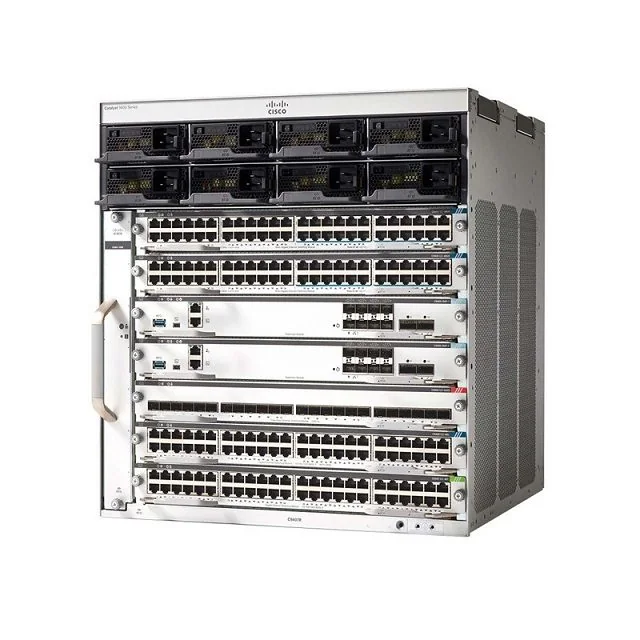

Cisco Catalyst 9400 Series 7 slot chassis. The Cisco Catalyst 9400 Series switches are Cisco's leading modular enterprise switching access platform built for security, IoT and cloud. The platform provides unparalleled investment protection with a chassis architecture that is capable of supporting up to 9Tbps of system bandwidth and unmatched power delivery for high density IEEE 802.3BT (60W PoE). The trailing equals sign identifies C9407R= as the spare form of the part, ordered on its own rather than as part of a system, which is how it is normally bought into a held spares pool. It is supplied new factory sealed, with the serial list issued before shipment and 12 months replacement warranty as standard.
Key Benefits
What Owning C9407R= Changes
Serials Issued Before It Ships
The serial list for your C9407R= consignment is released before despatch, so it can be checked on the manufacturer portal while the goods are still with us.
A Complete Bill of Materials
Modules optics rails and power options are reviewed against C9407R= before the quotation is issued, so the install crew is not blocked by a line nobody costed.
Support Registered Under the End User Name
A vendor support contract for C9407R= is written under the end customer name, so the entitlement sits with the organisation that owns the outage.
Problems It Solves
Pain Points C9407R= Removes
- End of sale announcements that leave a proven design with no supply route for C9407R=
- Chassis supervisors and line cards sourced from three suppliers at three lead times
- Redundant supervisor ordered as an afterthought and no longer available
- Power budget recalculated after the line card mix changed late in the design
- Spares depth disappearing while the platform is still in production
Who It Is For
Who Benefits Most From C9407R=
Education IT
Delivering inside vacation windows against a budget year that rarely aligns with the install date
Healthcare Estates
Working to very short change windows with serial level records required for compliance
Machine Builders
Replacing an installed component with one that behaves identically to the unit removed
Campus Network Teams
Running one access standard across buildings of very different ages
Specifications
C9407R= Manufacturer Specification
As published by Cisco for this part number. Full electrical, port and performance specifications are issued with the quotation against the current datasheet revision.
| Total number of slots | 7 |
|---|---|
| Line-card slots | 5 |
| Supervisor engine slots | 2 |
| Dedicated supervisor engine slot numbers | 3 and 4 |
| Supervisor engine redundancy | Yes |
| Supervisor engines supported | C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y |
| Maximum PoE per slot | 2880W |
| Maximum Bandwidth scalability per line-card slot | Up to 480 Gbps on all slots |
| Number of power supply bays | 8 |
| AC input power | Yes |
| Integrated PoE | Yes |
| Power supplies supported | 3200W AC, 2100W AC |
| Number of fan-tray bays | 1 |
| Location of 19-inch rack-mount | Front |
| Dimensions (H x W x D) | 17.41 x 17.30 x 16.30 in. (44.22 x 43.94 x 41.40cm) |
| Rack Units (RU) | 10 RU |
| Chassis weight (with fan tray) | 63.0 lb (28.58 kg) |
| Mounting | 19-in rack compatible (19-in. rack and cable guide hardware included) |
| Regulatory compliance | CE Marking |
| Safety | UL 60950-1 CAN/CSA-C222.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 IEEE 802.3 |
| EMC | 47 CFR Part 15 CISPR22 Class A KN 32 Class A EN 300 386 V1.6.1 EN 55022 Class A EN 55032 Class A CISPR 32 Class A EN61000-3-2 EN61000-3-3 ICES-003 Class A TCVN 7189 Class A V-3 Class A CNS13438 Class A CISPR24 EN 300 386 EN55024 TCVN 7317 KN35 |
| Industry EMC, safety, and environmental standards | NEBS: Operating temperature: -5 to 55C Relative Humidity: 10-93% Operating Altitude: up to 1829 m (6000 ft) at 55C ETSI 300-019 Requirements are covered under GR-63-CORE with some deviations. SR-3580 NEBS level 3 (GR-63-CORE, to current issue, GR-1089-CORE, to current issue) ETS 300 019-2-1, Class 1.2 Storage ETS 30... |
| ROHS compliance | ROHS5 |
Supply Terms
How C9407R= Is Supplied
| Part Number | C9407R= |
|---|---|
| Brand | Cisco |
| Category | Cisco Catalyst 9400 |
| Product Condition | New factory sealed |
| Serial Traceability | Full serial list supplied before shipment |
| Warranty | 12 months replacement plus optional vendor support contract |
| Packaging | Original vendor carton with export grade outer |
| Lead Time | Confirmed in writing per line at quotation |
| Delivery | Worldwide courier or freight from Hong Kong |
Comparison
C9407R= Against Other Models in Cisco Catalyst 9400
Values are taken from each manufacturer specification. A blank means the manufacturer does not publish that attribute for that model.
| Attribute | C9407R= | C9400-SUP-1XL-Y/2 | C9400-SUP-1XL/2 | C9404R |
|---|---|---|---|---|
| Form Factor | 17.41 x 17.30 x 16.30 in. (44.22 x 43.94 x 41.40cm) | - | - | 10.47 x 17.30 x 16.30 in. (26.53 x 43.94 x 41.40 cm) |
| Chassis weight (with fan tray) | 63.0 lb (28.58 kg) | - | - | 39.0 lb (17.2 kg) |
| Product page | View C9407R= | View C9400-SUP-1XL-Y/2 | View C9400-SUP-1XL/2 | View C9404R |
Use Guide
Deployment Guide for C9407R=
Confirm the Full Part Number
Check C9407R= character for character including any suffix. On this class of hardware a single trailing character commonly changes the software tier, the power option, or whether a bundle is included.
Check Site Prerequisites
Confirm rack space, power feed, cabling and any uplink or accessory dependency before the order rather than on the day of installation.
Record It on Arrival
Photograph the sealed carton, reconcile the serial against the list supplied before shipment, then open and confirm the unit matches the label.
Bench Power Before Racking
Power the unit, capture the software version and the port or drive inventory, and record it while the unit is still accessible.
Register Support Entitlement
Register the support contract under the end user name so the entitlement sits with the organisation that owns the outage.
Related Products
Other Models in Cisco Catalyst 9400
C9400-SUP-1XL/2
Cisco Catalyst 9400 Series Redundant Supervisor 1XL Module. The /2 suffix identifies C9400-SUP-1XL/2 as the redundant unit in a pair, ordered alongsid
C9404R
Cisco Catalyst 9400 Series 4 slot chassis. The Cisco Catalyst 9400 Series switches are Cisco's leading modular enterprise switching access platform bu
C9407R
Cisco Catalyst 9400 Series 7 slot chassis. The Cisco Catalyst 9400 Series switches are Cisco's leading modular enterprise switching access platform bu
C9410R
Cisco Catalyst 9400 Series 10 slot chassis. The Cisco Catalyst 9400 Series switches are Cisco's leading modular enterprise switching access platform b
C9410R=
Cisco Catalyst 9400 Series 10 slot chassis. The Cisco Catalyst 9400 Series switches are Cisco's leading modular enterprise switching access platform b
C9400-LC-48P
Cisco Catalyst 9400 Series 48-Port POE 10/100/1000 (RJ-45). The published specification for C9400-LC-48P lists 48 number of ports. It is supplied new
C9400-LC-48P=
Cisco Catalyst 9400 Series 48-Port POE 10/100/1000 (RJ-45). The published specification for C9400-LC-48P= lists 48 number of ports. The trailing equal
Where It Goes
Industries That Deploy It
Healthcare
Hardware supplied with the traceability and change discipline a clinical environment requires.
Manufacturing and Logistics
Connectivity for plant floors, warehouses and distribution sites built for continuous operation rather than office hours.
Solutions
Programmes It Is Supplied Under
Global Logistics and Drop Shipping
Hong Kong is a practical despatch point for most of the world. Consignments go to the site, not to a central store and then out again.
Procurement for System Integrators
An integrator carries the risk between quoting a client and receiving the hardware. Firm pricing and a written lead time per line is what makes that risk manageable.
Network Refresh Programme
Most refresh projects fail on supply rather than on design. A phased programme only works if every phase arrives complete on the date the change window was booked.
Reference
Project Cases and Guides
System Integrator Data Center Tender
The tender required a firm price and date at submission, months before any award, across a bill of materials of several hundred lines
Manufacturer Multi Site Network Standard
Each site had bought its own network hardware locally, so no two plants ran the same equipment and no spares could be shared
Verifying Hardware Authenticity
Checks that cost minutes on arrival and save a great deal later. Most of them can be done before the carton is opened.
New Versus Refurbished Network Hardware
The choice is rarely about quality. It is about entitlement, traceability and what happens eighteen months after the invoice is paid.
How to Read Cisco Catalyst Part Numbers
A Catalyst part number encodes the port count, the port type, the uplink arrangement and the software tier. Misreading one character changes what arrives.
FAQ
C9407R= Frequently Asked Questions
Is C9407R= New or Refurbished
Standard supply is new factory sealed in the original vendor carton. If a quotation offers another condition that is stated explicitly in writing before you commit.
Can I Get the Serial Numbers for C9407R= Before Payment Clears
Yes. Serials are issued before shipment so you can check them on the manufacturer portal while the goods are still with us.
What Is the Lead Time for C9407R=
Availability is confirmed in writing per line at quotation rather than as a project average, because one late line is what moves an installation date.
What Warranty Does C9407R= Carry
12 months replacement as standard. A vendor support contract is available separately and is registered under the end user name.
Can You Ship C9407R= to My Country
Yes. Consignments go worldwide by courier or freight from Hong Kong, with the routing chosen against the destination clearance regime and your deadline.
Can You Drop Ship C9407R= to My Customer
Yes. Consignments can be released directly to an end customer address under your own documentation.
Request Pricing for C9407R=
Send the quantity and destination country. Availability and lead time come back in writing, with the serial list before shipment.
