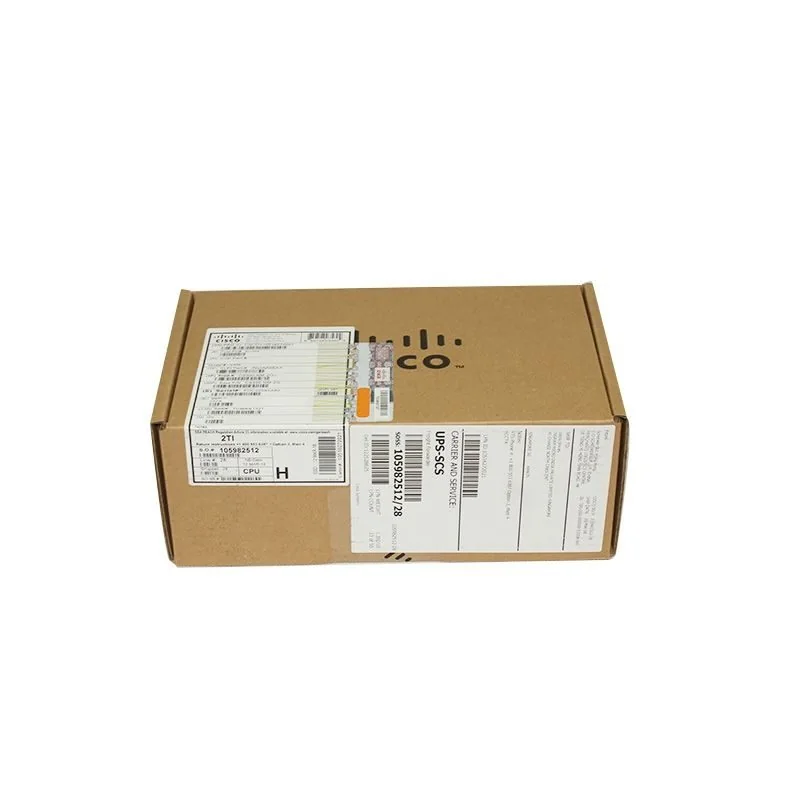

C9300-NM-8X
C9300-NM-8X is the support optional network modules for uplink ports of the Cisco Catalyst 9300 Series Switches. The default switch configuration does
Cisco · Cisco Catalyst 9300

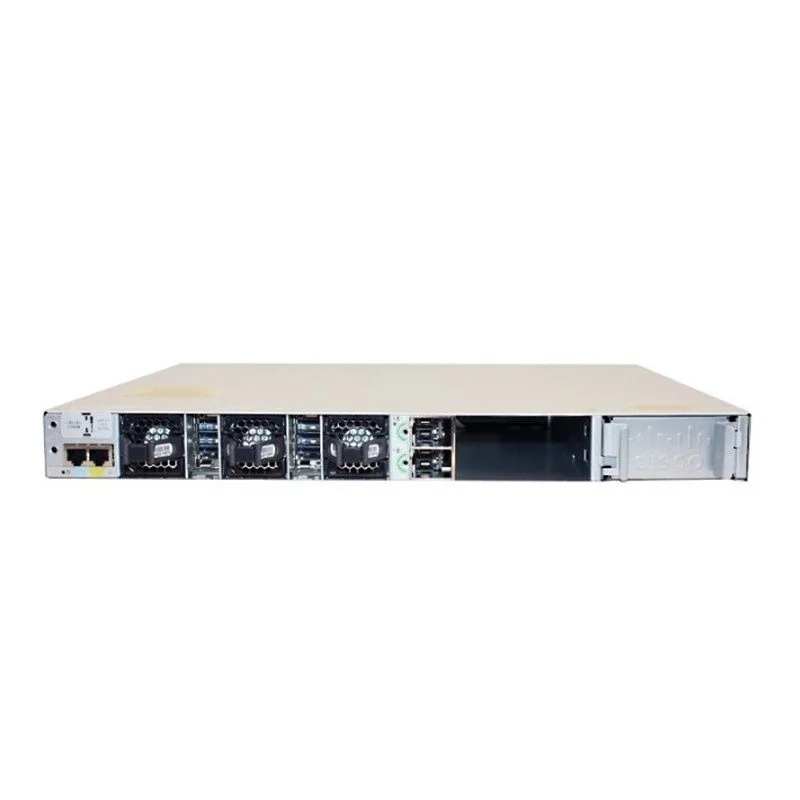

C9300-24P-E
The Cisco Catalyst 9300 Series Switches are Cisco's lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. C9300-24P-E is 24-port PoE+, Network Essentials Switch of 9300 series. Catalyst 9300 Series are the next generation o...
- Ports
- 24 POE+
- PoE Power
- 445W
- Throughput
- 208 Gbps on 24-port Gigabit Ethernet model
- Stacking
- Yes
- Form Factor
- 1.73 x 17.5 x 17.5 Inches
- MAC Table
- 32,000
- New factory sealed in the original vendor carton
- Serial list issued before shipment
- 12 months replacement warranty as standard
- Worldwide courier or freight from Hong Kong
Product Overview
C9300-24P-E Overview
The Cisco Catalyst 9300 Series Switches are Cisco's lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. C9300-24P-E is 24-port PoE+, Network Essentials Switch of 9300 series. Catalyst 9300 Series are the next generation of the industry's most widely deployed switching platform. At 480 Gbps, they are the industry's highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch. The published specification for C9300-24P-E lists 24 POE+ Total 10/100/1000 or Multigigabit copper ports and 445W available to powered devices. It is supplied new factory sealed, with the serial list issued before shipment and 12 months replacement warranty as standard.
Key Benefits
What Owning C9300-24P-E Changes
Table Sizes Checked Against the Design
A Total number of MAC addresses of 32,000 on this model, the kind of ceiling that only becomes visible once a flat segment has grown.
Powered Access Without a Separate Injector Build
24 POE+ Total 10/100/1000 or Multigigabit copper ports with 445W available to powered devices, so access points cameras and phones are fed from the same switch instead of from a parallel power estate.
Rated Performance Written Into the Quotation
208 Gbps on 24-port Gigabit Ethernet model published for C9300-24P-E as its switching capacity, confirmed against the current datasheet revision when the line is quoted.
One Managed Unit Instead of Several
Cisco StackWise-480 support on this model lets a multi switch closet be configured monitored and upgraded as a single device, which cuts the work in every change window.
Serials Issued Before It Ships
The serial list for your C9300-24P-E consignment is released before despatch, so it can be checked on the manufacturer portal while the goods are still with us.
Problems It Solves
Pain Points C9300-24P-E Removes
- Performance taken from a family datasheet rather than from this part number, where the published switching capacity is 208 Gbps on 24-port Gigabit Ethernet model
- End of sale announcements that leave a proven design with no supply route for C9300-24P-E
- Long factory lead times on a project already committed to a go live date
- Grey market stock that cannot be registered for support or warranty
- Port count and PoE budget that no longer cover new access points and cameras
Who It Is For
Who Benefits Most From C9300-24P-E
Managed Service Providers
Standardising hardware across many customer sites and needing the same SKU available again
Enterprise IT Teams
Replacing equipment that has reached end of support before an audit rather than after one
Data Centre Operators
Adding capacity in defined increments as cabinets and rows fill up
Branch Network Teams
Rolling out one site design across many locations on a fixed bill of materials
Specifications
C9300-24P-E Manufacturer Specification
As published by Cisco for this part number. Full electrical, port and performance specifications are issued with the quotation against the current datasheet revision.
| Product Description | Catalyst 9300 24-port PoE+, Network Essentials |
|---|---|
| Total 10/100/1000 or Multigigabit copper ports | 24 POE+ |
| Default AC power supply | 715W AC |
| Available PoE power | 445W |
| Cisco StackWise-480 | Yes |
| Cisco StackPower | Yes |
| Default power supply | PWR-C1-715WAC-P/2 |
| Switching capacity | 208 Gbps on 24-port Gigabit Ethernet model |
| Stacking bandwidth | 480 Gbps |
| Total number of MAC addresses | 32,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 32,000 (24,000 direct routes and 8000 indirect routes) |
| IPv4 routing entries | 32,000 |
| IPv6 routing entries | 16,000 |
| Multicast routing scale | 8000 |
| QoS scale entries | 5120 |
| ACL scale entries | 5120 |
| Packet buffer per SKU | 16 MB buffer for 24- or 48-port Gigabit Ethernet models |
| FNF entries | 64,000 flow on 24- and 48-port Gigabit Ethernet models |
| DRAM | 8 GB |
| Flash | 16 GB |
| VLAN IDs | 4000 |
| Total Switched Virtual Interfaces (SVIs) | 2000 |
| Jumbo frames | 9198 bytes |
| Total routed ports per 9300 Series stack | 208 |
| Wireless bandwidth per switch | Up to 48 Gbps on 24-port Gigabit Ethernet model |
| Forwarding rate | 154.76 Mpps |
| Dimensions (H x W x D) | 1.73 x 17.5 x 17.5 Inches |
| Weight | 16.33 Pounds |
| Mean time between failures (hours) | 299,000 |
Supply Terms
How C9300-24P-E Is Supplied
| Part Number | C9300-24P-E |
|---|---|
| Brand | Cisco |
| Category | Cisco Catalyst 9300 |
| Product Condition | New factory sealed |
| Serial Traceability | Full serial list supplied before shipment |
| Warranty | 12 months replacement plus optional vendor support contract |
| Packaging | Original vendor carton with export grade outer |
| Lead Time | Confirmed in writing per line at quotation |
| Delivery | Worldwide courier or freight from Hong Kong |
Comparison
C9300-24P-E Against Other Models in Cisco Catalyst 9300
Values are taken from each manufacturer specification. A blank means the manufacturer does not publish that attribute for that model.
| Attribute | C9300-24P-E | C9300-NM-8X | C9300L-24P-4G-A | C9300L-24P-4G-E |
|---|---|---|---|---|
| Ports | 24 POE+ | - | - | - |
| PoE Power | 445W | - | - | - |
| Throughput | 208 Gbps on 24-port Gigabit Ethernet model | - | 56 Gbps - 176 Gbps | 56 Gbps - 176 Gbps |
| Stacking | Yes | - | 320 Gbps | 320 Gbps |
| Form Factor | 1.73 x 17.5 x 17.5 Inches | - | - | - |
| MAC Table | 32,000 | - | 32,000 | 32,000 |
| Product page | View C9300-24P-E | View C9300-NM-8X | View C9300L-24P-4G-A | View C9300L-24P-4G-E |
Use Guide
Deployment Guide for C9300-24P-E
Confirm the Full Part Number
Check C9300-24P-E character for character including any suffix. On this class of hardware a single trailing character commonly changes the software tier, the power option, or whether a bundle is included.
Check Site Prerequisites
Confirm rack space, power feed, cabling and any uplink or accessory dependency before the order rather than on the day of installation.
Calculate the Power Budget
Compare the devices this unit will feed against the 445W available, using realistic device draw with headroom rather than class maximums.
Record It on Arrival
Photograph the sealed carton, reconcile the serial against the list supplied before shipment, then open and confirm the unit matches the label.
Bench Power Before Racking
Power the unit, capture the software version and the port or drive inventory, and record it while the unit is still accessible.
Register Support Entitlement
Register the support contract under the end user name so the entitlement sits with the organisation that owns the outage.
Related Products
Other Models in Cisco Catalyst 9300

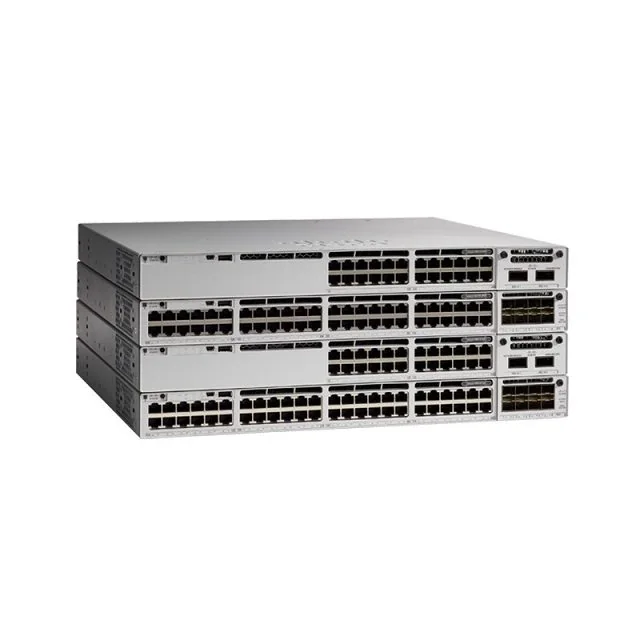

C9300L-24P-4G-A
Cisco Catalyst 9300 Series is the next generation of the industry's most widely deployed stackable switching platform. Built for security, IoT, and th
C9300L-24P-4G-E
Cisco Catalyst 9300 Series is the next generation of the industry's most widely deployed stackable switching platform. Built for security, IoT, and th
C9300L-24P-4X-A
Cisco Catalyst 9300 Series is the next generation of the industry's most widely deployed stackable switching platform. Built for security, IoT, and th
C9300L-24P-4X-E
Cisco Catalyst 9300 Series is the next generation of the industry's most widely deployed stackable switching platform. Built for security, IoT, and th

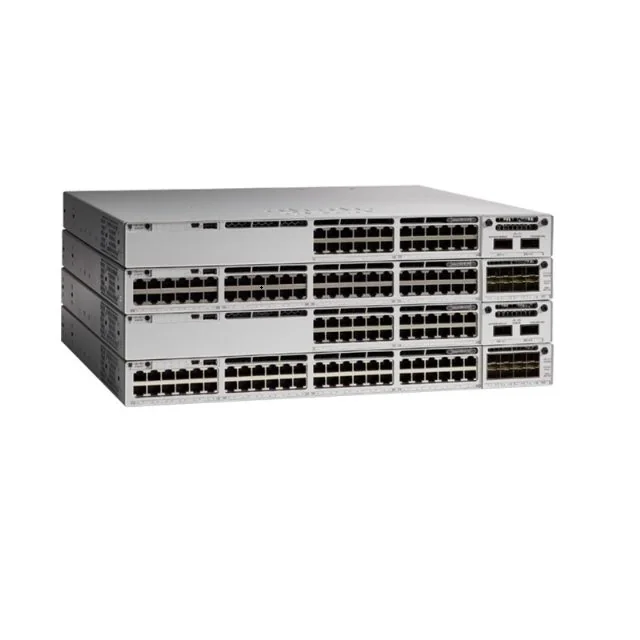

C9300L-24T-4G-A
Cisco Catalyst 9300 Series is the next generation of the industry's most widely deployed stackable switching platform. Built for security, IoT, and th

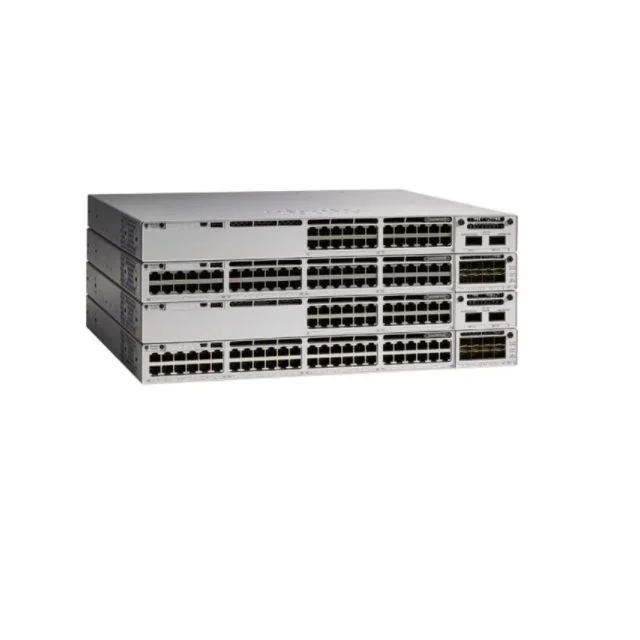

C9300L-24T-4G-E
Cisco Catalyst 9300 Series is the next generation of the industry's most widely deployed stackable switching platform. Built for security, IoT, and th
C9300L-24T-4X-A
Cisco Catalyst 9300 Series is the next generation of the industry's most widely deployed stackable switching platform. Built for security, IoT, and th
Where It Goes
Industries That Deploy It
Healthcare
Hardware supplied with the traceability and change discipline a clinical environment requires.
Manufacturing and Logistics
Connectivity for plant floors, warehouses and distribution sites built for continuous operation rather than office hours.
Data Center
Top of rack switching, compute and storage delivered in the phased increments a cabinet build actually consumes.
Solutions
Programmes It Is Supplied Under
Global Logistics and Drop Shipping
Hong Kong is a practical despatch point for most of the world. Consignments go to the site, not to a central store and then out again.
Procurement for System Integrators
An integrator carries the risk between quoting a client and receiving the hardware. Firm pricing and a written lead time per line is what makes that risk manageable.
Network Refresh Programme
Most refresh projects fail on supply rather than on design. A phased programme only works if every phase arrives complete on the date the change window was booked.
Reference
Project Cases and Guides
Carrier Managed CPE Programme
The programme needed identical customer premises equipment supplied continuously for years and shipped directly to end customer sites
Regional Bank Branch Refresh Across 140 Sites
The branch edge had reached end of software support and the estate had drifted into four different router models bought across eight years
PoE Budget Planning for Access Switches
Port count and power budget are two separate limits. Most PoE shortfalls come from planning only the first one.
Choosing Optical Transceivers for Reach
Coding, fibre type, reach and connector are four independent decisions, and any one of them can stop a link coming up.
Support Contracts Explained for Buyers
A support contract is bought once and used on the worst day of the year. The level and the name it is registered under both matter.
FAQ
C9300-24P-E Frequently Asked Questions
Is C9300-24P-E New or Refurbished
Standard supply is new factory sealed in the original vendor carton. If a quotation offers another condition that is stated explicitly in writing before you commit.
Can I Get the Serial Numbers for C9300-24P-E Before Payment Clears
Yes. Serials are issued before shipment so you can check them on the manufacturer portal while the goods are still with us.
What Is the Lead Time for C9300-24P-E
Availability is confirmed in writing per line at quotation rather than as a project average, because one late line is what moves an installation date.
What Warranty Does C9300-24P-E Carry
12 months replacement as standard. A vendor support contract is available separately and is registered under the end user name.
How Much PoE Power Does C9300-24P-E Provide
The manufacturer lists available poe power of 445W for this model. A PoE budget should be calculated from realistic device draw with headroom rather than from class maximums.
What Performance Is C9300-24P-E Rated For
The published switching capacity is 208 Gbps on 24-port Gigabit Ethernet model. Full port and performance specifications are issued with the quotation against the current datasheet revision.
Are Uplink Modules and Optics Included With C9300-24P-E
They are quoted as separate lines and reviewed against the chassis before the quotation is issued, so they reach site in the same consignment as the unit they belong to.
Can C9300-24P-E Be Stacked With Other Switches
The manufacturer lists Cisco StackWise-480 support for this model. Stacking cables are a separate line and are quoted with the switches so a multi switch closet arrives complete.
What Table Sizes Does C9300-24P-E Carry
The published Total number of MAC addresses is 32,000. Table ceilings usually only become visible once a flat segment has grown, so they are worth checking against the design rather than against today's estate.
