C9200L-24T-4G-A
C9200L-24T-4G-A is the Catalyst 9200L 24-port Data 4x1G uplink Switch, with Network Advantage software. Cisco Catalyst 9200 Series switches extend the
Cisco · Cisco Catalyst 9200
C9200L-24P-4G-A
C9200L-24P-4G-A is the Catalyst 9200L 24 ports full PoE+ 4x1G uplink Switch, with Network Advantage software. Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of...
- Ports
- 24 ports full PoE+
- Throughput
- 56 Gbps
- Uplinks
- 4x 1G fixed uplinks
- Stacking
- 80 Gbps
- MAC Table
- 16,000
- Default primary AC power supply
- PWR-C5-600WAC

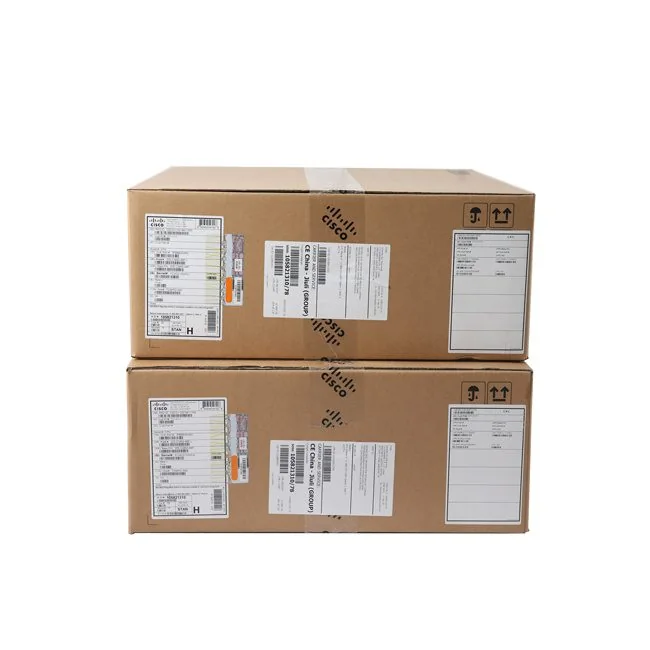

- New factory sealed in the original vendor carton
- Serial list issued before shipment
- 12 months replacement warranty as standard
- Worldwide courier or freight from Hong Kong
Product Overview
C9200L-24P-4G-A Overview
C9200L-24P-4G-A is the Catalyst 9200L 24 ports full PoE+ 4x1G uplink Switch, with Network Advantage software. Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise - it is secure, always on, and IT simplified. The published specification for C9200L-24P-4G-A lists 24 ports full PoE+ and a published switching capacity of 56 Gbps. It is supplied new factory sealed, with the serial list issued before shipment and 12 months replacement warranty as standard.
Key Benefits
What Owning C9200L-24P-4G-A Changes
Port Layout Confirmed Before You Commit
24 ports full PoE+ on this part number, so the closet design is checked against the real layout rather than against a family datasheet that covers several models.
Rated Performance Written Into the Quotation
56 Gbps published for C9200L-24P-4G-A as its switching capacity, confirmed against the current datasheet revision when the line is quoted.
One Managed Unit Instead of Several
stacking bandwidth of 80 Gbps on this model lets a multi switch closet be configured monitored and upgraded as a single device, which cuts the work in every change window.
Uplink Capability Settled at Order Not at Install
4x 1G fixed uplinks on C9200L-24P-4G-A, so the uplink question is answered on the quotation rather than discovered when the unit is already racked.
Table Sizes Checked Against the Design
A Total number of MAC addresses of 16,000 on this model, the kind of ceiling that only becomes visible once a flat segment has grown.
Problems It Solves
Pain Points C9200L-24P-4G-A Removes
- Uplink capability fixed at purchase and found insufficient once the access layer behind it was refreshed
- End of sale announcements that leave a proven design with no supply route for C9200L-24P-4G-A
- Branch closets running unmanaged or end of support switches with no asset record
- A uniform branch standard that has to be bought in small repeat quantities
- Uplink type fixed at purchase and discovered wrong at install
Who It Is For
Who Benefits Most From C9200L-24P-4G-A
Branch Network Teams
Rolling out one site design across many locations on a fixed bill of materials
Service Providers
Deploying managed hardware at customer premises with consistent revision and firmware
Education IT
Delivering inside vacation windows against a budget year that rarely aligns with the install date
Healthcare Estates
Working to very short change windows with serial level records required for compliance
Specifications
C9200L-24P-4G-A Manufacturer Specification
As published by Cisco for this part number. Full electrical, port and performance specifications are issued with the quotation against the current datasheet revision.
| Downlinks total 10/100/1000 or PoE+ copper ports | 24 ports full PoE+ |
|---|---|
| Uplink configuration | 4x 1G fixed uplinks |
| Default primary AC power supply | PWR-C5-600WAC |
| Fans | Fixed redundant |
| Chassis Dimensions | 1.73 x 17.5 x 11.3 in 4.4 x 44.5 x 28.8 cm |
| Weight | 4.35 Kg |
| Virtual Networks | 1 |
| Stacking bandwidth | 80 Gbps |
| Total number of MAC addresses | 16,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 11,000 (8,000 direct routes and 3,000 indirect routes) |
| IPv4 routing entries | 3,000 |
| IPv6 routing entries | 1,500 |
| Multicast routing scale | 1,000 |
| QoS scale entries | 1,000 |
| ACL scale entries | 1,500 |
| Packet buffer per SKU | 6 MB buffers for 24- or 48-port Gigabit Ethernet models |
| Flexible NetFlow (FNF) entries | 16,000 flows on 24- and 48-port Gigabit Ethernet models |
| DRAM | 2 GB |
| Flash | 4 GB |
| VLAN IDs | 1024 |
| Total Switched Virtual Interfaces (SVIs) | 512 |
| Jumbo frames | 9198 bytes |
| Wireless bandwidth per switch | N/A |
| Switching capacity | 56 Gbps |
| Forwarding rate | 83.33 Mpps |
| Mean time between failures (hours) | 392,210 |
Supply Terms
How C9200L-24P-4G-A Is Supplied
| Part Number | C9200L-24P-4G-A |
|---|---|
| Brand | Cisco |
| Category | Cisco Catalyst 9200 |
| Product Condition | New factory sealed |
| Serial Traceability | Full serial list supplied before shipment |
| Warranty | 12 months replacement plus optional vendor support contract |
| Packaging | Original vendor carton with export grade outer |
| Lead Time | Confirmed in writing per line at quotation |
| Delivery | Worldwide courier or freight from Hong Kong |
Comparison
C9200L-24P-4G-A Against Other Models in Cisco Catalyst 9200
Values are taken from each manufacturer specification. A blank means the manufacturer does not publish that attribute for that model.
| Attribute | C9200L-24P-4G-A | C9200L-24T-4G-A | C9200L-24T-4G-E | C9200-24P-A |
|---|---|---|---|---|
| Ports | 24 ports full PoE+ | 24 ports data | 24 ports data | 24 ports full PoE+ |
| Throughput | 56 Gbps | 56 Gbps | 56 Gbps | 128 Gbps |
| Uplinks | 4x 1G fixed uplinks | 4x 1G fixed uplinks | 4x 1G fixed uplinks | Modular uplink options |
| Stacking | 80 Gbps | 80 Gbps | 80 Gbps | 160 Gbps |
| MAC Table | 16,000 | 16,000 | 16,000 | 32,000 |
| Default primary AC power supply | PWR-C5-600WAC | PWR-C5-125WAC | PWR-C5-125WAC | PWR-C6-600WAC |
| Product page | View C9200L-24P-4G-A | View C9200L-24T-4G-A | View C9200L-24T-4G-E | View C9200-24P-A |
Use Guide
Deployment Guide for C9200L-24P-4G-A
Confirm the Full Part Number
Check C9200L-24P-4G-A character for character including any suffix. On this class of hardware a single trailing character commonly changes the software tier, the power option, or whether a bundle is included.
Check Site Prerequisites
Confirm rack space, power feed, cabling and any uplink or accessory dependency before the order rather than on the day of installation.
Settle the Uplink and Optics
Match the uplink module and transceiver to the platform, the measured span and the fibre already installed, and order them on the same line.
Record It on Arrival
Photograph the sealed carton, reconcile the serial against the list supplied before shipment, then open and confirm the unit matches the label.
Bench Power Before Racking
Power the unit, capture the software version and the port or drive inventory, and record it while the unit is still accessible.
Register Support Entitlement
Register the support contract under the end user name so the entitlement sits with the organisation that owns the outage.
Related Products
Other Models in Cisco Catalyst 9200
C9200L-24T-4G-E
C9200L-24T-4G-E is the Catalyst 9200L 24-port Data 4x1G uplink Switch, with Network Essentials software. Cisco Catalyst 9200 Series switches extend th
C9200-24P-A
C9200-24P-A is the Catalyst 9200 24-port PoE+ Switch, with Network Advantage software. Cisco Catalyst 9200 Series switches extend the power of intent-
C9200-24P-E
C9200-24P-E is the Catalyst 9200 24-port PoE+ Switch, with Network Essentials software. Cisco Catalyst 9200 Series switches extend the power of intent
C9200-24T-E
C9200-24T-E is the Catalyst 9200 24-port Data Switch, with Network Essentials software. Cisco Catalyst 9200 Series switches extend the power of intent
C9200-48P-A
C9200-48P-A is the Catalyst 9200 48-port PoE+ Switch, with Network Advantage software. Cisco Catalyst 9200 Series switches extend the power of intent-
C9200-48P-E
C9200-48T-E is the Catalyst 9200 48-port Data Switch, with Network Essentials software. Cisco Catalyst 9200 Series switches extend the power of intent
C9200-48T-A
C9200-48T-A is the Catalyst 9200 48-port Data Switch, with Network Advantage software. Cisco Catalyst 9200 Series switches extend the power of intent-
Where It Goes
Industries That Deploy It
Healthcare
Hardware supplied with the traceability and change discipline a clinical environment requires.
Manufacturing and Logistics
Connectivity for plant floors, warehouses and distribution sites built for continuous operation rather than office hours.
Solutions
Programmes It Is Supplied Under
Global Logistics and Drop Shipping
Hong Kong is a practical despatch point for most of the world. Consignments go to the site, not to a central store and then out again.
Procurement for System Integrators
An integrator carries the risk between quoting a client and receiving the hardware. Firm pricing and a written lead time per line is what makes that risk manageable.
Network Refresh Programme
Most refresh projects fail on supply rather than on design. A phased programme only works if every phase arrives complete on the date the change window was booked.
Reference
Project Cases and Guides
University Campus Wi-Fi Density Upgrade
Lecture theatres and the library could not carry the client counts actually present, while the work could only happen during vacations
System Integrator Data Center Tender
The tender required a firm price and date at submission, months before any award, across a bill of materials of several hundred lines
PoE Budget Planning for Access Switches
Port count and power budget are two separate limits. Most PoE shortfalls come from planning only the first one.
Choosing Optical Transceivers for Reach
Coding, fibre type, reach and connector are four independent decisions, and any one of them can stop a link coming up.
Support Contracts Explained for Buyers
A support contract is bought once and used on the worst day of the year. The level and the name it is registered under both matter.
FAQ
C9200L-24P-4G-A Frequently Asked Questions
Is C9200L-24P-4G-A New or Refurbished
Standard supply is new factory sealed in the original vendor carton. If a quotation offers another condition that is stated explicitly in writing before you commit.
Can I Get the Serial Numbers for C9200L-24P-4G-A Before Payment Clears
Yes. Serials are issued before shipment so you can check them on the manufacturer portal while the goods are still with us.
What Is the Lead Time for C9200L-24P-4G-A
Availability is confirmed in writing per line at quotation rather than as a project average, because one late line is what moves an installation date.
What Warranty Does C9200L-24P-4G-A Carry
12 months replacement as standard. A vendor support contract is available separately and is registered under the end user name.
What Performance Is C9200L-24P-4G-A Rated For
The published switching capacity is 56 Gbps. Full port and performance specifications are issued with the quotation against the current datasheet revision.
Are Uplink Modules and Optics Included With C9200L-24P-4G-A
They are quoted as separate lines and reviewed against the chassis before the quotation is issued, so they reach site in the same consignment as the unit they belong to.
Can C9200L-24P-4G-A Be Stacked With Other Switches
The manufacturer lists stacking bandwidth of 80 Gbps for this model. Stacking cables are a separate line and are quoted with the switches so a multi switch closet arrives complete.
Does C9200L-24P-4G-A Supply Power Over Ethernet
The manufacturer does not publish an available PoE figure for this model, which normally indicates a data only variant. Where powered devices are in the design, confirm the port type letter in the part number before ordering.
What Table Sizes Does C9200L-24P-4G-A Carry
The published Total number of MAC addresses is 16,000. Table ceilings usually only become visible once a flat segment has grown, so they are worth checking against the design rather than against today's estate.
Request Pricing for C9200L-24P-4G-A
Send the quantity and destination country. Availability and lead time come back in writing, with the serial list before shipment.
