Drywall Screws for Board and Partition Systems
Bugle and hi-lo thread drywall screws in coarse, fine and hi-lo forms, phosphated or zinc plated, for plasterboard onto timber and light-gauge steel.
What this family is for
Drywall screws are the highest-turnover line on a board installation site, and they are also the line where a bad batch shows up fastest: a bugle head that tears the paper face, a recess that cams out at the third screw, a coarse thread that spins in a steel stud. Ehons runs this family across coarse, fine and hi-lo thread forms in 3.5-4.8 mm diameters and 10-180 mm lengths, all from C1022 wire with heat treatment, so the specifier can match the thread to the substrate instead of forcing one screw onto every job.
- Thread form: coarse, fine and hi-lo
- Head: bugle Phillips, pan framing, CSK with ribs
- Diameter 3.5-4.8 mm, #6-#10
- Length 10-180 mm (3/8 in - 7 in)
Drywall Screws in production
Drywall Screw Hi-Lo Thread Magni Coated
Hi-Lo thread drywall screw with a Magni coating for board onto light-gauge steel.
View specification
Drywall Screw Hi-Lo Thread Black Phosphate
Black phosphate hi-lo thread drywall screw for board onto thin steel framing.
View specification

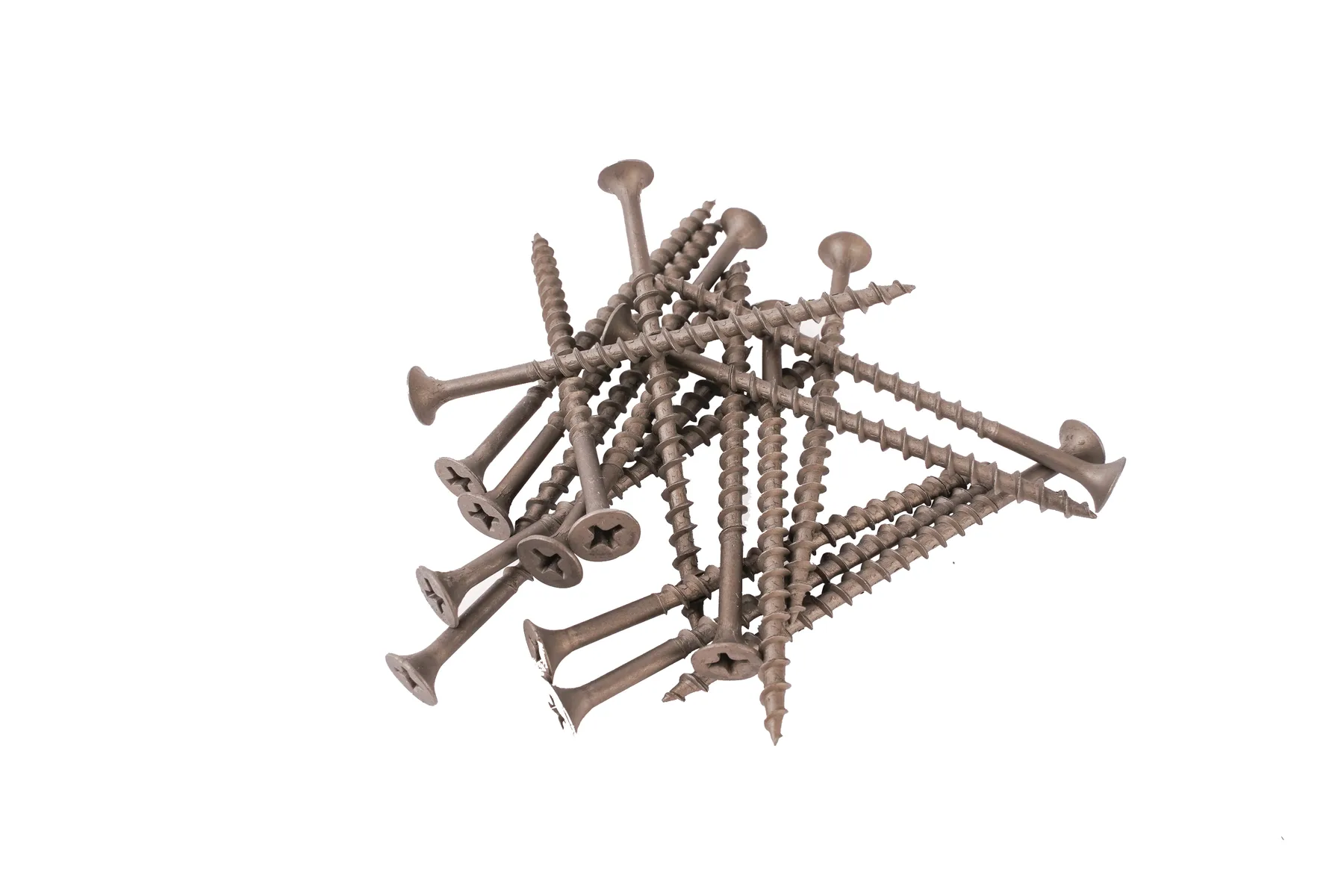

Drywall Screw Bugle Phillips Head Fine Thread Grey Phosphate
Grey phosphate fine thread drywall screw for plasterboard onto steel studs.
View specification
Drywall Screw Bugle Phillips Head Fine Thread
Fine thread bugle head drywall screw, the standard fixing for board onto steel stud.
View specification
Drywall Screw Bugle Phillips Head Coarse Thread
Coarse thread bugle head drywall screw for plasterboard onto timber studs.
View specificationApplications for drywall screws
If this is not the right screw
- Self-Drilling Screws – Drill-point screws in truss, pan framing and hex washer heads, including bonded EPDM washer versions for roofing and wall cladding.
- Self-Tapping Screws – Sharp-point tapping screws in oval, pan framing and modified truss heads for window frames, light steel framing and sheet assemblies.
- Wood Screws – Hexagon head and countersunk wood screws with Torx recess, in carbon and alloy steel, grade classes 4.6 to 10.9.
- Chipboard and Concrete Screws – Double countersunk chipboard screws in yellow zinc, square-drive serrated versions and concrete screws for direct fixing into masonry.
- Machine Screws – Metric and imperial machine screws in carbon and alloy steel, grade class 4.6 to 10.9, for pre-tapped holes and nut assemblies.
Ordering drywall screws in container volume
Minimum order is 500 kg per item and mixed containers across families are normal. Packing can be bulk, boxed or count packed.
