Self-Drilling Screws for Steel and Cladding
Drill-point screws in truss, pan framing and hex washer heads, including bonded EPDM washer versions for roofing and wall cladding.
What this family is for
A self-drilling screw has to do three jobs in one action: cut its own hole, form its own thread and clamp. If the point loses hardness the screw burns in the steel; if the case is too brittle the point snaps. The Ehons drill-point range is made from C1022 with heat treatment and finished in zinc plating, phosphate, nickel or Ruspert depending on how much exposure the joint sees, with #2 and #3 drill points covering thin gauge through to structural steel.
- Drill point #2 and #3
- Shank M3.5 - M6.3
- Length 13-180 mm
- Heads: modified truss, pan framing, hex washer with EPDM
Self-Drilling Screws in production
Modified Truss Head Phillips Self-Drilling Screw Colour Coated
Colour-coated modified truss head drill-point screw for visible fixings on metal.
View specification

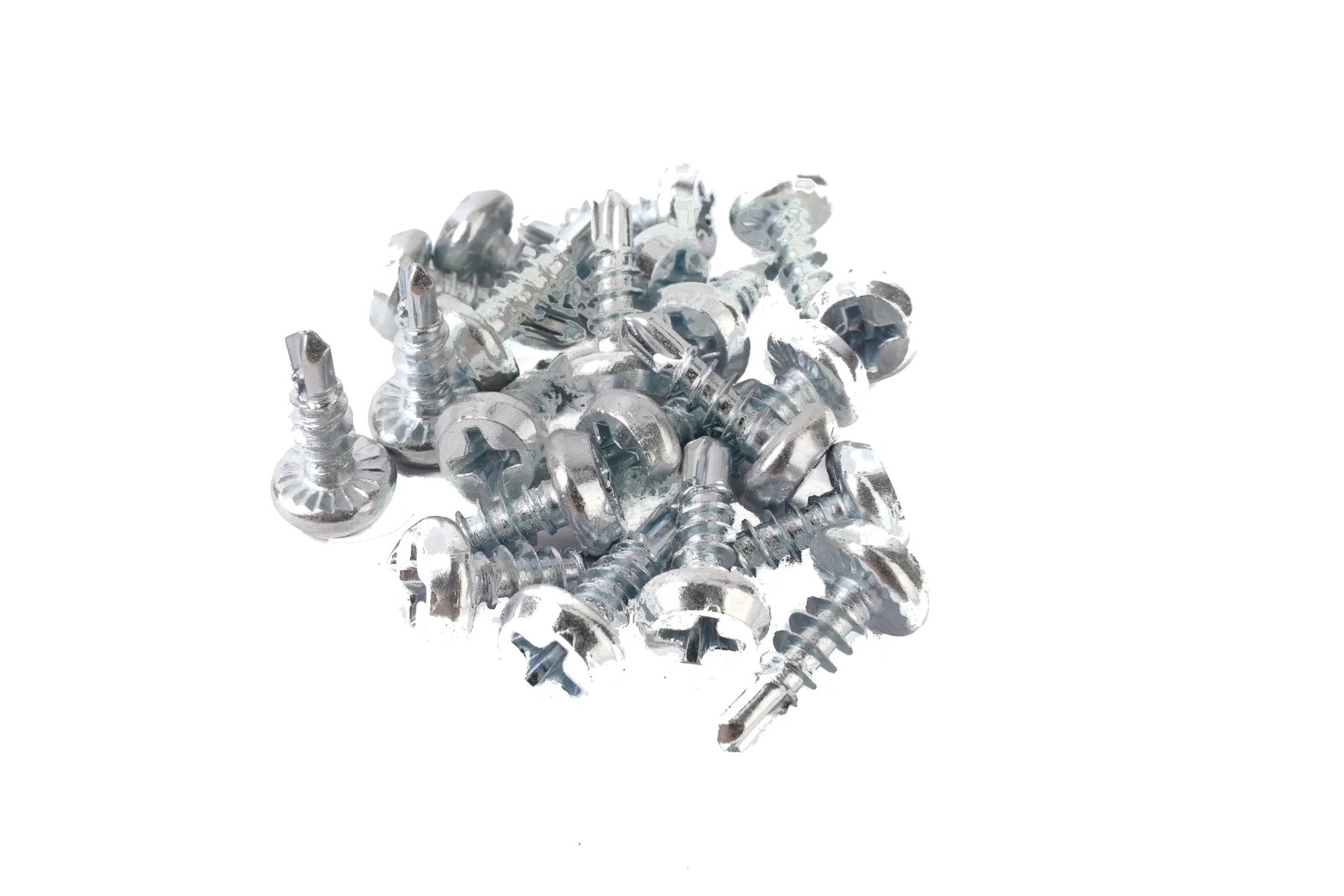

Pan Framing Head Phillips Self-Drilling Screws
Drill-point pan framing screw for steel-to-steel framing in heavier gauges.
View specification
Modified Truss Head Phillips Self-Drilling Screw Zinc Plated
Zinc plated modified truss head drill-point screw for wide-bearing metal fixings.
View specification
Hex Washer Head Self-Drilling Screw with EPDM Washer
Roofing and cladding screw with a bonded EPDM sealing washer and #2 or #3 drill point.
View specificationApplications for self-drilling screws
Drywall and Interior Fit-Out
Board contractors buy screws by the tonne and judge them by how many strip, cam out or tear paper in a day's work.
Application notesRoofing and Cladding
A roof fixing is a seal as much as a fastener, and it has to stay one for the life of the sheet.
Application notes
Light-Gauge Steel Framing
Steel stud framing is assembled faster than timber, and the screw is the only thing holding the tolerance.
Application notesIf this is not the right screw
- Drywall Screws – Bugle and hi-lo thread drywall screws in coarse, fine and hi-lo forms, phosphated or zinc plated, for plasterboard onto timber and light-gauge steel.
- Self-Tapping Screws – Sharp-point tapping screws in oval, pan framing and modified truss heads for window frames, light steel framing and sheet assemblies.
- Wood Screws – Hexagon head and countersunk wood screws with Torx recess, in carbon and alloy steel, grade classes 4.6 to 10.9.
- Chipboard and Concrete Screws – Double countersunk chipboard screws in yellow zinc, square-drive serrated versions and concrete screws for direct fixing into masonry.
- Machine Screws – Metric and imperial machine screws in carbon and alloy steel, grade class 4.6 to 10.9, for pre-tapped holes and nut assemblies.
Ordering self-drilling screws in container volume
Minimum order is 500 kg per item and mixed containers across families are normal. Packing can be bulk, boxed or count packed.
