Fasteners for Roofing and Cladding

A roof fixing is a seal as much as a fastener, and it has to stay one for the life of the sheet.

Hex washer head self-drilling screw fitted with a bonded EPDM sealing washer

What the job demands

Profiled metal roofing is fixed through the sheet into purlin or girt, which means every fastener is a hole in the weather envelope. The washer has to compress enough to seal without extruding, the drill point has to get through the purlin before the thread engages, and the coating has to outlast the sheet coating or the roof gets a rust streak under every screw.

How the range answers it

The hex washer head self-drilling screw is supplied with a bonded EPDM washer and a choice of #2 or #3 drill point, so the same head style covers thin gauge sheeting and heavier structural purlins. Finishes run from clear, blue and yellow zinc through phosphate and nickel to Ruspert where the exposure is severe.

Supply pattern

Roofing screws are usually bought in count packs rather than by weight because installers order per square metre of sheet. Small boxes of 1000, 500 or 250 pieces are available, cartoned and palletised for container shipment from Shanghai or Ningbo.

Recommended lines

Screws we supply into this sector

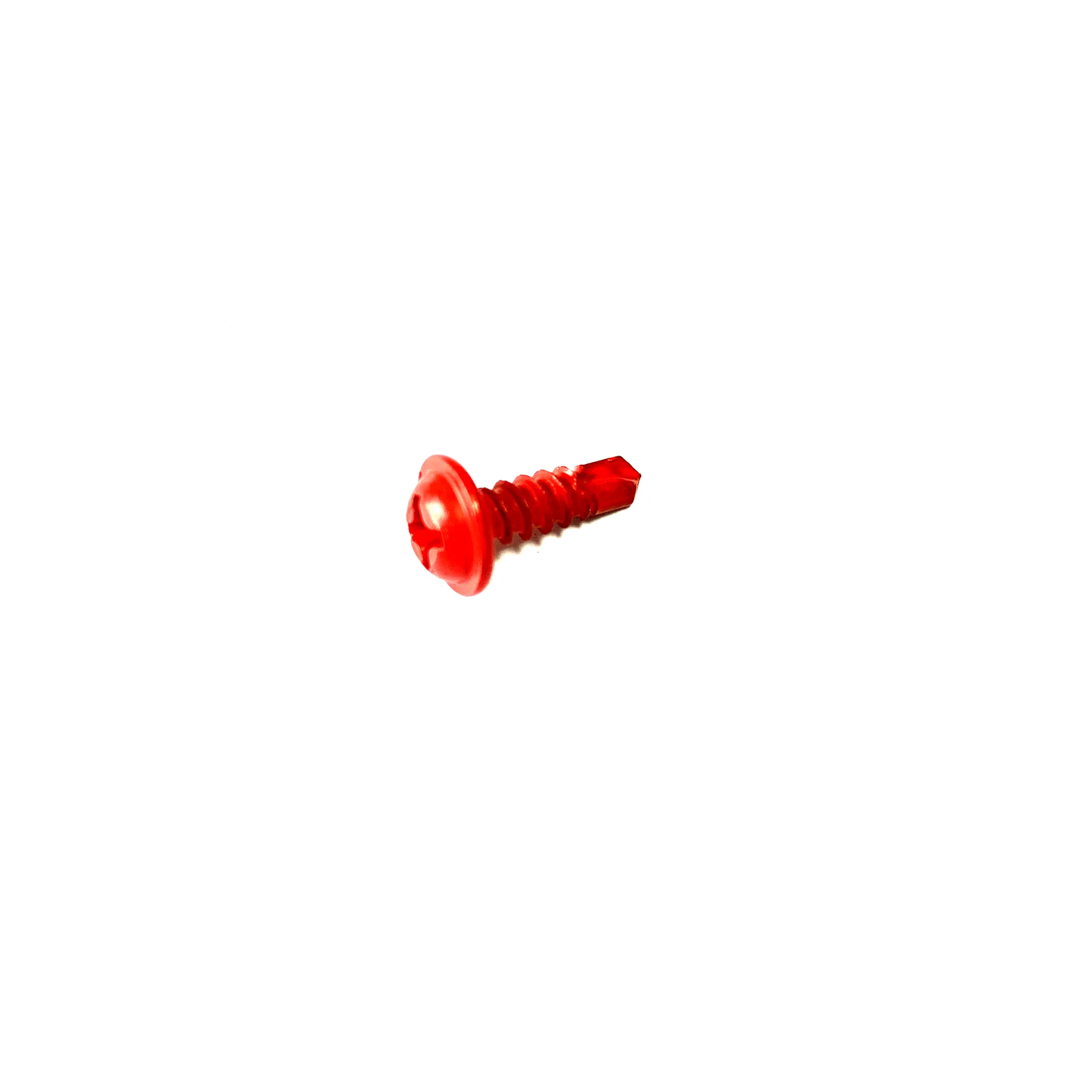

Red colour coated modified truss head Phillips self-drilling screw
Self-Drilling Screws

Modified Truss Head Phillips Self-Drilling Screw Colour Coated

Colour-coated modified truss head drill-point screw for visible fixings on metal.

View specification
Zinc plated pan framing head Phillips self-drilling screw
Self-Drilling Screws

Pan Framing Head Phillips Self-Drilling Screws

Drill-point pan framing screw for steel-to-steel framing in heavier gauges.

View specification

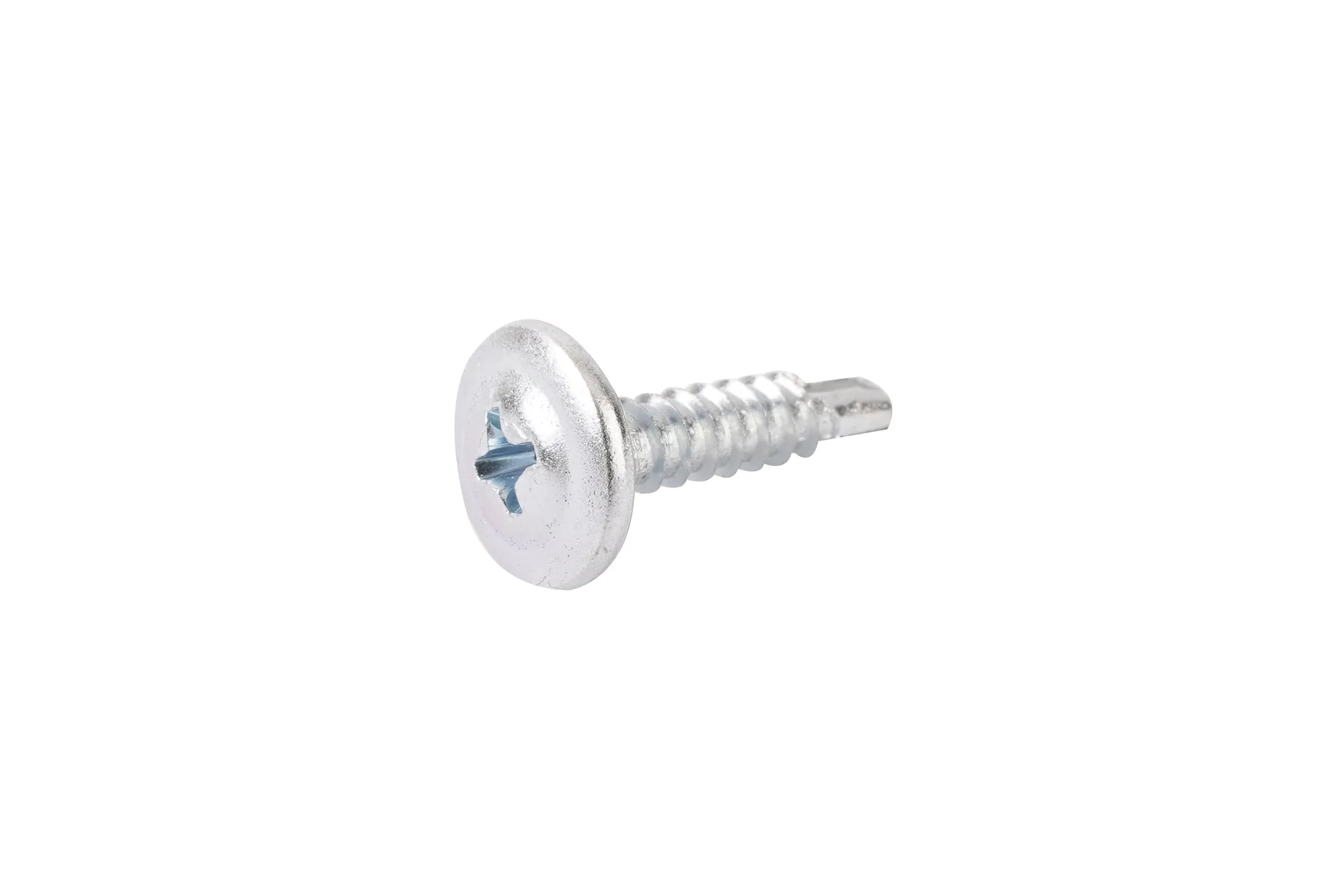

Zinc plated modified truss head Phillips self-drilling screw
Self-Drilling Screws

Modified Truss Head Phillips Self-Drilling Screw Zinc Plated

Zinc plated modified truss head drill-point screw for wide-bearing metal fixings.

View specification
Hex washer head self-drilling screw with a bonded EPDM sealing washer
Self-Drilling Screws

Hex Washer Head Self-Drilling Screw with EPDM Washer

Roofing and cladding screw with a bonded EPDM sealing washer and #2 or #3 drill point.

View specification

Families to look at

  • Self-Drilling Screws – Drill-point screws in truss, pan framing and hex washer heads, including bonded EPDM washer versions for roofing and wall cladding.

Other sectors

Fastener schedule for roofing and cladding

Send the schedule or the drawing list. Standard and non-standard sizes are quoted on the same terms and samples are free.

Email for a quotation Contact details
