Nozzle Selection and Sizing
Turn a process description into a nozzle size, a pattern and a material, without needing a part number to start from.
The Situation
Why Buyers Come to Us With This
Most buyers arrive with a symptom rather than a specification: the wash is streaking, the scrubber is not holding temperature, the fog is wetting the floor. A catalogue cannot answer that, because the same nozzle can be right or wrong depending on pressure at the header and distance to the target.
Step by Step
How the Work Runs
Describe the Duty
A part number alone hides the liquid, the temperature and the solids load.
We start from the liquid, its temperature, the line pressure at the nozzle and what the spray has to achieve.
Fix the Pattern
The wrong pattern wastes liquid on areas that do not need it.
Line or moving strip takes a flat fan, an area or volume takes a full cone, gas contact takes a hollow cone, and solids in the liquid take a spiral.
Size the Orifice
Flow quoted at 3 bar is not the flow you get at the end of a long header.
We work from the pressure actually available at the nozzle and the flow the process needs, then read the size code from the capacity tables.
Choose the Material
Brass in a chloride wash is a repeat purchase.
Stainless steel for general washing, 316 stainless steel where chlorides or scrubbing liquor are present, brass for plain water, plastics where acids or solvents rule out metal.
Trial One Position
A whole header changed at once turns a sizing error into a shutdown.
Trial samples are sent free of charge and samples can be ready within 10 days, so one position can run a full production cycle first.
What You Get
Deliverables
- A recommended pattern, spray angle and size code against your duty
- The body material that suits the liquid and temperature
- A trial sample for one position before the full order
- Capacity figures quoted at your working pressure, not only at 3 bar
Ranges Involved
Products This Route Draws On
Products
Typical Parts Supplied This Way
Flat Fan Spray Nozzle
View specification
Flat Fan Nozzle CH-U and CH-VV Series
View specification

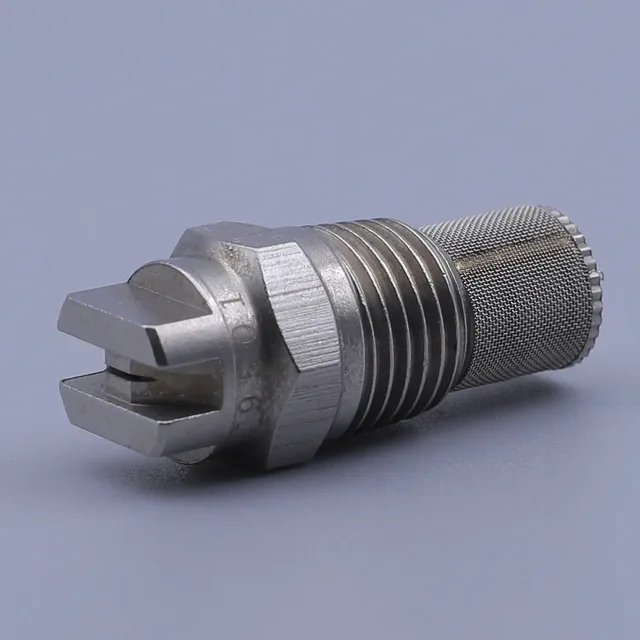

Flat Fan Nozzle with Inline Filter
View specification
High Impact Flat Fan Nozzle
View specification
Deflected Floodjet Nozzle
View specification
Full Cone Spray Nozzle
View specification
Tangential Hollow Cone Nozzle
View specification
Hollow Cone Nozzle
View specification
Other Routes
Other Ways We Work
Questions Buyers Ask
Nozzle Selection and Sizing Questions
How long does nozzle selection and sizing normally take?
The engineering answer usually comes back within 6 hours because that is the stated inquiry response. Where a sample is needed, samples can be ready within 10 days.
Do I need a drawing to start?
No. Photographs of the existing part against a rule, the thread standard and a description of the duty are enough to begin. A drawing shortens the process where you have one.
What is the smallest order you will take on this route?
Small volume orders are accepted. A single position on a header is a normal first order, and trial samples can be sent free of charge.
What guarantee comes with the parts?
The product listings state a 3 month quality guarantee, and every product is tested before it is packed.
Start Nozzle Selection and Sizing With One Email
Describe the duty and attach photographs of the existing part. Inquiries are answered within 6 hours.
