Flat Fan Nozzle
Flat Fan Nozzle with Inline Filter

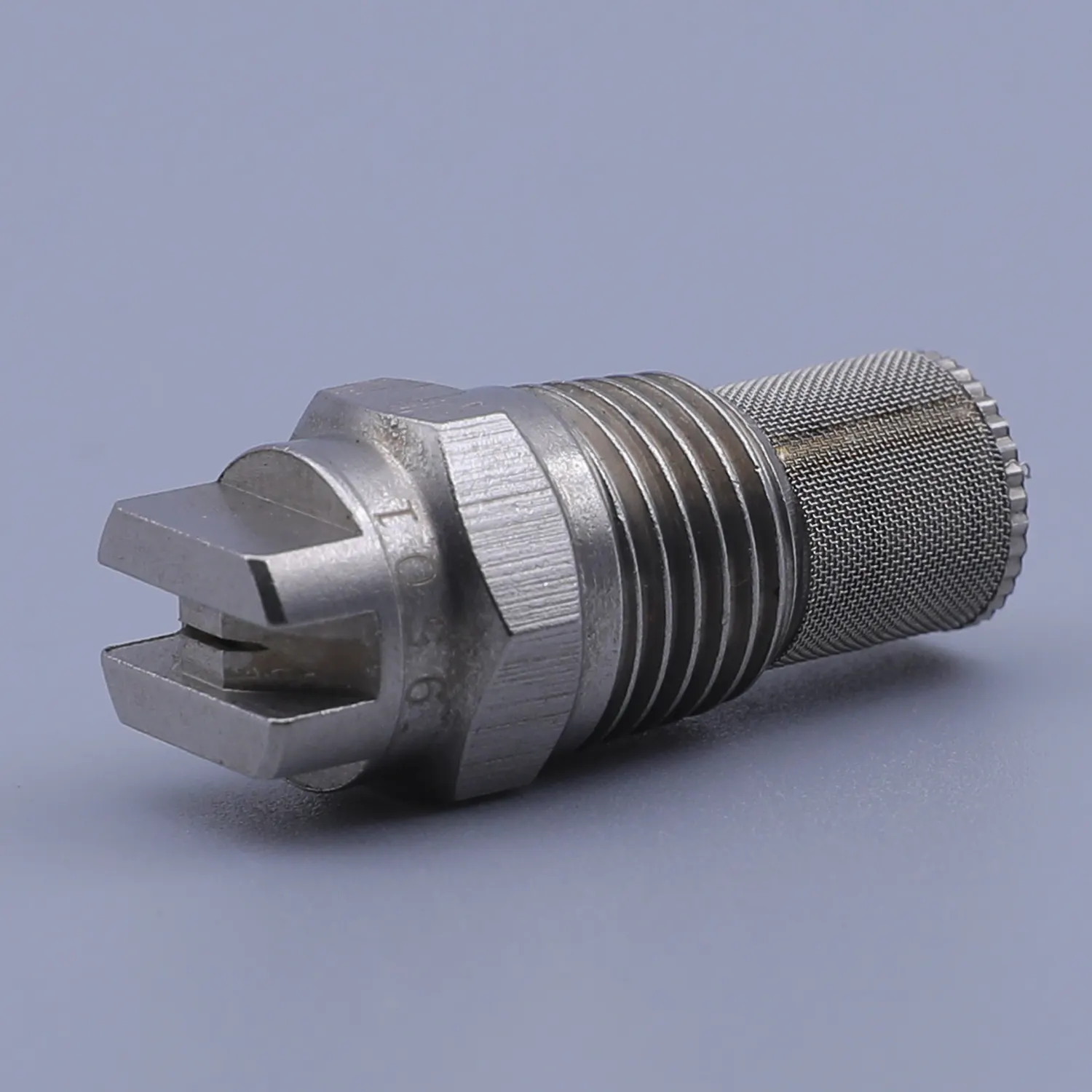

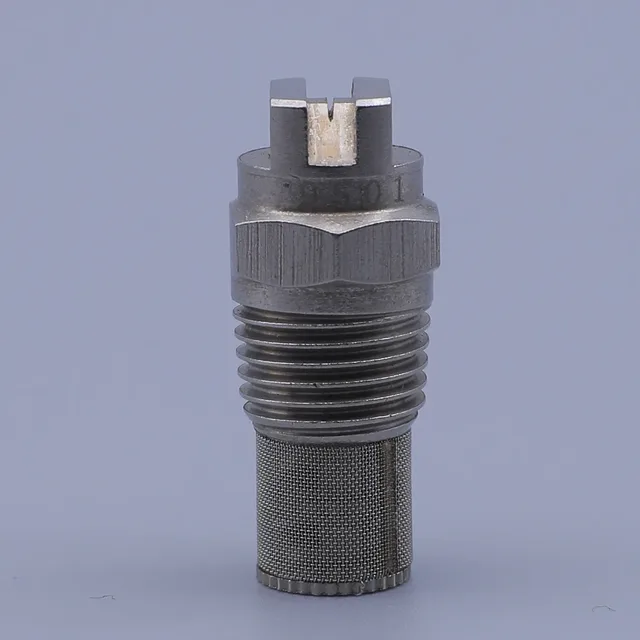

A flat fan nozzle with inline filter prevents clogging in dirty or recirculated water lines by trapping debris before it reaches the orifice. This is essential when a moving surface like a conveyor, part, or sheet must be cleaned consistently without interruption from blocked spray patterns. The filter is integrated into the nozzle body, so no external strainer is needed.
No published specification table exists for this listing. Send the duty and the thread on your header and we will confirm the size, pattern and material by email.
Key Benefits
What This Nozzle Gives You
- Inline filter protects the orifice from particulates in recirculated or dirty water
- Filter mesh options of 50 mesh 100 mesh and 150 mesh allow selection based on water quality and particle size
- Same body geometry as CCU and CCV nozzles, so existing fittings and mounting are compatible
- No external strainer required, reducing installation complexity and space needs
- Maintains consistent spray pattern and flow rate over time in abrasive or particulate-laden service
- Free trial samples available to test performance in actual duty conditions
Application Scenarios
Where It Is Installed
- Parts washing lines using recirculated water where debris can block standard nozzles
- High pressure washing of machinery or components with suspended solids in the water supply
- Dish washing systems where food particles or grease residue may clog the spray orifice
- Cleaning operations in industrial kitchens or food processing areas with variable water quality
- Maintenance of existing spray bars where retrofitting an external filter is impractical
Who It Is For
Buyers Who Specify It
- Maintenance engineers managing washing or cleaning lines with inconsistent spray due to clogging
- OEM machine builders integrating nozzles into equipment that must run reliably on recycled water
- Facility managers upgrading cleaning systems to reduce downtime from blocked nozzles
- Process engineers specifying nozzles for applications with variable water quality
- Distributors stocking nozzles for industrial cleaning applications with dirty water sources
Problems It Solves
What It Fixes on the Line
- Nozzle clogging caused by suspended solids in recirculated or low-grade water
- Frequent replacement of nozzles due to blocked orifices in dirty water service
- Downtime from uneven spray patterns caused by partial blockage of the orifice
- Need for external strainers that add bulk, cost, and maintenance effort
- Inconsistent cleaning performance when water quality varies across shifts or locations
Technical Features
How It Is Built
- Inline filter integrated into the nozzle body for direct protection of the orifice
- Filter mesh available in 50 mesh 100 mesh and 150 mesh for different particle size control
- Same body design as CCU and CCV nozzles, ensuring compatibility with existing fittings
- One piece construction with no internal parts to loosen or wear separately
- Knurled coupling nut for secure hand-tightening during installation
- Threaded interface allows direct mounting on standard pipe or header systems
Materials
Body Materials and Where Each One Suits
Manufacturing Process
How the Part Is Made
- Material selection based on the duty and water quality
- Machining of the body and orifice
- Installation of the selected filter mesh
- Inspection of orifice and filter integrity
- Packaging
- Transportation
Quality Control
What Is Checked Before It Ships
- Raw material is restricted to selected brass 303 stainless steel 304 stainless steel and 316 stainless steel
- Every process from material selection to transportation is controlled
- Every product is tested before it leaves the factory
- A 3 month quality guarantee is given on the product
Customization
What Can Be Changed to Suit You
- Standard and non standard nozzles can be made to drawing
- OEM orders accepted including customer marking
- Filter mesh can be specified as 50 mesh 100 mesh or 150 mesh
- Small volume orders accepted for trial installations
- Samples can be ready within 10 days
Comparison
How It Compares With the Alternatives
| Flat fan nozzle without filter | The filtered version prevents clogging in dirty water lines, while the unfiltered version is suitable only for clean or treated water |
|---|---|
| External strainer with standard nozzle | The inline filter eliminates the need for a separate strainer, reducing installation space and complexity |
| Full cone nozzle | A full cone covers a circular area, so it suits tank filling or gas cooling, while a flat fan is better for linear or strip cleaning |
| Hollow cone nozzle | A hollow cone provides finer droplets in a ring pattern, ideal for gas scrubbing, but it cannot deliver even coverage across a moving strip |
Use Guide
Fitting and Running It
- Confirm the water quality and particle size before selecting filter mesh (50 mesh 100 mesh or 150 mesh)
- Ensure the filter mesh is compatible with the expected debris load and flow rate
- Clean or replace the filter when flow rate drops or spray pattern becomes uneven
- Use the same body geometry as CCU and CCV to maintain compatibility with existing systems
- Inspect the filter regularly in high particulate environments to prevent blockage
- Fit the nozzle with the knurled nut tightened by hand to avoid over-tightening
Questions Buyers Ask
Flat Fan Nozzle with Inline Filter Questions
What filter mesh sizes are available?
The Flat Fan Nozzle With Inline Filter offers 50 mesh 100 mesh and 150 mesh options. Choose based on the particle size in your water supply.
How does the inline filter affect flow rate?
The inline filter may reduce flow slightly depending on mesh size and water quality. The exact flow rate is confirmed on enquiry based on your operating pressure and water condition.
Can I get a sample before placing a production order?
Yes. Trial samples can be sent free of charge and are ready within 10 days. Specify the mesh size and thread standard you need.
Do you accept OEM orders and custom drawings?
Yes. Standard and non standard nozzles can be made to your drawing under an OEM order, including custom filter mesh and marking.
What happens if a nozzle fails in service?
A 3 month quality guarantee is given on the product. Send us the nozzle photo and the service conditions by email and we will assess the wear pattern.
What are your payment terms?
The product listings state T/T 100% in advance. Send the model quantity and destination port by email and we will confirm the terms for your order.
Is this nozzle compatible with CCU and CCV?
Yes. This Flat Fan Nozzle With Inline Filter has the same body design as CCU and CCV, so it is compatible with existing fittings and mounting.
Related Products
Others in the Flat Fan Nozzle
Go Deeper
Industries Guides and Ways to Order
Ask About Flat Fan Nozzle with Inline Filter
Send the liquid, the pressure at the nozzle and the thread on your header. Trial samples can be sent free of charge and samples can be ready within 10 days.
