Surfacing Wear-resistant Lining

Name: Surfacing Wear-resistant Lining
Brand: YYT Wood

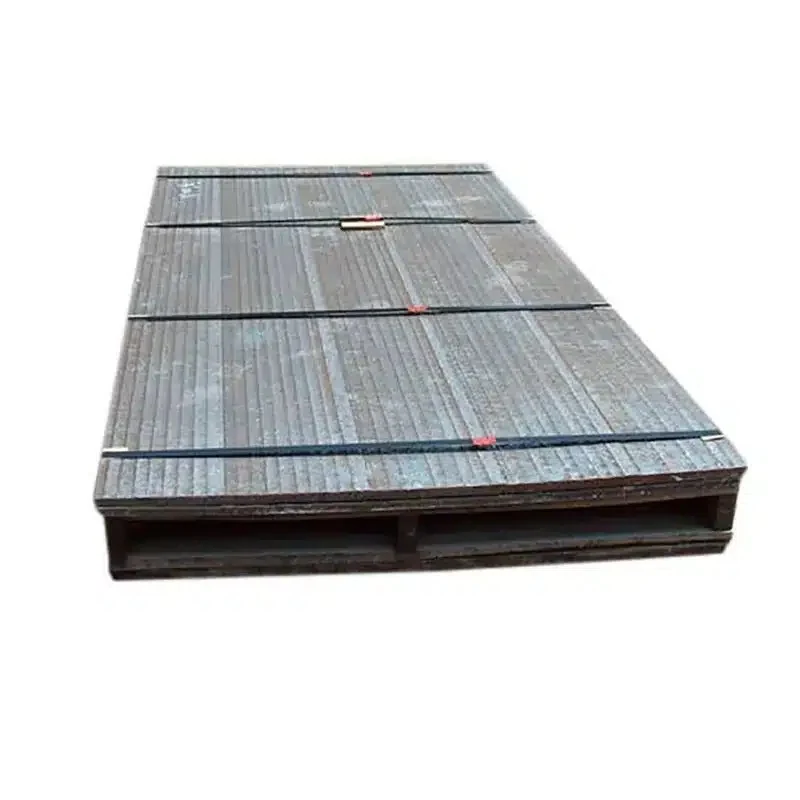

Surfacing Wear-resistant Lining supplied by YYT Wood

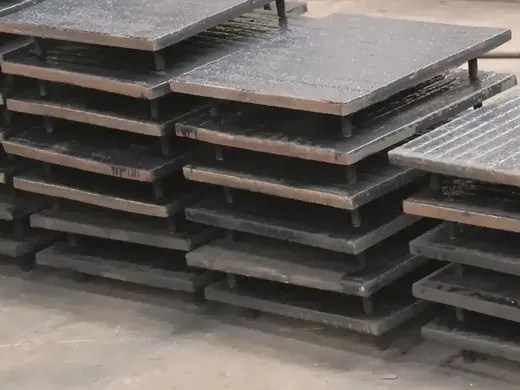

Surfacing Wear-resistant Lining - wear resistant steel plate detail view 2

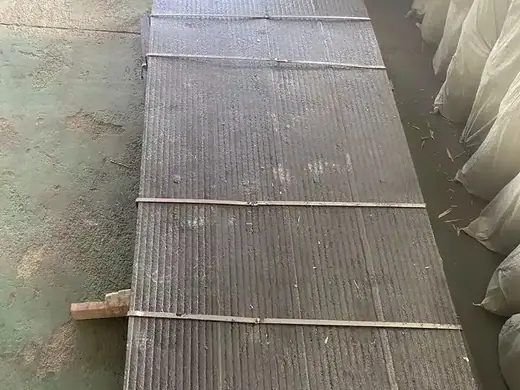

Surfacing Wear-resistant Lining - wear resistant steel plate detail view 3

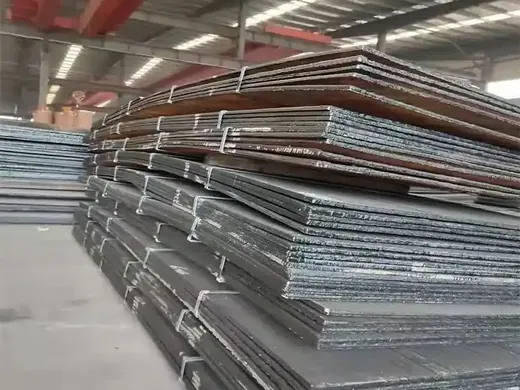

Surfacing Wear-resistant Lining - wear resistant steel plate detail view 4

Why Buyers Choose It

Key Benefits

High wear resistance 12-20 times higher than common plate 5-10 times than low alloy steel plate 2-3 times than high chromium cast iron plate PRODUCT DISPLAY

Thickness range 4+4 5+3 6+4 6+5 8+4 8+6 8+8 10+4 10+6 10+8 10+10, etc. or as customized Weldable, with other dimensions produced to order

How It Is Built

Technical Detail

The wear-resistant steel plate is composed of low- carbon steel plate and alloy wear-resistant layer.

The commonly used abrasion resistant steel plate is a plate product made of an alloy wear-resistant layer with a certain thickness of high hardness and excellent wear resistance on the surface of ordinary low-carbon steel or low-alloy steel plate with good toughness and plasticity through surfacing...

In addition, there are cast wear-resistant steel plates and alloy quenched wear-resistant steel sheets.

Data From The Product Record

Specification

Product Name	Chromium carbide weld abrasion wear resistant plate wear parts
Material	High chromium carbide overlay wear plate
Thickness	4+4 5+3 6+4 6+5 8+4 8+6 8+8 10+4 10+6 10+8 10+10, etc. or as customized Weldable
Hardness	HRC 52-62 Wear deposite 3mm: HRC 52-58, 4mm: HRC 56-60 ,5mm: HRC 58-62, 6mm: HRC 58-62, 8mm: HRC 58-62, 10mm: HRC 60-62, 12mm: HRC 60-63 1st layer :52-58 HRC, 2nd layer: 58-62 HRC, 3rd layer : 62 HRC
Surface Treatment	Hardfacing clading coated
Technique	Advanced automatic self-shilded open arc welding
Chemical Composition	Take 12mm wear deposite for example: C : 4.3-4.8% Cr : 23-30% Mn : 0.8-1.1% Mo: 0.08-0.18 Ni:0.08-0.15 Other Metal elements : Micro Base Plate Q235B, All weldable steels, mostly structural steels
Feature	High wear resistance 12-20 times higher than common plate 5-10 times than low alloy steel plate 2-3 times than high chromium cast iron plate PRODUCT DISPLAY

What It Is Made From

Materials

High chromium carbide overlay wear plate

What Can Be Changed

Customisation Options

4+4 5+3 6+4 6+5 8+4 8+6 8+8 10+4 10+6 10+8 10+10, etc. or as customized Weldable

Where This Product Fits

Industries

Energy and Heavy Industry

Also Listed Under

Surfacing Wear-resistant Lining FAQ

What sizes and thicknesses do you supply for Surfacing Wear-resistant Lining?

For Surfacing Wear-resistant Lining: thickness runs 4+4 5+3 6+4 6+5 8+4 8+6 8+8 10+4 10+6 10+8 10+10, etc. or as customized weldable. Other dimensions are produced to order, so send the finished size you need.

Can I get a sample of Surfacing Wear-resistant Lining first?

For Surfacing Wear-resistant Lining: yes. Samples are usually free and we can also produce to your own sample or technical drawing before the main run.

What do you need in order to quote for Surfacing Wear-resistant Lining?

For Surfacing Wear-resistant Lining: the product name, the size and the quantity you intend to buy. For steel items add the governing standard and grade.
