CK2108 Ultrasonic Flaw Detector
The CK2108 is a portable handheld ultrasonic flaw detector designed for rapid, accurate detection and evaluation of internal defects in metal components. It uses industrial-grade square wave excitation technolo
CK2108 Ultrasonic Flaw Detector

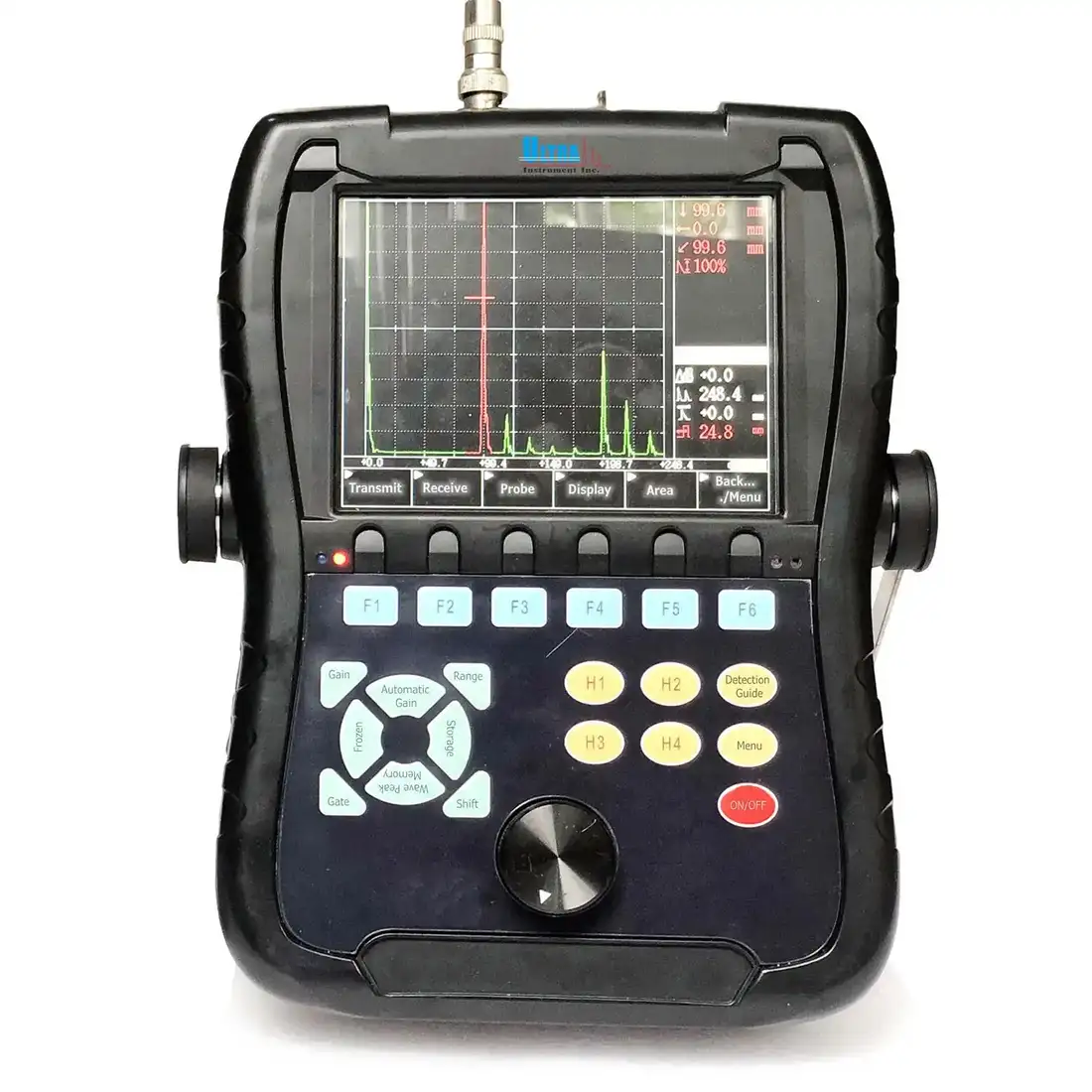

The CK2108 is a portable handheld ultrasonic flaw detector designed for rapid, accurate detection and evaluation of internal defects in metal components. It uses industrial-grade square wave excitation technology and operates in both single and double modes. The device supports a wide range of frequencies, pulse widths, and sound speeds, enabling reliable inspection in field and laboratory environments. Its high-resolution display and long battery life allow continuous use in remote or outdoor locations.
- Detects cracks, inclusions, folds, pores, and sand holes in metal workpieces without damage
- Operates in both single and double mode for flexible inspection setups
- High-resolution 5.7-inch TFT screen visible in direct sunlight
- Battery supports up to 8 to 11 hours of continuous operation
- Lightweight at 1.5 kg, suitable for handheld use in field inspections
- Field upgradable firmware for long-term usability and feature updates
Problems It Solves
- Manual inspection methods miss internal defects such as cracks and inclusions
- Heavy or non-portable equipment limits mobility in remote or hard-to-reach areas
- Low-resolution displays reduce visibility in bright outdoor conditions
- Short battery life forces frequent recharging during long inspection shifts
- Lack of field upgradability reduces device lifespan and adaptability
Who It Is For
Railway maintenance teams requiring portable flaw detection tools
Industrial quality control engineers in manufacturing and metallurgy
Field inspectors in chemical and petrochemical plants
Non-destructive testing technicians in pressure vessel and boiler inspection
Maintenance contractors working on infrastructure and heavy equipment
Application Scenarios
- On-site inspection of rail components during maintenance or repair
- Quality control in steel and metal processing plants
- Defect detection in pressure vessels and boiler systems
- Safety inspection of railway track components and welds
- Field testing in aerospace and chemical industry environments
Technical Features
- Industrial advanced square wave excitation technology for stable performance
- High-resolution 5.7-inch TFT screen with visibility in direct sunlight
- Supports 30 built-in normal material sound speeds for quick setup
- Dual-channel hardware alarm with configurable modes: incoming wave, lost wave, DAC curve
- Field upgradable firmware for extended device lifecycle
- Adjustable pulse width and transmit voltage for optimal defect detection
- Multiple wave detection modes: positive, negative, full wave, RF
- Automatic and manual repetition frequency selection for different inspection needs
- Inhibition function to suppress noise and improve signal clarity
Technical Specifications
| Transmit Pulse | -50V to -250V negative square wave, continuous adjustable, 25V stepping |
|---|---|
| Pulse Width | 30ns to 1000ns continuous adjustable, 5ns stepping |
| Working Mode | Single or double |
| Work Frequency | 0.8MHz to 10MHz, broad band and narrow band |
| Gain Range | 0.0 to 110.0dB |
| Gain Stepping | 0.1dB, 1.0dB, 2.0dB, 6.0dB |
| Sound Speed Range | 1000m/s to 15000m/s, continuous adjustable, 30 built-in material types |
| Wave Detection Type | Positive direction, negative direction, full wave, RF |
| Alarm Channels | Two hardware-driven real-time alarm channels |
| Alarm Options | Incoming wave, lost wave, DAC curve alarm |
| Alarm Mode | Buzzer or LED |
| Display Screen | 5.7-inch high-brightness TFT, 640*480 resolution |
| Repetition Frequency | 25Hz, 50Hz, 100Hz, 200Hz, 400Hz, 800Hz, automatic, manual |
| Vertical Linear Error | ≤3.0% |
| Horizontal Linear Error | ≤4.0% |
| Sensitivity Balance Value | >60dB |
| Resolution Ratio | >26dB |
| Dynamic Scope | ≥32dB |
| Inhibition | 0% to 99% |
| Attenuator Accuracy | Each 12dB <±1dB |
| Interface | USB HOST Φ9×2 |
| Battery | High-capacity lithium battery, 6 hours continuous work |
| Ambient Temperature | -30℃ to 50℃ (-22°F to 122°F) |
| Relative Humidity | (20 to 95)% |
| Weight | 1.5 kg (3.3 lbs) |
How It Is Operated
Power on the device and verify battery level
Select the appropriate material sound speed from the built-in list or enter custom value
Set pulse width, frequency, and gain based on the material and defect type
Position the probe on the test surface and initiate scanning
Monitor A-scan display and alarm signals for defect indications
Quality Control
- Device performance verified against standard linear error and sensitivity balance
- All calibration parameters tested within factory specifications
- Field upgradability ensures consistent performance over time
Customization Options
- Firmware can be updated in the field to adapt to new inspection standards
- User interface settings can be adjusted for specific inspection workflows
- Probe interface and cable types can be matched to existing probe inventory
How It Compares With Other Options
| RT10-C hand push trolley | The trolley covers longer track sections at 5 km/h but requires two people and track access; the CK2108 is handheld and faster for spot checks |
|---|---|
| UR18-D dual rail vehicle | The vehicle inspects both rails at 15 km/h over long distances; the CK2108 is for localized inspection of components, welds, or rails at a fixed point |
| GT6600 hi-rail vehicle | The hi-rail vehicle operates at 40 km/h on roads and rails; the CK2108 is portable and used for detailed inspection where speed is not required |
Use Guide
- Check battery charge before starting field work
- Select the correct material sound speed before each inspection
- Verify probe coupling and surface condition to avoid false signals
- Use the inhibition function to reduce background noise in high-interference environments
- Back up inspection data via USB after each session to prevent loss
Related Products
RAILWAY PLATFORM GAUGE
The Railway Platform Gauge is a portable measuring tool designed for precise measurement of the horizontal distance...
View Product →
Track Geometry Measurement
The GJY-H-CK-22CM Track Geometry Measurement system is integrated into an electric flaw detection vehicle and runs at a...
View Product →
RS-20 Integrated Rail State Inspection Vehicle
The RS-20 is a portable, integrated rail state inspection vehicle designed to replace manual track patrols with...
View Product →Frequently Asked Questions
What types of defects can the CK2108 detect?
It detects cracks, inclusions, folds, pores, sand holes, and other internal defects in metal workpieces using ultrasonic waves.
How long does the battery last?
The high-capacity lithium battery supports 6 hours of continuous work, with field reports indicating up to 8 to 11 hours under typical use.
Can it be used outdoors in sunlight?
Yes. The 5.7-inch high-brightness TFT screen is designed for visibility in direct sunlight and outdoor conditions.
Is the device upgradable in the field?
Yes. The CK2108 supports field firmware upgrades, allowing performance improvements and new features to be added after purchase.
What is the weight and portability like?
The device weighs 1.5 kg and is designed for handheld use, making it easy to carry during inspections in remote or hard-to-reach areas.
Does it support multiple inspection modes?
Yes. It supports single and double mode operation, with multiple wave detection types: positive, negative, full wave, and RF.
How do I transfer inspection data?
Data can be transferred via the USB HOST interface to a computer for analysis and record keeping.
