Rail Welding Beam Detectors

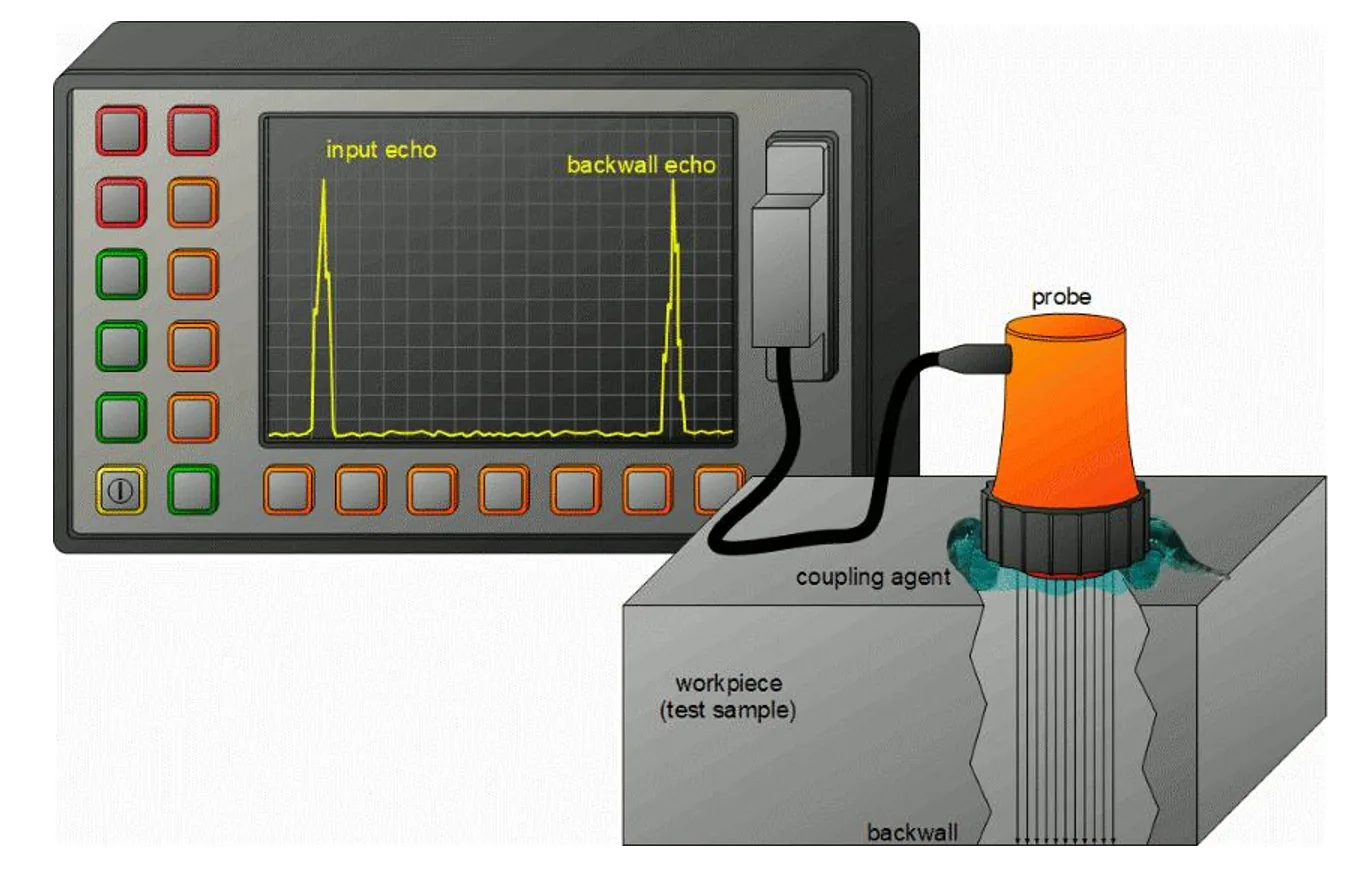

The Rail Welding Beam Detector uses ultrasonic light wave technology to inspect rail welds for internal defects that are invisible to visual inspection. It is designed for precise detection at the weld joint, supporting both routine maintenance and post-weld verification.
Problems This Equipment Solves
- Internal defects in rail welds such as lack of fusion or porosity are invisible to visual inspection
- Manual inspection of welds is slow and relies on operator experience, leading to inconsistent results
- Standard ultrasonic equipment may not be optimised for the unique geometry and material transition at rail weld joints
- Weld defects can propagate under load, leading to sudden failure if undetected
- Lack of consistent data recording makes it difficult to verify inspection results after the fact
Who This Category Is For
Railway maintenance contractors performing weld inspections after installation or repair
State-owned and private railways conducting scheduled weld integrity checks
Urban metro systems requiring high-precision weld verification during track maintenance
Port and mine operators maintaining heavy-duty industrial rail welds under high stress
Railway bureaus responsible for ensuring weld quality in new track construction or major repairs
Core Advantages
- Uses ultrasonic light wave technology specifically tuned for rail weld geometry
- Detects internal defects at the weld joint that are not visible to the naked eye
- Provides consistent results independent of operator skill level
- Records inspection data for later review and compliance tracking
- Designed for use at the weld joint, ensuring focused and accurate detection
Where It Is Used
- Post-weld inspection of newly installed rail joints during track construction
- Routine inspection of rail welds on high-traffic main lines
- Verification of weld integrity after rail replacement or repair work
- Inspection of welds in industrial rail systems where high reliability is required
- Pre-service inspection of rail sections before commissioning in urban metro systems
Related Cases and Industries
UR18-D Pass the review of standard measurement technology
UR18-D became the first enterprise in China to obtain certification for special railway measuring instruments in ultrasonic rail t
Dual Rail Ultrasonic Flaw Detection Vehicle Enters African Market
First use of the UR18-D dual-rail ultrasonic flaw detection vehicle on the Mombasa-Nairobi Railway in September 2017 Successful in
State Owned Railways
State-owned main line railways require reliable, repeatable ultrasonic rail flaw detection to identify internal defects such as tr
Urban Metro and City Rail
Urban metro and city rail systems operate under strict night maintenance windows, where track inspection must be fast, reliable, a
Frequently Asked Questions
What type of defects does the Rail Welding Beam Detector find?
It detects internal defects at the rail weld joint, such as lack of fusion, porosity, and cracks, using ultrasonic light wave technology.
Can it be used on all rail weld types?
It is designed for standard rail weld joints and is optimised for the geometry and material transition found in typical rail welds.
Is the inspection data recorded?
Yes. The system records inspection data for later playback and review, allowing for verification and compliance tracking.
How is the detector operated?
It is operated at the weld joint, using ultrasonic light wave technology to scan the weld area and identify internal defects.
Does it require special training?
Yes. We provide on-site engineer training and technical support to ensure proper operation and interpretation of results.
Can it be used in the field?
Yes. The detector is designed for field use and can be deployed at rail sites for on-site weld inspection.
How do I get technical support?
We provide pre-sales, in-sales and after-sales technical service, including on-site support and training.
Ask an Engineer About Rail Welding Beam Detectors
Tell us the line type, rail profile and possession window you work with and we will recommend the right model from this category.
