Hydraulic Anchor Windlass Marine Electric Winch 10KN 20KN 30KN Double Drum in Ship

Name: Hydraulic Anchor Windlass Marine Electric Winch 10KN 20KN 30KN Double Drum in Ship
Brand: Star Marine Technology

Carbon steel hydraulic anchor windlass with double drum, rated 10KN, 20KN and 30KN for commercial deck duty.

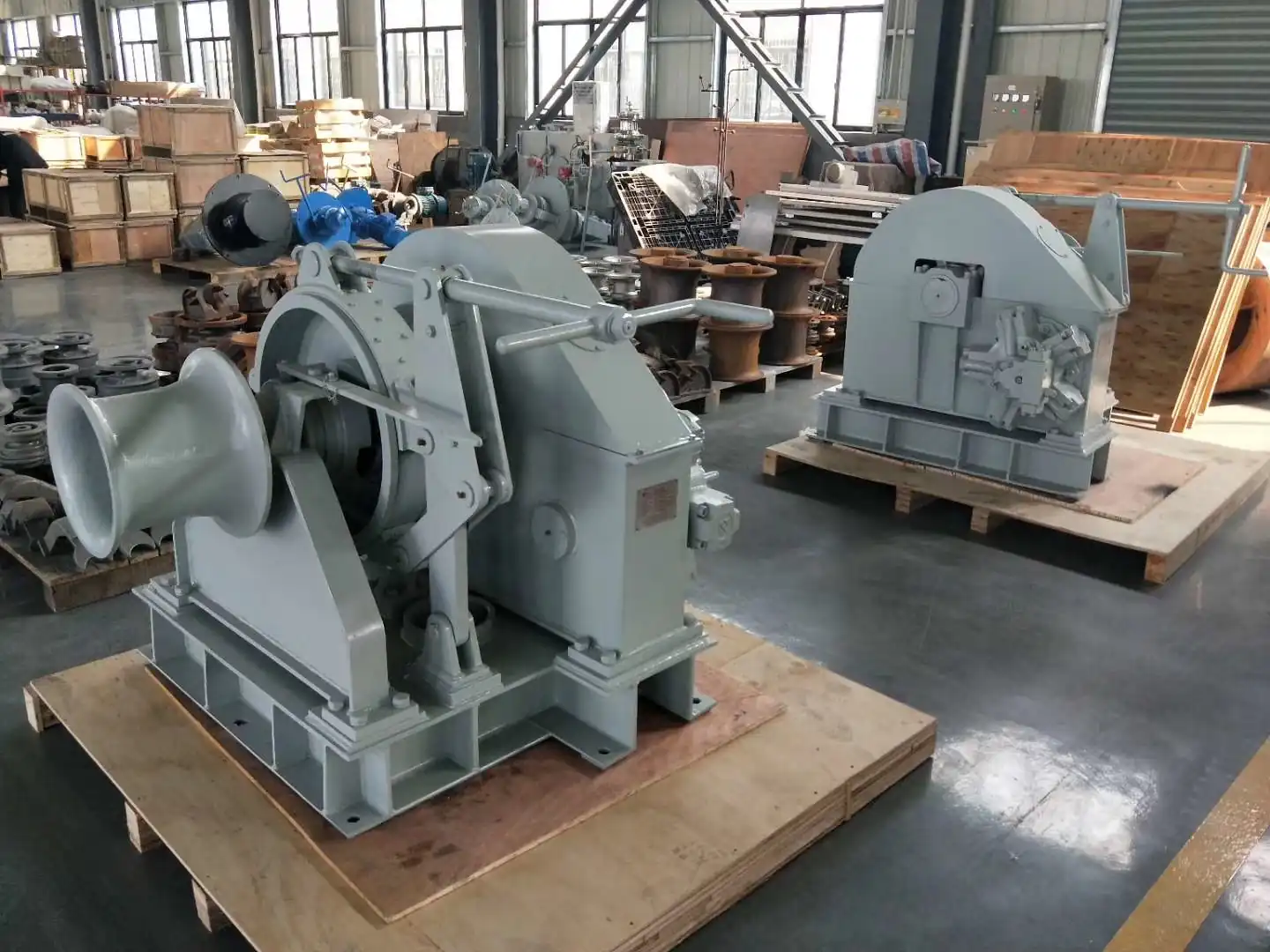

Hydraulic Anchor Windlass Marine Electric Winch 10KN 20KN 30KN Double Drum in Ship side view

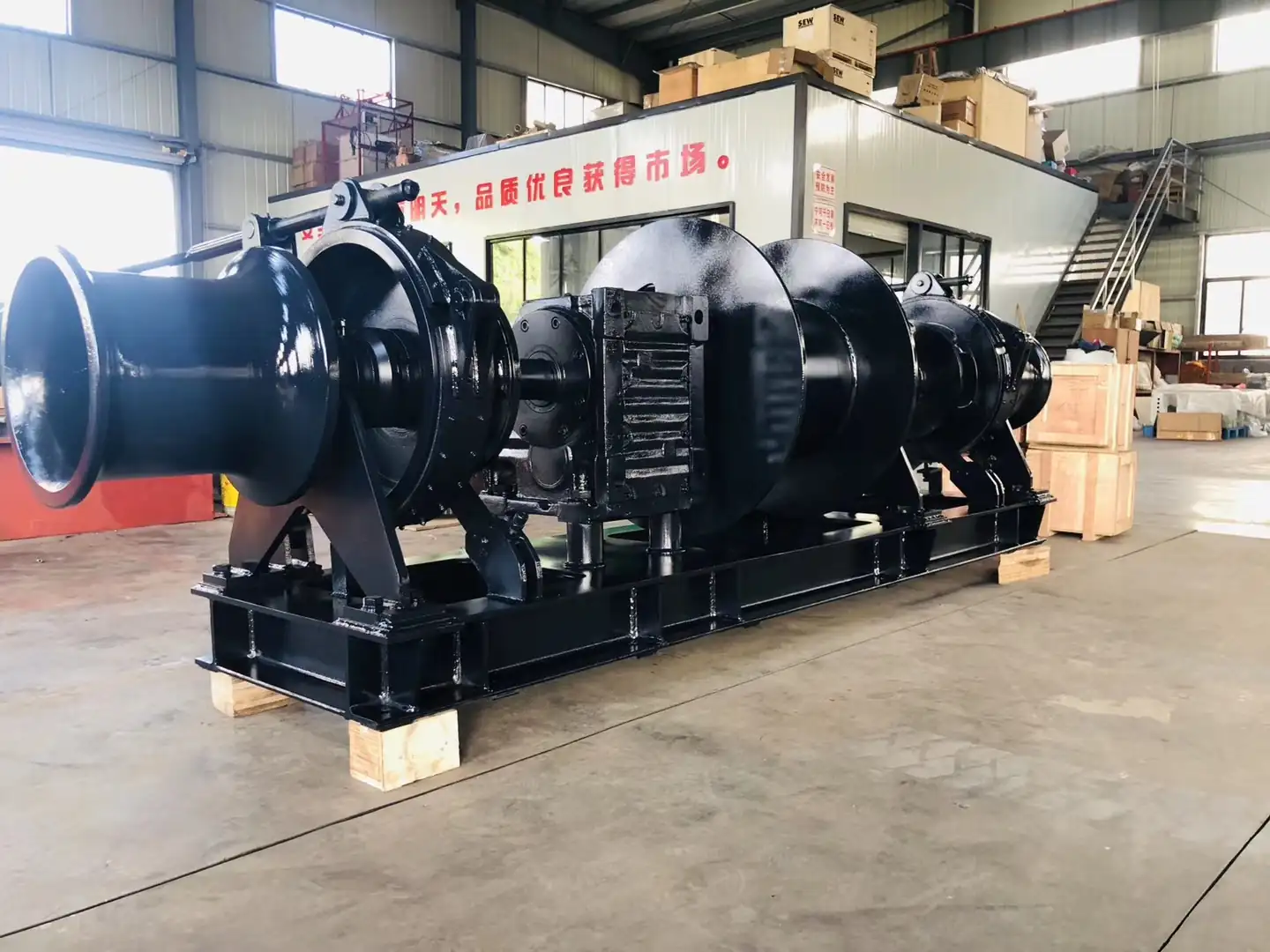

Hydraulic Anchor Windlass Marine Electric Winch 10KN 20KN 30KN Double Drum in Ship detail view

Hydraulic Anchor Windlass Marine Electric Winch 10KN 20KN 30KN Double Drum in Ship assembly detail

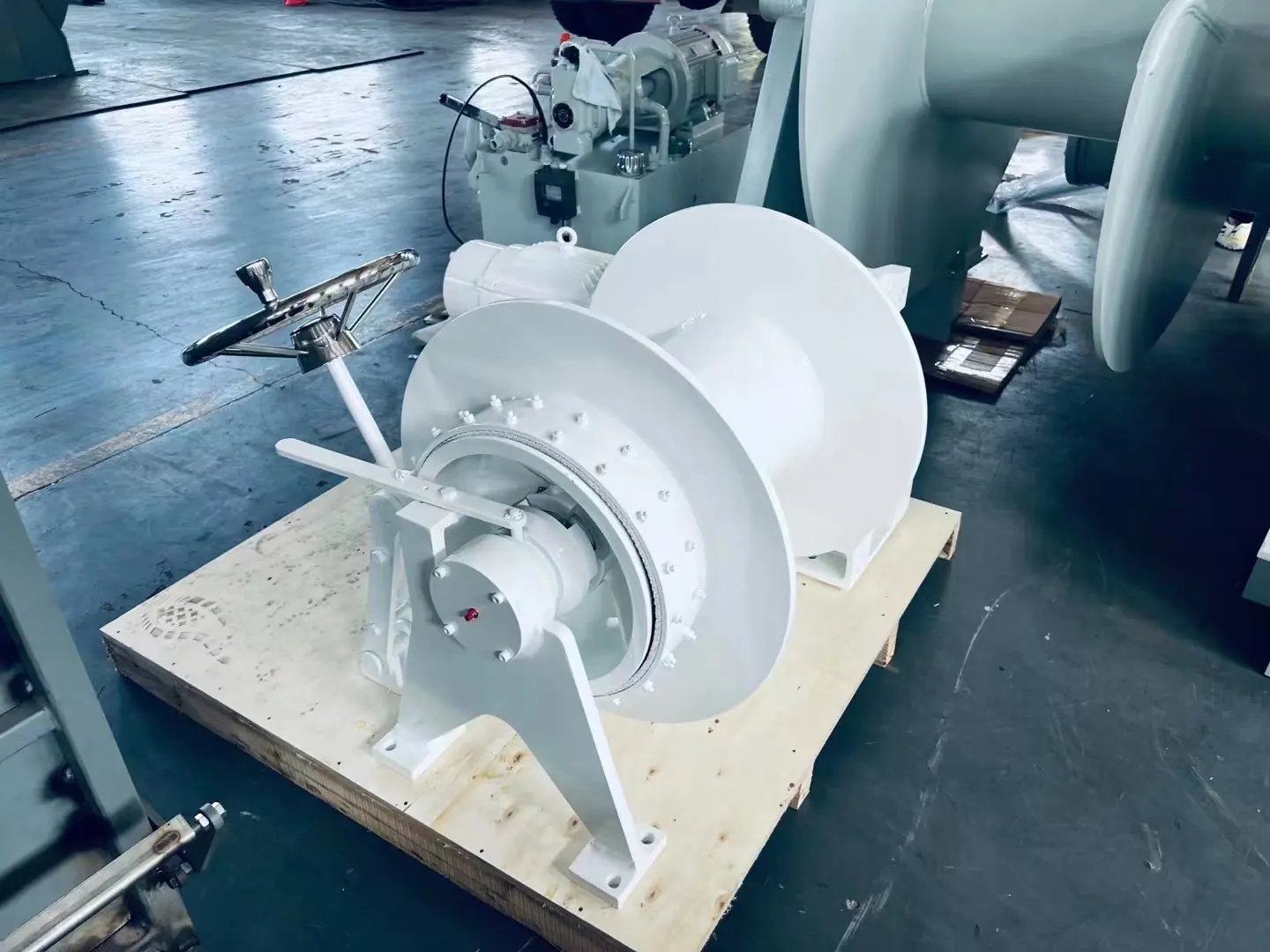

Hydraulic Anchor Windlass Marine Electric Winch 10KN 20KN 30KN Double Drum in Ship another view

Ship Deck Machinery

What this product does

Carbon steel is the correct material where the windlass is painted with the rest of the deck and where the budget belongs in the gear train rather than in a polished finish. This double drum machine is offered at 10KN, 20KN and 30KN rated pull, in hydraulic or electric 220V/380V drive, for AM-2 chain from 12.5mm to 60mm. Every unit is factory acceptance tested before it is crated.

Selection notes

10KN, 20KN and 30KN rated pull, double drum arrangement
Carbon steel construction, hydraulic or electric 220V/380V drive
FAT carried out on every machine before export packing

Ask about this product Email specification

Specification

Model	Double Wildcat&Double Wrapping End(Drum)
Power	Electric(220V/380V), Hydraulic
Certificate	ABS, BV, LR, RINA, DNV, CCS, etc...
Package	Standard Exporting Wooden Box Packing, easy for forklift to transport.
Accessories	All neccessory Accessories of ELectric System like control Box
Category	Ship Deck Machinery
Warranty	One year, with installation instructions and spare parts support afterwards
Lead time	Confirmed per order with the quotation

Published technical data

Reproduced from the manufacturer's own product data for this item. Figures are confirmed against your order before production.

Marine Carbon Steel Electric/Hydraulic Hydraulic Anchor Windlass Marine Electric Winch for 12.5mm~60mm diameter AM-2 anchor chain for boat&vessel&ship What's more, We can customize the windlass, design based on the type&Weight of your boat&vessel&ship, to help your vessel work perfectly!!!! Meanwhile, All Equipment will do testing before leaving factory(FAT). Our anchor windlass can be customizing like hydraulic type, electric type 220V/380V, 50HZ/60HZ. And we can deliver windlass to all over the world. Sample Drawing of 28mm hydraulic anchor windlass: Working Specifications: Chain Dia (mm, U2 Chain) Rated load(KN) Overload(KN) Holding load(KN) Speed(m/min) Electric Power-Double Motor(KW) Hydraulic Power(KW) 12.5 6.6 9.9 42 9 2.4/1.5 4 14 8.3 12.5 52 9 2.4/1.5 4 16 10.9 16.4 67 9 3.3/2/2 5.5 17.5 13.0 19.5 81 9 4.3/1.7 5.5 19 15.3 23 95 9 4.3/1.7 5.5 20.5 17.9 26.9 110 9 4.3/1.7 7.5 22 20.6 30.9 126 9 6/2.5 7.5 24 24.5 36.8 145 9 8.5/3.5 11 26 28.7 43.1 175 9 8.5/3.5 11 28 33.3 50.0 202 9 11/11/7.5 15 30 38.3 57.5 231 9 11/11/7.5 15 32 43.5 65.3 262 9 11/11/7.5 15 34 49.1 75.7 295 9 11/11/7.5 18.5 36 55.1 82.7 329 9 16/16/11 18.5 38 61.4 92.1 365 9 16/16/11 22 40 68.0 102 403 9 16/16/11 22 42 75.0 112.5 442 9 22/22/16 30 44 82.3 123.5 486 9 22/22/16 30 46 89.9 134.9 527 9 22/22/16 30 48 97.9 146.9 572 9 22/22/16 30 50 106.3 159.5 617 9 30/30/22 37 52 114.9 172.4 666 9 30/30/22

Ordering and documentation

Name the classification society with your enquiry and the certificate is applied for at the same time as production. Every unit is tested before dispatch and the test report and video can be supplied before shipment. Warranty is one year, with installation instructions and spare parts support afterwards.
