A packaged portable generator set is the answer when a small vessel needs independent power at the berth, or when a repair team needs power they can wheel to the work. Our range runs from 2kW to 30kW in diesel and gasoline, at 110V or 220V and 50Hz or 60Hz, wheeled, with hand or key starting and the control panel supplied.
Specification notes
15kW diesel: V-type twin cylinder four stroke direct injection air cooled, 1326cm3, rated 15.0kW / max 16.0kW at 3600rpm, 230V single phase 50Hz, 25.0L fuel, 4.0L oil, 84dB at 7m, 1100 x 680 x 955mm, 247KG. 10kW gasoline: four stroke OHV air cooled twin cylinder, rated 10.0kW / max 10.5kW, 230V single phase 50Hz, 25.0L fuel, 1.5L oil, 76dB at 7m, 950 x 640 x 910mm, 194KG.
What you get from us in this category
Sized from the actual load
5kW, 10kW and 15kW are the common points, but the range runs 2kW to 30kW so the set matches the load rather than doubling it.
Diesel or gasoline against your fuel
Diesel where the vessel already bunkers it, gasoline where the set is quieter and lighter matters more. Published noise figures are 84dB for the 15kW diesel and 76dB for the 10kW gasoline set, both at 7m.
Wheeled and one-person startable
Wheels on the frame and electric starting with hand start backup, so the set can be moved and started without a second pair of hands.
Complete with control panel and spares
The control panel and the spare parts needed for first service come with the set, crated in a solid wooden case.
Portable Generator Sets product range
Marine 15kw Portable 220V Three Phase Silent Electric Diesel Generator Set
View specification →

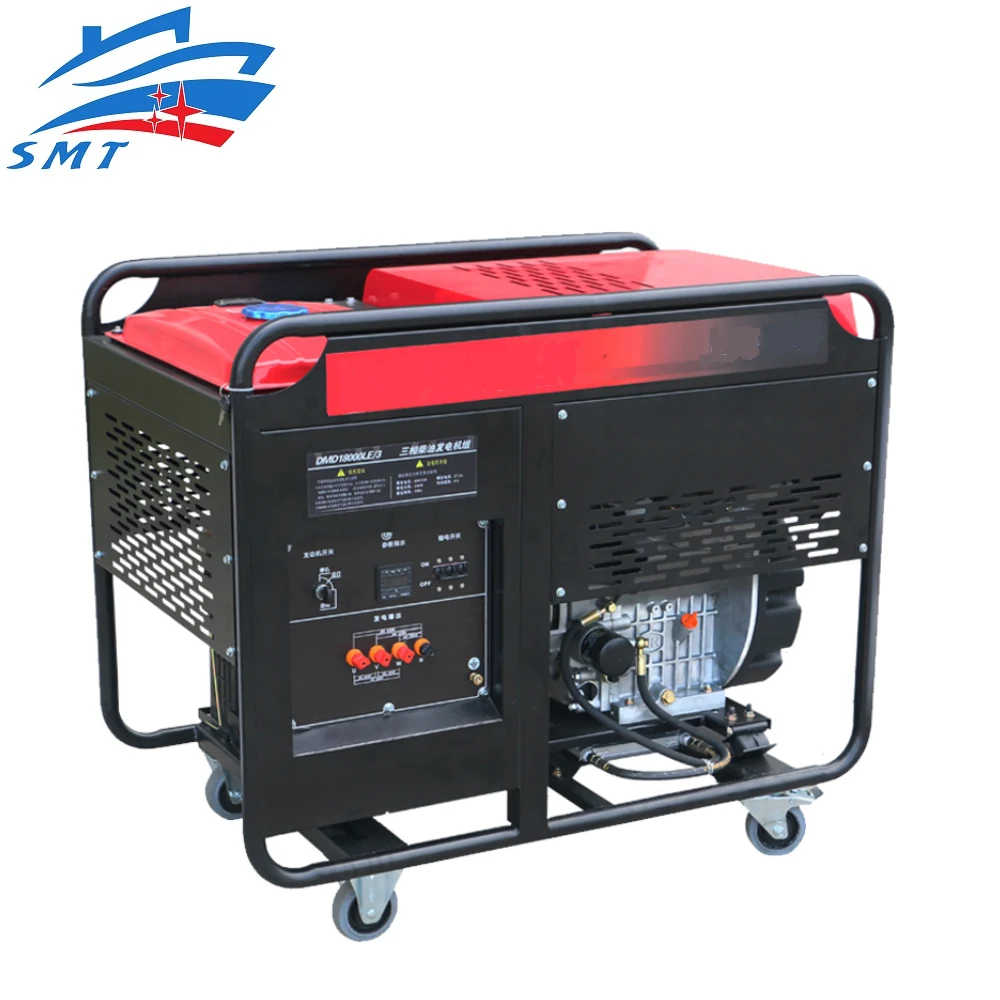

Marine Diesel Generator Set 5kw 10kw Portable Single Phase Silent Electric Gasoline Generator Set
View specification →

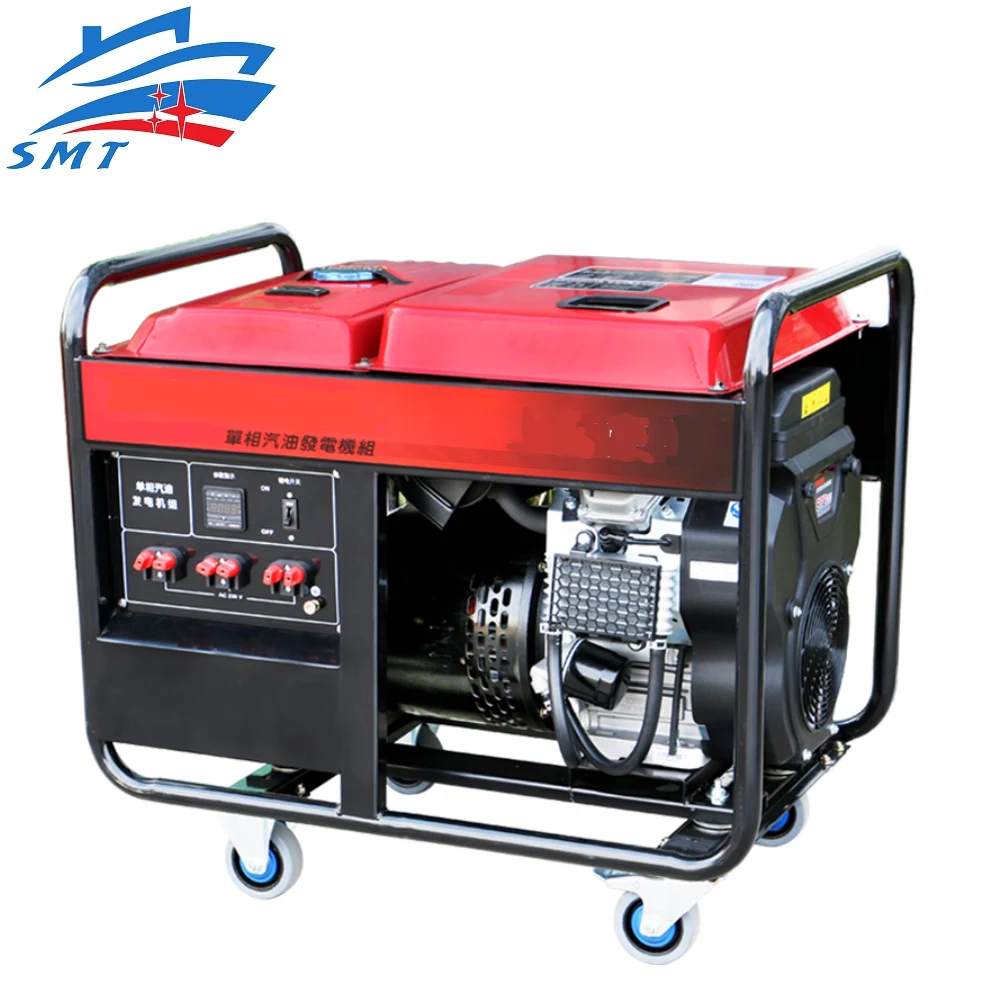

Portable generator set for small boat/house/home using
View specification →Portable Generator Sets FAQ
What output do I need?
Add up the running load and the largest starting load on the boat. Send us that figure and the voltage and frequency of your system and we will quote the set.
Diesel or gasoline?
Diesel if the vessel already carries diesel, for fuel handling simplicity. Gasoline sets are lighter and quieter at the same output, 76dB against 84dB at 7m on our 10kW and 15kW sets.
110V or 220V, 50Hz or 60Hz?
All four combinations are available. Specify at order against your own switchboard.
Does it come with a control panel?
Yes. All necessary accessories including the control panel are supplied with the set.
How is it packed?
Standard wooden box, built so a forklift can move it, which is also how it is fixed inside the container.
Send the vessel data, get a specified quotation
Tell us the vessel, the duty and the classification society. We come back with the specification, the certificate list and the packing method — not just a price.
