Stern tube and rudder bearings are wear parts measured at every survey, and they are always needed at the worst possible moment. We machine bronze cutless bearings, stern bushings and rudder stock sleeves to your shaft drawing and your nominated clearance, and we supply C63000 nickel aluminium bronze as bar, rod, flat bar and plate so a repair yard can cut its own.
Specification notes
Outer diameter, inner diameter and length all customised. Materials: bronze, C63000 nickel aluminium bronze, lead brass, stainless steel and aluminium. ABS, BV, LR, RINA, DNV and CCS certificates available. Wooden box export packing.
What you get from us in this category
Machined to your measured shaft
Bearings are made to the shaft diameter and stern tube bore actually in the vessel, at the running clearance you nominate, not to a standard part number.
Forged rudder stock sleeves
Rudder sleeves take reversing load every time the helm moves, so they are produced as forgings rather than turned from bar.
Bar stock as well as finished parts
C63000 nickel aluminium bronze in bar, rod, flat bar and plate for yards that machine their own bushings during a docking.
Hand finished
Bearing surfaces are hand finished by our workers before dispatch, because the finish is what decides how the bearing beds in.
Stern Shaft and Rudder Bearings product range
C63000 Copper Nickel Aluminum Bronze Bar Lead Brass Flat Bar Copper Rod Plate
View specification →

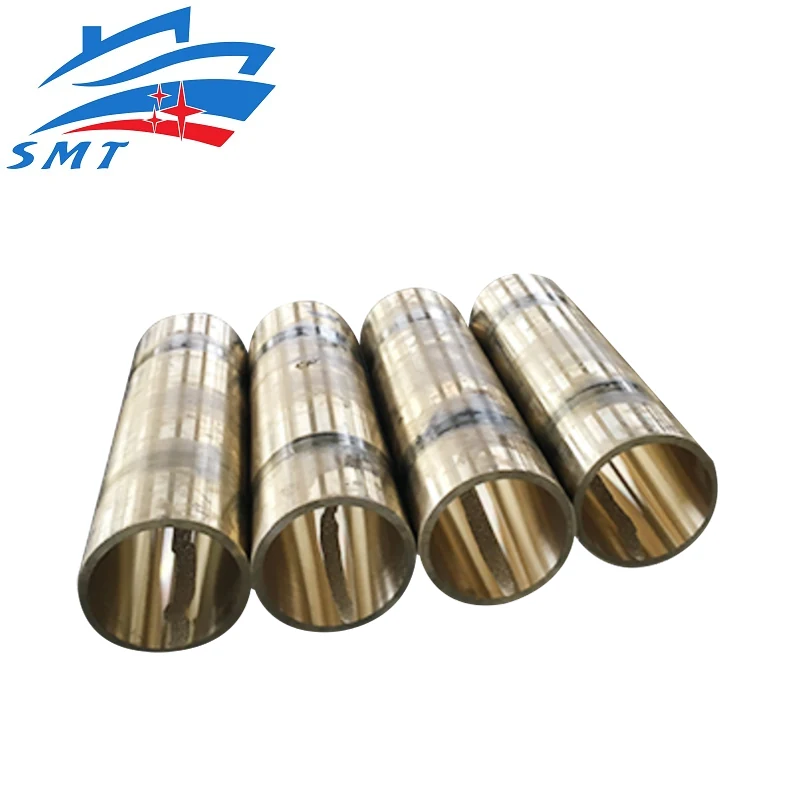

Marine Bronze Cutless Marine Bearing Propeller Shaft Bearings
View specification →

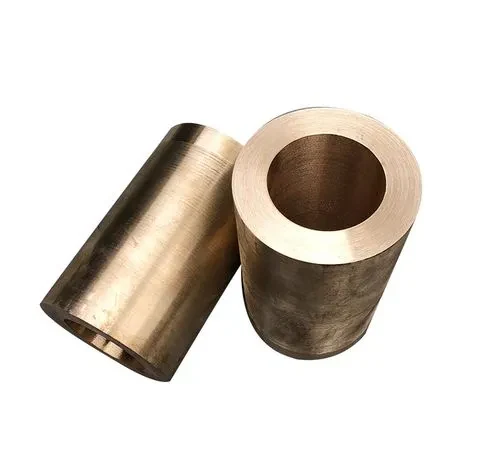

Marine Bronze Stern Bearing Bronze Bushing Propeller Shaft Bearings
View specification →
Marine Stainless Steel/Bronze Rudder Stock Sleeve Rudder Pin Bushing for ship
View specification →Stern Shaft and Rudder Bearings FAQ
What do you need to quote a stern bearing?
The shaft diameter, the stern tube bore, the bearing length and the running clearance you want. A sketch or the original drawing is enough.
Why nickel aluminium bronze?
C63000 keeps its strength in seawater, resists cavitation and does not seize against a steel shaft the way softer alloys can.
Can you supply just the material?
Yes. Bar, rod, flat bar and plate are supplied cut to length so your own machine shop can produce the bushing during the docking.
Are rudder pin bushings available too?
Yes, in stainless steel, aluminium or bronze, machined to the rudder stock diameter and the housing bore you supply.
What certificates are available?
ABS, BV, LR, RINA, DNV and CCS, applied for against the product on your order.
Send the vessel data, get a specified quotation
Tell us the vessel, the duty and the classification society. We come back with the specification, the certificate list and the packing method — not just a price.
