Double Drum Marine Horizontal Hydraulic Stainless Steel Boat Winch/Windlass for Ship

Name: Double Drum Marine Horizontal Hydraulic Stainless Steel Boat Winch/Windlass for Ship
Brand: Star Marine Technology

Double drum horizontal hydraulic windlass in stainless steel 316L, for 12.5mm to 60mm chain with CCS, BV, LR and DNV certification.

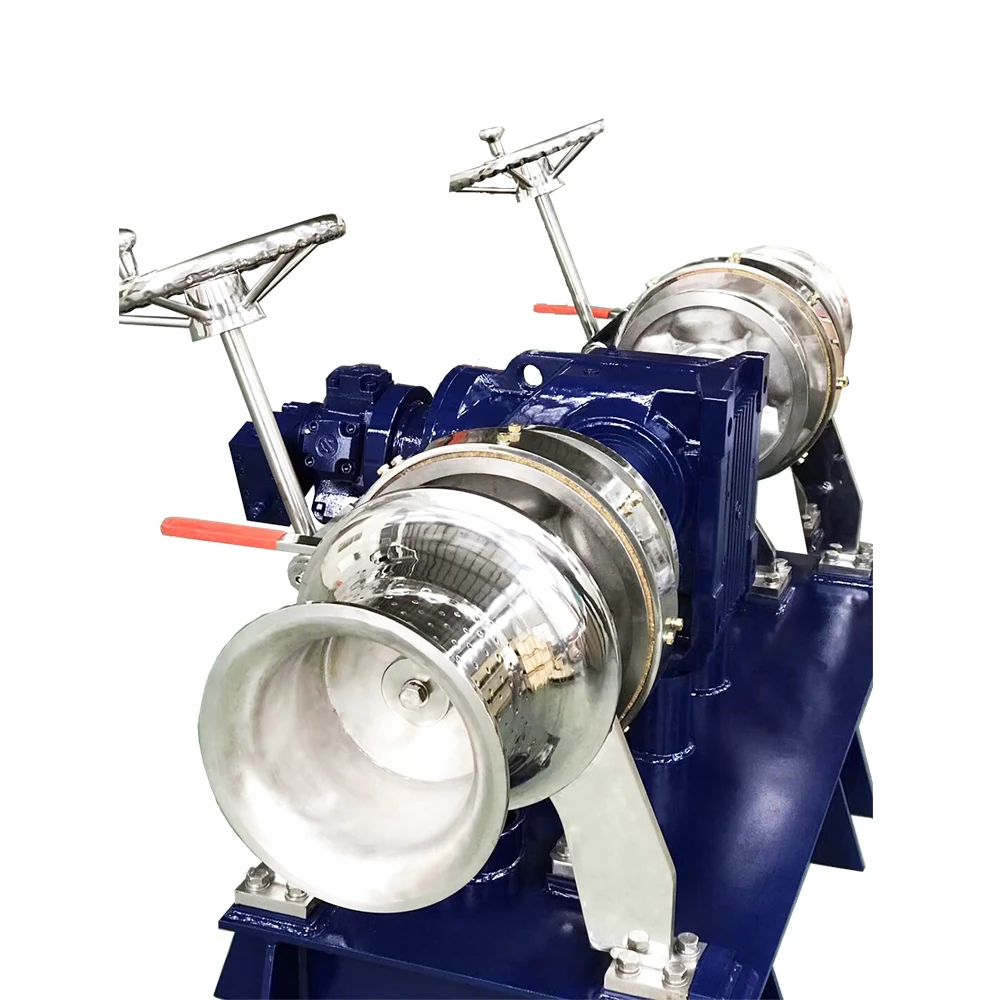

Double Drum Marine Horizontal Hydraulic Stainless Steel Boat Winch/Windlass for Ship side view

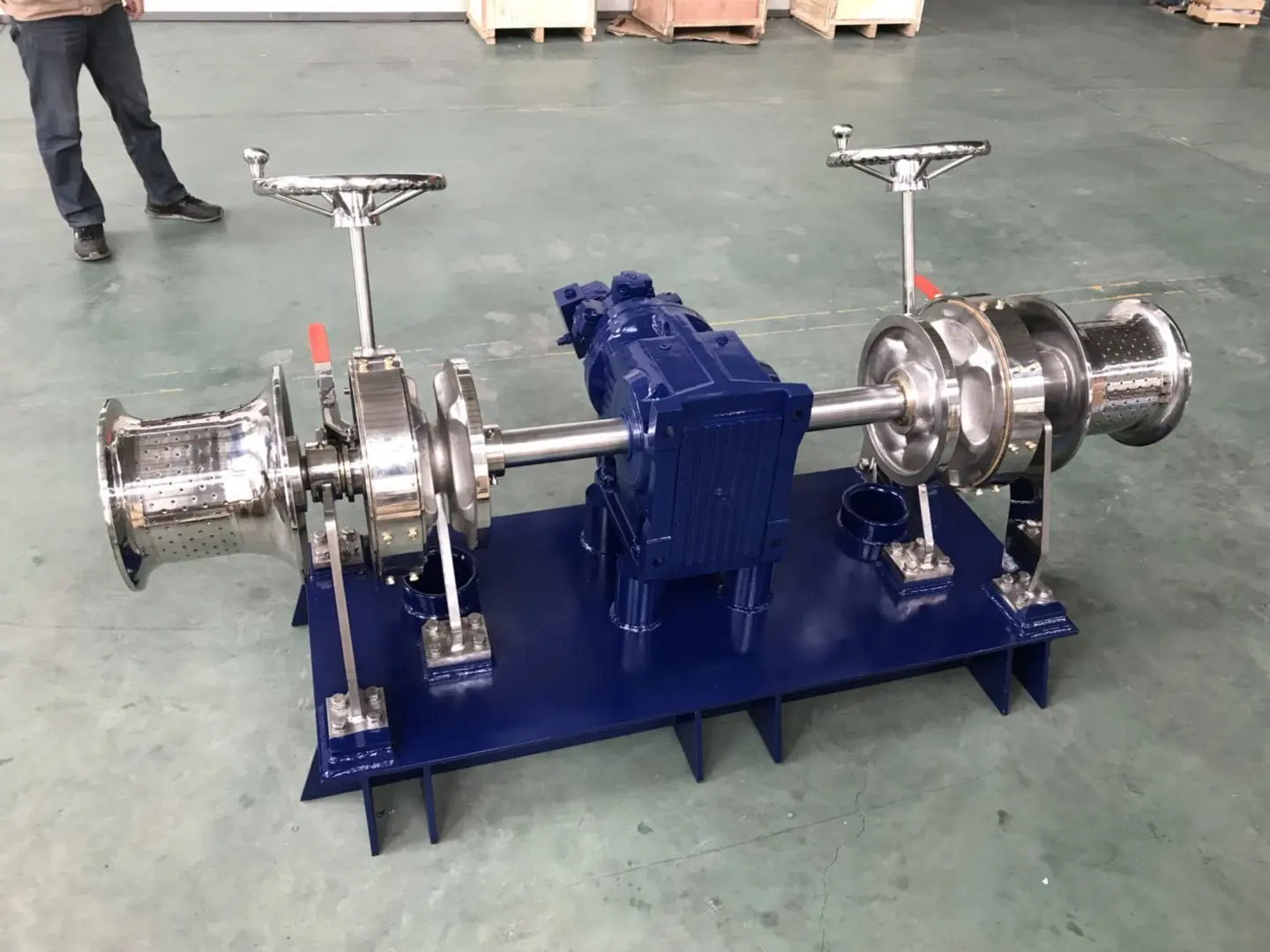

Double Drum Marine Horizontal Hydraulic Stainless Steel Boat Winch/Windlass for Ship detail view

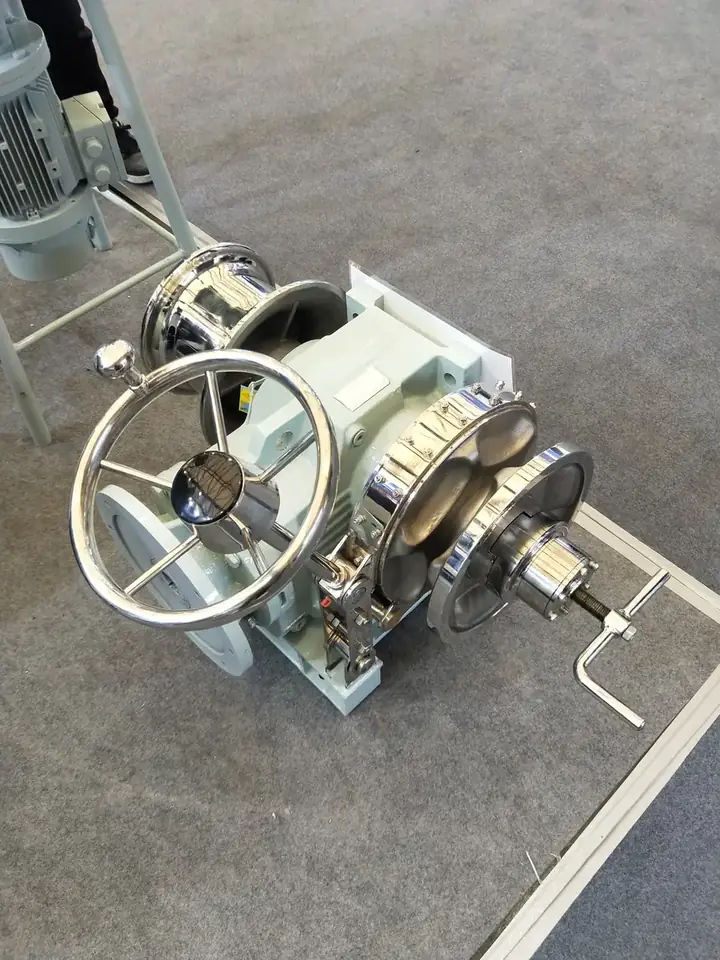

Double Drum Marine Horizontal Hydraulic Stainless Steel Boat Winch/Windlass for Ship assembly detail

Ship Deck Machinery

What this product does

Hydraulic drive earns its place on a horizontal double drum machine because it holds torque at zero speed, which is what you want when the chain is being surged or the drum is holding a mooring line under load. This windlass is built in stainless steel 316L, hand polished, with both drums on a single horizontal shaft, and is designed against the type and weight of your vessel rather than a standard frame.

Selection notes

Hydraulic drive holding full torque at zero speed for surging and mooring
Double drum on a single horizontal shaft, stainless steel 316L
CCS, BV, LR and DNV certificates available; designed to your vessel's displacement

Ask about this product Email specification

Specification

Material	Stainless Steel 316L
Model	Double Wildcat&Double Wrapping End(Drum)
Power	Hydraulic
Certificate	ABS, BV, LR, RINA, DNV, CCS, etc...
Package	Standard Exporting Wooden Box Packing, easy for forklift to transport.
Accessories	All neccessory Accessories of ELectric System like control Box
Category	Ship Deck Machinery
Warranty	One year, with installation instructions and spare parts support afterwards
Lead time	Confirmed per order with the quotation

Published technical data

Reproduced from the manufacturer's own product data for this item. Figures are confirmed against your order before production.

marine anchor windlass stainless steel anchor winch for boat 1.It is using for 12.5mm~60mm diameter AM-2 anchor chain for boat&vessel&ship 2.In addition, material Carefully hand polishing by our workers to make it perfect. 3.What's more, We can customize the stainless steel boat winch, design basing on the type&Weight of your boat&vessel&ship. 4.Electric motor using double motor type. Once the stainless steel electric anchor windlass over loading leading to the broken of one motor, the other motor can continue to work, thus ensuring the safety of the boat/ship. 5.Wrapping drum can remove or install according to the requirement of the user. 6.Working Specifcation: Chain Dia (mm, U2 Chain) Rated load(KN) Overload(KN) Holding load(KN) Speed(m/min) Electric Power-Double Motor(KW) Hydraulic Power(KW) 12.5 6.6 9.9 42 9 2.4/1.5 4 14 8.3 12.5 52 9 2.4/1.5 4 16 10.9 16.4 67 9 3.3/2/2 5.5 17.5 13.0 19.5 81 9 4.3/1.7 5.5 19 15.3 23 95 9 4.3/1.7 5.5 20.5 17.9 26.9 110 9 4.3/1.7 7.5 22 20.6 30.9 126 9 6/2.5 7.5 24 24.5 36.8 145 9 8.5/3.5 11 26 28.7 43.1 175 9 8.5/3.5 11 28 33.3 50.0 202 9 11/11/7.5 15 30 38.3 57.5 231 9 11/11/7.5 15 32 43.5 65.3 262 9 11/11/7.5 15 34 49.1 75.7 295 9 11/11/7.5 18.5 36 55.1 82.7 329 9 16/16/11 18.5 38 61.4 92.1 365 9 16/16/11 22 40 68.0 102 403 9 16/16/11 22 42 75.0 112.5 442 9 22/22/16 30 44 82.3 123.5 486 9 22/22/16 30 46 89.9 134.9 527 9 22/22/16 30 48 97.

Ordering and documentation

Name the classification society with your enquiry and the certificate is applied for at the same time as production. Every unit is tested before dispatch and the test report and video can be supplied before shipment. Warranty is one year, with installation instructions and spare parts support afterwards.

Same category

Related ship deck machinery

All 26 items

Ship Deck Machinery

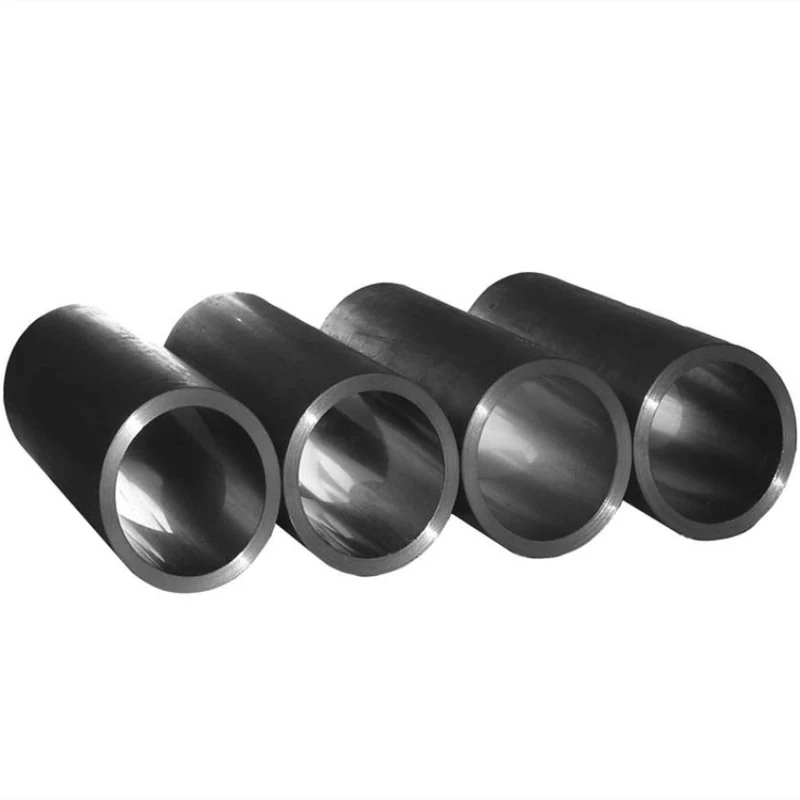

Marine Stainless Steel/Carbon Steel Hydraulic Cylinder Barrel Honed Tube Honed Pipe

View specification →

Ship Deck Machinery

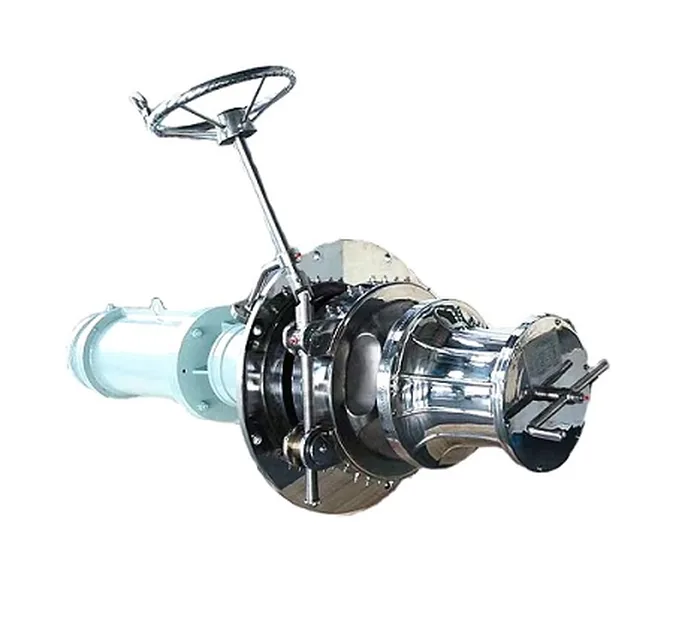

Stainless Steel Vertical Windlass Anchor Electric/Hydraulic Capstan/Vertical Windlass Winch for Boat Buliding

View specification →

Ship Deck Machinery

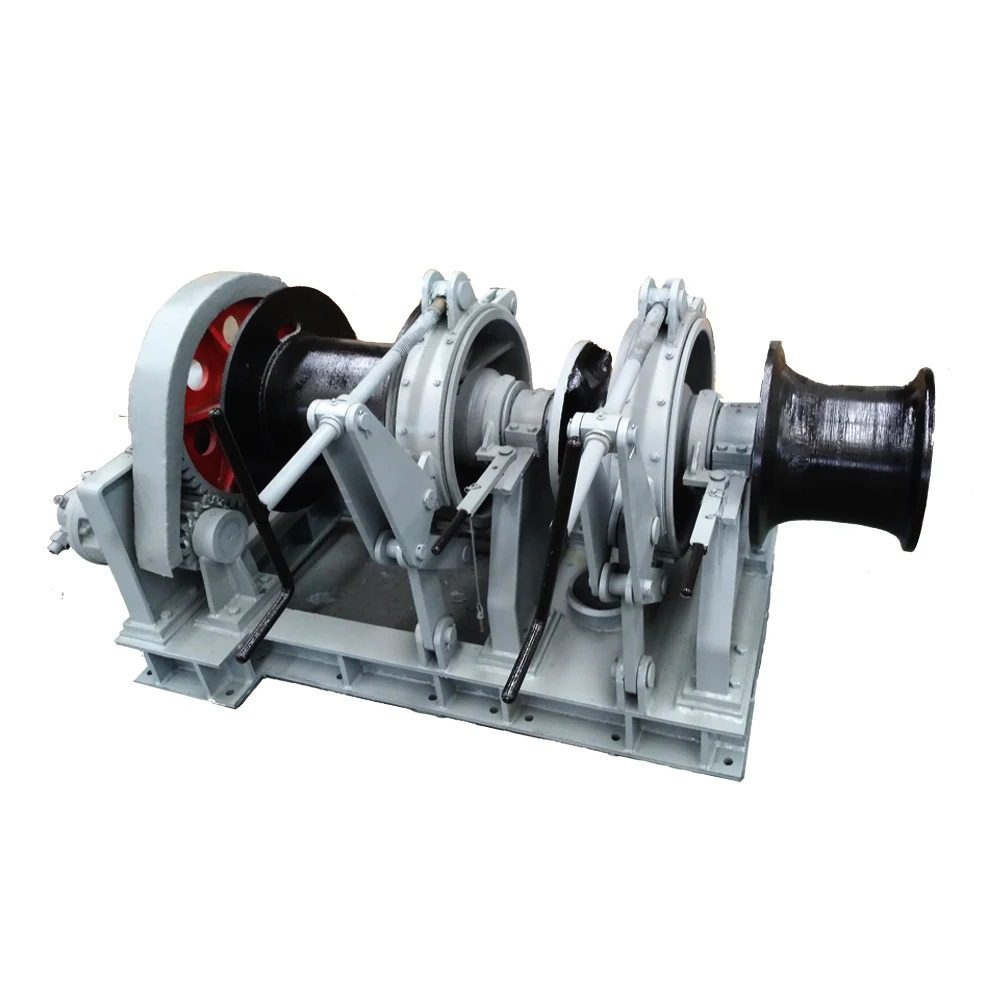

Hydraulic Anchor Windlass Marine Electric Winch 10KN 20KN 30KN Double Drum in Ship
