Marine Diesel Generator Set 5kw 10kw Portable Single Phase Silent Electric Gasoline Generator Set

Name: Marine Diesel Generator Set 5kw 10kw Portable Single Phase Silent Electric Gasoline Generator Set
Brand: Star Marine Technology

5kW and 10kW portable single-phase generator sets for small boats and house use, 220V/110V at 50Hz/60Hz with hand or key start.

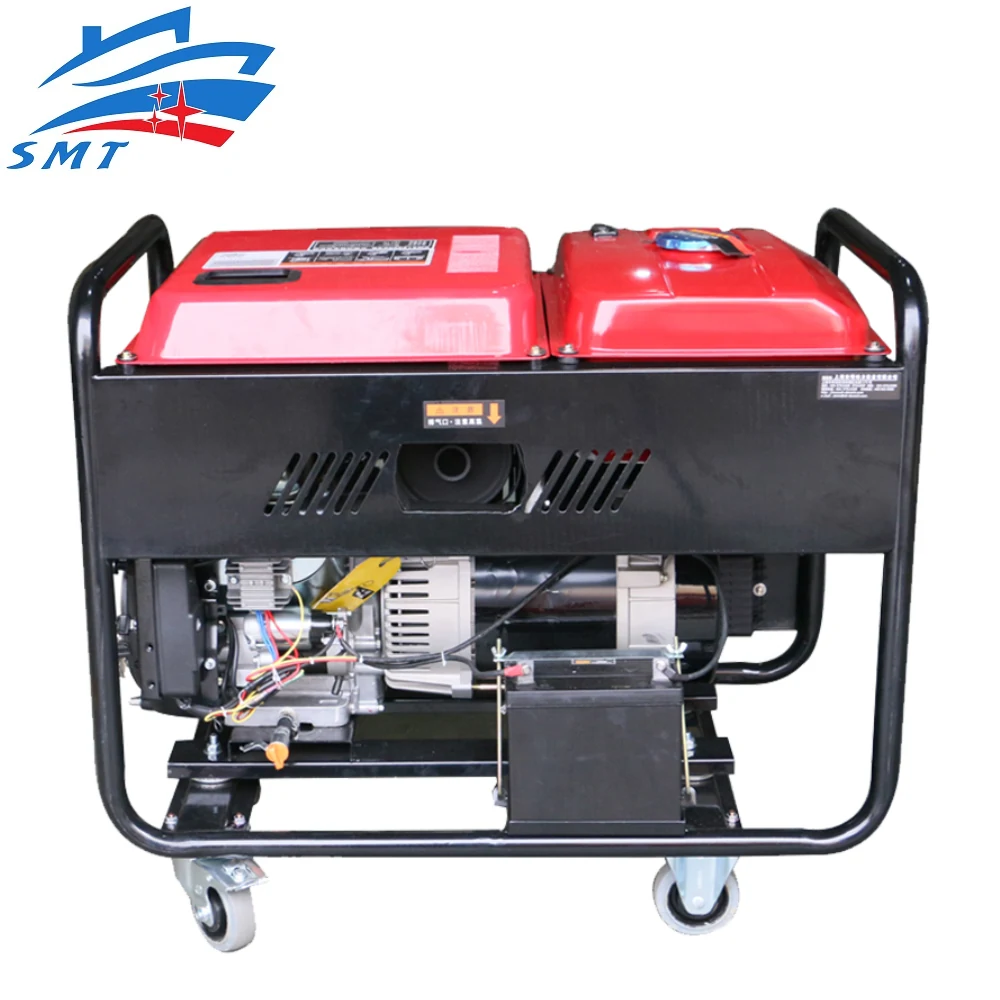

Marine Diesel Generator Set 5kw 10kw Portable Single Phase Silent Electric Gasoline Generator Set side view

Marine Diesel Generator Set 5kw 10kw Portable Single Phase Silent Electric Gasoline Generator Set detail view

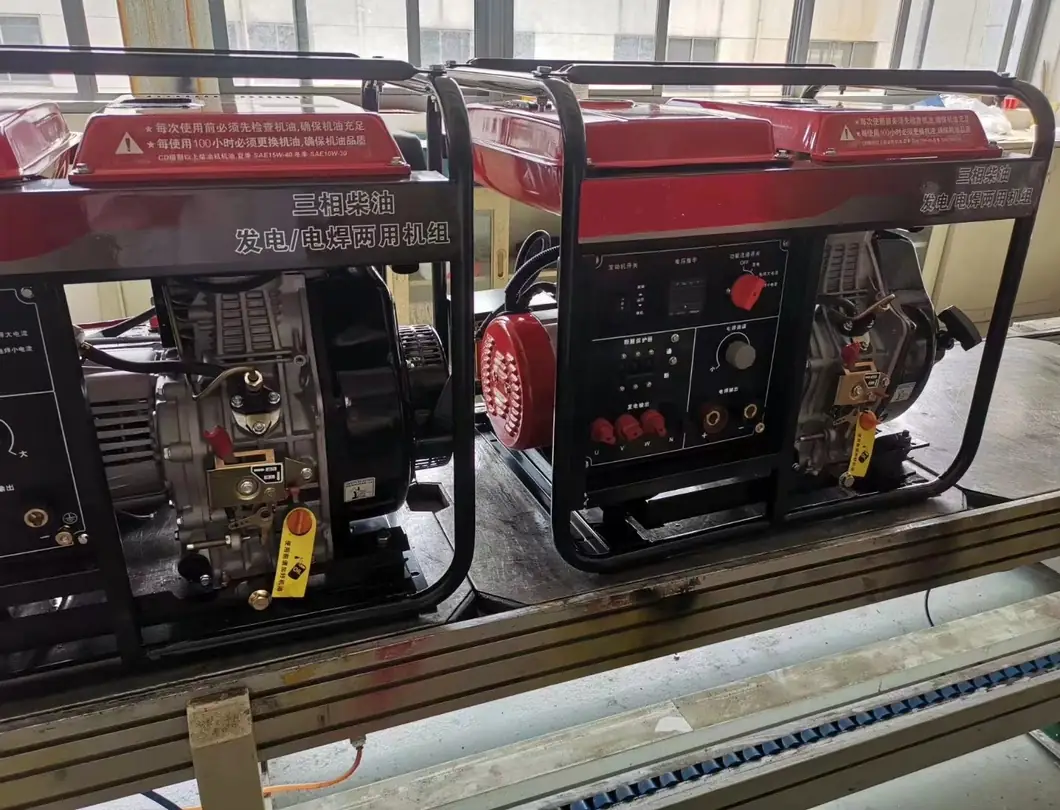

Marine Diesel Generator Set 5kw 10kw Portable Single Phase Silent Electric Gasoline Generator Set assembly detail

Portable Generator Sets

What this product does

Not every boat needs 15kW. The smaller sets in this family cover the 5kW to 10kW band where the load is lighting, navigation electronics, a galley and a few power tools. The 10kW gasoline version runs a four-stroke OHV air-cooled twin cylinder at 230V single phase 50Hz, 10.0kW rated and 10.5kW maximum, with a 25.0L tank, 1.5L oil capacity and 76dB noise at 7m. Package size is 950 x 640 x 910mm at 194KG.

Selection notes

10.0kW rated / 10.5kW maximum at 230V single phase, unleaded gasoline above #90
76dB at 7m, quieter than the diesel sets where crew accommodation is close by
Electric starting with hand start backup, wheels fitted, wooden case export packing

Ask about this product Email specification

Specification

Package	Standard Wooden Box, easy for forklift to move
Accessories	All necessary accessories like Control Panel
Certificate	CCS, BV, LR, DNV...etc
Category	Portable Generator Sets
Warranty	One year, with installation instructions and spare parts support afterwards
Lead time	Confirmed per order with the quotation

Published technical data

Reproduced from the manufacturer's own product data for this item. Figures are confirmed against your order before production.

Portable generator set for small boat/house/home using, 220V/110V, 50HZ/60HZ, with wheel, hand/key started While Every Marine Diesel Generator Set will be testing before leaving factory to ensure the performance. What's more, Every equipment is providing necessary spare parts. While Every equipment is packing by solid wooden case to avoid damage during sea/air transportation. 15KW Marine Diesel Generator Set: While Engine Spec: Type:V-type Double cylinder; 4stroke; direct injection; air cooling Exhaust displacement:1326cm3; Electric Starting; 7m Noise: 84db Max Output Power:16.0KW/3600RPM While Generator Spec: Rated Power:15.0KW; Max Output Power:16.0KW Rated Voltage:230V, Single Phrase;50hz; Fuel Capacity:25.0L; Engine Oil Capacity: 4.0L While Sets Spec: L*W*H: 1100mm*680mm*955mm(With Wheels); Weight:247KG; 10kw Marine Diesel Generator Set: While Rated Voltage: 230V; Single Phrase; 50hz Rated Power: 10.0KW; Max Power: 10.5KW; While Engine type: Four stroke OHV air cooling(Double cylinder) Tank capacity: 25.0L ; Engine Oil capacity: 1.5L; While Noise (at 7 m distance): 76db Starting Method: Electric starting. While Fuel: Unleaded gasoline above # 90 L*W*H: 950mm*640mm*910mm; Weight: 194KG While 15kw Gasoline Single phrase portable generator set: Rated Voltage: 230V; Single Phrase; 50hz While Rated Power: 15.0KW; Max Power: 16.0KW; Engine type: Four stroke OHV air cooling(Double

Ordering and documentation

Name the classification society with your enquiry and the certificate is applied for at the same time as production. Every unit is tested before dispatch and the test report and video can be supplied before shipment. Warranty is one year, with installation instructions and spare parts support afterwards.
