Painted Aluminum Letters Signage 02
Large facade wordmarks on buildings where a single colour runs across the whole sign.
View specification
Fabricated Metal Sign Letters · Aluminium Letters
Aluminium alloy letters that are anodised rather than painted, so the anti-rust layer is grown into the surface. The welding is dressed back before anodising because anodising shows every mark underneath.
Aluminium alloy letters that are anodised rather than painted, so the anti-rust layer is grown into the surface. The welding is dressed back before anodising because anodising shows every mark underneath.
Best for. Brushed metal looks at large sizes where the budget will not stretch to stainless.
Watch out. Anodised colour range is narrower than paint; if you need an exact Pantone, choose powder coating instead.
Brushed metal looks at large sizes where the budget will not stretch to stainless. It sits in our retail and shopping malls work more often than anywhere else.
A three-metre stainless wordmark can be too heavy for the substrate it has to hang on, and too expensive for the budget. Aluminium weighs less, welds cleanly and takes powder coating, which is why it is the factory recommendation for big letters and for marine environments.
Retail signage is bought against a landlord specification, a fit-out date and a fascia that already exists. Those three constraints decide the build more often than the design does. See the outdoor and coastal signage route for how this is specified on a live job.
These points are reproduced from our own production specification for Fabricated Aluminum Letters 03. Nothing has been added to them.
| Construction | Fabricated sheet metal, folded and soldered into a closed letter |
|---|---|
| Material | Aluminium alloy |
| Surface finish | Brushed |
| Illumination | Not illuminated |
| Fixing method | Back screw bolt, 3M double-sided adhesive tape |
| Supplied with the order | 1:1 scale mounting template |
| Colour matching | Any colour from a Pantone or RAL code confirmed before production |
| Environment | Outdoor and indoor use |
| Production time | 5 to 7 days |
| Shipping | DHL or UPS express door to door, approximately 4 to 5 days |
| Payment terms | T/T, Western Union, PayPal |
| Minimum order quantity | None; any order quantity accepted |
TBC means the figure is not stated on our original specification and has not been estimated.
Aluminium alloy Finish: brushed.
Fabricated sheet metal, folded and soldered into a closed letter. Artwork in AI, EPS or CDR fixes the geometry before anything is cut.
Joints are dressed before finishing, and illuminated builds are wired and lit before the back is closed. Formal QC documentation is TBC.
Factory level certification is TBC and is not claimed on this site.
Welded aluminium letters, chosen when the sign is large, the wall is weak, or the air is salty.
The alternative constructions in this catalogue are set out in fabricated or flat cut which construction to use, and the illumination choices in frontlit backlit or edge lit.
Anodised colour range is narrower than paint; if you need an exact Pantone, choose powder coating instead.
Large facade wordmarks on buildings where a single colour runs across the whole sign.
View specification
Bold colour shopfronts and market stalls that want depth without illumination.
View specification
Oversized building letters and coastal installations where weight and salt are both problems.
View specificationThe wording is read from close range on a brushed metal backing plate, where a fabricated letter's return and soldered seam would have dominated the small letterforms.
Material GuideThe grade question has a short answer that depends almost entirely on how close the sign is to salt water.
DownloadsMaterials, finishes, fixings and lead times in one PDF, plus the full catalogue as a CSV.

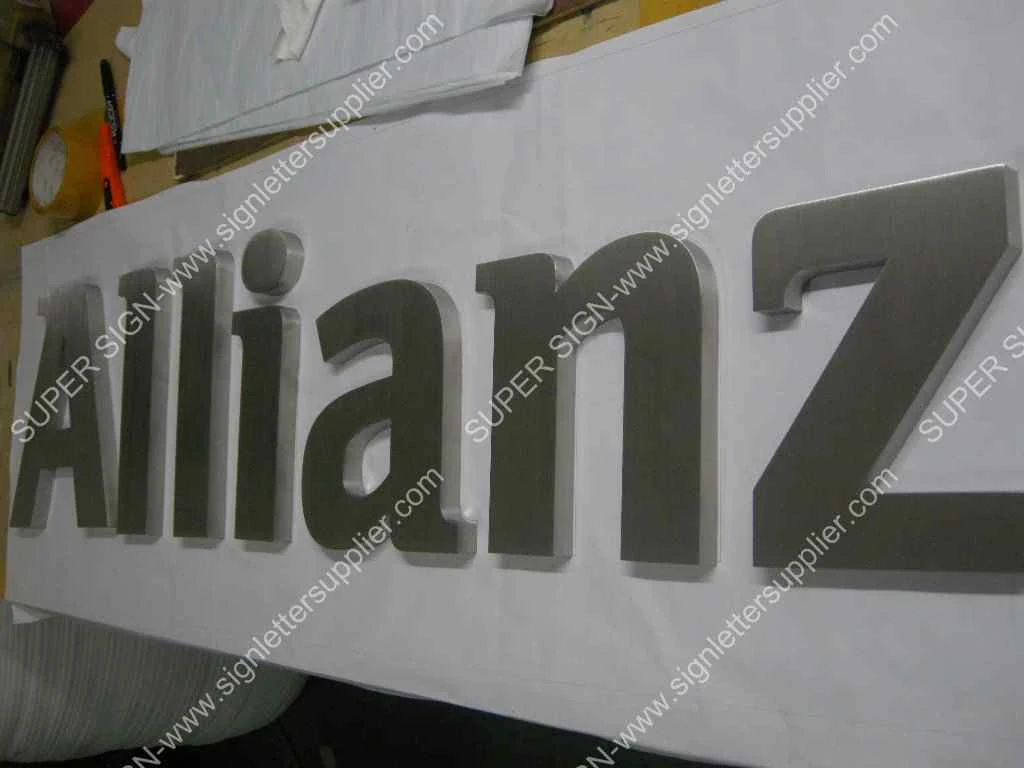

Aluminium alloy. The construction is fabricated sheet metal, folded and soldered into a closed letter. Surface finish: brushed.
Production runs 5 to 7 days. Add roughly 4 to 5 days for DHL or UPS express door to door, and allow time for artwork approval before production starts.
Fixing is by back screw bolt, 3m double-sided adhesive tape. The order includes 1:1 scale mounting template. Set the letters out from the template rather than by eye.
Anodised colour range is narrower than paint; if you need an exact Pantone, choose powder coating instead.
Yes. There is no minimum order quantity on this catalogue and any order quantity is accepted. Shipping cost per letter falls sharply once several travel in the same carton, so order a full word together where you can.
Send the artwork and the finished letter height and the quotation comes back with the production window and the shipping estimate attached.
