SOP, SSOP, TSSOP Tubes
SOP, SSOP, and TSSOP tubes are anti-static plastic shipping tubes designed for through-hole and surface-mount devices with narrow lead pitches and small body widths.
What SOP, SSOP, TSSOP Tubes Actually Is
SOP, SSOP, and TSSOP tubes are anti-static plastic shipping tubes designed for through-hole and surface-mount devices with narrow lead pitches and small body widths. SEWATE manufactures them in PVC, PS, PC, PETG, and ABS, with internal profiles matched to standard body widths from 150 mils (3.9mm) to 525 mils (13.3mm), including 32-lead, 44-lead, 8-lead, and 220-SSOP, 4.4-TSSOP, 350-450-SOP variants. These tubes protect components from ESD, dust, moisture, and mechanical shock during transport and storage, ensuring reliable feeding into tube feeders without jamming or misalignment.
What SOP, SSOP, TSSOP Tubes Buys You
- Internal profile precisely matched to SOP SSOP and TSSOP body widths from 150 mils to 525 mils

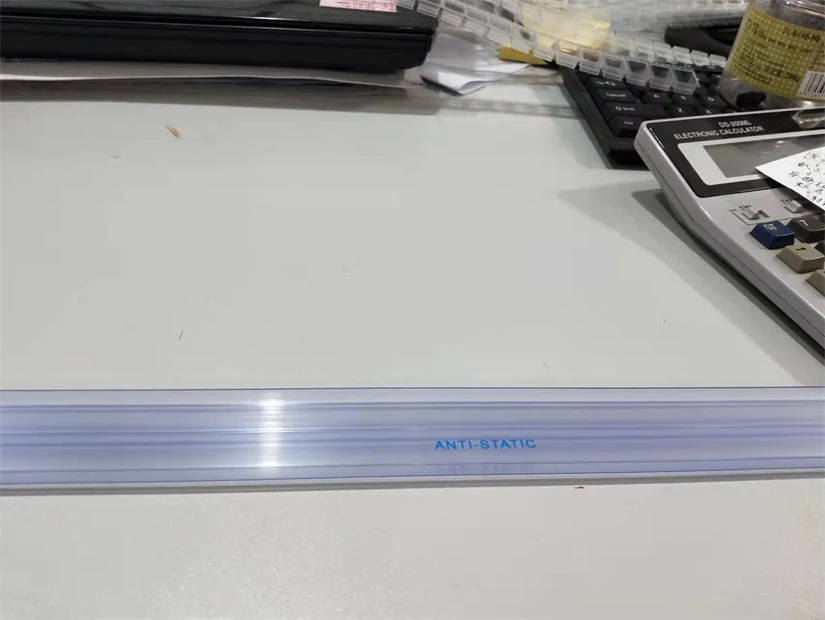

- Anti-static protection via surface treatment or built-in additives to prevent ESD damage
- Critical dimension control within 5 mils on PVC tubes to prevent jamming and misfeed
- Tight tolerance of +/- 2 mils on PC tubes for high-speed, unattended feeder loading
- Wall thickness from 0.30mm to 1.85mm allows trade-off between cost and drop resistance
- Tube length from 50mm to 1000mm cut to match magazine pitch of insertion or placement machines
Where SOP, SSOP, TSSOP Tubes Is Used
Shipping 32-lead and 44-lead SOP devices from a semiconductor manufacturer to an overseas EMS
Protecting MSOP and TSSOP packages during long-haul transport where mechanical shock is a risk
Feeding 8-lead EIAJ/SSOP and 220-SSOP devices into tube feeders without orientation errors
Storing sensitive SOP series ICs in a warehouse between incoming inspection and SMT line
Re-packing bulk SOP components into fixed-count tubes for traceability and kitting
Using PC tubes with +/- 2 mil tolerance to eliminate scrap and rework in high-speed automated assembly
Who Buys SOP, SSOP, TSSOP Tubes
- Semiconductor and passive component makers packaging SOP SSOP and TSSOP devices
- IC distributors re-packaging bulk devices for their customers with specific profile needs
- EMS and SMT plants receiving SOP-series components and needing spares for re-work
- Connector and relay manufacturers shipping small, high-precision packages not suited for tape and reel
- Purchasing teams replacing a supplier whose tube profile no longer matches the device body
Problems SOP, SSOP, TSSOP Tubes Removes
- Devices jam or misfeed due to inconsistent internal profile or dimensional drift across a production run
- ESD damage occurs during handling or transport when anti-static protection is surface-only
- Random orientation of SOP devices in bulk packaging increases manual loading time and error rate
- Tubes crack on drop or impact, spilling components inside the carton and causing contamination
- Standard stock tubes do not match the exact body width of 32-lead, 44-lead, or 220-SSOP devices
- Tolerance variation causes piggybacking shingling or rotation of devices in the feeder
How SOP, SSOP, TSSOP Tubes Is Built

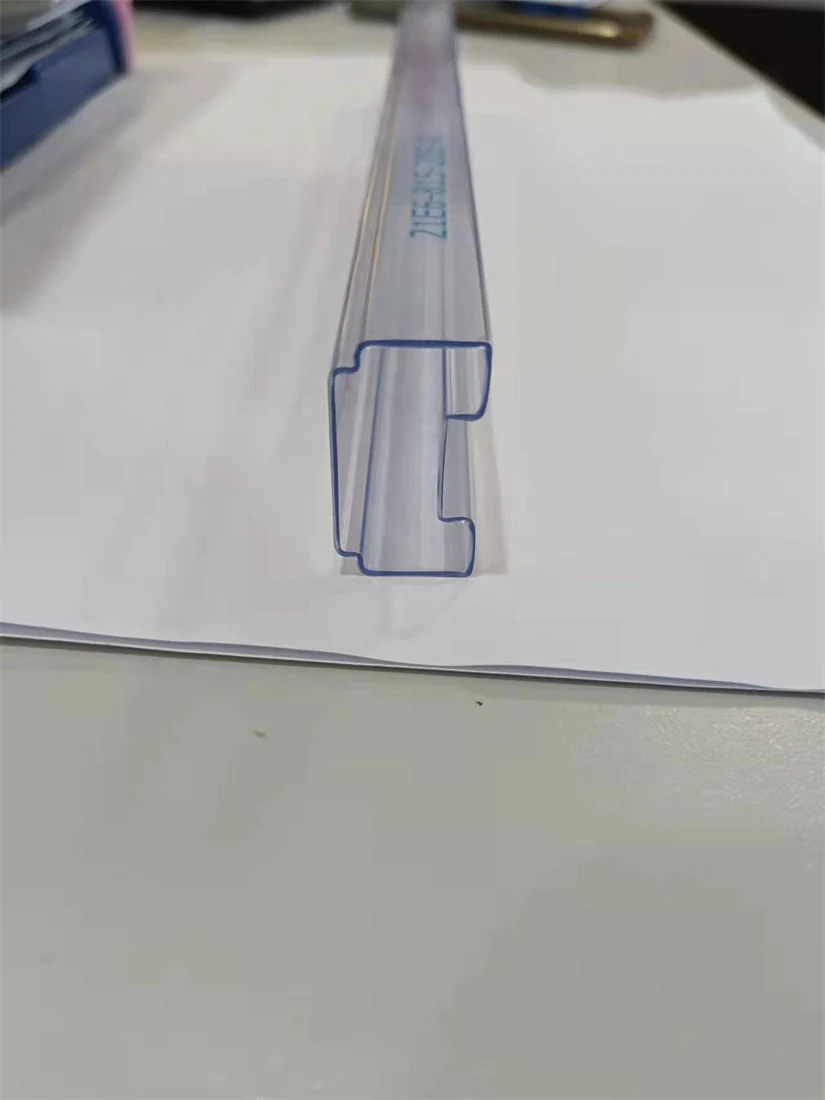

- Internal profile designed to match SOP SSOP TSSOP body widths from 150 mils to 525 mils
- Anti-static achieved by surface layer process or additives built into the resin
- Symbols and part numbers can be printed on the tube surface for traceability
- Rubber end plugs plastic pins nails plastic caps and EPE plugs available as closures
- Smooth internal surface and stable dimensions prevent binding and ensure consistent sliding
- Good impact strength and drop resistance for intact tubes after carton handling
SOP, SSOP, TSSOP Tubes Specification
Values are taken from the SEWATE product data for this item.
| Model Number | SE-IC-SOP |
|---|---|
| Length | 50mm-1000mm or as customized |
| Wall Thickness | 0.30mm-1.85mm |
| Profile | SOP SSOP TSSOP 150 mils to 525 mils |
| Material | PVC / PS / PC / PETG / ABS |
| Colour | Transparent, blue, black, red, yellow, purple |
| Dimension Control | Within 5 mils on PVC, +/- 2 mils on PC |
| Certification | RoHS |
| MOQ | 10000 pieces |
| Sample Time | 3-5 days or according to customers’ requirements |
| Lead Time | 5-15 days or depend on final quantity |
| Capacity | 50000 pcs per week |
| Supply Ability | Monthly output of finished products 150 tons |
| Payment Terms | T/T, L/C |
| Place of Origin | Shenzhen, China |
Material Choice for SOP, SSOP, TSSOP Tubes
- PVC provides high strength good flexibility stable geometry and long storage life, commonly used for standard SOP tubes
- PS is halogen free low cost and easy to process but more brittle than PVC and ABS with lower impact strength
- PC is used when tight tolerance +/- 2 mils and high impact strength are required for MSOP and TSSOP packages
- PETG is selected when high clarity and stable geometry are needed over cost
- ABS is chosen when impact resistance is more critical than transparency
How SOP, SSOP, TSSOP Tubes Is Made
- Review of the application and key design requirements in the quotation
- Drawing created from the purchase order and issued for your approval before tooling
- Mould making and tooling trial on the approved profile
- Sample production with 20-50 free tubes for fit testing on your device
- Extrusion of the approved profile followed by cutting to the ordered length
- Anti-static treatment applied by surface layer process or built-in additive as specified
- Plug fitting counting and packing into cartons
Quality Control on SOP, SSOP, TSSOP Tubes
- Critical dimension control within 5 mils on PVC tubes to prevent jamming
- Fit testing of sample tubes against your device or drawing before mass production
- Anti-static value checked to ensure stability after handling and storage
- Drop and pressure tests performed on the tube body before packing
- Quality management system to ISO14001 with after-sales support on shipped lots
Customising SOP, SSOP, TSSOP Tubes
- Internal profile designed from your device drawing tube drawing or physical sample
- Tube length cut to match your magazine or carton pitch from 50mm to 1000mm
- Material selected from PVC PS PC PETG or ABS based on cost impact and clarity needs
- Colour chosen from transparent blue black red yellow or customized for line identification
- Anti-static method specified as surface treated or additive loaded for long-term stability
- Surface printing of symbols part numbers or handling marks as required
- Closure selected from rubber end plugs plastic pins nails plastic caps or EPE plugs
SOP, SSOP, TSSOP Tubes Against the Alternatives
| Tape and reel | Tubes handle larger and heavier SOP SSOP packages that tape pockets cannot support, but tape is better for high-volume SMD placement |
|---|---|
| Vacuum formed trays | Trays offer better protection for fragile fine-pitch packages, tubes are lower cost and load directly into tube feeders |
| Bulk bag packing | Tubes cost more per unit than bulk bags but eliminate random orientation ESD exposure and reduce manual loading time |
| Standard stock tubes | Custom profiles require one-time tooling and 4-6 weeks lead time, stock profiles ship in 5-15 days but only fit devices they were originally designed for |
Using SOP, SSOP, TSSOP Tubes
- Send a device drawing a tube drawing or a physical component so the internal profile can be matched
- If no drawing exists send the physical device so the profile is measured from it
- Confirm tube length against the magazine pitch on your insertion or placement machine before tooling
- Specify whether anti-static must survive repeated wiping and long storage to select the right treatment
- Choose the closure type: rubber plugs for repeated opening, pins for one-way shipping
- Store tubes flat and dry in the carton and avoid direct sunlight to prevent deformation
- Plan for one-time tooling cost and 4-6 weeks lead time when introducing a new custom profile
Related Products
Other items in the IC Tubes line that buyers compare with sop, ssop, tssop tubes.
PLCC, LCC Tubes
PLCC and LCC tubes are extruded plastic channels designed to hold leaded and leadless chip carrier devices in a fixed orientation from component vendor to pick and place machine.
View Details
Color Anti-static Tubes
Color anti-static tubes are extruded plastic channels designed to hold electronic components in a fixed orientation from the component vendor to the pick and place machine.
View Details
Plastic Packaging Tubes
Plastic Packaging Tubes are extruded protective channels for electronic components, designed to prevent electrostatic discharge, mechanical shock, and environmental damage during transport and storage.
View DetailsRelated Guides
Background reading before you specify sop, ssop, tssop tubes.
How Anti Static IC Tubes Are Made From PVC
The process starts with PVC resin fed into an extruder.
Read Guide
Custom Anti Static IC Tube Guidelines
To begin customization, supply four items: the tube material, part size, desired tube length, and plug type.
Read Guide
Materials For Anti Static IC Tubes
IC shipping tubes are made from several plastics including PVC, PS, PET, PC, and ABS.
Read GuideWhere It Is Used
Where sop, ssop, tssop tubes is used in production.
Connectors Relays And Switches
Connectors, relays, terminal blocks, switches and power modules are too large or heavy for standard tape and reel packaging.
See Application
Semiconductor And IC Distribution
IC distributors and semiconductor plants handle devices that are sensitive to electrostatic discharge, mechanical shock, and orientation changes during transit.
See ApplicationQuestions About SOP, SSOP, TSSOP Tubes
What is the minimum order quantity for SOP, SSOP, TSSOP tubes?
10000 pieces on standard profiles. The high MOQ is due to extrusion setup costs; a run must be long enough to justify the changeover, so short runs are more expensive per tube.
How long does a stock tube order take?
5-15 days depending on quantity. Samples for fit testing are delivered in 3-5 days.
What is the lead time for a custom SOP tube profile?
A basic low volume project can be 25-day ARO, typical lead time is 4-6 weeks, and complex or high-volume tools take 10-12 weeks.
What do you need to quote a custom SOP tube?
One of: a device drawing a tube drawing or a physical sample. If none exists, send the physical component and the profile will be measured from it.
Which material should I choose for my SOP tube?
PVC is the standard choice for strength and stability. PS is halogen free and cheaper but more brittle. PC is used for tight tolerance and high impact. PETG for clarity. ABS for impact resistance.
Is the anti-static property permanent?
It depends on the method. Surface treatment can degrade with wiping and long storage. Additives built into the resin maintain anti-static performance longer. Specify your storage duration to select the right method.
Do the tubes come with plugs?
Yes. Rubber end plugs plastic pins nails plastic caps and EPE plugs are available and selected based on the tube profile and how often it is opened.
Send the Device and Get SOP, SSOP, TSSOP Tubes Quoted
A drawing, a sample or the physical component is enough. Sales and engineering come back within 24 hours.
