ESD Packaging For Power Modules And Passive Components
Power modules, resistors, capacitors, inductors, magnetic components, fuses, filters, transformers, speakers, sockets, FPC, RJ and USB parts require packaging that protects against electrostatic discharge, mechanical shock, and environmental exposure during transit and storage.
- Home
- Industries
- Power Modules And Passive Components
Power modules, resistors, capacitors, inductors, magnetic components, fuses, filters, transformers, speakers, sockets, FPC, RJ and USB parts require packaging that protects against electrostatic discharge, mechanical shock, and environmental exposure during transit and storage. SEWATE supplies anti-static tubes and carrier tape and reel for these components, with tube wall thicknesses from 0.30mm to 1.85mm designed to withstand drop and crush forces while maintaining low packaging cost per unit. The packaging is made from PVC, PS, PC, PETG, or ABS, with anti-static treatment applied via surface layer or internal additives for consistent performance.
What Goes Wrong in Power Modules And Passive Components
Heavy power modules drop or crush during transit due to weak or thin-walled packaging
Passive components like resistors and capacitors shift in bulk packaging, causing orientation issues at pick and place
Anti-static value degrades after handling or storage, leading to ESD damage at the assembly line
Standard tube profiles do not match the unique body dimensions of custom or non-standard power modules
Carrier tape and reel systems fail to hold small passive components securely during high-speed feeding
What Power Modules And Passive Components Buyers Need From Packaging
- Tubes with wall thicknesses from 0.30mm to 1.85mm that resist crushing and impact without deforming
- Consistent anti-static performance maintained over time and after surface contact
- Custom tube profiles matched to the exact body dimensions of power modules and passive components
- Carrier tape and reel systems that hold small components securely during automated feeding
- Repeatable packaging quality across multiple orders using the same tooling
Products Specified for Power Modules And Passive Components
The items most often supplied into power modules and passive components.
Anti Static Shipping Tubes

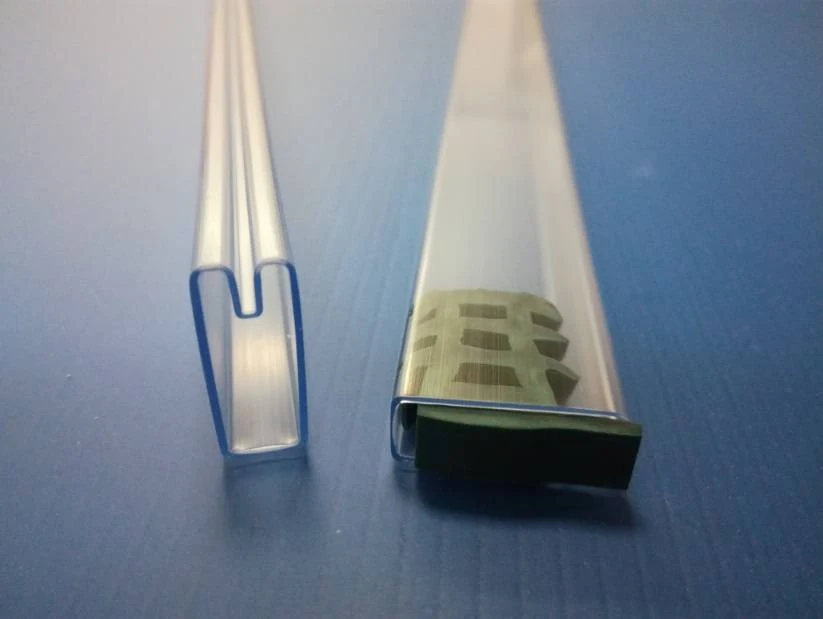

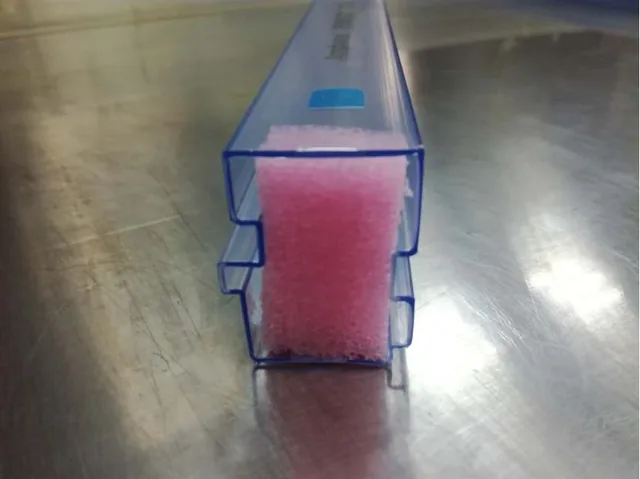

Anti Static Shipping Tubes are extruded plastic channels designed to protect electronic components from electrostatic discharge, mechanical shock, and environmental damage during transport and storage.
View Details
Anti-Static IC Tubes
Anti-Static IC Tubes are extruded plastic channels designed to protect electronic components from electrostatic discharge, mechanical shock, and environmental damage during transport and storage.
View Details
Anti Static IC Shipping Tubes
Anti Static IC Shipping Tubes are extruded plastic channels designed to protect electronic components from electrostatic discharge, mechanical shock, and environmental damage during transport and storage.
View Details
Anti Static Tubes
Anti Static Tubes are extruded plastic channels designed to protect electronic components from electrostatic discharge, mechanical shock, and environmental damage during shipping and processing.
View Details
Color Anti-static Tubes
Color anti-static tubes are extruded plastic channels designed to hold electronic components in a fixed orientation from the component vendor to the pick and place machine.
View Details
IC Packing Tubes
IC Packing Tubes are extruded plastic channels designed to hold electronic components in a fixed orientation from the component vendor to the pick and place machine.
View DetailsTypical Jobs in Power Modules And Passive Components
- Packaging heavy power modules in custom tubes with 0.30mm to 1.85mm wall thickness for drop and crush resistance
- Converting bulk resistors and capacitors into fixed-count carrier tape and reel for SMT line feeding
- Shipping magnetic components and filters in anti-static tubes with stable surface layer anti-static treatment
- Using PVC or ABS tubes for high-toughness protection of transformers and sockets during long-distance transport
- Supplying matching spare tubes for rework of partially used or returned lots of passive components
How a Power Modules And Passive Components Project Runs
- Provide device drawing, tube drawing, or a physical sample to match the profile
- Select material based on required impact strength, clarity, and anti-static stability: PVC, PS, PC, PETG, or ABS
- Issue drawing for approval before tooling is cut, ensuring dimensional accuracy
- Mould making and tooling trial, followed by 20-50 free sample tubes for fit and function testing
- Extrusion, cutting, anti-static treatment, plug fitting, and carton packing according to specification
- Repeat orders run against approved tooling with 5-15 day lead time, MOQ 10000 pieces
What Delivery Looks Like
- MOQ 10000 pieces on standard profiles
- Samples delivered in 3-5 days, stock profiles in 5-15 days depending on quantity
- Custom tooling lead time: 25-day ARO for basic low volume, typically 4-6 weeks, 10-12 weeks for complex or high volume
- Weekly capacity 50000 pcs, monthly output of finished products 150 tons
- Packing in cartons or to customer requirement, T/T and L/C accepted
- Shipped from Shenzhen, China
Related Guides
Guides relevant to power modules and passive components.
Materials For Anti Static IC Tubes
IC shipping tubes are made from several plastics including PVC, PS, PET, PC, and ABS.
Read Guide
Vacuum Formed Trays For Component Packaging
Vacuum formed trays are made by heating a plastic sheet, stretching it over a mold, and pulling it down with vacuum pressure.
Read Guide
How To Choose IC Tube Stoppers
An anti-static IC tube is a precision profile designed to hold components during transport and feeding.
Read GuidePower Modules And Passive Components Questions
Can you make tubes for a new power module with a non-standard profile?
Yes. If no existing tool matches the profile, a new tool is made from your drawing or physical sample.
What wall thickness options are available for heavy power modules?
Tube wall thicknesses range from 0.30mm to 1.85mm, selected based on drop and crush resistance requirements.
How is the anti-static value maintained over time?
Anti-static treatment is applied via surface layer process or built-in additives, ensuring stable performance during storage and handling.
Do you support both tube and tape and reel for passive components?
Yes. Tubes are used for heavier components like power modules and transformers; carrier tape and reel is used for smaller passive components like resistors and capacitors.
What materials are used for the packaging?
PVC, PS, PC, PETG, and ABS are used, selected based on impact strength, clarity, and anti-static performance.
Packaging Specified Around Your Power Modules And Passive Components Parts
Send the device list with quantities and the receiving line type. A format and a lead time come back within 24 hours.
