SEWATE supplies anti-static carrier tape and reel, cover tape, and anti-static tubes for LEDs and optoelectronic devices, including modules, diodes, filters, relays, switches, fuses, transformers, magnetic components, and inductors. Carrier tape and reel are used for automated pick and place handling, with profiles matched to the physical dimensions of the device. PET carrier tape is produced in-house for its balance of clarity, strength, and dimensional stability. Anti-static tubes are used when the LED module body fits a tube profile.
What Goes Wrong in LED And Optoelectronics
LEDs arrive in random orientation and require manual sorting before placement
A carrier tape profile that does not match the device body causes jams or misfeeds on high-speed SMT lines
Electrostatic discharge during transit damages sensitive optoelectronic components before assembly
Re-packing partial reels or tubes results in loss of traceability and inconsistent packaging
A new LED package type has no existing carrier tape or tube profile in stock
What LED And Optoelectronics Buyers Need From Packaging
- Carrier tape and reel with a profile that matches the LED or optoelectronic device body exactly
- Anti-static properties that remain stable during storage and handling
- Tape material and thickness selected to match the device's mechanical and thermal requirements
- Repeatable supply against the same tooling to ensure lot-to-lot interchangeability
- Support for both small and large order quantities with consistent packaging quality
Products Specified for LED And Optoelectronics
The items most often supplied into led and optoelectronics.

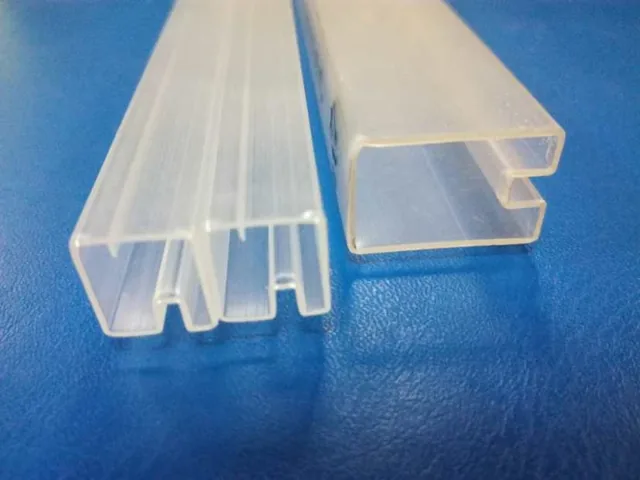

Anti Static Shipping Tubes
Anti Static Shipping Tubes are extruded plastic channels designed to protect electronic components from electrostatic discharge, mechanical shock, and environmental damage during transport and storage.
View Details
Color Anti-static Tubes
Color anti-static tubes are extruded plastic channels designed to hold electronic components in a fixed orientation from the component vendor to the pick and place machine.
View Details

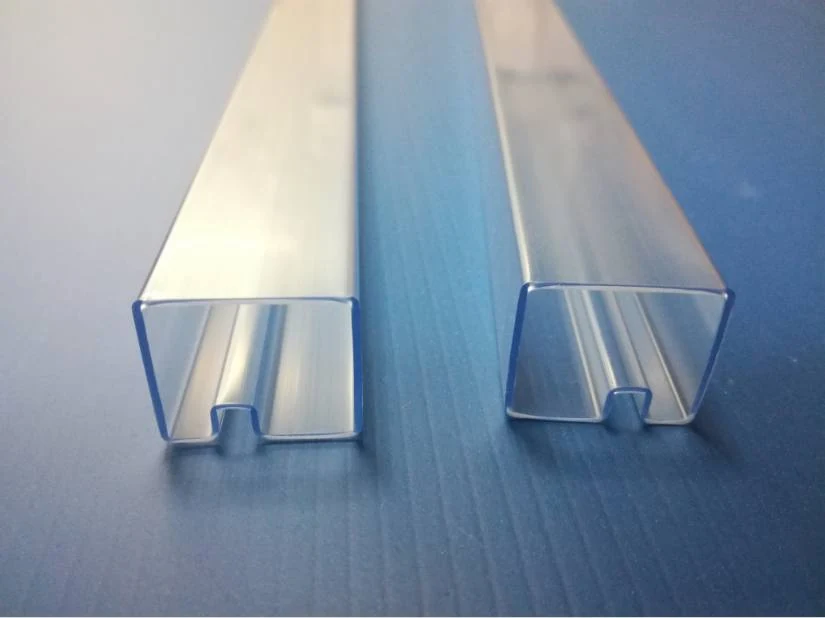

Plastic Anti Static IC Tubes
Plastic Anti Static IC Tubes are extruded channels made from PVC, PS, PETG, PC, or ABS to hold electronic components in a fixed orientation during shipping and processing.
View Details
SOP, SSOP, TSSOP Tubes
SOP, SSOP, and TSSOP tubes are anti-static plastic shipping tubes designed for through-hole and surface-mount devices with narrow lead pitches and small body widths.
View Details

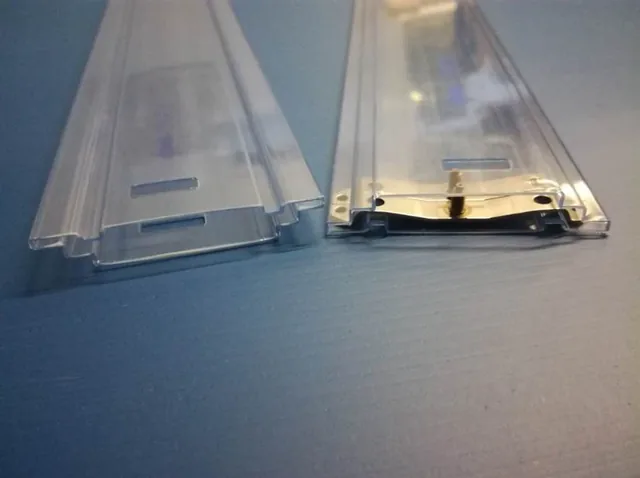

Anti Static IC Shipping Tubes
Anti Static IC Shipping Tubes are extruded plastic channels designed to protect electronic components from electrostatic discharge, mechanical shock, and environmental damage during transport and storage.
View Details

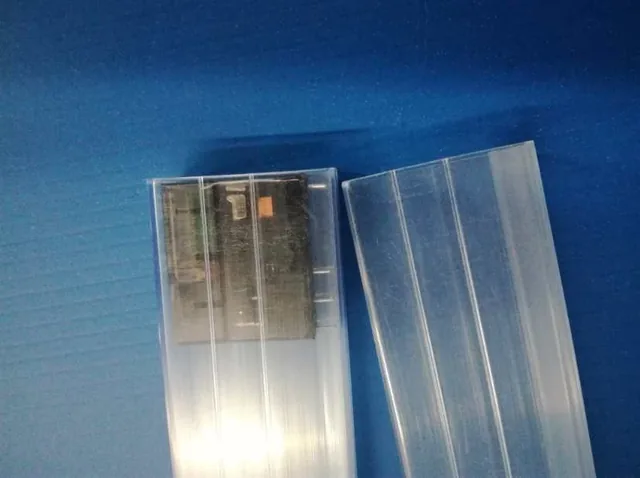

Anti Static Tubes
Anti Static Tubes are extruded plastic channels designed to protect electronic components from electrostatic discharge, mechanical shock, and environmental damage during shipping and processing.
View DetailsTypical Jobs in LED And Optoelectronics
- Converting bulk LEDs into fixed-count carrier tape and reel for automated SMT assembly
- Shipping tested LED modules from a production line to an end customer with traceable packaging
- Storing buffer stock of high-value optoelectronic components in anti-static tubes or tape reels
- Supplying matching spare tapes for re-work of returned or partially used reels
- Matching a newly released LED package with a custom carrier tape profile for initial production
How a LED And Optoelectronics Project Runs
- Provide the device drawing, sample, or tube drawing to match the profile
- Select material based on application: PET for clarity and strength, PVC for cost, PC for high impact, PS for rigidity, ABS for durability
- Issue drawing for approval before tooling is cut
- Mould making and tooling trial followed by 20-50 free sample tubes or tapes for fit and function testing
- Extrusion, embossing, anti-static treatment, cover tape lamination, reel fitting, and carton packing
- Repeat orders run against approved tooling with 5-15 day lead time
What Delivery Looks Like
- MOQ 10000 pieces on standard profiles
- Samples delivered in 3-5 days, stock profiles in 5-15 days depending on quantity
- Custom tooling lead time: 25-day ARO for basic low volume, typically 4-6 weeks, 10-12 weeks for complex or high volume tools
- Weekly capacity 50000 pcs, monthly output of finished products 150 tons
- Packaging in cartons or to customer requirement, payment via T/T or L/C
- Shipped from Shenzhen, Guangdong, China
Related Guides
Guides relevant to led and optoelectronics.
Materials For Anti Static IC Tubes
IC shipping tubes are made from several plastics including PVC, PS, PET, PC, and ABS.
Read Guide

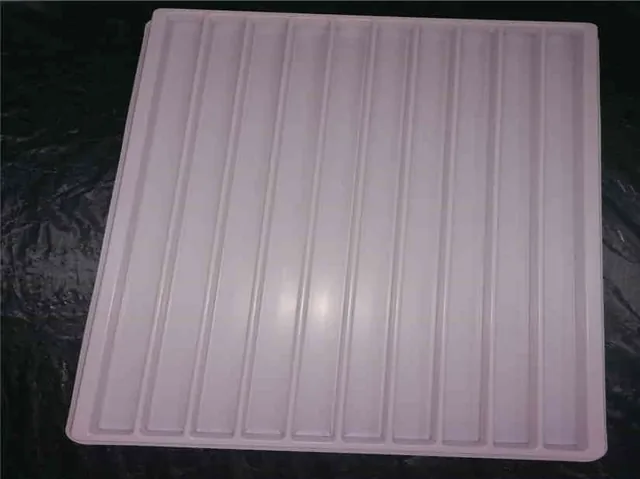

Vacuum Formed Trays For Component Packaging
Vacuum formed trays are made by heating a plastic sheet, stretching it over a mold, and pulling it down with vacuum pressure.
Read Guide
Packaging Forms For Electronic Components
Surface mount components are packaged in four primary forms: tape, tube, tray, and bulk.
Read GuideLED And Optoelectronics Questions
Can you match a new LED package that has just been released?
Yes. If no existing profile matches, a new tool is made from your device drawing or physical sample.
What material is best for carrier tape used with LEDs?
PET carrier tape is recommended for its clarity, dimensional stability, and strength in automated handling.
Do you produce both carrier tape and anti-static tubes?
Yes. Carrier tape and reel are used for SMT placement of small LEDs. Anti-static tubes are used when the LED module body fits a tube profile.
What certifications do your products have?
All products are RoHS compliant and meet the Sony environmental protection requirement under an ISO14001 quality management system.
Is there a minimum order for small quantities?
Standard MOQ is 10000 pieces due to extrusion setup costs, but small orders are handled with custom tooling.
Packaging Specified Around Your LED And Optoelectronics Parts
Send the device list with quantities and the receiving line type. A format and a lead time come back within 24 hours.
