Punched Pocket Paper Carrier Tape
Punched Pocket Paper Carrier Tape is a precision paper-based carrier tape with pre-formed pockets designed to hold surface-mount devices during SMT assembly.
- Home
- Products
- Tape and Reel
- Punched Pocket Paper Carrier Tape
Where Punched Pocket Paper Carrier Tape Fits
Punched Pocket Paper Carrier Tape is a precision paper-based carrier tape with pre-formed pockets designed to hold surface-mount devices during SMT assembly. It uses advanced high-speed punching equipment and improved dies to eliminate burrs, dander, and plug hole defects common in standard paper tapes. Available in standard sizes for 0402, 0603, 0805, and 1206 components, it supports custom shapes and dimensions upon request. The tape is compatible with standard reel and feeder systems, ensuring reliable feeding without part shifting or damage during automated placement.
The Case for Punched Pocket Paper Carrier Tape
- Eliminates burrs and dander through high-speed precision punching for clean, consistent pocket formation
- Custom pocket shapes and sizes available to match non-standard or unique component profiles
- Stable pocket geometry maintains component position during high-speed feeding and reel transport
- Paper base provides low static generation and good adhesion to cover tape
- Standard and custom dimensions available with tight tolerance control for reliable feeder performance
- Short lead time of 5-15 days for standard orders allows quick turnaround for production needs
Typical Uses for Punched Pocket Paper Carrier Tape
Feeding 0402 to 1206 SMD components through automated pick and place machines in high-volume SMT lines
Protecting sensitive surface-mount devices during transport from component supplier to EMS assembly plant
Re-packaging bulk SMD components into controlled count reels for kitting and traceability
Handling components with non-standard lead spacing or body size that do not fit standard tape pockets
Supporting high-speed SMT lines where consistent pocket depth and alignment prevent feeder jams
The Buyer of Punched Pocket Paper Carrier Tape
- SMT assembly plants requiring reliable carrier tape for automated placement
- Component distributors re-packaging bulk SMD parts for overseas customers
- Semiconductor and passive component manufacturers shipping finished goods in tape and reel
- EMS companies managing multiple product lines with varying component sizes and profiles
- Purchasing teams replacing a supplier whose tape has inconsistent pocket quality or burrs
Punched Pocket Paper Carrier Tape Against the Failure Modes
- Burrs and dander from poor punching damage component leads and cause feeder jams
- Inconsistent pocket size leads to misalignment and rejected parts during pick and place
- Standard tape pockets do not fit components with non-standard lead spans or body dimensions
- Poor pocket depth causes components to shift or fall out during reel transport
- Low-quality paper tapes degrade under humidity or handling, leading to tape failure
- Lack of custom pocket shapes forces re-design of component packaging or tooling
Inside the Punched Pocket Paper Carrier Tape Specification
- High-speed precision punching equipment ensures clean, burr-free pocket formation

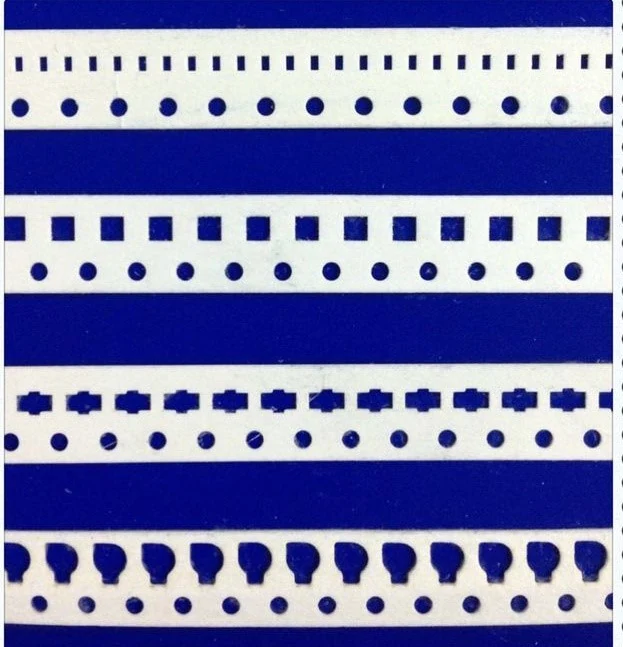

- Pockets formed with round or custom center cavities to match component body and lead pitch
- Compatible with standard cover tape and reel systems for automated feeding
- Paper base provides low static charge and good adhesion to cover tape
- Tight tolerance control on pocket dimensions to prevent feeding issues
- Available in standard and custom sizes for 0402, 0603, 0805, 1206, and other SMD packages
Punched Pocket Paper Carrier Tape Data Sheet
Values are taken from the SEWATE product data for this item.
| Model Number | SE-CT-007 |
|---|---|
| Dimensions | 0402, 0603, 0805, 1206, etc. |
| Application | SMD SMT encapsulation |
| Experience | More than 10 years experience |
| Certification | RoHS, ISO14001 |
| Payment Terms | T/T, L/C, etc. |
| Capacity | 5000 Meter/Meters per Day |
| MOQ | 5000M |
| Sample Time | 3-5 days or according to customers’ requirements |
| Lead Time | 5-15 days or depend on final quantity |
| Packaging Details | Cartons Or As customers’ requirement |
| Country of Origin | China |
Choosing Material for Punched Pocket Paper Carrier Tape
- Paper base material used for carrier tape with low static generation and good adhesion to cover tape
- No synthetic resin coating; paper is treated for moisture resistance and structural stability
- No PVC or plastic additives; material is fully compatible with RoHS and Sony environmental standards
From Resin to Packed Punched Pocket Paper Carrier Tape
- Review of component dimensions and application requirements to determine pocket size and shape
- Design of custom punching die based on customer drawing or physical sample
- Tooling fabrication and trial run to verify pocket accuracy and consistency
- Sample tape production for fit testing with actual components before mass production
- Mass production using high-speed punching equipment with real-time monitoring
- Cutting to required length, spooling onto reels, and packing in cartons as per customer specification
Inspection of Punched Pocket Paper Carrier Tape
- Tolerance control within ±0.03mm on pocket dimensions for 0402 and ±0.05mm for larger sizes
- Visual inspection of every reel for burrs, dander, or pocket deformation
- Fit testing of sample tape with actual components to confirm no shifting or misalignment
- Adhesion test between carrier tape and cover tape to ensure no delamination during feeding
- Environmental stability check under humidity and temperature to prevent paper swelling
Punched Pocket Paper Carrier Tape Options
- Custom pocket shapes and sizes developed for non-standard or unique component profiles
- Punching dies designed to match specific lead span, body size, and cavity shape
- Pocket depth and center cavity type (round, oval, or custom) selected to match component geometry
- Tape width and pitch adjusted to match reel and feeder system requirements
- Color and surface printing available for part number, batch code, or handling instructions
- Special packaging or labeling available upon request
When Not to Use Punched Pocket Paper Carrier Tape
| Standard Pre-Punched Paper Tape | Punched Pocket Paper Tape uses advanced dies and high-speed equipment to eliminate burrs and dander, improving feeder reliability and reducing reject rates |
|---|---|
| Plastic Carrier Tape | Paper tape is lower cost and more environmentally friendly, but less durable under high humidity or long storage; plastic is better for harsh environments |
| Tape and Reel with Plastic Pockets | Paper tape is cheaper and easier to recycle, but plastic offers better moisture resistance and mechanical strength |
| Bulk Packaging | Tape and reel eliminates random orientation and manual loading, reducing handling time and ESD risk, but requires tooling for custom profiles |
Handling and Storing Punched Pocket Paper Carrier Tape
- Provide a component drawing or physical sample to define pocket size and shape
- Specify the required tape width, pitch, and reel size to match your feeder system
- Confirm if special printing or labeling is needed for traceability or line identification
- Request sample tape for fit testing before placing a full order
- Store tapes in dry, flat conditions to prevent warping or moisture damage
- Use within 6 months of production to avoid paper degradation under humidity
