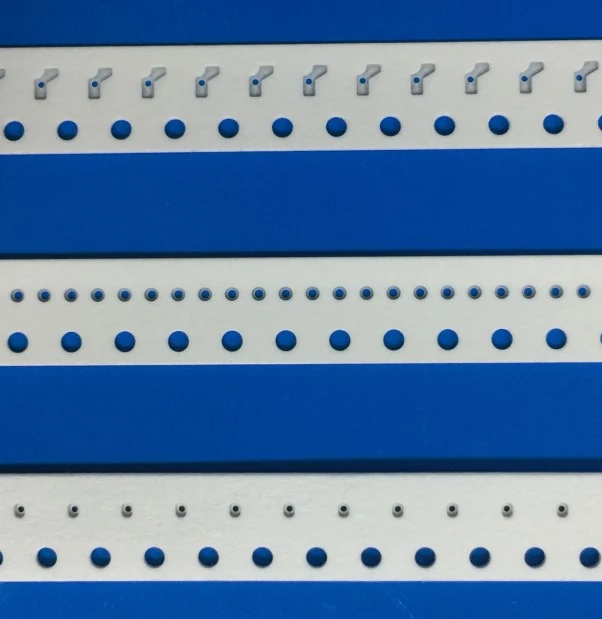

Pre-punched Paper Carrier Tape with Round Center Cavity
Pre-punched paper carrier tape with a round center cavity is designed for SMD and SMT assembly applications where precise part positioning and reliable feeding are critical.
- Home
- Products
- Tape and Reel
- Pre-punched Paper Carrier Tape with Round Center Cavity
What Pre-punched Paper Carrier Tape with Round Center Cavity Actually Is
Pre-punched paper carrier tape with a round center cavity is designed for SMD and SMT assembly applications where precise part positioning and reliable feeding are critical. The tape has pre-formed pockets with a central hole at the bottom, eliminating the need for adhesive bottom cover tape. This reduces material use and production cost. The absence of burrs and the internal middle hole prevent electrostatic adhesion and 'throwing' of light, thin components during feeding. The tape is available in custom round, ellipse, square, rectangular, and shaped pockets, with dimensions tailored to specific device profiles. It is made from paper with a thickness of 0.42mm and is suitable for use with standard reel systems.
What Pre-punched Paper Carrier Tape with Round Center Cavity Buys You
- No bottom cover tape required, reducing material and processing cost
- Central hole at the bottom prevents electrostatic adhesion and component 'throwing' during feeding
- No burrs on the middle hole or pocket edges, eliminating dander and mechanical damage
- Custom pocket shapes and sizes available for non-standard components
- Pocket depth (K0) adjustable based on paper tape thickness for secure part retention
- Standard pitch of 2.0mm to 4.0mm matches common SMT feeder magazine spacing
- Ready to load directly into reel machines without additional processing
Where Pre-punched Paper Carrier Tape with Round Center Cavity Is Used
Feeding ultra-thin and lightweight SMD components like 0201 and 0402 capacitors and resistors in high-speed SMT lines
Protecting fragile surface-mount devices during storage and transport without adhesive cover tape
Re-packing components from bulk into fixed-pitch reels for traceability and kitting
Solving feeder jams caused by electrostatic attraction between cover tape and components
Handling components with tight tolerances where burrs or dander from standard punched tape cause rejection
Using custom-shaped pockets for non-standard component geometries in prototype or low-volume production
Who Buys Pre-punched Paper Carrier Tape with Round Center Cavity
- SMT assembly plants using high-speed pick and place machines with sensitive feeders
- Component manufacturers repackaging bulk SMD parts into reels for distribution
- EMS companies receiving components in bulk and needing to repackage for production
- Purchasing teams replacing a tape supplier whose product causes feeding issues
- Contract manufacturers handling thin or light components prone to 'throwing' during placement
Problems Pre-punched Paper Carrier Tape with Round Center Cavity Removes
- Components stuck to the cover tape due to electrostatic adhesion, causing feeding failure
- Burr or dander from punched edges damaging delicate SMD parts during handling
- Lightweight parts ejected from pockets during feeding due to lack of bottom support
- High material cost and waste from using adhesive bottom cover tape
- Feeder jams caused by inconsistent pocket depth or poor part retention
- Inability to use standard tape for non-standard or custom-shaped components
How Pre-punched Paper Carrier Tape with Round Center Cavity Is Built
- Pre-punched pockets with a central hole at the bottom to prevent component ejection
- No burrs on the middle hole or pocket edges, ensuring clean feeding
- Pockets available in round, ellipse, square, rectangular, and custom shapes
- Pocket depth (K0) adjustable based on paper tape thickness for secure fit
- Compatible with standard reel systems and SMT feeder magazine pitch
- Paper tape thickness fixed at 0.42mm with consistent dimensional stability
- No adhesive required on the bottom side, reducing material cost and processing steps
Pre-punched Paper Carrier Tape with Round Center Cavity Specification
Values are taken from the SEWATE product data for this item.
| Model Number | SE-CT-009 |
|---|---|
| Material | Paper |
| Thickness | 0.42mm |
| Pitch1 (P1) | 2.0±0.03mm to 4.0±0.03mm |
| Pocket Size | Custom round ∅0.35±0.02mm, custom ellipse A:1.57±0.03 B:2.16±0.03mm, custom square A:1.13±0.03 B:1.13±0.03mm, custom rectangular A:1.94±0.03 B:3.20±0.03mm, custom shaped A:2.78±0.03 B:2.78±0.03mm |
| Middle Hole | +∅0.16mm to +∅1.0mm |
| Pocket Depth (K0) | 0.14±0.015mm to 0.33±0.05mm |
| Certification | RoHS |
| MOQ | 5000M |
| Sample Time | 3-5 days or according to customers’ requirements |
| Lead Time | 5-15 days or depend on final quantity |
| Capacity | 5000 Meter/Meters per Day |
| Packaging | Cartons or as customers’ requirement |
| Payment Terms | T/T, L/C, etc. |
| Place of Origin | China |
| Application | SMD SMT encapsulation |
| Experience | More than 20 years experience |
Material Choice for Pre-punched Paper Carrier Tape with Round Center Cavity
- Paper tape with a thickness of 0.42mm is used for its dimensional stability and compatibility with standard reel systems
- The material is chosen for low cost, ease of processing, and compatibility with SMT feeding mechanisms
- No adhesive is applied to the bottom side, reducing material cost and eliminating adhesive residue
How Pre-punched Paper Carrier Tape with Round Center Cavity Is Made
- Review of the application and component profile to determine pocket size, shape, and pitch
- Creation of a die design based on the customer’s drawing, sample, or specification
- Die making and trial punching to verify pocket fit and middle hole alignment
- Sample production of 5000 meters for fit testing on the actual component
- Mass production of the approved tape at 5000 meters per day
- Cutting to length and winding onto reels with proper tension control
- Inspection for burr-free holes, consistent pocket depth, and dimensional accuracy
- Packing into cartons or as per customer packaging requirement
Quality Control on Pre-punched Paper Carrier Tape with Round Center Cavity
- Dimensional checks on pocket size, pitch, and middle hole diameter using calibrated gauges
- Visual inspection for burrs, dander, or edge defects on the middle hole and pocket edges
- Fit testing of sample tape with the actual component to confirm no ejection or misalignment
- Consistent pocket depth (K0) verified within the specified tolerance range
- Tension and winding quality checked to prevent tape slack or damage during handling
- After-sales support available for any issues with shipped lots
Customising Pre-punched Paper Carrier Tape with Round Center Cavity
- Pocket shape customized to round, ellipse, square, rectangular, or any special shape
- Pocket size and depth adjusted to match the component’s body and lead thickness
- Middle hole diameter and position tailored to prevent component ejection
- Pitch (P1) set to 2.0mm to 4.0mm to match feeder magazine spacing
- Tape length cut to customer’s reel size or production batch requirement
- Packaging adjusted to cartons or as per customer’s packing instructions
- Color or printing on tape surface available upon request
Pre-punched Paper Carrier Tape with Round Center Cavity Against the Alternatives
| Standard paper carrier tape with adhesive bottom | This tape eliminates adhesive use, reducing cost and waste, and avoids adhesive residue on components |
|---|---|
| Plastic carrier tape | Paper tape is lower cost and more environmentally friendly, but less durable under high humidity or long storage |
| Tape with no middle hole | The middle hole prevents electrostatic adhesion and component ejection, especially for thin or light parts |
| Standard stock tape with fixed pockets | Custom pockets require one-time die setup but allow fit for non-standard components that stock tape cannot hold |
Using Pre-punched Paper Carrier Tape with Round Center Cavity
- Provide a drawing, component sample, or dimension sheet to define the pocket shape and size
- Confirm pitch (P1) based on your feeder magazine spacing before tooling
- Specify whether the middle hole is needed and its required diameter
- Choose pocket depth (K0) based on component thickness to ensure secure retention
- Use the tape within 6 months of production to avoid moisture absorption and deformation
- Store reels flat in dry, cool conditions away from direct sunlight
- Allow 5-15 days for lead time after sample approval, with MOQ of 5000 meters
