Connector Shipping Tubes
Connector shipping tubes are extruded plastic channels designed to protect electronic connectors, terminal blocks, relays, and similar components during transport and storage.
What Connector Shipping Tubes Actually Is
Connector shipping tubes are extruded plastic channels designed to protect electronic connectors, terminal blocks, relays, and similar components during transport and storage. SEWATE manufactures them in PVC, PS, PC, PETG, and ABS with oval or square profiles matched to the device body, from 50mm to 1000mm in length and 0.30mm to 1.85mm wall thickness. The tubes provide anti-static protection via surface treatment or built-in additives and maintain critical dimensions within 5 mils on PVC and ±2 mils on PC, ensuring reliable feeding into automated assembly equipment without jamming or misalignment.
What Connector Shipping Tubes Buys You
- Holds connectors and terminal blocks in fixed orientation for direct feeding into tube feeders without re-orientation
- Anti-static protection from surface treatment or built-in additives to prevent ESD damage during handling and transit
- Critical dimension control within 5 mils on PVC and ±2 mils on PC ensures consistent fit and reduces feeder jams
- Wall thickness from 0.30mm to 1.85mm allows trade-off between material cost and impact resistance
- Tubes cut to exact length (50mm–1000mm) to match the pitch of your machine magazine or carton layout
- Standard profiles ship in 5-15 days, reducing downtime when replacing a supplier or scaling production
Where Connector Shipping Tubes Is Used
Shipping terminal blocks and connectors from a component plant to an overseas EMS or SMT assembly line
Protecting large or heavy connectors that are too big for tape and reel but still need fixed orientation
Storing relays, switches, and power modules in a warehouse between incoming inspection and production build
Re-packing bulk connectors into fixed-count tubes for kitting, traceability, and inventory control
Protecting long-lead connectors in buffer stock against ESD, dust, and mechanical shock during extended storage
Who Buys Connector Shipping Tubes
- Connector and relay manufacturers shipping finished products to distributors or OEMs
- EMS and SMT plants receiving tube-packed connectors and needing spares for rework or line changes
- IC distributors repackaging bulk connectors for their own customers
- Semiconductor and passive component makers packaging custom or high-value devices
- Purchasing teams replacing a supplier whose tube profile no longer matches the device geometry
Problems Connector Shipping Tubes Removes
- Connectors jam mid-tube due to internal profile drift or dimensional inaccuracy across a production run
- Electrostatic discharge damages sensitive connector contacts during transport or manual handling
- Bulk-packed connectors arrive in random orientation, increasing operator time to load by hand
- Tubes crack on drop in transit, spilling connectors inside the carton and causing damage
- Large or heavy connectors cannot fit into tape and reel pockets but still require fixed orientation
- Anti-static performance fades after wiping or long storage when only surface treatment is used
How Connector Shipping Tubes Is Built

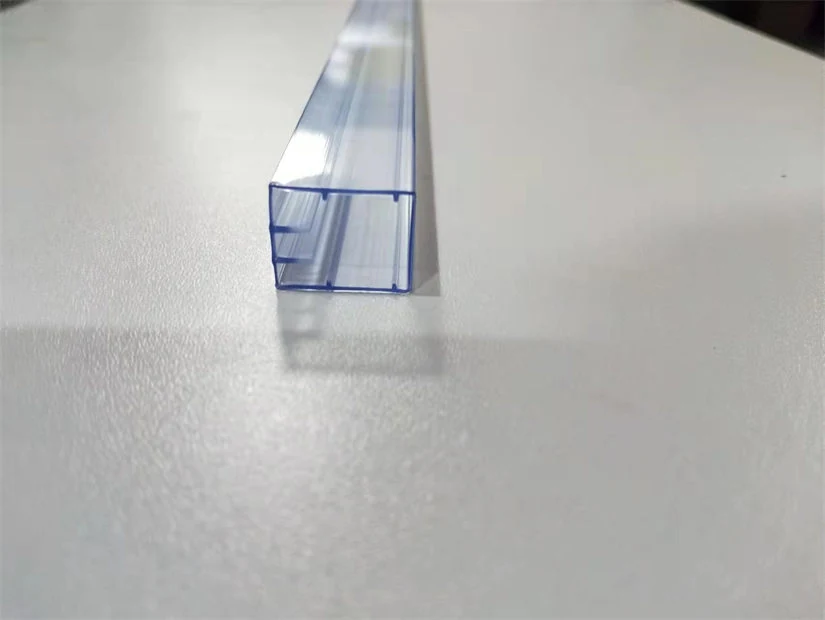

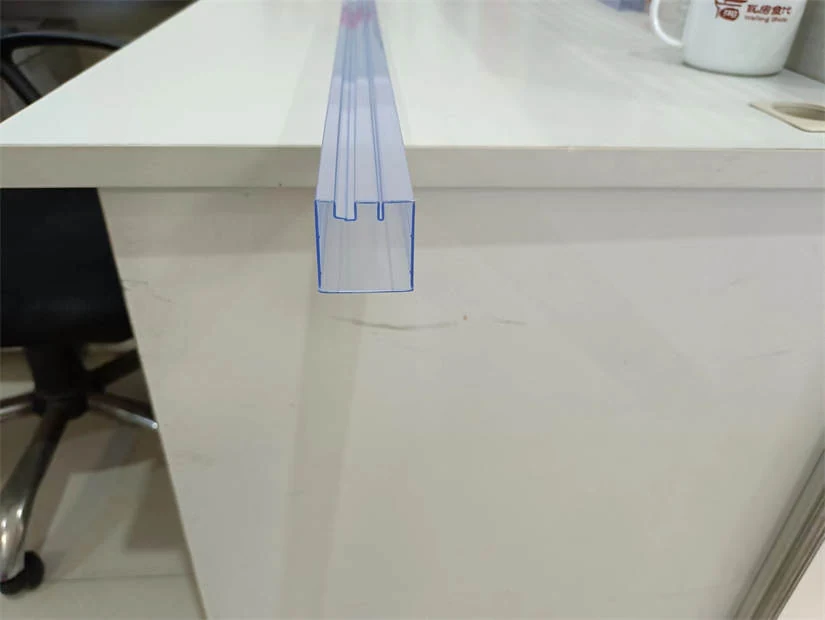

- Oval or square extruded profile matched to the connector body and lead span
- Anti-static achieved by surface layer process or by additives built into the resin
- Symbols and part numbers can be printed on the tube surface for traceability

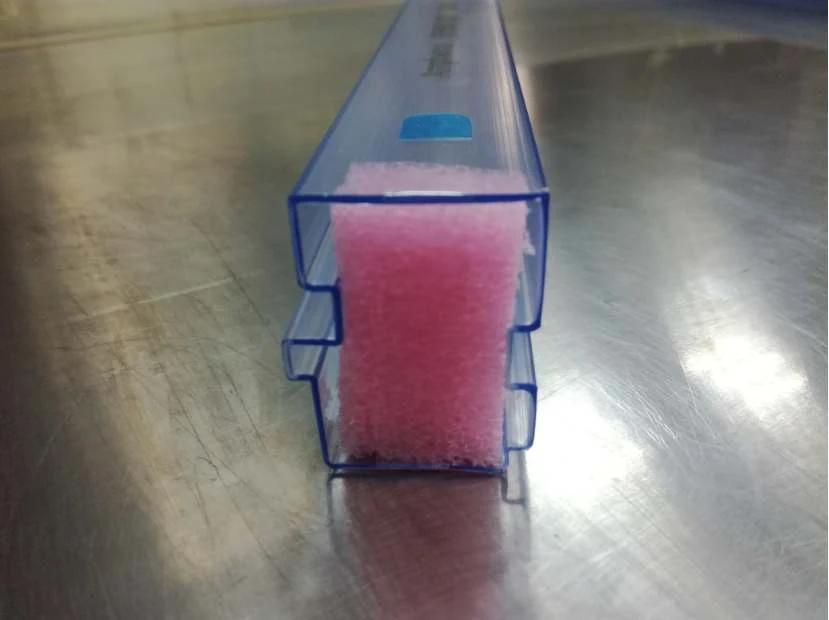

- Rubber end plugs, plastic pins, nails, plastic caps, and EPE plugs available as closures
- Stable dimension and smooth internal surface to prevent binding during device movement
- High impact strength and drop resistance for crack-free tubes after carton handling
Connector Shipping Tubes Specification
Values are taken from the SEWATE product data for this item.
| Model Number | SE-IC-Connector |
|---|---|
| Wall Thickness | 0.30mm-1.85mm |
| Profile | Oval or square or customized |
| Material | PVC / PS / PC / PETG / ABS |
| Colour | Transparent, blue, black, red, yellow, purple |
| Dimension Control | Within 5 mils on PVC, ±2 mils on PC |
| Certification | RoHS |
| MOQ | 10000 pieces |
| Sample Time | 3-5 days or according to customers’ requirements |
| Lead Time | 5-15 days or depend on final quantity |
| Capacity | 500000 pcs per week |
| Supply Ability | Monthly output of final products is 150 tons |
| Packaging | Cartons or as customer requirement |
| Payment Terms | T/T, L/C, etc. |
| Place of Origin | Shenzhen, China |
Material Choice for Connector Shipping Tubes
- PVC provides high strength, good flexibility, stable geometry, and long storage life; standard choice for most connector tubes
- PS is halogen free, easy to process, and low cost; offers improved clarity and impact strength over standard PVC
- PC is used when tighter tolerances are needed (±2 mils), higher temperature resistance, or superior impact strength is required
- PETG offers the strongest impact resistance and excellent clarity; ideal for heavy-duty or large connector packages
- ABS is selected when high impact strength is needed and transparency is less critical
How Connector Shipping Tubes Is Made
- Review of application requirements and tube functionality during quotation stage
- Drawing created from purchase order and issued for customer approval before tooling
- Mould making and tooling trial on the approved profile
- Sample production with 20-50 free tubes for fit testing on the actual connector
- Extrusion of the approved profile followed by cutting to the ordered length
- Anti-static treatment applied via surface layer process or built-in additive as specified
- Plug fitting, counting, and packing into cartons according to customer requirements
Quality Control on Connector Shipping Tubes
- Critical dimension control within 5 mils on PVC and ±2 mils on PC to ensure consistent device fit
- Fit testing of sample tubes against the actual connector or drawing before mass production
- Anti-static value verified to remain stable after handling and long-term storage
- Drop and pressure tests performed on the tube body before packing
- Quality management system compliant with ISO14001, with after-sales support on shipped lots
Customising Connector Shipping Tubes
- Tube length cut to match your machine magazine or carton pitch, from 50mm to 1000mm
- Internal profile designed from your tube drawing, device drawing, or physical sample
- Material selected from PVC, PS, PC, PETG, or ABS based on cost, clarity, and impact needs
- Colour chosen from transparent, blue, black, red, yellow, or purple for line identification
- Anti-static method specified as surface treated or additive loaded based on storage and handling
- Surface printing of symbols, part numbers, or handling marks for traceability
- Closure selected from rubber end plugs, plastic pins, nails, plastic caps, or EPE plugs
Connector Shipping Tubes Against the Alternatives
| Tape and reel | Tubes handle larger, heavier, or irregularly shaped connectors that tape pockets cannot hold, but tape is better for high-volume automated placement of small SMD parts |
|---|---|
| Vacuum formed trays | Trays offer better protection for fine-pitch or fragile packages, but tubes are lower cost per unit and load directly into tube feeders |
| Bulk bag packing | Tubes cost more per unit than bulk bags but eliminate random orientation, ESD exposure, and manual loading time |
| Standard stock tubes from a catalogue | Custom profiles require one-time tooling and 4-6 weeks lead time, but stock profiles ship in 5-15 days and only fit devices the profile was designed for |
Using Connector Shipping Tubes
- Send a tube drawing, device drawing, or physical sample so the internal profile can be matched
- If no drawing exists, send the physical connector so the profile can be measured directly
- Confirm tube length against the magazine pitch on your insertion or placement machine before tooling
- Specify whether anti-static must survive repeated wiping or long-term storage to select the right treatment
- Choose the closure type: rubber plugs for repeated opening, pins for one-way shipping
- Store tubes flat and dry in cartons, away from direct sunlight to prevent deformation
- Plan for one-time tooling cost and 4-6 weeks lead time when introducing a new custom profile
Related Products
Other items in the IC Tubes line that buyers compare with connector shipping tubes.
Small Relay Shipping Tubes
Small Relay Shipping Tubes are extruded plastic channels designed specifically for through-hole and surface-mount relays, switches, and similar components.
View Details
ESD Shipping Tubes
ESD shipping tubes are extruded plastic channels designed to protect electronic components from electrostatic discharge, mechanical shock, and environmental damage during transport and storage.
View Details
Anti-Static IC tubes for IC, SOP,DIP,TO-220,PLCC
Anti-Static IC Tubes are extruded plastic channels designed for packaging through-hole and surface-mount electronic components including ICs, SOP, DIP, TO-220, and PLCC packages.
View DetailsRelated Guides
Background reading before you specify connector shipping tubes.
How Anti Static IC Tubes Are Made From PVC
The process starts with PVC resin fed into an extruder.
Read Guide
Vacuum Formed Trays For Component Packaging
Vacuum formed trays are made by heating a plastic sheet, stretching it over a mold, and pulling it down with vacuum pressure.
Read Guide
Why IC Shipping Tube MOQ Is High
The minimum order quantity for custom anti-static IC shipping tubes is high because each production run requires machine re-molding, setup adjustment and dimensional verification.
Read GuideWhere It Is Used
Where connector shipping tubes is used in production.
Semiconductor And IC Distribution
IC distributors and semiconductor plants handle devices that are sensitive to electrostatic discharge, mechanical shock, and orientation changes during transit.
See ApplicationConnectors Relays And Switches
Connectors, relays, terminal blocks, switches and power modules are too large or heavy for standard tape and reel packaging.
See ApplicationQuestions About Connector Shipping Tubes
What is the minimum order quantity for connector shipping tubes?
10000 pieces on standard profiles. The MOQ is driven by extrusion setup costs; short runs are not economical due to the time and material required for tooling changeover.
How long does a stock tube order take?
5-15 days depending on quantity. Sample tubes for fit testing are delivered in 3-5 days.
What is the lead time for a custom connector tube profile?
A basic low volume project can be 25-day ARO. Typical lead time is 4-6 weeks. Complex tools or high volume items may take 10-12 weeks.
What do you need from me to quote a connector tube?
One of: a tube drawing, a device drawing, or a physical sample. If none exists, send the actual connector and we will measure the profile from it.
Which material should I choose for my connector tube?
PVC is the standard for strength and stability. PS is halogen free and lower cost. PC offers tighter tolerances and higher impact. PETG has the strongest impact resistance. ABS is used when impact strength is critical and transparency is not.
Is the anti-static property permanent?
It depends on the method. Surface treatment can degrade with wiping or long storage. Additives built into the resin maintain anti-static performance longer. Specify your storage duration and handling to select the right option.
Do the tubes come with plugs?
Yes. Rubber end plugs, plastic pins, nails, plastic caps, and EPE plugs are available and selected based on the tube profile and how often the tube will be opened
Send the Device and Get Connector Shipping Tubes Quoted
A drawing, a sample or the physical component is enough. Sales and engineering come back within 24 hours.
