Non Woven Folding And Rewinding Machine
Fold Wide Non Woven Twice Then Rewind To Set Length At 90 M Per Minute
What This Machine Does

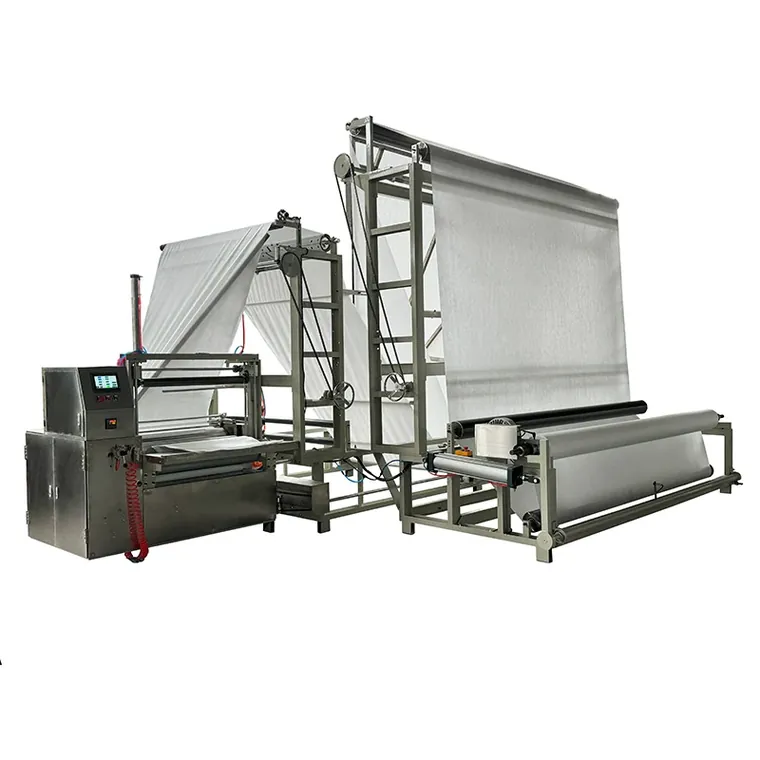

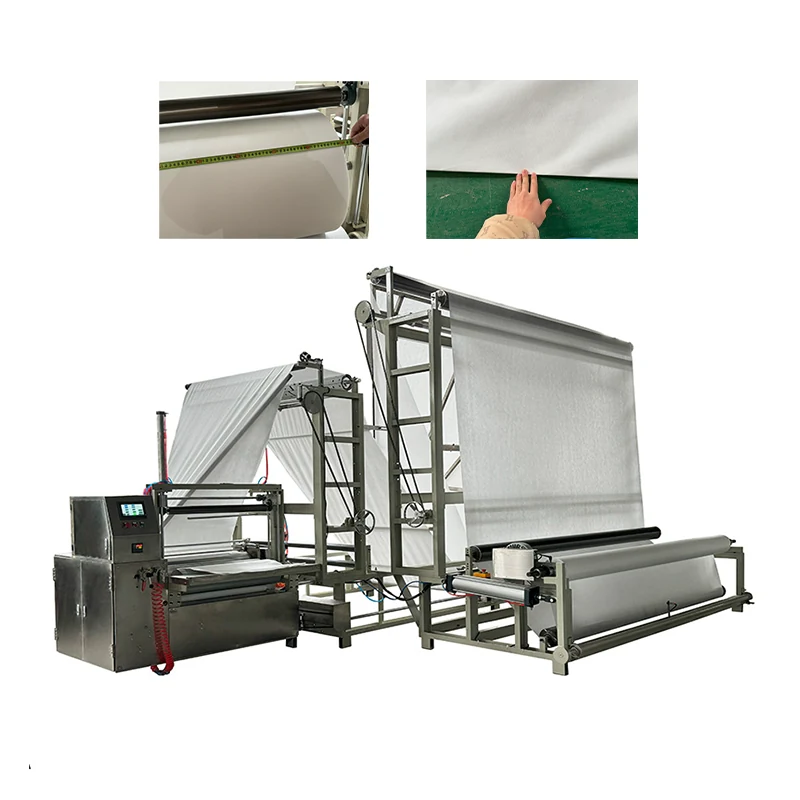

The AQ-R(3200) Non Woven Folding And Rewinding Machine takes material up to 3.2 m wide, folds it in half, folds it in half again and rewinds the folded web to the cutting length you set, at about 80 to 90 m per minute. A magnetic powder tension controller lets tension be matched to the fabric weight, and the half folding devices use stainless steel. Machine dimensions are about 7.00 x 3.80 x 3.70 m with a total power of 9.5 kW at 380 V.
- Spunbond non woven
- Spunlace non woven
- Agricultural cover fabric
Why Buyers Choose This Model
Double folding narrows a 3.2 m web to a manageable roll that fits standard packaging and containers
80 to 90 m/min throughput keeps a wide production line moving without a second folding station
Magnetic powder tension control adapts to light and heavy non woven without mechanical changes
Rewinding to a set cutting length means finished rolls are consistent and sellable by the metre
Factories Running This Machine
- Non woven mills producing wide web
- Converters buying wide material and refolding it
- Exporters constrained by container width
- Factories feeding folded material to downstream lines
What It Removes From Your Line
- Wide rolls that will not fit standard racking, packing or containers
- Tension that must be re-set mechanically for each fabric weight
- Slow folding stations that hold back a wide production line
- Roll length that cannot be guaranteed to the customer
Where This Machine Is Used
- Folding wide spunbond rolls for shipping and storage
- Preparing folded rolls for apron and garment production
- Agricultural cover material folding
- Converting wide jumbo rolls into narrow folded packs
How The Machine Is Built
- Maximum material width 3.2 m
- Two half folding stages in stainless steel
- Rewinding to the cutting length you set
- Production speed about 80-90 m/min
- Magnetic powder tension controller with adjustment for fabric weight
- Machine size about 7.00 x 3.80 x 3.70 m, total power 9.5 kW at 380 V, shafts for 76 mm cores
| Machine Model | AQ-R(3200) |
|---|---|
| Warranty Period | 1 year |
| Delivery Time | about 35 days |
| Customization | Yes (as your requests) |
| HS Code | 8451500000 |
Production Sequence On This Line
Unwinding
Magnetic powder tension control
First half fold
Second half fold
Length-set rewinding
What We Check Before Shipment
- Folded edge alignment checked at full speed
- Length accuracy verified against the set cutting length
- Tension controller response tested across fabric weights
- Full-speed run-off before crating
What We Build To Your Specification
- Maximum width built to your web
- Number of folding stages configured
- Core diameter and rewind length set to your packing
- Voltage and frequency set to your plant
Machine And Product Detail

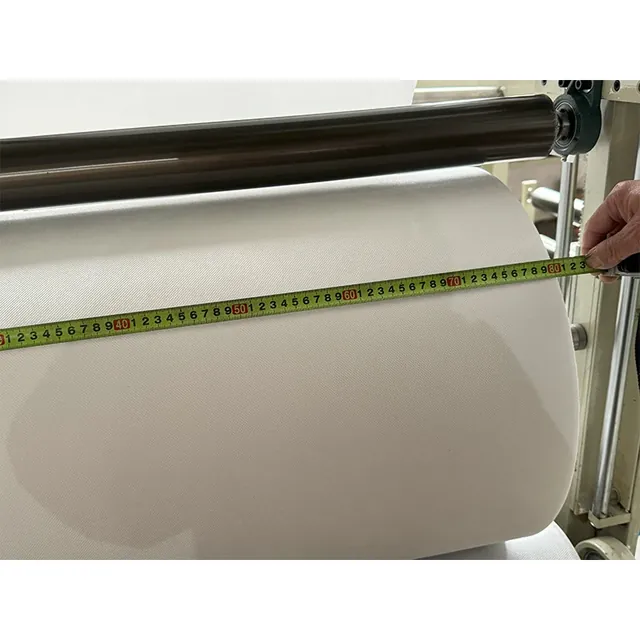

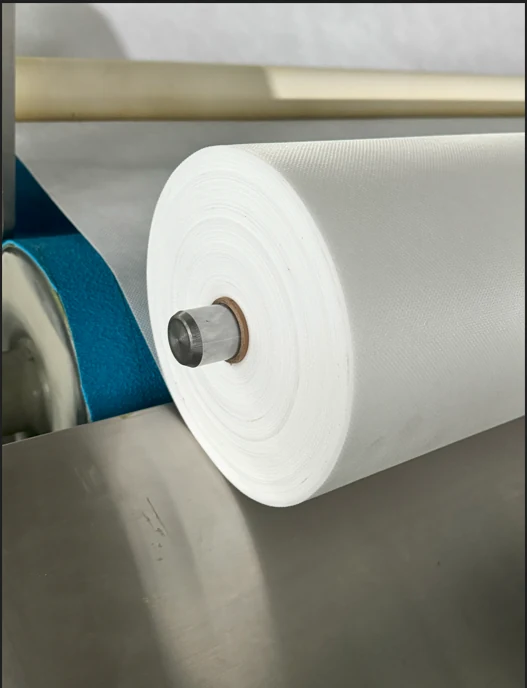

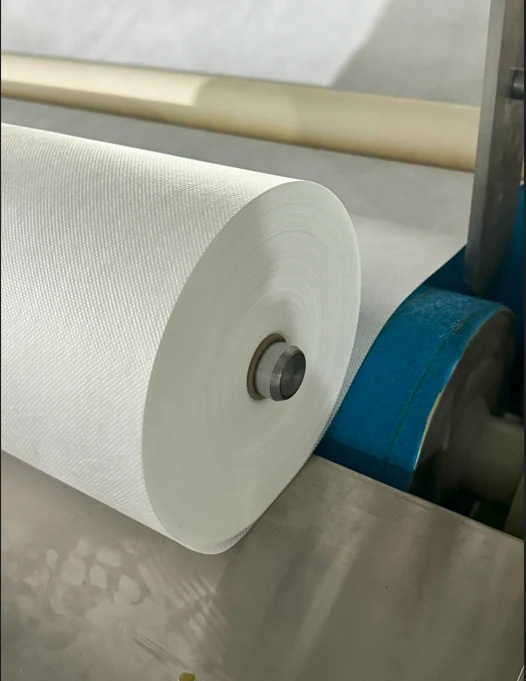

Photographs taken in our own factory and of output produced on this machine family.
How This Model Compares
Compared With Large non woven rewinding machine AQ-R(3500)
The AQ-R(3500) adds embossing, scoring, counting and slitting. This model concentrates on wide folding plus length-set rewinding.
Compared With Sheet folding machines
A sheet folder cuts discrete pieces. This machine keeps the web continuous and delivers a folded roll.
Setting The Machine For A Production Run
Load the wide roll and set the magnetic powder tension for the fabric weight
Thread through both half folding stages and check edge alignment
Enter the cutting length for the rewind
Run at reduced speed to verify, then raise to production speed
Industries Using This Machine
Further Reading
Tension Control Modes For Non Woven Converting Explained
Magnetic powder, lateral, conveyor belt and servo tension control: what each one does, and which non woven mat...
Non Woven Fold Types N Fold W Fold And Half Fold Explained
What each fold does for the end user, which products use it, and what the fold pattern costs you in machine ca...
Other Machines In This Family
Non Woven Slitting And Rewinding Machine
Slit And Rewind Jumbo Non Woven Rolls Into Retail Size Without Telescoping
Model AQ-R(1800)
Non Woven Fabrics Slitting And Rewinding Machine
Adjustable Width Slitting With Automatic Tension Controlled Rewinding
Model AQ-FR
Non Woven Fabric Inspection Machine
Unwind Inspect Count And Rewind Non Woven At Up To 120 M Per Minute
Model AQ-I(1600)
Woven Fabrics Slitting And Rewinding Machine
PP Woven And Non Woven Slitting With Four Selectable Tension Modes
Model AQ-R (1200-3500)Non Woven Folding And Rewinding Machine FAQ
What is the maximum material width?
The machine takes material up to 3.2 m wide and folds it twice before rewinding.
How fast does it run?
Production speed is about 80 to 90 m per minute, depending on fabric weight and fold quality requirements.
How is tension controlled?
By a magnetic powder tension controller, which can be adjusted for non woven fabrics of different weight.
What are the machine dimensions and power?
About 7.00 x 3.80 x 3.70 m (L x W x H) with a total power of 9.5 kW at 380 V.
Get A Quotation For The AQ-R(3200)
Tell us your finished product size, fabric weight, output target and voltage, and we confirm the Non Woven Folding And Rewinding Machine specification, price and delivery.
