Woven Fabrics Slitting And Rewinding Machine
PP Woven And Non Woven Slitting With Four Selectable Tension Modes
What This Machine Does
The AQ-R (1200-3500) Woven Fabrics Slitting And Rewinding Machine slits and rewinds PP woven bag fabric, and also handles spunlace, needle punched, melt blown, heat seal and spunbond non woven, textile material and paper. Automatic routing, infrared counting with auto stop and variable frequency speed control run the line, while four selectable tension modes let the operator match control to the material instead of forcing one setting on everything. Working widths are built in the 1200 to 3500 mm range.
- PP woven fabric
- Spunlace, needle punched, melt blown, heat seal and spunbond non woven
- Textile material
- Paper
Why Buyers Choose This Model
Four tension control modes, magnetic powder, lateral, conveyor belt and servo, cover stiff woven and soft non woven on one machine
Infrared automatic counting with auto stop delivers rolls at the ordered length without operator measurement
Wide build range from 1200 to 3500 mm means the machine is sized to your jumbo rolls rather than the other way round
Handling woven, non woven, textile and paper makes the machine useful across several product lines
Factories Running This Machine
- PP woven bag manufacturers
- Non woven converters handling mixed material types
- Trading companies offering slitting to order
- Plants that need one slitter for several material families
What It Removes From Your Line
- One fixed tension setting that works for woven but crushes soft non woven
- Rolls cut to approximate length because counting is manual
- Separate machines bought for woven, non woven and paper
- Speed changes that upset tension and spoil the wind
Where This Machine Is Used
- Slitting PP woven bag fabric for sack and FIBC producers
- Converting spunbond and melt blown jumbo rolls to order width
- Textile material slitting for garment and industrial customers
- Paper slitting on a shared converting floor
How The Machine Is Built
- Build width range 1200 to 3500 mm
- Slitting, unwinding and rewinding devices with automatic routing
- Infrared ray automatic counting and auto stop unit
- Variable frequency converter for speed control
- Four tension control modes: magnetic powder, lateral, conveyor belt and servo
- Speed up to about 150 m/min, total power 7 kW at 380 V / 50 Hz, weight about 3000 kg
| Machine Model | AQ-R (1200-3500) |
|---|---|
| Warranty Period | 1 year |
| Delivery Time | about 35 days |
| Customization | Yes (as your requests) |
| HS Code | 8451500000 |
Production Sequence On This Line
Unwinding
Automatic routing
Slitting
Tension control
Counting
Rewinding
What We Check Before Shipment
- Each tension mode tested on the material you intend to run
- Counter calibrated against a measured length before shipment
- Slit edge quality checked at every knife position
- Full-speed run-off at your working width before crating
What We Build To Your Specification
- Working width built anywhere in the 1200 to 3500 mm range
- Number of slitting knives set to your order pattern
- Core and finished roll diameter set to your packing standard
- Voltage and frequency configured for your plant

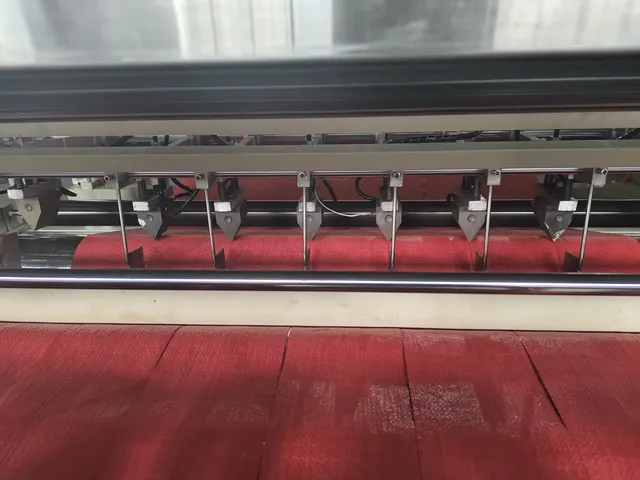

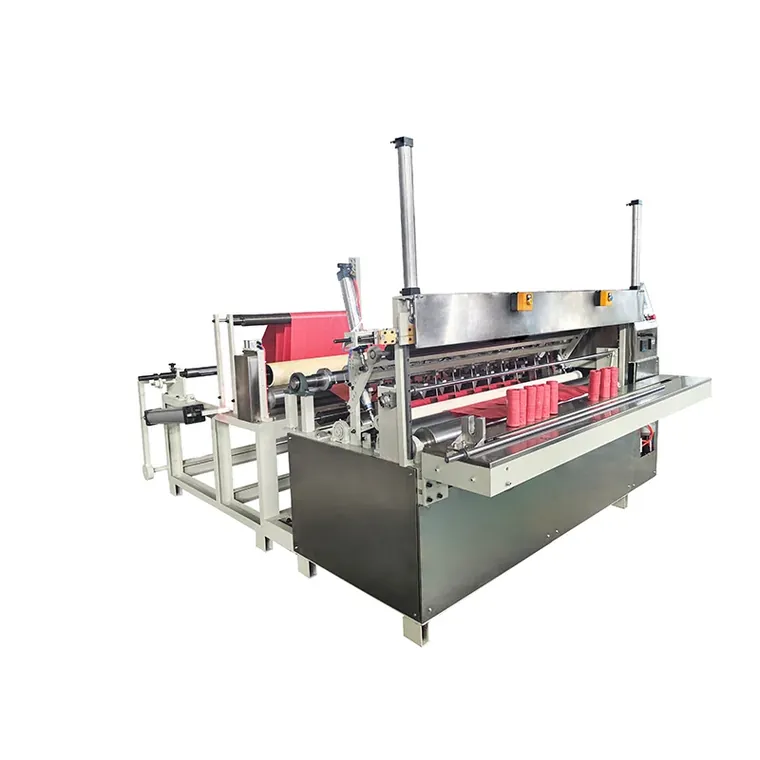

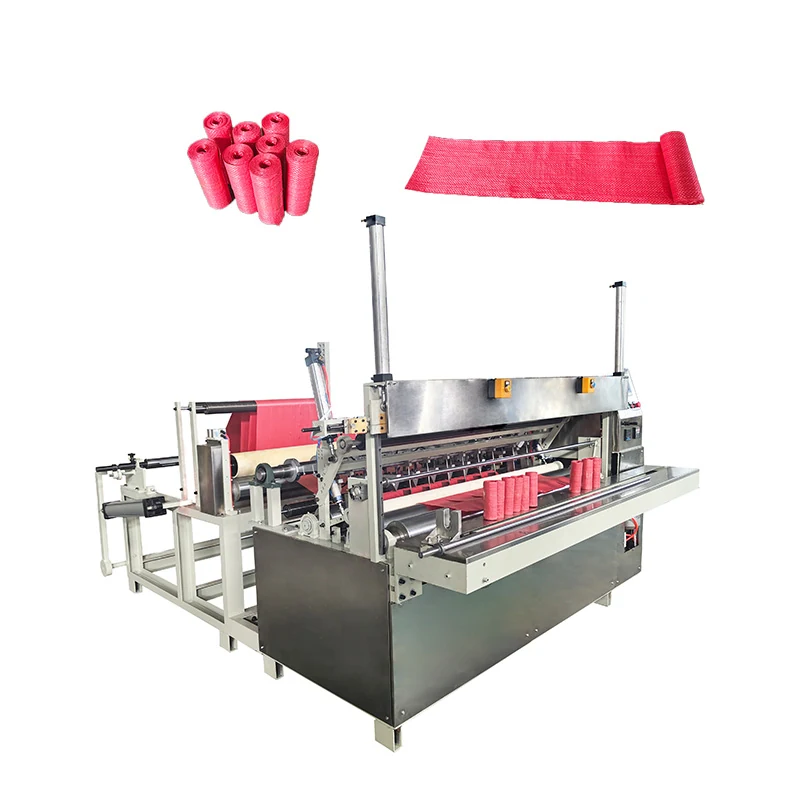

Machine And Product Detail
Photographs taken in our own factory and of output produced on this machine family.
How This Model Compares
Compared With AQ-FR non woven slitting machine
The AQ-FR is built around soft non woven. The AQ-R adds tension modes and frame strength for stiff PP woven fabric and wide rolls.
Compared With Single-mode slitters
A slitter with one tension mode forces a compromise. Switching modes here lets the same frame run woven, non woven and paper properly.
Setting The Machine For A Production Run
Select the tension mode that matches the material family
Set knife positions and thread the web through the automatic routing section
Enter the target length so the infrared counter stops the machine
Run a test roll, check edges and firmness, then run the order
Industries Using This Machine
Other Machines In This Family
Non Woven Slitting And Rewinding Machine
Slit And Rewind Jumbo Non Woven Rolls Into Retail Size Without Telescoping
Model AQ-R(1800)
Non Woven Fabrics Slitting And Rewinding Machine
Adjustable Width Slitting With Automatic Tension Controlled Rewinding
Model AQ-FR
Non Woven Fabric Inspection Machine
Unwind Inspect Count And Rewind Non Woven At Up To 120 M Per Minute
Model AQ-I(1600)
Non Woven Soft Towel Rewinding Machine
Soft Towel Rolls Rewound With Controlled Tension And Clean Perforation
Model AQ-FRWoven Fabrics Slitting And Rewinding Machine FAQ
Which materials can this machine slit?
PP woven bag fabric, spunlace, needle punched, melt blown, heat seal and spunbond non woven, textile material and paper.
What tension control does it use?
Four modes are available: magnetic powder tension control, lateral tension control, conveyor belt control and servo control. You select the mode for the material.
What working widths are available?
The AQ-R family is built from 1200 mm to 3500 mm. Tell us your jumbo roll width and we quote the matching build.
What is the installed power?
Total power is about 7 kW at 380 V / 50 Hz, and the machine weighs about 3000 kg.
Get A Quotation For The AQ-R (1200-3500)
Tell us your finished product size, fabric weight, output target and voltage, and we confirm the Woven Fabrics Slitting And Rewinding Machine specification, price and delivery.
